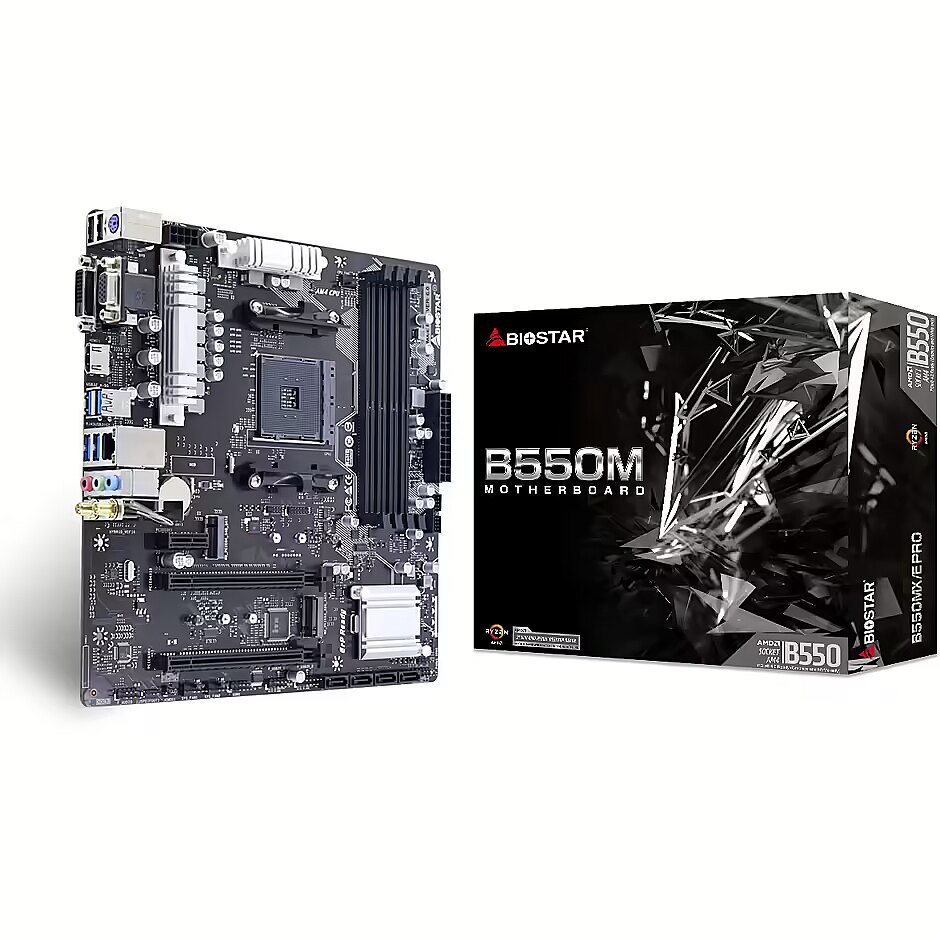

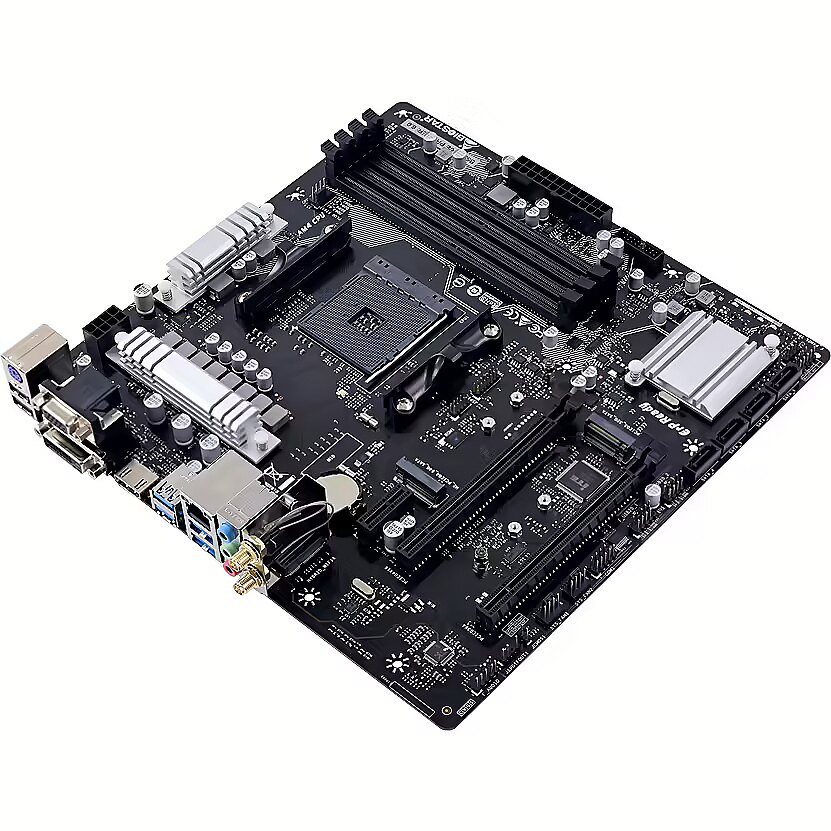

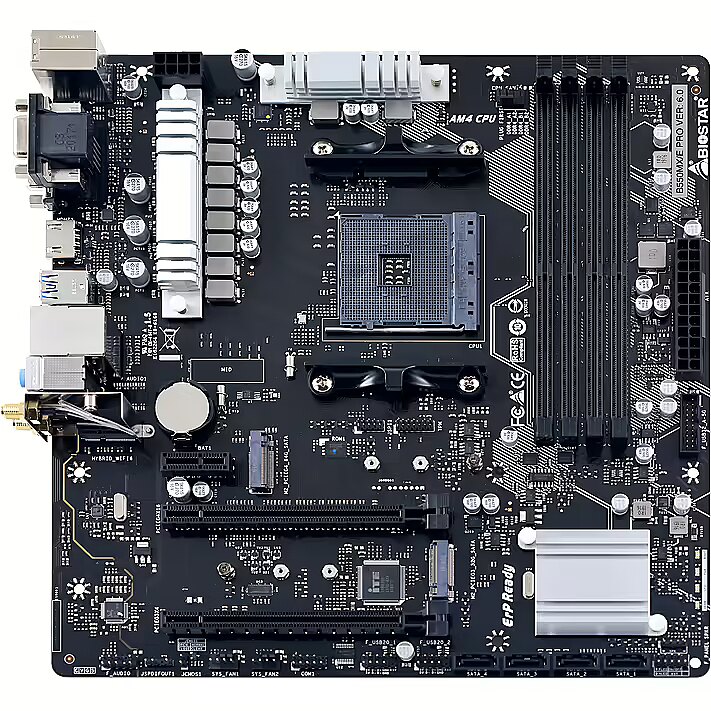

Biostar B550MX/E PRO

15pin D-sub Input/Output connectors - 1
Audio port Input/Output connectors - 3
BIOS - Clear CMOS jumper - Yes
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Description - Supports AMD Ryzen 3rd Gen (Matisse / Renoir) and 4th Gen (Vermeer) processors AMD B550 single chip architecture Supports 4-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC)/3200/2933/2667/2400/2133 up to 128GB maximum capacity Supports PCIe M.2 4.0 (64Gb/s) Supports HDMI 4K resolution Supports WiFi 6 module (No WiFi 6 card included)
dimensionalWeight - 873
DVI-D Input/Output connectors - 1
EAN_code - 4712960685130
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 slots - 2
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2933/3200/3600/3800/4000/4400 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4400/4000/3800/3600/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN Gigabit|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Parallel processing technology support - Not supported
HDMI Input/Output connectors - 1
Included Accessories - 2 x SATA Cable;
1 x I/O Shield;
1 x DVD Driver;
1 x Quick Guide;
1 x WiFi antenna accessories
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
M.2 Expansion slots - 2
Manufacturer - Biostar
Manufacturer_code - B550MX/E PRO
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4933
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR4
Model - B550MX/E PRO
Name - Biostar B550MX / E PRO B550 - Socket AM4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Packaging content - Bundled software - BullGuard
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 3000 Series
Processor - Compatible processor series - AMD Ryzen 5000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
producerCode - B550MX/E PRO
productName - Biostar B550MX/E PRO motherboard AMD B550 Socket AM4 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1

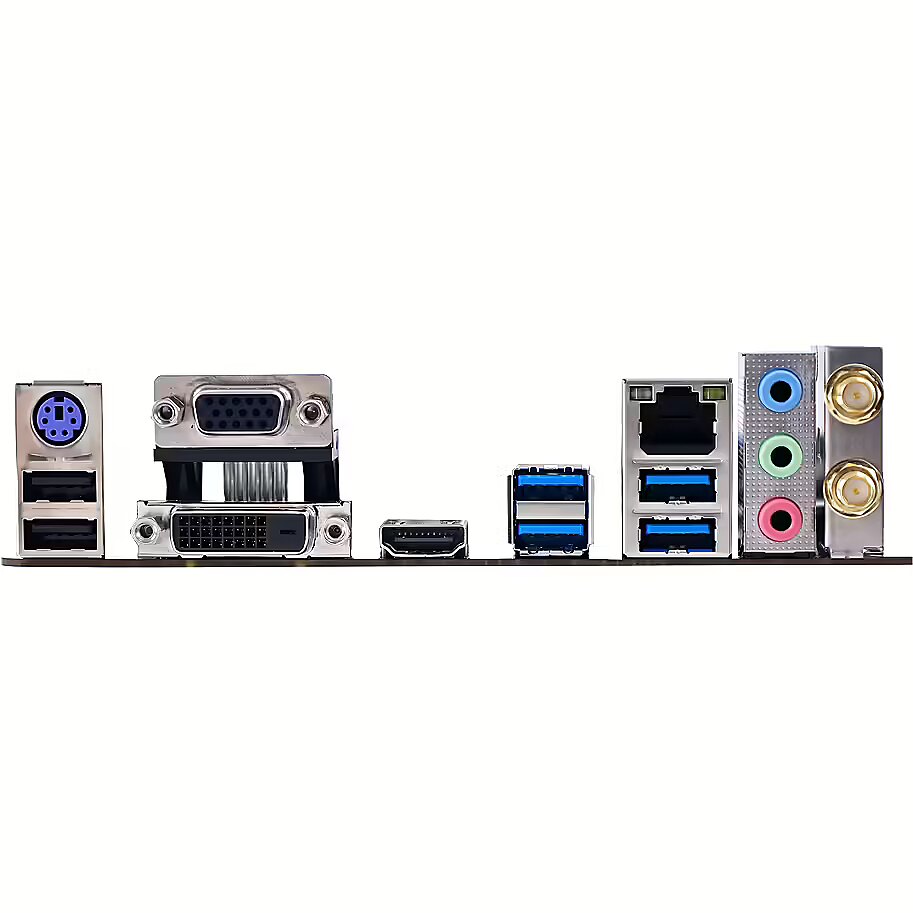

Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.935 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
sizeX - 280
sizeY - 60
sizeZ - 260
Socket - SAM4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
TPM - Header
Unit Brutto Volume - 0.004732 cubm
Unit Gross Weight - 0.935 kg
Unit Net Weight - 0.6 kg
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1011
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0,93
weight - 1000
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
