15pin D-sub Input/Output connectors - 1
Accessories included - Przewodnik instalacji Płyta CD Osłona I/O Kabel SATA x2 Śruba do gniazda M.2
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS - 128Mb AMI UEFI Legal BIOS z obsługą GUI Obsługa "Plug and Play" - zgodność z ACPI 5.1 Obługa SMBIOS 2.3 CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
BIOS - BIOS type - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD A520
Chipset manufacturer - AMD
Chipset type - AMD A520
Code - A520M-HDV
COM connector / port - Yes
CPU socket - Socket AM4
Description - A520M-HDV Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors) 6 Phase Power Design Supports DDR4 4733+ (OC) 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: D-Sub, DVI-D, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3) 6 x USB 3.2 Gen1(4 x Rear, 2 x Front) 6 x USB 2.0(2 x Rear, 4 x Front) Realtek Gigabit LAN
Description - Płyta główna ASRock A520M-HDV
Designation - CE+WEEE
Detailed data on disk/drive interfaces -
dimensionalWeight - 806
dimension depth - 240 mm
dimension height - 60 mm
Dimensions - 23 x 20,1 cm
dimension weight - 791 g
dimension width - 280 mm
DVI-D Input/Output connectors - 1
EAN - 4710483932267
ean - 4710483932267
Eans - 4710483932267
EAN_code - 4710483932267
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1

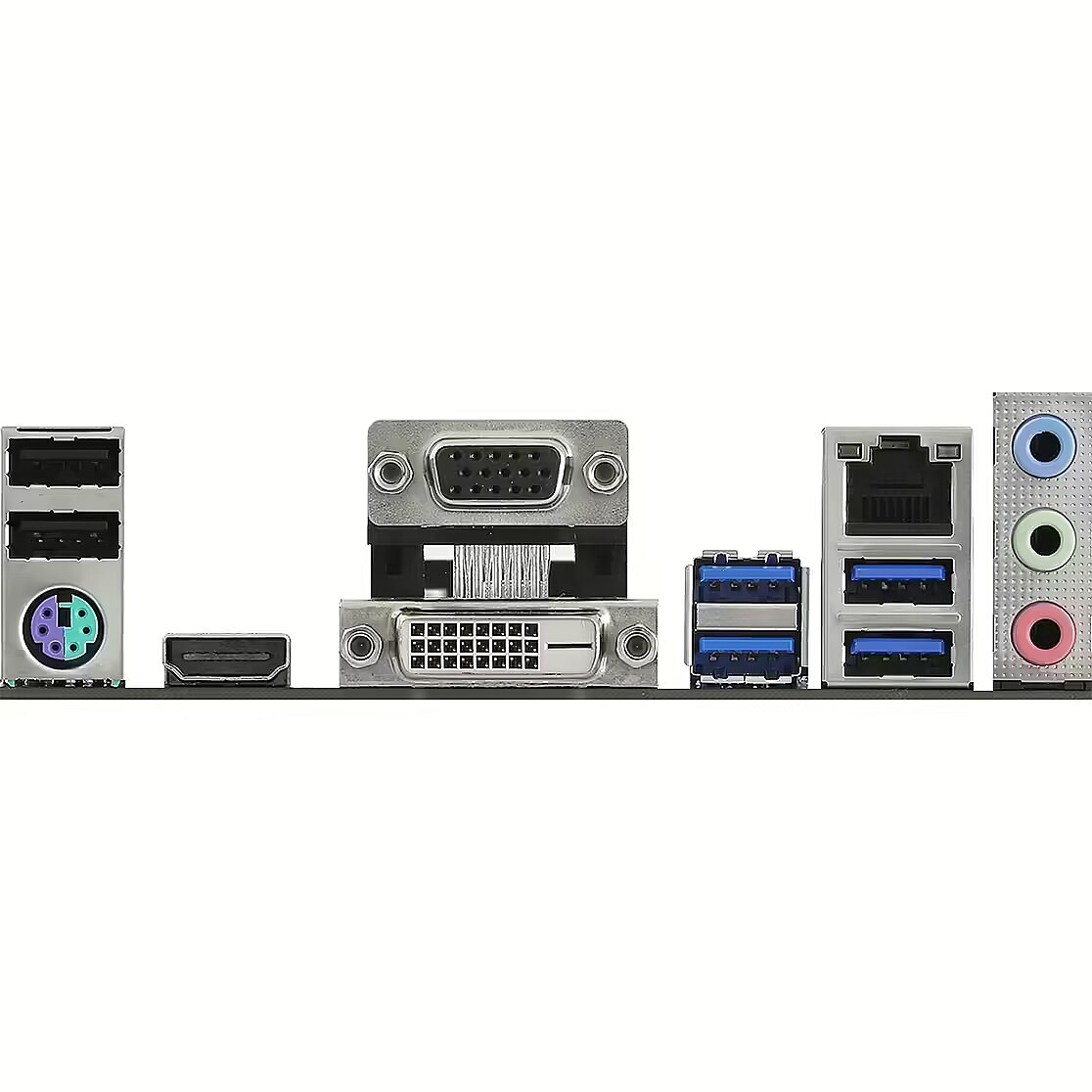

External connectors - 1 x D-Sub
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4733/4600/4400/2133/3466/4333/3200/3866/4666/2400/4200/2666/3800/4000/3600/4266/4133/3733/4466/2933/4533 MHz
Full Description Line - AMD A520|SAM4|Micro-ATX|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC887|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Graphics - Zintegrowana karta graficzna AMD Radeon Vega Series w układzie APU z serii Ryzen DirectX 12, Pixel Shader 5.0 Domyślnie pamięć współdzielona 2 GB. Maksymalna pamięć współdzielona obsługuje do 16 GB. Trzy opcje wyjścia graficznego: D-Sub, DVI-D i HDMI Obsługa trzech monitorów Obsługa HDMI 2.1 z maks. rozdzielczość do 4K x 2K (4096x2160) przy 60 Hz Obsługuje DVI-D z maks. rozdzielczość do 1920x1200 @ 60Hz Obsługuje D-Sub z maks. rozdzielczość do 1920x1200 @ 60Hz Obsługuje Auto Lip Sync, Deep Colour (12bpc), xvYCC i HBR (High Bit Rate Audio) z portem HDMI 2.1 (wymagany jest zgodny monitor HDMI) Obsługuje HDR (High Dynamic Range) z HDMI 2.1 Obsługuje HDCP 2.3 z portami DVI-D i HDMI 2.1 Obsługuje odtwarzanie 4K Ultra HD (UHD) z portem HDMI 2.1 Obsługuje Microsoft PlayReady
Graphics - Graphics card - Radeon Vega
Graphics - Graphics card family - AMD
Gross weight - 1.14 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC887
Integrated LAN - Realtek (Gigabit)
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asrock.com/mb/AMD/A520M-HDV/
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBE50-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133 MHz
Memory - Supported memory clock speeds - 4200
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4333
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4466
Memory - Supported memory clock speeds - 4500
Memory - Supported memory clock speeds - 4533 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4200 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4333 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4533 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4666 MHz
Memory bus frequency - 4733 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4

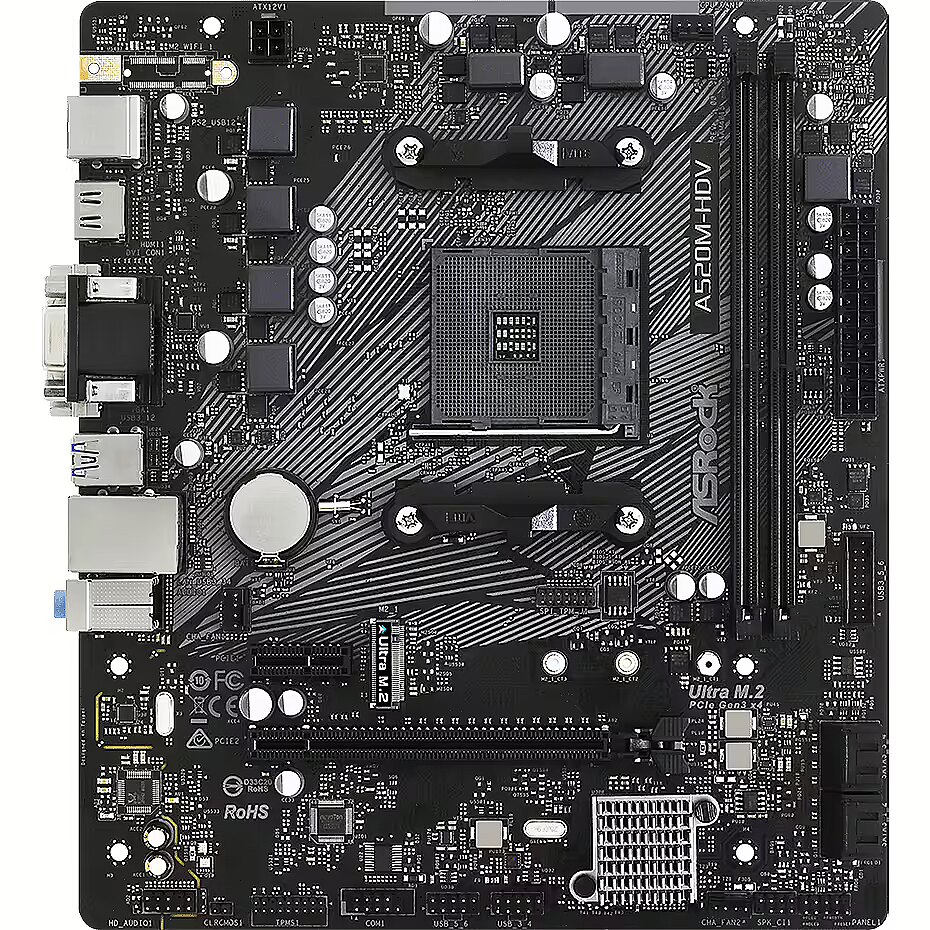

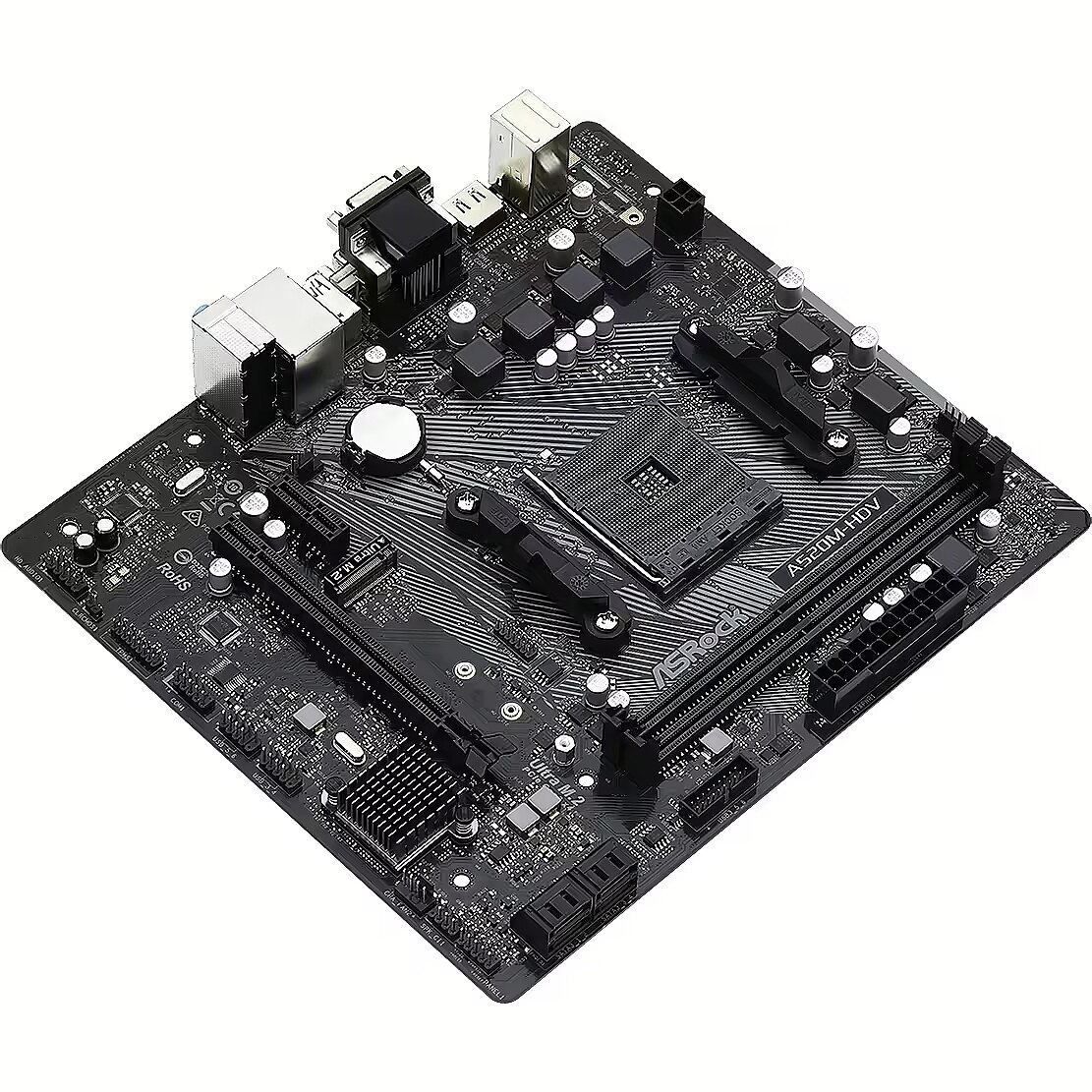

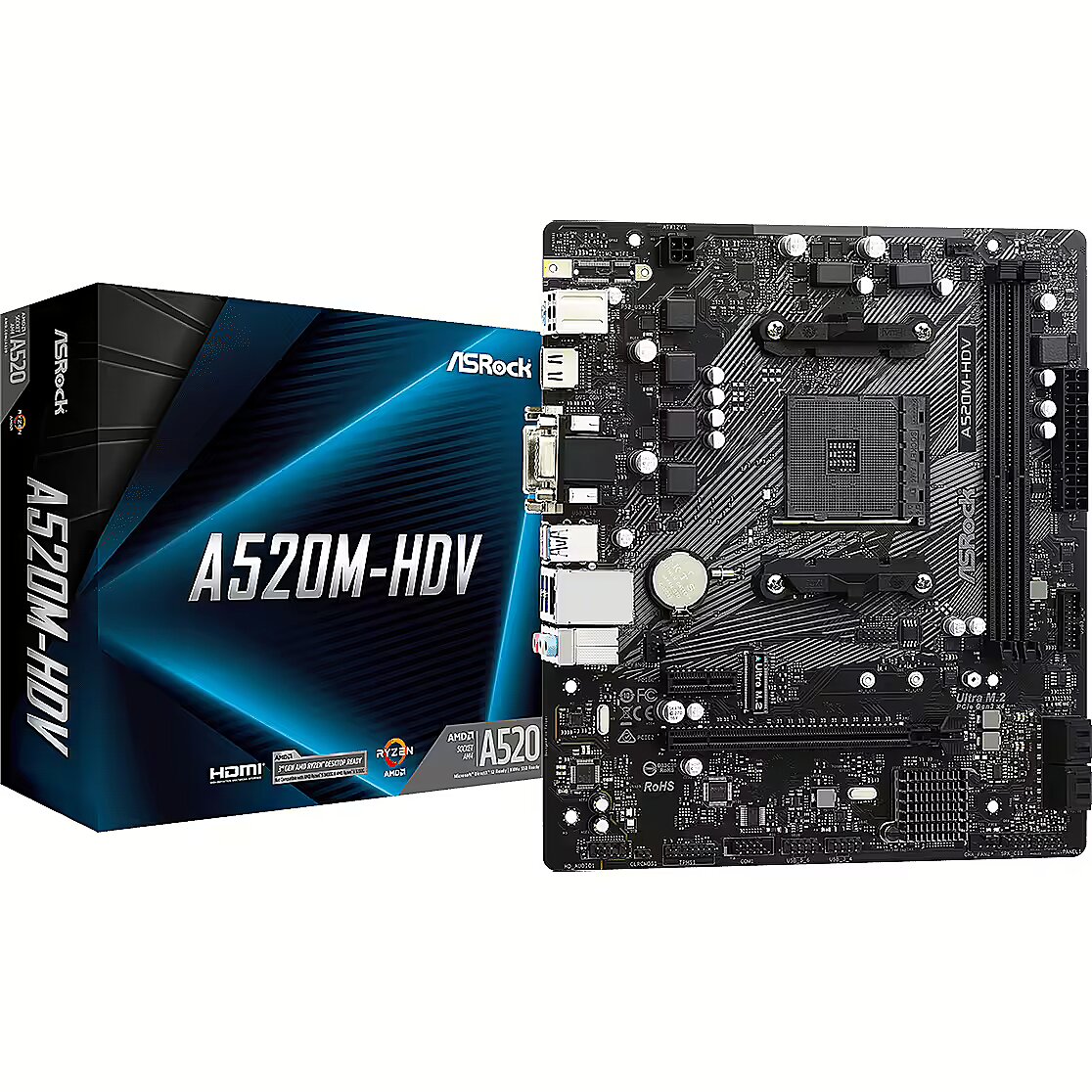

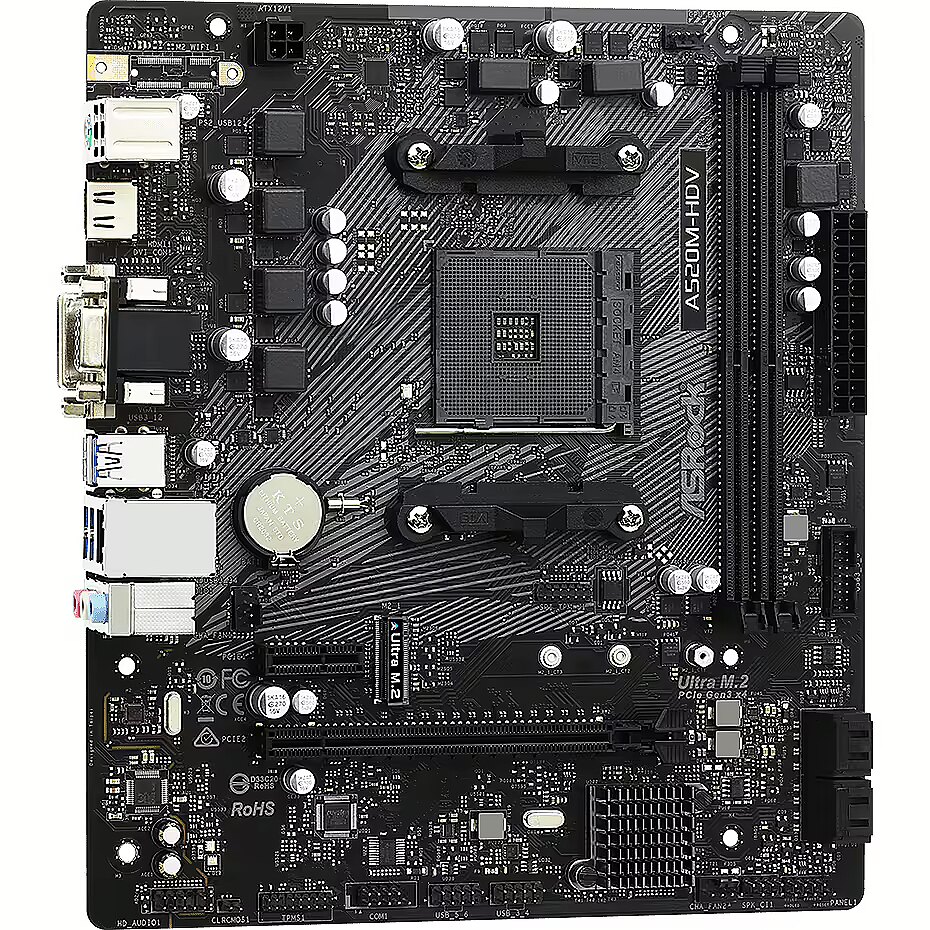

Model - A520M-HDV
MPN - 90-MXBE50-A0UAYZ
Name - AM4 ASRock A520M-HDV mATX
Name - ASRock A520M-HDV
Name - ASRock A520M-HDV - Socket AM4 - motherboard
Name - ASRock | A520M-HDV | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD A520 | Micro ATX
name - Motherboard A520M-HDV AM4 2DDR4 HDMI/DVI/VGA M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek RTL8111H Obsługuje Wake-On-LAN Obsługuje ochronę Lightning / ESD Obsługuje energooszczędny Ethernet 802.3az Obsługuje PXE
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 382.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 320.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 94.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 150 pc(s)
Package features > Paper/Pasteboard - 380.00 g
Package features > Plastic (No PET) - 95.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - AMD A520
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor > Compatible processor series - Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
producerCode - A520M-HDV
ProducerCode - A520M-HDV
Producer product name - A520M-HDV
productName - Asrock A520M-HDV Socket AM4 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 62 cm
Shipping Box Height Shipping/Package Box Dimensions - 50 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 17.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket AM4 | Chipset AMD A520
sizeX - 60
sizeY - 280
sizeZ - 240
Socket - SAM4
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock Full HD UEFI ASRock Instant Flash CD: AntiVirus Software (Trial Version) Google Chrome Browser and Toolbar
Sound card - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Special functions -
Storage controllers - Number of HDDs supported - 5
Storage controllers - Supported storage drive interfaces - M.2, Serial ATA III
Supported operating systems - Windows 10
Technical details > Net weight - 0.67 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.51
Unit Box Length - 0.61
Unit Box Width - 0.0145
Unit Brutto Volume - 0.00465 cubm
Unit Gross Weight - 0.86 kg
Unit Net Weight - 0.6 kg
USB 2.0 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 4
USB ports at back panel - 6
USB ports on motherboard - 3
Vendor Homepage - www.asrock.com/mb/AMD/A520M-HDV/index.asp
vendpn - A520M-HDV
Video -
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0,79
Weight - 0.78
weight - 780
Weight & dimensions - Depth - 201 mm
Weight & dimensions - Width - 230 mm
