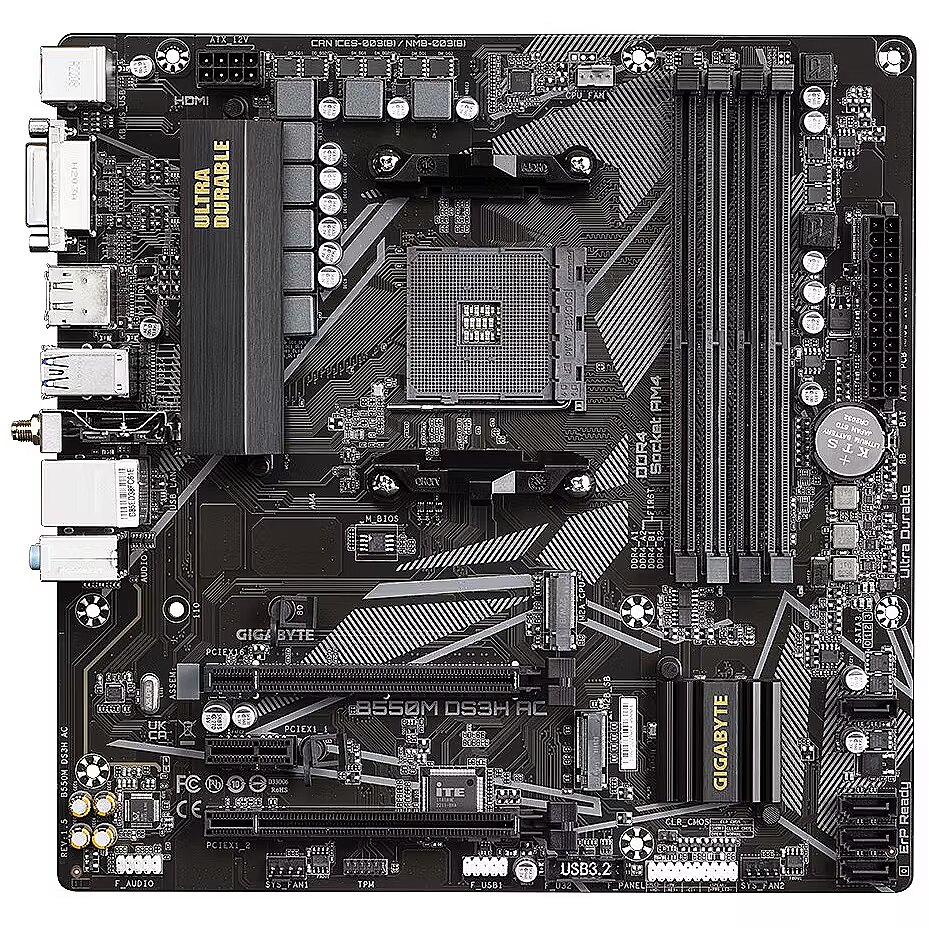

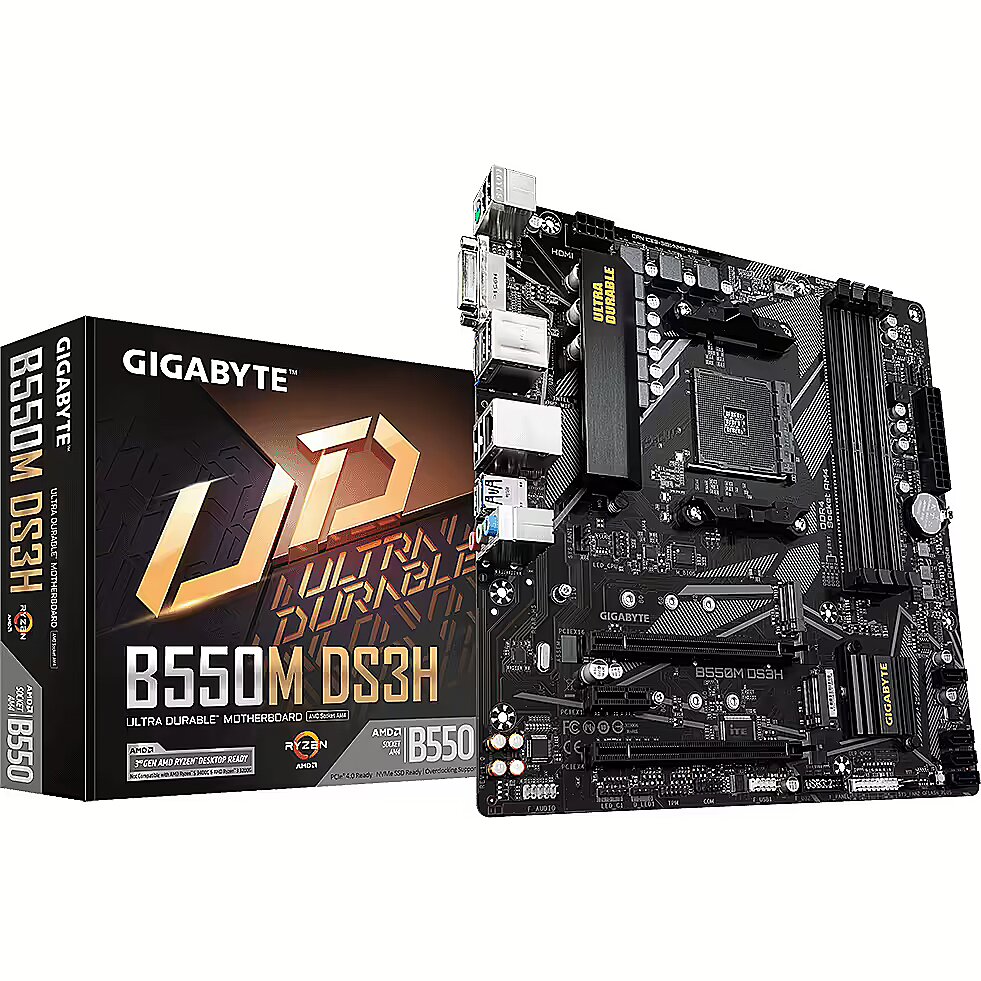

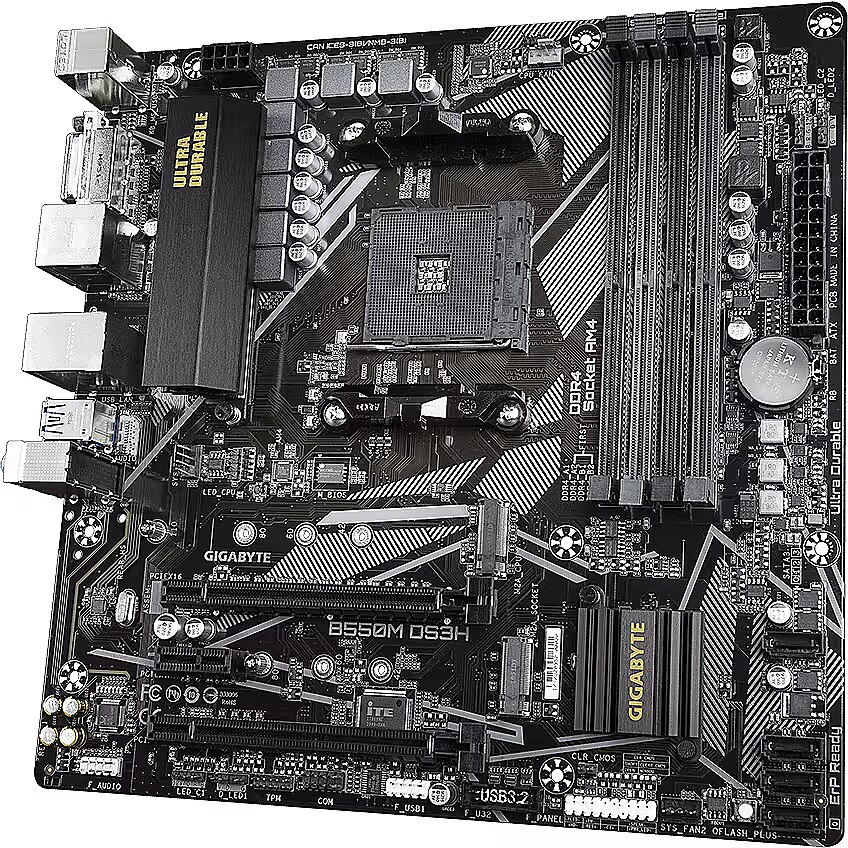

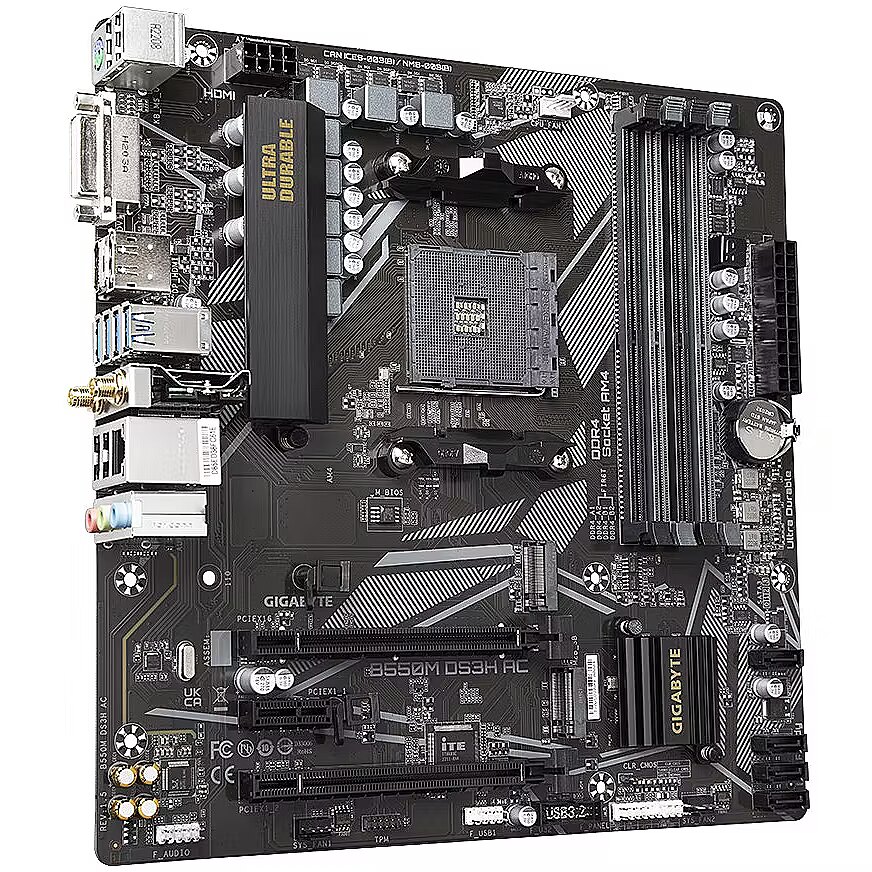

Gigabyte B550M DS3H

Name: Gigabyte B550M DS3H
Brand: Gigabyte
SKU: 574250
Price: 93.74 EUR
Availability: InStock

Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.

ID: 574250 Tootekood: B550M DS3H

Laos >50 üksused

Garantii: 3 aastat

Võrdle

Peamised tooteparameetrid Kõik parameetrid

Seeria: Gigabyte Ultra Durable
Plaadi suurus: mATX
Mikroskeemide siin (chipset): AMD B550
Pistikupesa: AM4
Mälutüüp: DDR4
Mäluslott: 4
Sisseehitatud Wi-Fi: Ei ole
M.2 port: 2

Põhiteave

Seeria : Gigabyte Ultra Durable

Plaadi suurus mATX

Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.

Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.

Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.

Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.

Mikroskeemide siin (chipset) AMD B550

Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.

Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.

Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.

Pistikupesa AM4

Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.

Juhusliku juurdepääsu mälu (RAM)

Mälutüüp : DDR4

Mäluslott 4

Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.

Mälusiin DDR4 3200MHz (4733MHz OC)

Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.

Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.

Graafikakaart

VGA port PCI-EXPRESS

VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.

Integreeritud Videokaart Only with iGPU-ready APU

Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.

Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.

Sadamad ja seadmed

D-Sub : 0

DisplayPort : 0

DVI : 1

HDMI : 1

Integreeritud helikaart : Nav norādīts

PCI pordid 0

PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.

Traadita ühendused

Sisseehitatud Bluetooth : Nav

Sisseehitatud Wi-Fi : Ei ole

Välised sadamad

Väline USB 2.0 : 4

Väline USB Type-C (USB 3.2 Gen2) : 0

Väline USB Type-C (USB 4.0) : 0

Väline USB 3.0 (USB 3.2 Gen1) : 4

Väline USB 3.1 (USB 3.2 Gen2) : 0

Siseportid

Sisemine A-RGB 5V (3-pin) : 2

Sisemine RGB 12V (4-pin) : 2

Sisemine USB 2.0 : 1

Sisemine USB 3.0 : 1

Sisemine USB Type-C : 0

M.2 port : 2

SATA 3 Portid : 4

Täpsem spetsifikatsioon

Lisateave tootja veebilehel Gigabyte B550M DS3H

Accessories included -
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Korzystanie z licencjonowanego systemu BIOS AMI UEFI PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B550M DS3H
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Chipset manufacturer - AMD
Chipset type - AMD B550
code - B550M DS3H
Code - B550M DS3H
COM connector / port - Yes
CPU socket - Socket AM4
Description -
Description - AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus - Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors - Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs - 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs - Ultra Durable™ PCIe 4.0 Ready x16 Slot - Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors - High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality - Realtek GbE LAN with Bandwidth Management - Rear HDMI & DVI Support - RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips - Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP - Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card - Anti-Sulfur Resistors Design
Detailed data on disk/drive interfaces - 1 x złącze M.2 (M2A_CPU), zintegrowane z procesorem, obsługujące Socket 3, klucz M, typ 2242/2260/2280/22110 SSD: Procesory AMD Ryzen 3. generacji obsługują dyski SSD SATA i PCIe 4.0 x4 / x2, AMD Ryzen 3. generacji z procesorami graficznymi Radeon obsługuje dyski SSD SATA i PCIe 3.0 x4 / x2 1 x złącze M.2 (M2B_SB), zintegrowane z mikroukładem, obsługujące Socket 3, klucz M, dyski SSD typu 2242/2260/2280: Obsługa dysków SSD SATA i PCIe 3.0 x2 4 złącza SATA 6 Gb / s zintegrowane z chipsetem: Obsługa RAID 0, RAID 1 i RAID 10
dimensionalWeight - 816
dimension depth - 55 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 940 g
dimension width - 270 mm
DVI-D Input/Output connectors - 1
ean - 889523022917
EAN - 4719331809416
ean - 4719331809416
Eans - 4719331809416
EAN_code - 4719331809416
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 4 x PCIe 3.0 x 16
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 slots - 2

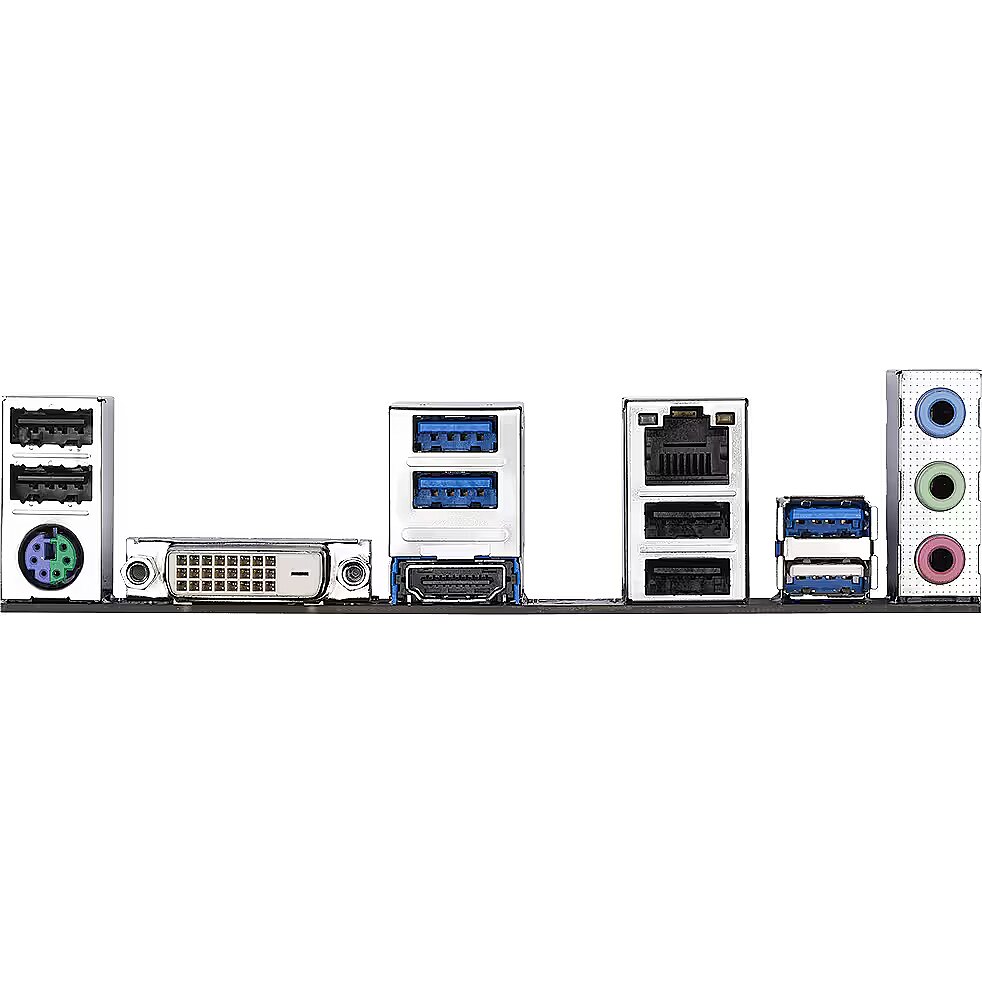

External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC887
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4400/4600/4733 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4733/4600/4400/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - 1 x gniazdo PCI Express x16 (PCIEX16), zintegrowane z procesorem: Procesory AMD Ryzen 3. generacji obsługują tryb PCIe 4.0 x16, AMD Ryzen 3. generacji z procesorami graficznymi Radeon obsługuje tryb PCIe 3.0 x16, Aby uzyskać optymalną wydajność, jeśli ma być zainstalowana tylko jedna karta graficzna PCI Express, należy zainstalować ją w gnieździe PCIEX16. 1 x gniazdo PCI Express x16 (PCIEX4), zintegrowane z chipsetem: Obsługa trybu PCIe 3.0 x4 1 x gniazdo PCI Express x1 (PCIEX1), zintegrowane z chipsetem: Obsługa trybu PCIe 3.0 x1
Graphics - DirectX version - 12.0
Graphics - Discrete graphics support - Yes
Graphics - HDCP - Yes
Graphics - Maximum graphics card memory - 16000 MB
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.923 kg
Gross Weight Kg - 1,1
GTIN - 889523022917
GTIN - 0889523022917
GTIN - 4719331809416
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4 x SATA 6Gb/s connectors
Link - https://www.gigabyte.com/Motherboard/B550M-DS3H-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - AMD B550, Socket AM4, 4x DDR4, DVI-D, HDMI, 1G LAN, M.2, SATA III, USB 3.2, PS/2, Micro ATX, 244x244 mm
LongSummaryDescription - GIGABYTE B550M DS3H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B550M DS3H
Manufacturer Name - Gigabyte
Manufacturer_code - B550M DS3H
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4733 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4733 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B550M DS3H
Model - B550M DS3H (rev. 1.7)
MPN - B550M DS3H
Name - AM4 Gigabyte B550M DS3H mATX
Name - Gigabyte B550M DS3H
name - GIGABYTE B550M DS3H, AMD B550 Mainboard - Sockel AM4
Name - GigaByte B550M DS3H B550 - Socket AM4 mainboard
Name - Gigabyte | B550M DS3H 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Number of SATA connectors 4 x SATA 6Gb/s connectors | Chipset AMD B | Micro ATX
name - Motherboard B550M DS3H AM4 4DDR4 HDMI/DVI M.2 USB3.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 630 g
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 54.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 456 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 927 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - Gigabyte
Producer - Gigabyte
producerCode - B550M DS3H
ProducerCode - B550M DS3H
Producer product name - B550M DS3H 1.0
ProductName - B550M DS3H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1
productName - Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 10 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
Short description - GIGA B550M DS3H AM4 B550/DDR4/µATX
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - GIGABYTE B550M DS3H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., Socket AM4, 128 GB, DDR4-SDRAM
sizeX - 270
sizeY - 56
sizeZ - 270
Socket - SAM4
Software - Norton Internet Security (wersja OEM) Realtek 8118 Gaming LAN Narzędzie kontroli przepustowości
Sound card - Kodek Realtek ALC887
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive interfaces - Serial ATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.823 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B550M DS3H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1
TPM - Header
Unit Box Height - 0.05
Unit Box Length - 0.27
Unit Box Width - 0.27
Unit Brutto Volume - 0.004794 cubm
Unit Gross Weight - 1 kg
Unit Net Weight - 0.63 kg
URL - https://www.gigabyte.com/es/Motherboard/B550M-DS3H-rev-15#kf
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 4
USB ports at back panel - 8
USB ports on motherboard - 4
Vendor Homepage - www.gigabyte.com/Motherboard/B550M-DS3H-rev-17#kf
vendpn - B550M DS3H
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,92
Weight - 0.906
weight - 922
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
