Accessories included -
BIOS -
BIOS - ACPI version - 6.5
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.7
Brand - MSI
BrandPartCode - PRO B840-P WIFI
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Chipset manufacturer - AMD
Chipset type - AMD B840
code - 7E57-001R
Code - PRO B840-P WIFI
COM connector / port - Yes
CPU socket - Socket AM5
Description - PRO B840-P WIFI
PRO B840-P WIFI oferuje prosty design z harmonijną srebrną kolorystyką, która idealnie pasuje zarówno do białych, jak i czarnych komputerów. Został zaprojektowany z wieloma ekskluzywnymi funkcjami MSI, prawdziwym Wi-Fi 7 z EZ Antenna, 2.5G LAN i PCIe 4.0 M.2 z EZ M.2 Shield Frozr II, gotowy na procesory AMD Ryzen serii 9000. Obsługuje procesory stacjonarne AMD Ryzen serii 9000 / 8000 / 7000 Obsługuje pamięć DDR5, dwukanałową DDR5 8000+ MT/s (OC) Ultra wydajność: system zasilania Direct 7+2+1 z P-PAK, 8-pinowe złącza zasilania procesora, Core Boost, Memory Boost, 6-warstwowa płytka PCB wykonana z 2-uncjowej pogrubionej miedzi Frozr Guard: rozszerzony radiator, podkładki termiczne MOSFET o wartości 7 W/mK, dodatkowe podkładki termiczne dławików i EZ M.2 Shield Frozr II są zbudowane z myślą o wysokiej wydajności systemu i nieprzerwanym działaniu EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II i EZ Antenna Błyskawiczne wrażenia z gry: gniazdo PCIe 4.0 i Lightning Gen 4 x4 M.2 2.5G LAN z rozwiązaniem Wi-Fi 7: niezwykłe rozwiązanie do zastosowań profesjonalnych i multimedialnych, zapewniające bezpieczne, stabilne, i szybka sieć i transmisja danych Audio Boost: Nagradzaj swoje uszy jakością dźwięku klasy studyjnej, aby uzyskać najbardziej wciągające wrażenia z gry
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 2x M.2 Źródło M.2_1 (z procesora) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 2280/2260 Źródło M.2_2 (z procesora) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 22110/2280/2260 4x SATA 6G
Gniazdo M2_2 Obsługuje do PCIe 4.0 x4 (dla procesorów Ryzen serii 9000/7000) Obsługuje do PCIe 3.0 x4 (dla procesorów Ryzen serii 8700/8600/8400) Obsługuje do PCIe 3.0 x2 (dla procesorów Ryzen serii 8500/8300) *Sprawdź w instrukcji ograniczenia dotyczące radiatorów dysków SSD M.2.
RAID 0, RAID 1 i RAID 10 dla urządzeń pamięci masowej SATA
dimensionalWeight - 1423
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 243.84 mm x 304.8 mm
dimension weight - 1579 g
dimension width - 345 mm
EAN - 4711377286596
ean - 4711377286596
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x M.2
Expansion slots - 3 x PCIe 3.0 x 1
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

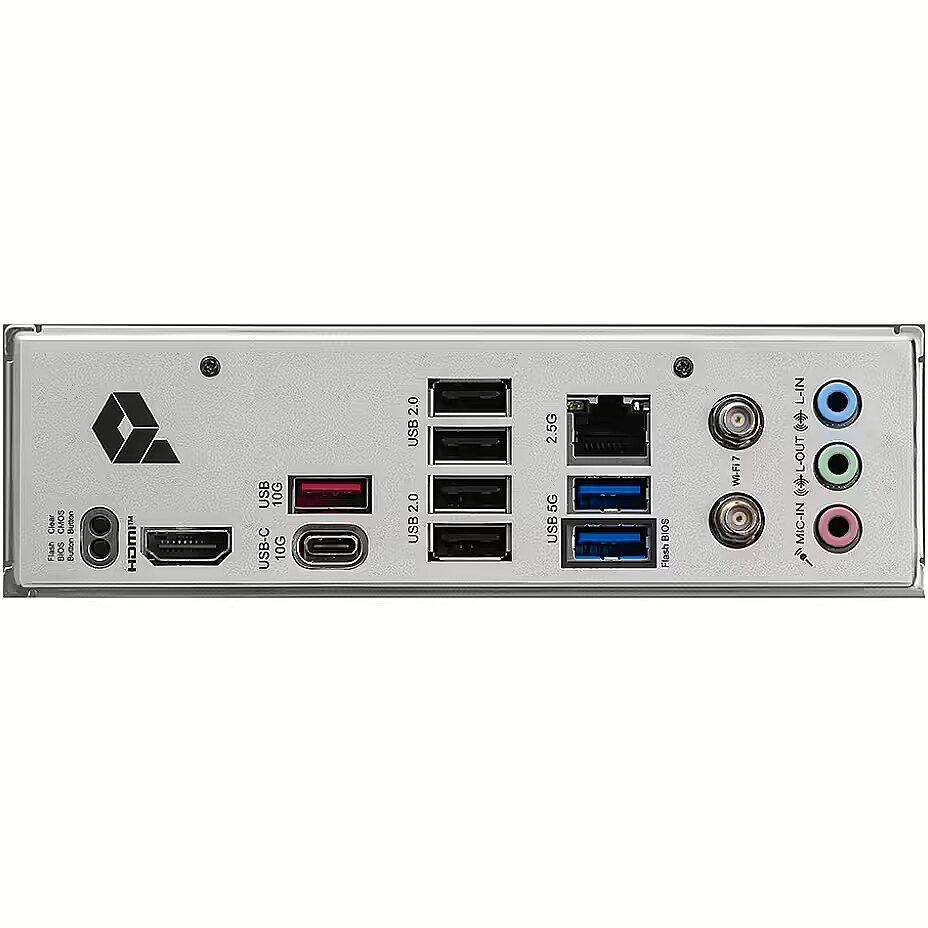

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B840
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz
GTIN - 4711377286596
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of RGB LED pin headers - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-B840-P-WIFI
LongDesc - PRO B840-P WIFIPRO B840-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, and PCIe 4.0 M.2 with EZ M.2 Shield Frozr II, ready for the AMD Ryzen™ 9000 series processors.BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.DIRECT 7+2+1 POWER DESIGNUnleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B840-P WIFI is ready for the challenge of heavy-loading tasks.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Enlarged Chipset HeatsinkThe enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATINGWhen only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
LongProductName - AMD B840 Chipset, Socket AM5, 4 DIMMs DDR5 - 8000+ MT/s (OC), 4 x SATA, Wi-Fi 7, 2.5G LAN
LongSummaryDescription - MSI PRO B840-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
Manufacturer - MSI
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5600,8000 MHz
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 8000
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 8600 MHz
Memory type - DDR5
Model - PRO B840-P WIFI
MPN - 7E57-001R
Name - AM5 MSI PRO B840-P WIFI
name - Motherboard PRO B840-P WIFI AM5 4DD R5 ATX
name - MSI PRO B840-P WiFi Mainboard, Sockel AM5, AMD B840, ATX, DDR5
Name - MSI PRO B840-P WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek 8125D 2.5G LAN WIRELESS LAN & BLUETOOTH Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x Tuning Controller connector
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 342.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 268.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 269 pc(s)
Package features > Paper/Pasteboard - 411.00 g
Package features > Plastic (No PET) - 103.00 g
Package features > Tare weight (kg) - 0.51 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
producerCode - PRO B840-P WIFI
productName - MSI PRO B840-P WIFI motherboard AMD B840 Socket AM5 ATX
ProductName - PRO B840-P WIFI
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortSummaryDescription - MSI PRO B840-P WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256 GB, DDR5-SDRAM
sizeX - 345
sizeY - 275
sizeZ - 75
Software -
Sound card - Realtek ALC897 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, Micro SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 2.24 kg
Technical details > Net weight - 1.73 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO B840-P WIFI
Title - MSI PRO B840-P WIFI motherboard AMD B840 Socket AM5 ATX
URL - https://www.msi.com/Motherboard/PRO-B840-P-WIFI/Overview
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - PRO B840-P WIFI
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.58
weight - 1580
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
