Accessories included -
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD B850
Chipset manufacturer - AMD
Chipset type - AMD B850
CnCode CnCode - 84733020
Code - B850 A ELITE WF7
code - B850 AORUS ELITE WIFI7
COM connector / port - No
CPU socket - Socket AM5
Description - B850 AORUS ELITE WIFI7 - X3D Turbo Mode : Unleash new era gaming performance - DDR5 OC up to 8200MT/s - AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors - Digital twin 14+2+2 phases VRM solution - Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support - WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation - EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design - EZ-Latch Click : M.2 heatsinks with screwless design - Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup - Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. - Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4 - Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. - Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna - Extended Connectivity : HDMI,Displayport - PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Description - Tryb X3D Turbo: uwolnij wydajność gier nowej ery DDR5 OC do 8200MT/s AMD Socket AM5: obsługuje procesory AMD Ryzen serii 9000 / 8000 / 7000 Rozwiązanie VRM Digital Twin 14+2+2 faz Dual Channel DDR5: 4*DIMM z obsługą modułu pamięci AMD EXPO WIFI EZ-Plug: szybka i łatwa konstrukcja do instalacji anteny Wi-Fi EZ-Latch Plus: gniazda PCIe i M.2 z szybkim zwalnianiem i konstrukcją bezśrubową EZ-Latch Click: radiatory M.2 z konstrukcją bezśrubową Sensor Panel Link: wbudowany port wideo do bezproblemowej konfiguracji panelu w obudowie Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard Ext. Szybka sieć: 2,5 GbE LAN i Wi-Fi 7 z kierunkową anteną o bardzo wysokim wzmocnieniu Rozszerzona łączność: HDMI, DisplayPort Gniazdo PCIe UD: gniazda PCIe 5.0 x16 o 10-krotnie większej wytrzymałości dla karty graficznej i lepszym efekcie rozpraszania ciepła
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 1 złącze M.2 (M2A_CPU), zintegrowane z procesorem, obsługujące dyski SSD Socket 3, M, typu 25110/22110/2580/2280:
Procesory AMD Ryzen serii 9000/7000 obsługują dyski SSD PCIe 5.0 x4/x2
Procesory AMD Ryzen serii 8000-Phoenix 1 obsługują dyski SSD PCIe 4.0 x4/x2
Procesory AMD Ryzen serii 8000-Phoenix 2 obsługują dyski SSD PCIe 4.0 x4/x2
1 złącze M.2 (M2B_CPU), zintegrowane z procesorem, obsługujące dyski SSD Socket 3, M, typu 25110/22110/2580/2280:
Procesory AMD Ryzen serii 9000/7000 obsługują dyski SSD PCIe 4.0 x4/x2
AMD Procesory Ryzen 8000 Series-Phoenix 1 obsługują dyski SSD PCIe 4.0 x4/x2
Procesory AMD Ryzen 8000 Series-Phoenix 2 obsługują dyski SSD PCIe 4.0 x2
1 złącze M.2 (M2C_SB), zintegrowane z chipsetem, obsługujące gniazdo 3, klucz M, typ 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD
4 złącza SATA 6 Gb/s
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSD
* RAID 5 jest dostępny tylko w procesorach AMD Ryzen 9000 Series.
Obsługa RAID 0, RAID 1 i RAID 10 dla urządzeń pamięci masowej SATA
dimensionalWeight - 1636
dimension depth - 85 mm
dimension height - 340 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2180 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331866105
ean - 4719331866105
Eans - 4719331866105
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 16
Expansion slots - 3 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2

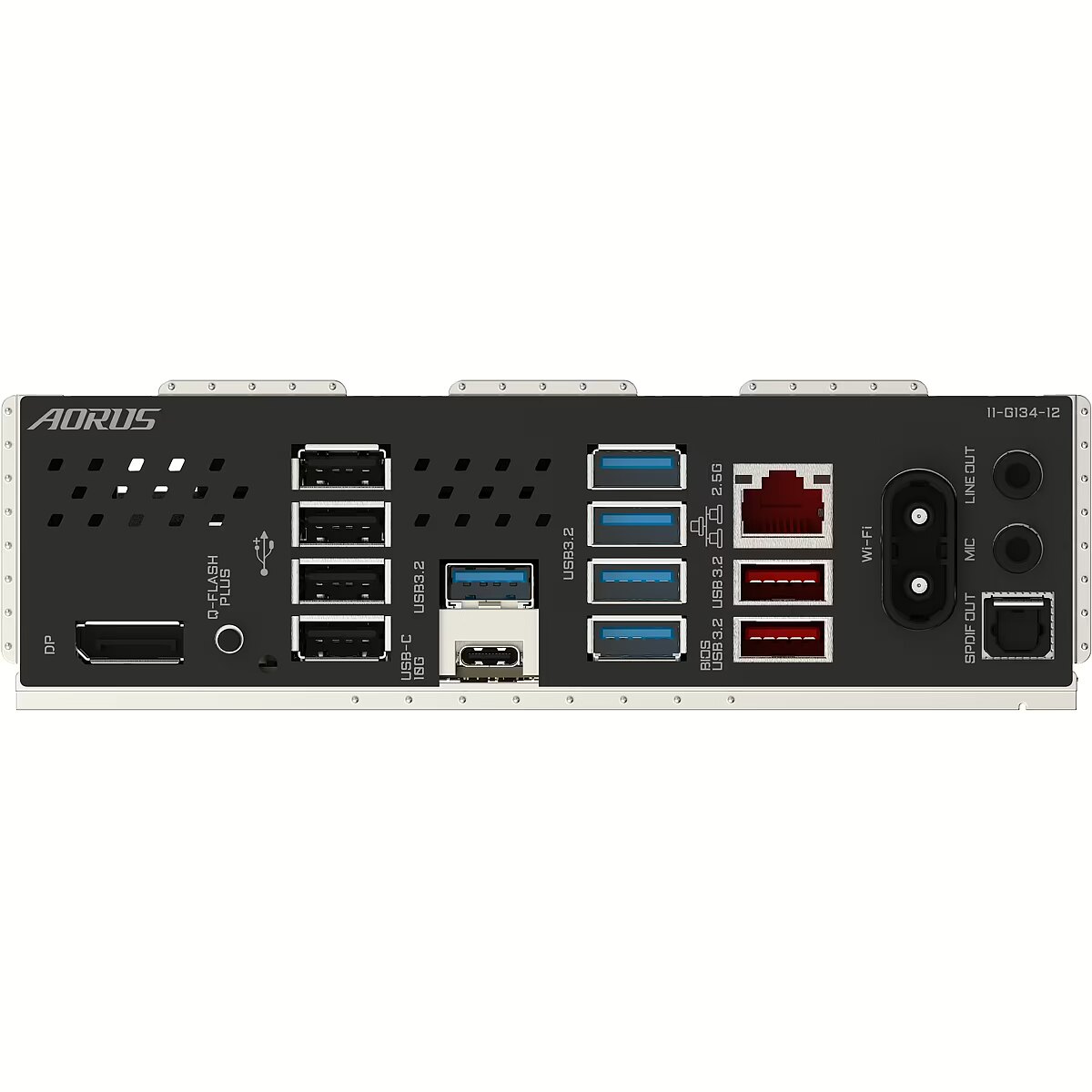

External connectors - 1 x DisplayPort
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 2.0
External connectors - 5 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B850
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Product colour - Bronze
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 7200/4400/6800/7600/8000/7000/6600/8200/5200/7800/5800/4800/6400/7900/6000/7400/5600/7950/6200 MHz
Full Description Line - AMD B850|SAM5|ATX|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 3.0 16x|3xM.2|1xDisplayPort|2xUSB 3.2 type B|2xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Zintegrowany procesor graficzny - obsługa grafiki AMD Radeon
1 x DisplayPort, obsługujący maksymalną rozdzielczość 3840x2160@144 Hz * Obsługa wersji DisplayPort 1.4 i HDR. 1 x przedni port HDMI, obsługujący maksymalną rozdzielczość 1920x1080@30 Hz * Obsługa HDMI 1.4.
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,16
guarantee - 36
guarantee_type - normal
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Gigabyte
Manufacturer Code - B850 AORUS ELITE WF7
Manufacturer Name - Gigabyte
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 8200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory slots - 4
Memory type - DDR5
Model - B850 A ELITE WIFI7
Model - B850 AORUS ELITE WIFI7
MPN - B850 A ELITE WF7
Name - AM5 Gigabyte B850 A ELITE WF7
Name - Gigabyte B850 A ELITE WF7
Name - Gigabyte B850 A ELITE WF7 | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - GIGABYTE B850 Aorus Elite WiFi 7 Mainboard, Sockel AM5 (LGA 1718), AMD B850, ATX, DDR5
name - Motherboard B850 A ELITE WIFI7
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network - WLAN controller model - Realtek RTL8922AE
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Sieć lokalna Układ LAN Realtek 2.5GbE (2,5 Gb/s/1 Gb/s/100 Mb/s) Moduł komunikacji bezprzewodowej Karta sieciowa Realtek Wi-Fi 7 RTL8922AE 802.11a, b, g, n, ac, ax, be, obsługujące pasma częstotliwości nośnych 2,4/5/6 GHz BLUETOOTH 5.4 Obsługa standardu bezprzewodowego 11be 160MHz
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.13 kg
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 327.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 290 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.46 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 16x Expansion slots - 2
PCI-Express 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
Producer - Gigabyte
producerCode - B850 A ELITE WF7
ProducerCode - B850 A ELITE WF7
productName - GIGABYTE B850 AORUS ELITE WIFI7 Motherboard - AMD Ryzen 9000 Series CPUs, 14+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 LAN, WIFI 7, USB 3.2 Gen 2x2
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 38 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 14.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Short description - GIGA B850 AORUS ELITE WF7 AM5/DDR5/ATX
ShortDescription - Socket AM5 | Chipset AMD B850 | DDR5
sizeX - 342
sizeY - 275
sizeZ - 87
Socket - SAM5
Software - Norton Internet Security (wersja OEM) LAN bandwidth management software
Sound card - Kodek audio Realtek Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 * Funkcjonalność gniazda audio można zmienić za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, należy uzyskać dostęp do oprogramowania audio w celu uzyskania ustawień audio. Wsparcie dla S/PDIF Out
Special functions - Obsługa Q-Flash Support for Q-Flash Plus Support for Smart Backup
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B850 A ELITE WF7
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.335
Unit Box Width - 0.08
Unit Brutto Volume - 0.01041 cubm
Unit Gross Weight - 2.48 kg
Unit Net Weight - 1 kg
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB 3.2 type B Input/Output connectors - 2
USB ports at back panel - 12
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7#kf
vendpn - B850 A ELITE WF7
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2.22
weight - 2184
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
