Accessories included - 2 x SATA Data Cable 2 x ASRock WiFi 2.4/5/6 GHz Antenna Thermistor Cable
Audio port Input/Output connectors - 2
BIOS - 256Mb AMI UEFI Legal BIOS ze wsparciem GUI
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category Code - MBA
Chipset - AMD X870
Chipset manufacturer - AMD
Chipset type - AMD X870
CnCode CnCode - 84733020
code - 90-MXBPJ0-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5

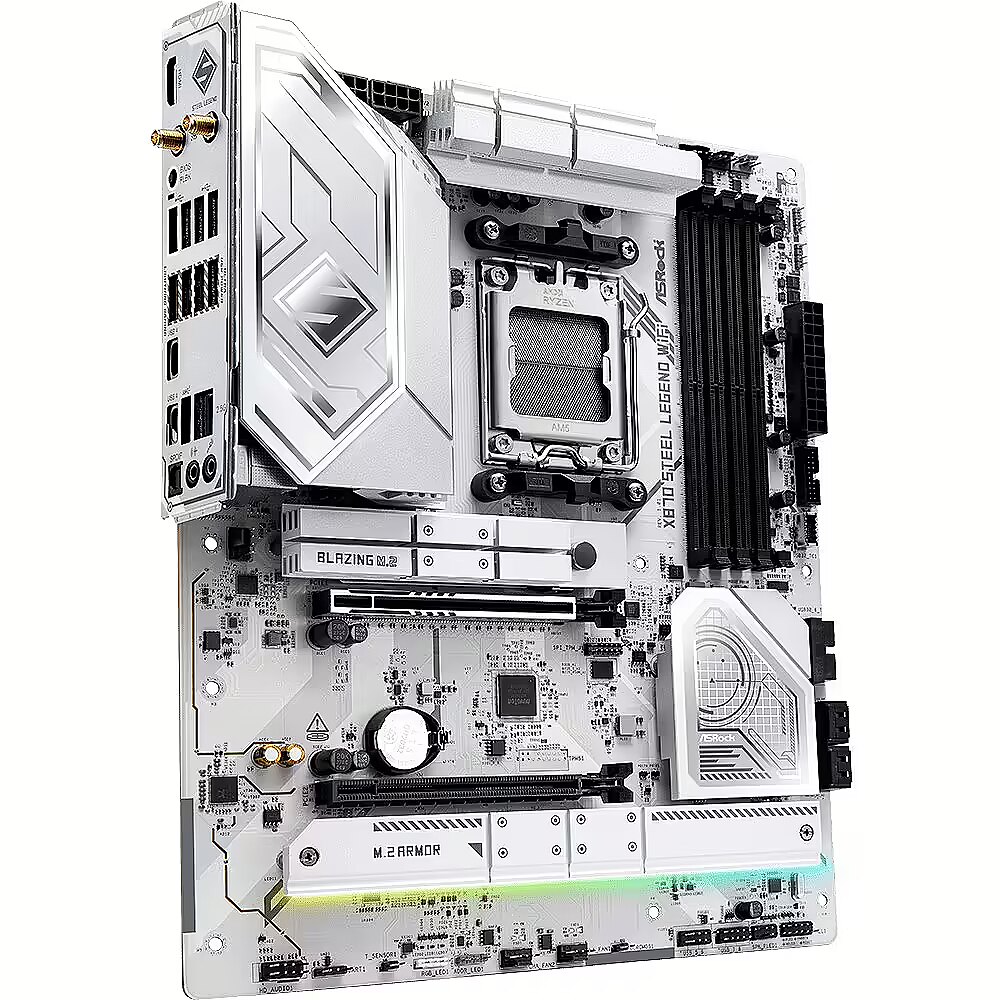

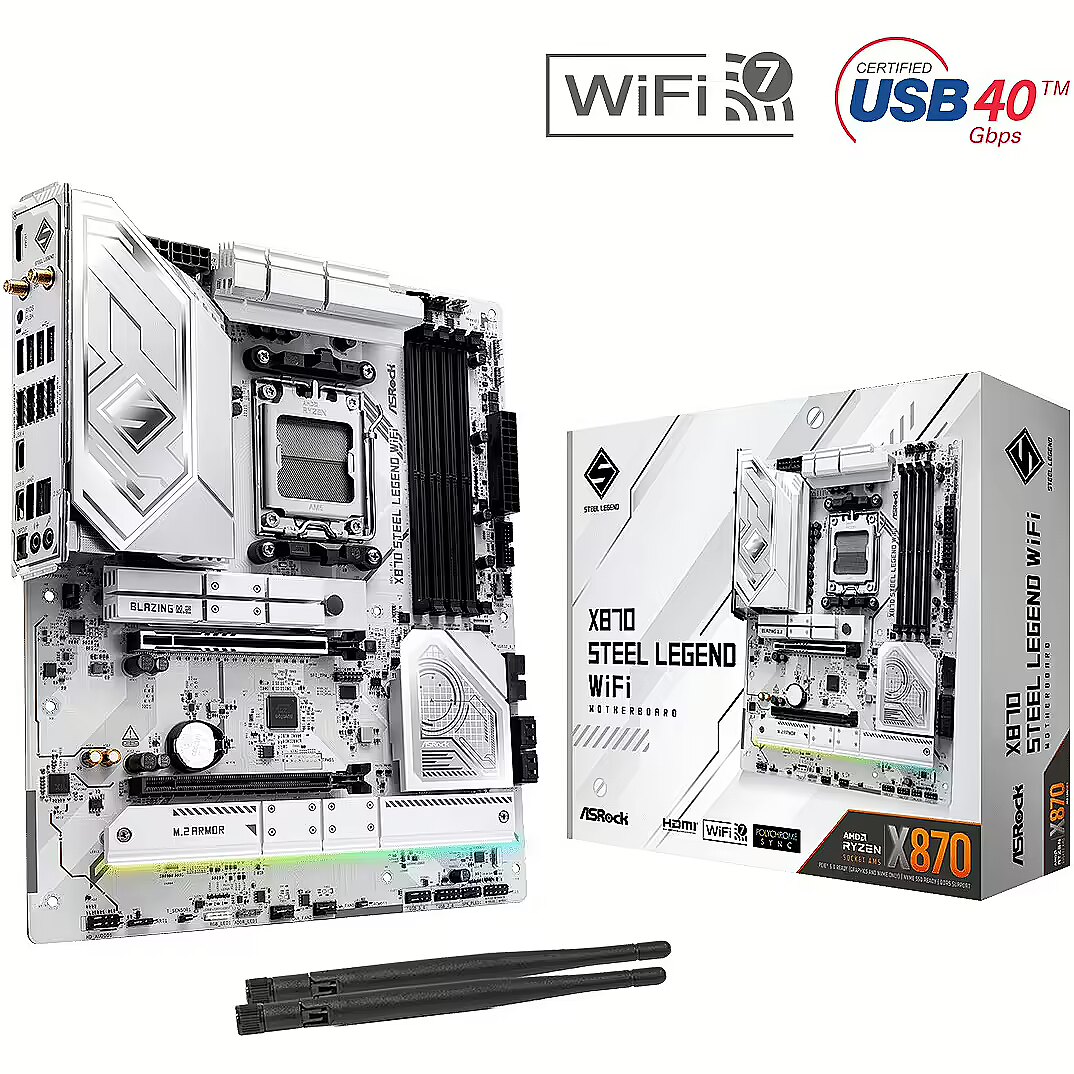

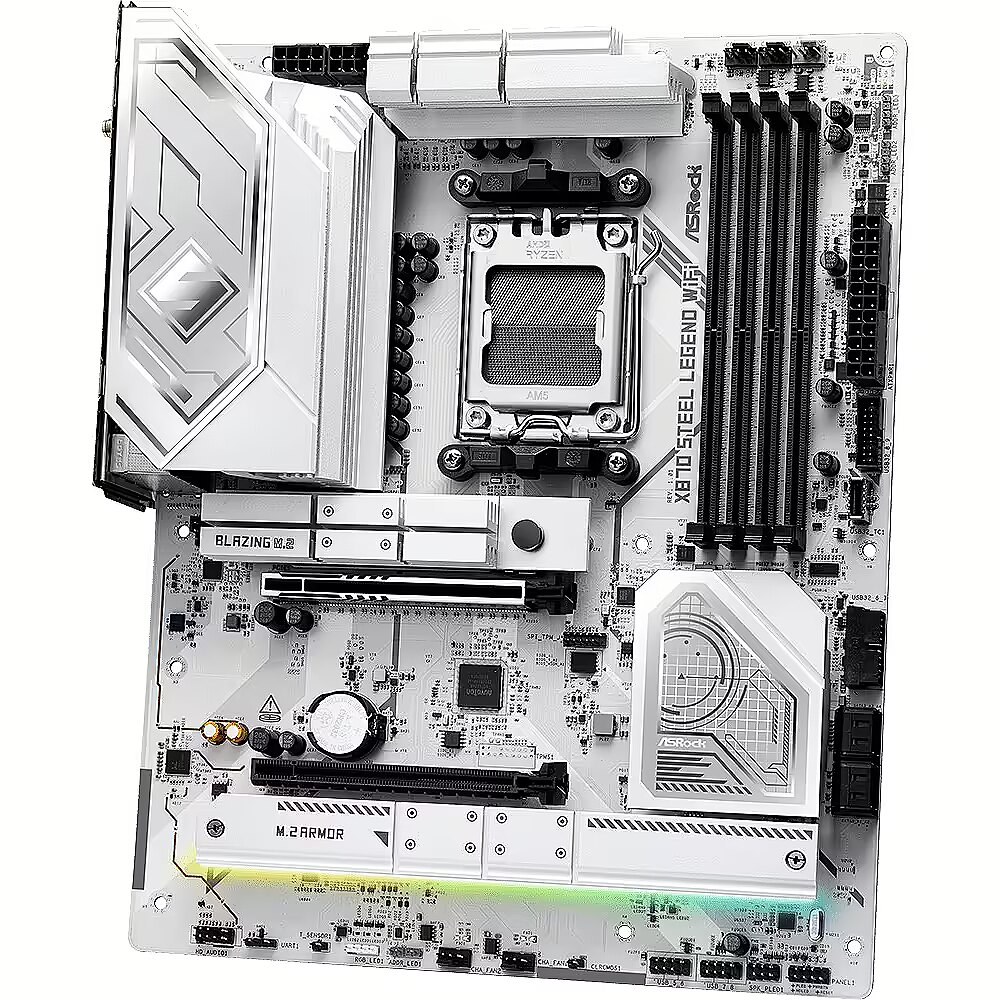

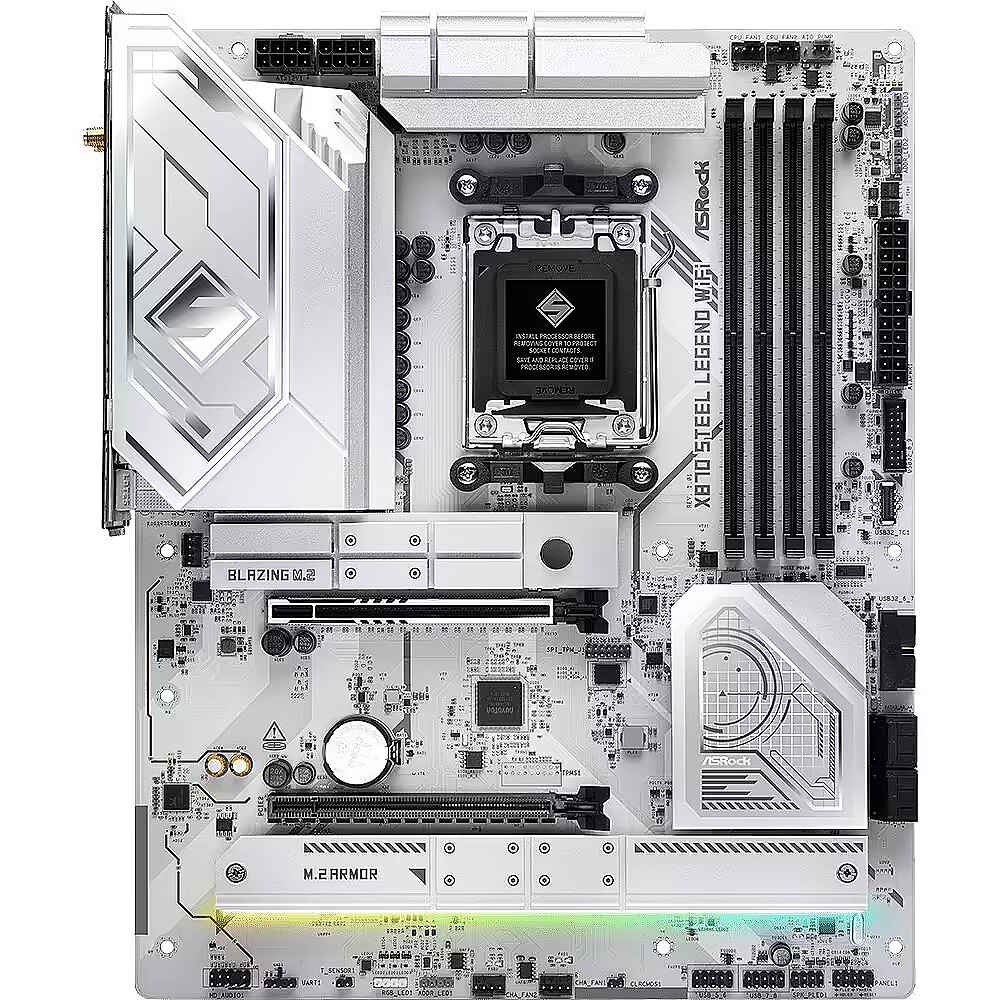

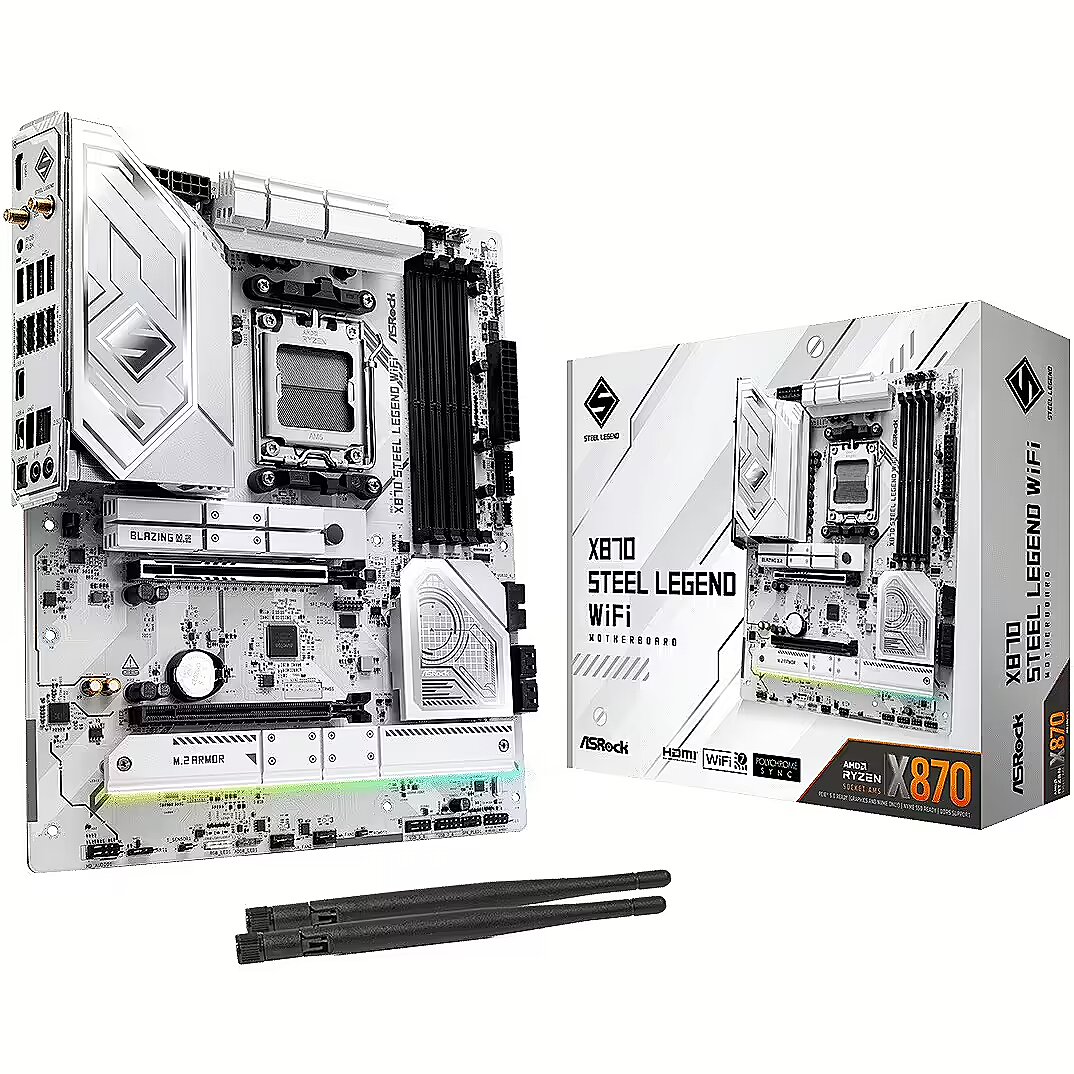

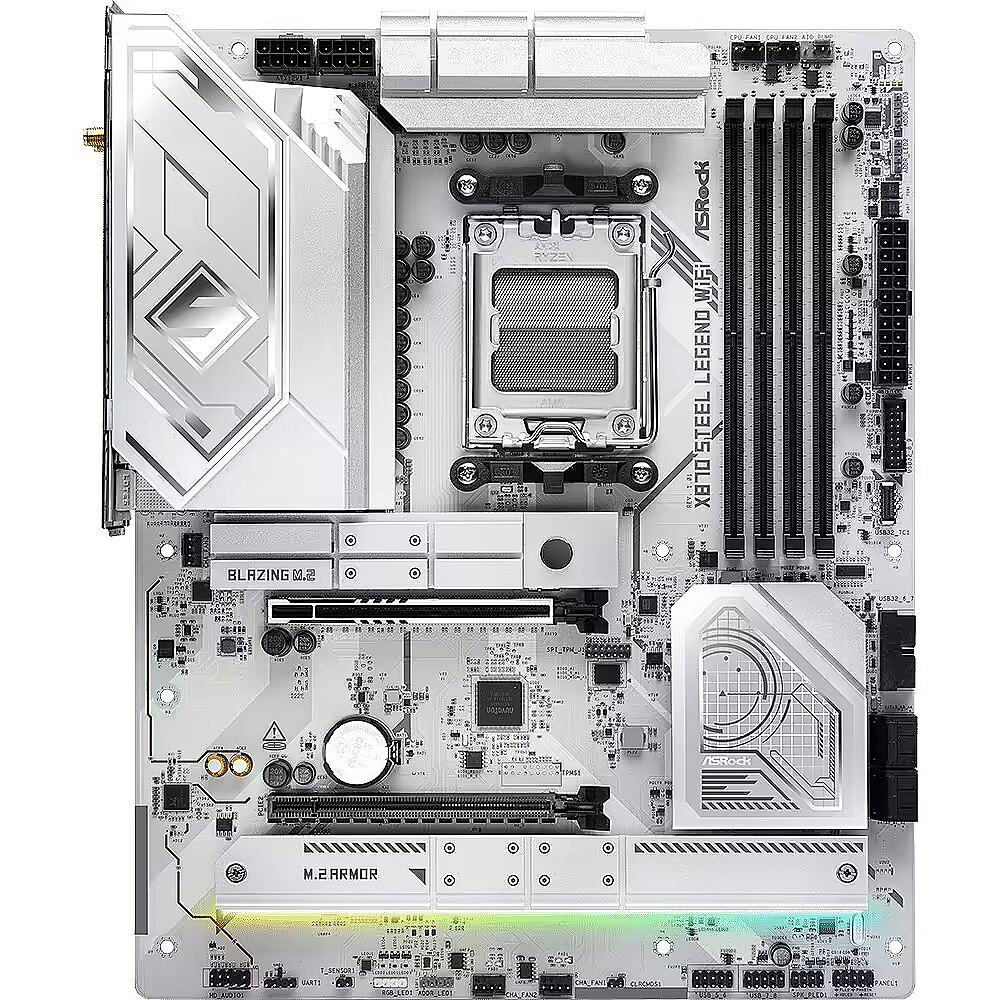

Description - X870 Steel Legend WiFi - Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors - 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC - 4 x DDR5 DIMMs - Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 - Graphics Output Options: 2 USB4 Type-C, 1 HDMI - Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4) - 2 Hyper M.2 (PCIe Gen4x4) - 4 SATA3 - 2 USB4 Type-C (Rear), - 1 USB 3.2 Gen2x2 Type-C (Front), - 2 USB 3.2 Gen2 Type-A (Rear), - 7 USB 3.2 Gen1 (3 Rear, 4 Front) - 8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN - 802.11be Wi-Fi 7 + Bluetooth - Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Description - X870 Steel Legend WiFi Supports AMD Ryzen 9000, 8000 and 7000 Series Processors 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Graphics Output Options: 2 USB4 Type-C, 1 HDMI Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4) 2 Hyper M.2 (PCIe Gen4x4) 4 SATA3 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front) 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN 802.11be Wi-Fi 7 + Bluetooth Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink Exclusive 20K Cap with 1000uF Capacitance
The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits: Higher Capacitance: Greater charge storage for better support under high loads. Lower Ripple: Reduced power output fluctuations, improving quality. More Stable Output Current: Stable power supply, minimizing voltage impacts. Better Performance & System Stability: Increased reliability and consistent performance. 14+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Hi-Density Power Connector
CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking. 8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. DDR5 XMP & EXPO Support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. M.2 Heatsink Toolless Design
Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple. M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability. XXL M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance. Anti-Drop Screw
Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily. Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Wi-Fi 7 Enhanced VR Experience
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected. Wi-Fi 7 802.11be
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing. Multi-link Operation(MLO)
Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience. Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency! Ultra USB Power
Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED. Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. Static Noise Suppression Echo Cancellation Lateral Sound Cancellation Voice Stabilizer Ultimate Gaming Experience Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Works on any devices! - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with ll of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Customized Thermal Management
The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions. Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include: Extra anchor points Stronger latch Ensure signal stability Make sure heavy graphics cards to be well-installed. Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
Detailed data on disk/drive interfaces - CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1651
dimension depth - 80 mm
dimension height - 350 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2085 g
dimension width - 285 mm
ean - 4710483949340
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 2 x USB4 Type-C
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD X870
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8000 MHz
Full Description Line - AMD X870|SAM5|ATX|DDR5|8000 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|5xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio Realtek ALC4082|LAN 2.5 Gigabit
Graphics - Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LPT connector / port - No
M.2 Expansion slots - 4
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000+ MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - X870 STEEL LEGEND WIFI
name - ASRock X870 Steel Legend WiFi, AMD X870 Mainboard - Sockel AM5, DDR5
name - Motherboard X870 STEEL LEGEND WIFI AM5 4DDR5 M.2 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN: 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz frequency band Supports 160MHz channel bandwidth with 6GHz frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Optical S/PDIF Input/Output connectors - 1
Other information -
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen™ 7000 Series
Processor - Compatible processor series - AMD Ryzen™ 8000 Series
Processor - Compatible processor series - AMD Ryzen™ 9000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
producer - ASRock
producerCode - X870 Steel Legend WiFi
productName - Motherboard - ASRock X870 Steel Legend WiFi
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 connectors - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 2
Rear panel I/O ports - Wi-Fi antenna socket - Yes
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 32 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 11.55 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
sizeX - 352
sizeY - 286
sizeZ - 82
Socket - SAM5
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
Special functions - Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor Flexible Integrated I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity 2.5G LAN, 802.11be Wi-Fi 7 Module ASRock Lightning Gaming Ports EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Unit Box Height - 0.075
Unit Box Length - 0.355
Unit Box Width - 0.28
Unit Brutto Volume - 0.009344 cubm
Unit Gross Weight - 2.31 kg
Unit Net Weight - 2 kg
USB-C Input/Output connectors - 2
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 11
USB ports on motherboard - 8
Vendor Homepage - www.asrock.com/MB/AMD/X870%20Steel%20Legend%20WiFi/index.asp
vendpn - X870 STEEL LEGEND WIFI
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 2076
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
