BIOS - ACPI version - 6.1
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - System Management BIOS (SMBIOS) version - 2.8
Brand - MSI
BrandPartCode - B450M-A PRO MAX II
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
code - 7C52-036R
Code - B450M-A PRO MAX II
dimensionalWeight - 743
EAN - 4711377125291
ean - 4711377125291
Eans - 4711377125291
Expansion slots - PCI Express x1 (Gen 2.x) slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B450
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 7 x64
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 7 x64
Graphics - Discrete graphics support - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
GTIN - 0824142333235
GTIN - 824142333235
GTIN - 4711377125291
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Parallel connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/B450M-A-PRO-MAX-II
LongDesc - DIY FRIENDLY MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.STAY COOL FOR RELIABLE SYSTEMCooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.FULLY CONTROLLABLE IN BIOS AND SOFTWAREMSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.RESIZABLE BAR (RE-SIZE BAR)Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.DRAGON CENTERMSI Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.TAKE COMMAND OF YOUR SYSTEMMSI’s Command Center software is the perfect tool to get the most out of your motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.ALWAYS UP-TO-DATENever miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your game."...the best update package available on any motherboard." - AnandtechCPU-Z MSI GAMING EDITIONMSI has worked closely with the CPUID team to develop a special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information of your system’s key components, like CPU speed, Memory speed and timings, motherboard BIOS version and much more.MAXIMUM COMPATIBILITYEvery MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.RYZEN PROCESSOR SUPPORTMSI B450 motherboards support latest generation RYZEN processors from AMD with updated features and capabilities. Ascend to new heights with a platform built for both creators and gamers.MEMORY COMPATIBILITY & TESTINGGet stability out of MSI’s extensive and aggressive memory testing and optimization. Working alongside partnered brands like Corsair, Crucial, Kingston, G.SKILL, and many more, MSI has worked hard to get the most out as many memory configurations as possibleENHANCED PERFORMANCE MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.CPUPower on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.FAST AND FUTURE-READY STORAGEMSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.TURBO M.2Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection!AMD STOREMIAll MSI X470 & B450 motherboards are shipped with STOREMI, the new AMD SSD technology to improve storage performance. This tool helps create a virtual SSD by blending capacity storage, treats flash as primary storage and optimizes data access with monitoring continuously. All these functions can enhance read/write speed for active data and provide fast boot times and application startup.IN-STUDIO ADVANTAGE MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.SOUND THAT PULLS YOU INTO THE GAMEReward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.EXHILARATING AND INSPIRING Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.MAKE YOUR PC MORE THAN YOU THINKPRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.LOYAL COMRADE With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
LongProductName - AMD B450, Socket AM4, 2x DDR4, 1x HDMI, 1x DVI, 1x M.2, mATX
LongSummaryDescription - MSI B450M-A PRO MAX II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133 MHz
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3066
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4
Name - MSI B450M-A PRO MAX II
name - MSI B450M-A PRO Max II Mainboard, Sockel AM5, AMD B450, mATX, DDR5
Name - MSI | B450M-A PRO MAX II | Processor family AMD | Processor socket AM4 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Quick installation guide - Yes
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producer - MSI
producerCode - B450M-A PRO MAX II
ProducerCode - B450M-A PRO MAX II
Producer product name - B450M-A PRO MAX II
ProductName - B450M-A PRO MAX II
productName - MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX
productSize - Normal

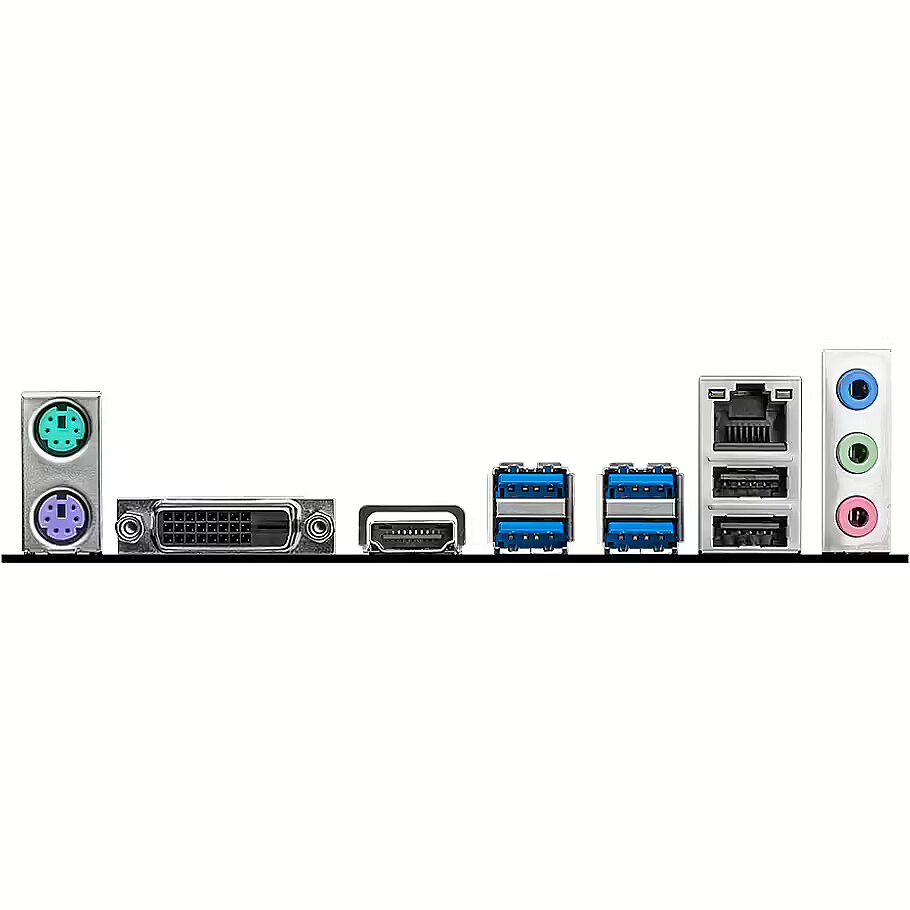

Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
ShortDescription - Socket AM4 | Chipset AMD B450
ShortSummaryDescription - MSI B450M-A PRO MAX II, AMD, Socket AM4, AMD Ryzen™ 5, Socket AM4, DDR4-SDRAM, 64 GB
sizeX - 260
sizeY - 55
sizeZ - 260
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - SSD
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX
URL - https://www.msi.com/Motherboard/B450M-A-PRO-MAX-II/Overview
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 680
Weight & dimensions - Depth - 236 mm
Weight & dimensions - Width - 200 mm
