BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1FW0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards
Category_1 - Motherboards
Category_2 - Motherboards - other
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
code - 90MB1FW0-M0EAY0

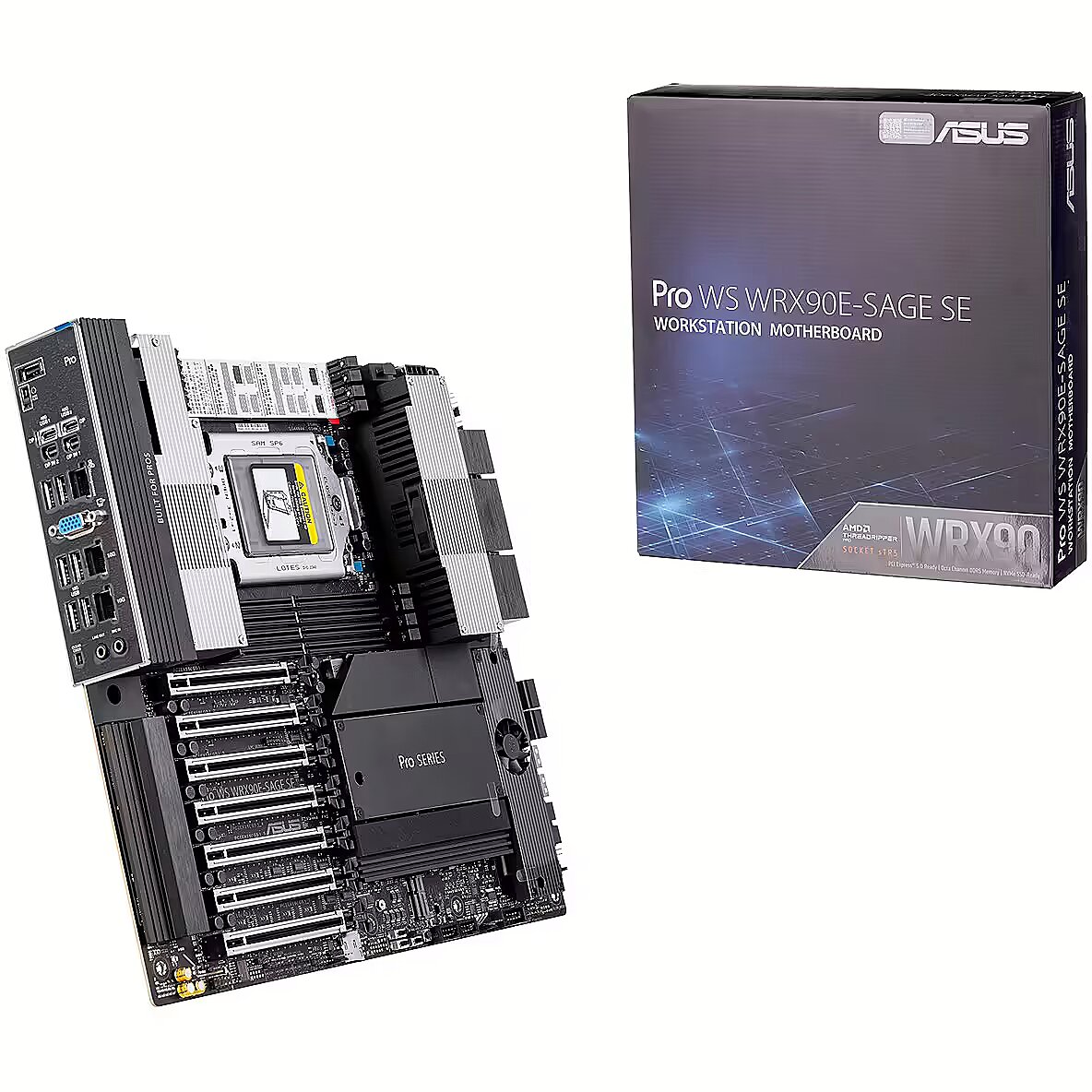

description_en - Edition: Pro WS WRX90E-SAGE SE
Form Factor: EEB

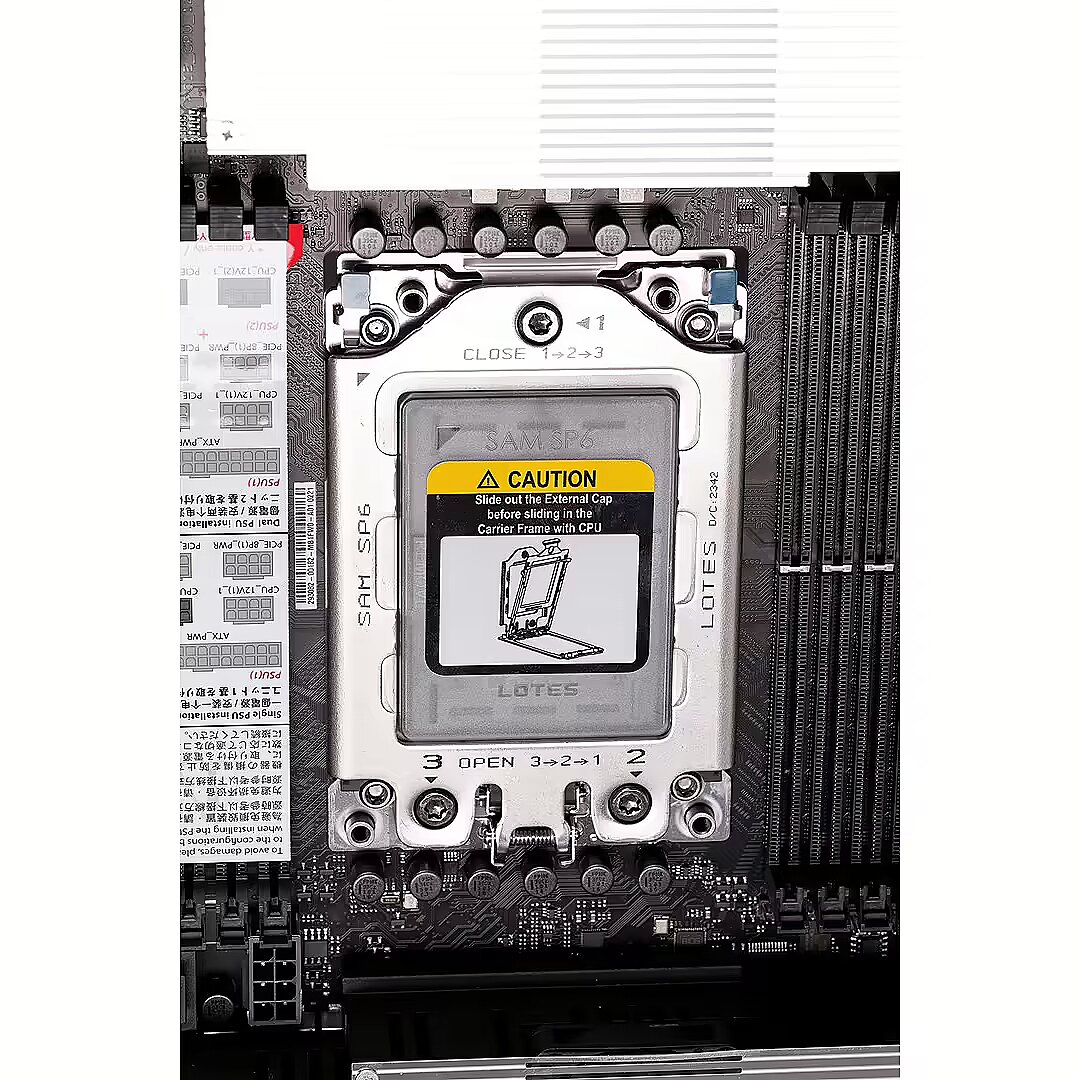

CPU Socket: TR5
Chipset: WRX90
RAM Memory Support
Memory Type: DDR5
Memory Channel: Octa (8)
Memory Type (ECC): ECC
Memory Type (R/U): RDIMM (Registered) Graphics Support
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connector: None
Internal Connectivity
Expansion Slots:
2 x M.2, 22-42/60/80, PCIe Gen5 x4
2 x M.2, 22-42/60/80/110, PCIe Gen5x4

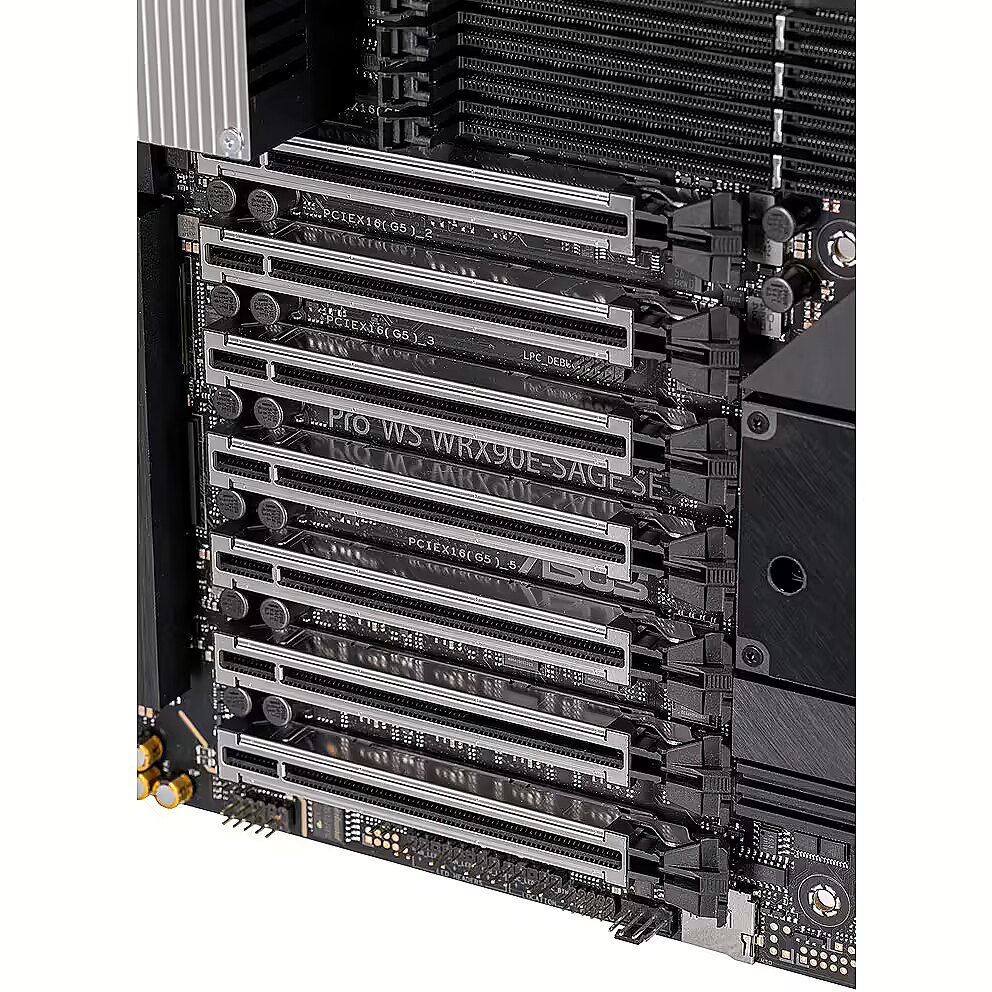

6 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (x8 Bandwidth)
4 x SATA 6GB/s
SATA Support: SATA3 / M.2
RAID Support via SATA / M.2 / PCIe
Storage Mode Support:
RAID 0
RAID 1
RAID 10
RAID 5

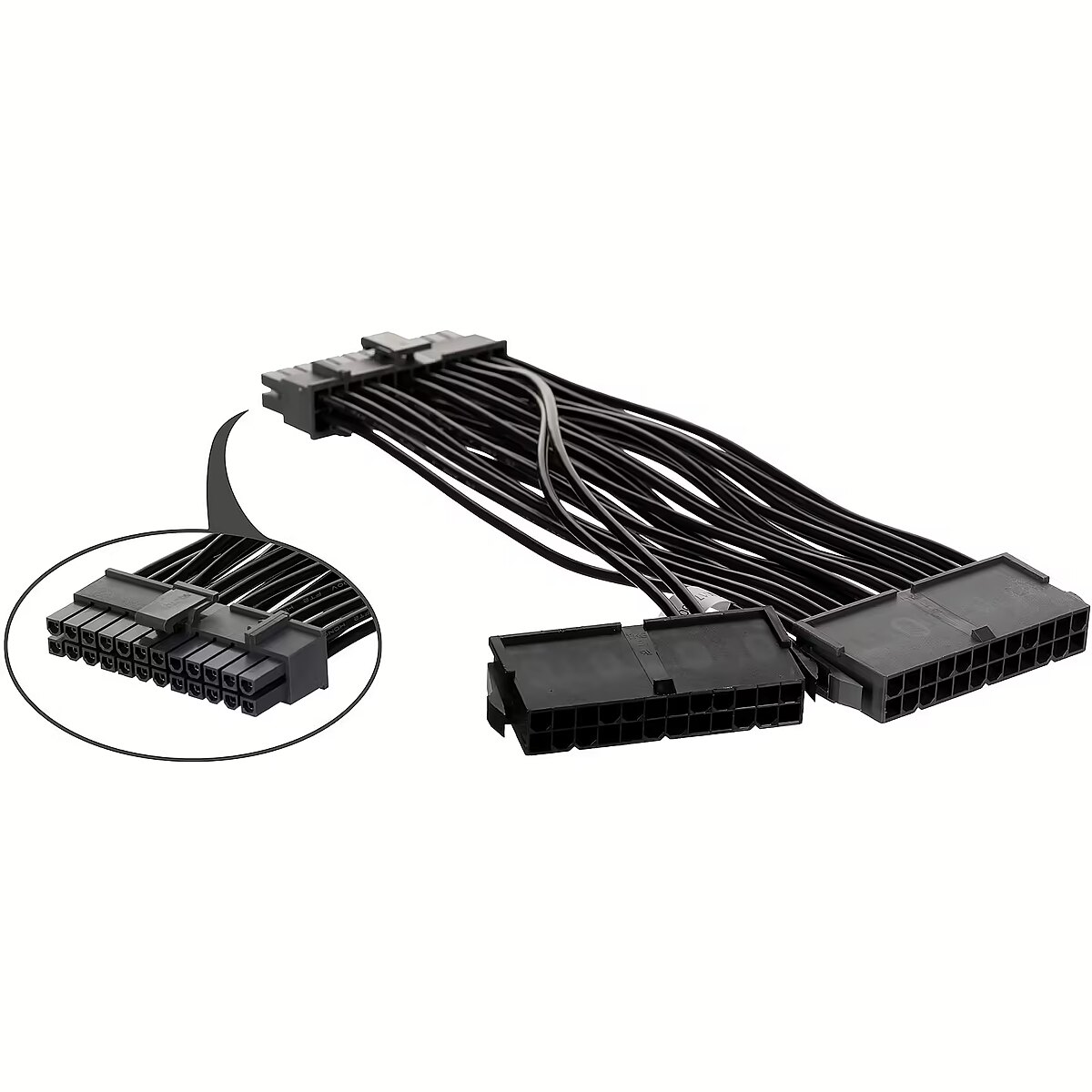

Internal I/O: 1 x 24-pin (Power)
5 x 4-pin CHA_FAN connector
1 x 4-pin CPU Fan Connector
1 x 4-pin CPU OPT Fan Connector
1 x 4-pin W_PUMP+ Connector
2 x 8-pin (Power)

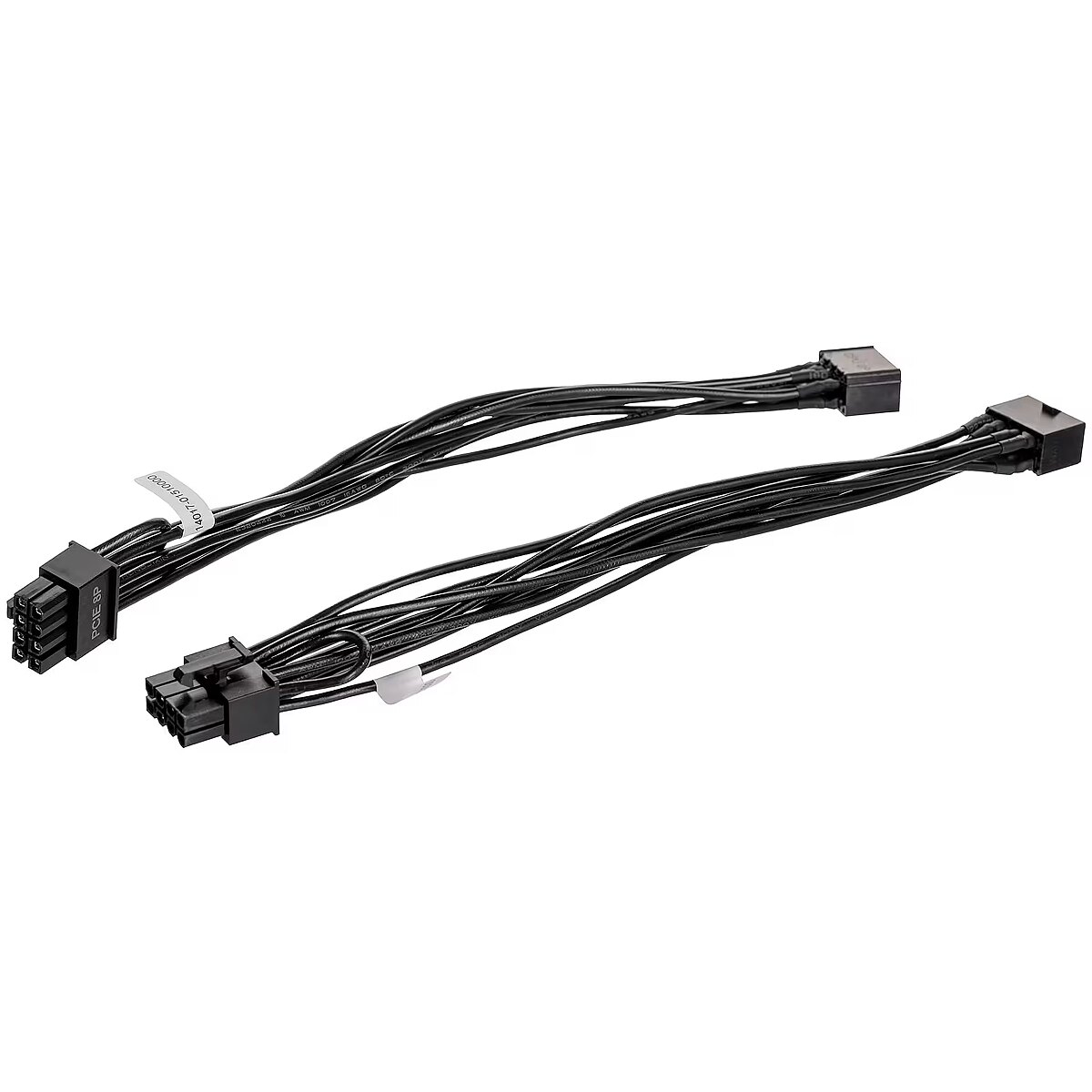

2 x 8-pin PCIe (Power)
1 x Chassis Intrusion connector
1 x FlexKey Button
1 x Front Panel Audio Header
1 x LN2 Mode jumper(s)
4 x M.2 Connector
1 x M.2 Fan Header
7 x ProbeIt Measurement Points
1 x ReTry Button
1 x RSVD Switch
1 x Safe Boot Button
4 x SATA III - 6Gb/s
1 x Serial (COM) Header

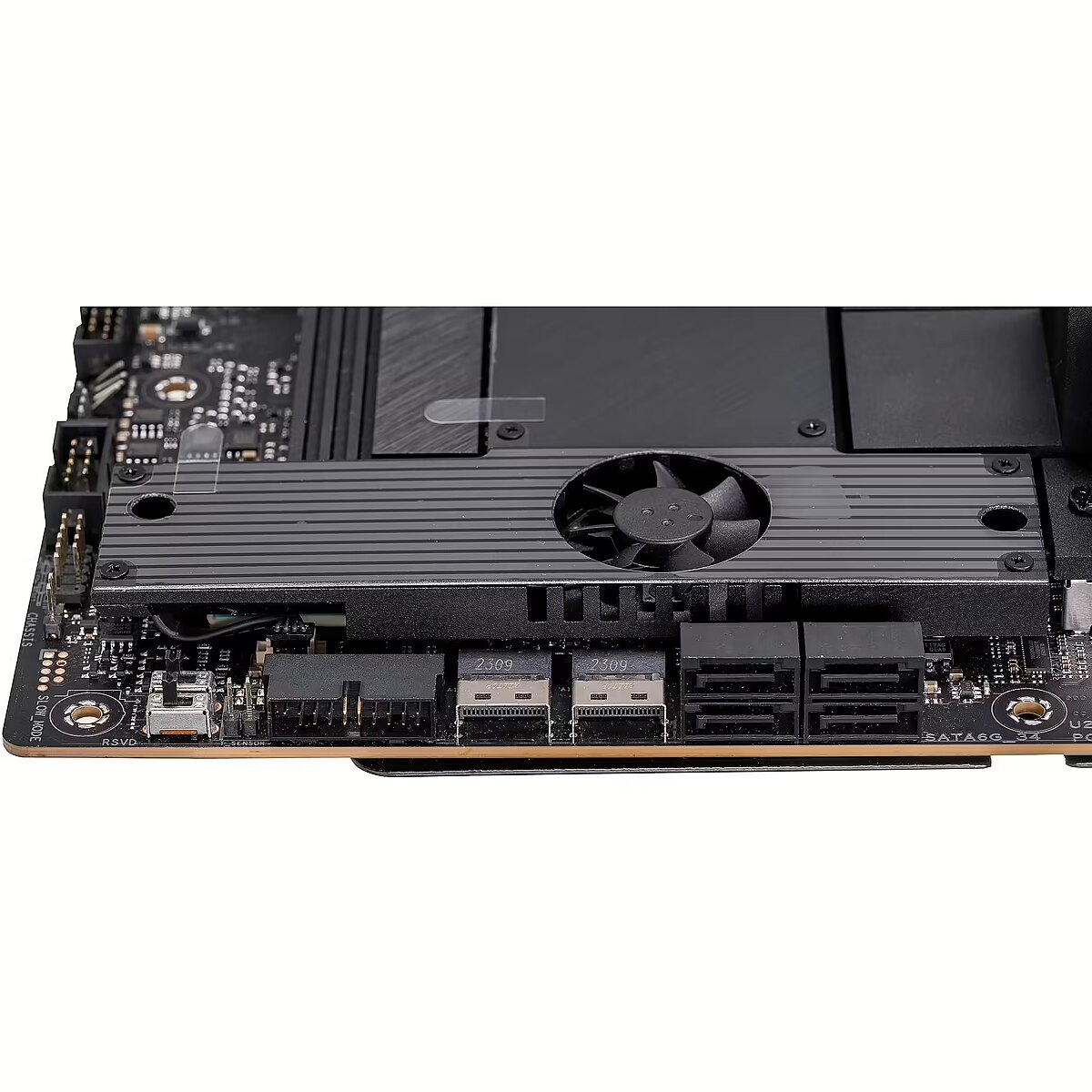

2 x SlimSAS Connector
1 x Slow Mode Switch
1 x START (Power On) button
1 x System panel connector
1 x Thermal Sensor Header
1 x TPM (SPI_TPM) header
2 x USB 2.0 Header
1 x USB 3.0 Connector
1 x USB 3.2 Gen2x2 Connector
2 x VRM Heatsink Fan Header
External Connectivity
Network Interface Type: Dual Wired 10G LAN + Mgmt LAN
Network Chip/Modules: 2 x Intel (10GbE LAN)
1 x Realtek (Gigabit LAN)
Rear I/O Connectors:
1 x BIOS Flashback Button
1 x Clear CMOS Button
1 x Line Out
1 x Mic-In
2 x Mini DisplayPort
3 x RJ-45
1 x USB 2.0
6 x USB 3.2 Gen2 Type-A
2 x USB 4.0 Type-C
1 x VGA
Additional Specifications:
Water Cooled: No
Cooling: PCH Fan & Passive Heatsinks
QPI Speed: N/A
description_lv - Izdevums: Pro WS WRX90E-SAGE SE
Formas faktors: EEB
CPU ligzda: TR5
Mikroshēma: WRX90
RAM atmiņas atbalsts
Atmiņas tips: DDR5
Atmiņas kanāls: Octa (8)
Atmiņas veids (ECC): ECC
Atmiņas veids (R/U): RDIMM (reģistrēts)
Grafikas atbalsts
Primārā GPU saskarne: PCIe 5.0 (x16)
NVIDIA SLI atbalsts: N/A
AMD CrossFire atbalsts: N/A
Integrētā grafika: nepieciešama procesora grafika vai diskrēts GPU
Borta grafikas savienotājs: nav
Iekšējā savienojamība
Paplašināšanas sloti:
2 x M.2, 22-42/60/80, PCIe Gen5 x4
2 x M.2, 22-42/60/80/110, PCIe Gen5x4
6 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (x 8 joslas platums)
4 x SATA 6GB/s
SATA atbalsts: SATA3 / M.2
RAID atbalsts, izmantojot SATA / M.2 / PCIe
Uzglabāšanas režīma atbalsts:
RAID 0
RAID 1
RAID 10
RAID 5
Iekšējā I/O:
1 x 24 kontaktu (barošana)
5 x 4 kontaktu CHA_FAN savienotājs
1 x 4 kontaktu CPU ventilatora savienotājs
1 x 4 kontaktu CPU OPT ventilatora savienotājs
1 x 4 kontaktu W_PUMP+ savienotājs
2 x 8 kontaktu (barošana)
2 x 8 kontaktu PCIe (barošana)
1 x šasijas ielaušanās savienotājs
1 x FlexKey poga
1 x priekšējā paneļa audio galvene
1 x LN2 režīma džemperis(-i)
4 x M.2 savienotājs
1 x M.2 ventilatora galvene
7 x ProbeIt mērījumu punkti
1 reizes poga Atkārtot
1 x RSVD slēdzis
1 x Drošas sāknēšanas poga
4 x SATA III - 6Gb/s
1 sērijas (COM) galvene
2 x SlimSAS savienotājs
1 x lēnā režīma slēdzis
1 x START (Ieslēgts) poga
1 x sistēmas paneļa savienotājs
1 x termiskā sensora galvene
1 x TPM (SPI_TPM) galvene
2 x USB 2.0 galvene
1 x USB 3.0 savienotājs
1 x USB 3.2 Gen2x2 savienotājs
2 x VRM radiatora ventilatora galvene
Ārējā savienojamība
Tīkla interfeisa veids: Dual Wired 10G LAN + Mgmt LAN
Tīkla mikroshēma/moduļi:
2 x Intel (10 GbE LAN)
1 x Realtek (gigabitu LAN)
Aizmugurējie I/O savienotāji:
1 x BIOS Flashback poga
1 x CMOS dzēšanas poga
1 x Line Out
1 mikrofons
2 x Mini DisplayPort
3 x RJ-45
1 x USB 2.0
6 x A tipa USB 3.2 Gen2
2 x USB 4.0 Type-C
1x VGA
Papildu specifikācijas:
Ūdens dzesēšana: nē
Dzesēšana: PCH ventilators un pasīvie radiatori
QPI ātrums: N/A
description_ru - Edition: Pro WS WRX90E-SAGE SE
Форм-фактор: EEB
Разъем ЦП: TR5
Чипсет: WRX90
Поддержка оперативной памяти
Тип памяти: DDR5
Канал памяти: Octa (8)
Тип памяти (ECC): ECC
Тип памяти (R/U): RDIMM (регистровый)
Поддержка графики
Основной интерфейс графического процессора: PCIe 5.0 (x16)
Поддержка NVIDIA SLI: N/A
Поддержка AMD CrossFire: N/A
Встроенная графика: требуется процессорная графика или дискретный графический процессор
Встроенный графический разъем: нет
Внутренние возможности подключения
Слоты расширения:
2 x M.2, 22-42/60/80, PCIe Gen5 x4
2 x M.2, 22-42/60/80/110, PCIe Gen5x4
6 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (пропускная способность x8)
4 x SATA 6 ГБ/с
Поддержка SATA: SATA3 / M.2
Поддержка RAID через SATA / M.2 / PCIe
Поддержка режима хранения:
RAID 0
RAID 1
RAID 10
RAID 5
Внутренний ввод-вывод:
1 x 24-контактный (питание)
5 x 4-контактный разъем CHA_FAN
1 x 4-контактный разъем вентилятора ЦП
1 x 4-контактный разъем вентилятора ЦП OPT
1 x 4-контактный разъем W_PUMP+
2 x 8-контактный (питание)
2 x 8-контактный PCIe (питание)
1 x разъем Chassis Intrusion
1 x кнопка FlexKey
1 x аудиоразъем передней панели
1 x перемычка(и) режима LN2
4 x разъем M.2
1 x разъем вентилятора M.2
7 x измерение ProbeIt Баллы
1 x Кнопка ReTry
1 x Переключатель RSVD
1 x Кнопка безопасной загрузки
4 x SATA III - 6 Гбит/с
1 x Последовательный (COM) разъем
2 x Разъем SlimSAS
1 x Переключатель медленного режима
1 x Кнопка START (Включение питания)
1 x Разъем системной панели
1 x Разъем термодатчика
1 x Разъем TPM (SPI_TPM)
2 x Разъем USB 2.0
1 x Разъем USB 3.0
1 x Разъем USB 3.2 Gen2x2
2 x Разъем вентилятора радиатора VRM
Внешние подключения
Тип сетевого интерфейса: двухпроводной 10G LAN + Mgmt LAN
Сетевой чип/модули:
2 x Intel (10GbE LAN)
1 x Realtek (Gigabit LAN)
Задние разъемы ввода-вывода:
1 x Кнопка BIOS Flashback
1 x Кнопка очистки CMOS
1 x Линейный выход
1 x Вход микрофона
2 x Мини DisplayPort
3 x RJ-45
1 x USB 2.0
6 x USB 3.2 Gen2 Type-A
2 x USB 4.0 Type-C
1 x VGA
Дополнительные характеристики:
Водяное охлаждение: нет
Охлаждение: вентилятор PCH и пассивные радиаторы
Скорость QPI: нет
dimensionalWeight - 2219
ean - 4711387441145
EAN - 4711387441145
EAN_code - 4711387441145
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 5.x) slots - 7
Features - Audio chip - Realtek ALC1220P
Features - Component for - Workstation
Features - Motherboard chipset - AMD WRX90
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - EEB
Features - Product colour - Aluminium, Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Graphics - On-board graphics card - No
gross_weight - 1.85 kg
GTIN - 0197105441149
GTIN - 197105441149
GTIN - 4711387441145
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LongDesc - AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release SlimULTRAFAST CONNECTIVITYMulti-GPU SupportThe Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.ULTRAFAST CONNECTIVITYUltrafast NetworkingIntel® X710-AT2 dual 10 Gb EthernetFeaturing dual onboard 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.1 Gb Ethernet Dedicated to BMCThe Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller.Ultrafast NetworkingEmbrace Next-Generation USB4®The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators.* The MiniDP In port at the back panel needs to be connected to a discrete graphics card via the bundled MiniDP to DP cable.High Capacity StorageM.2 PCIe 5.0 slotsThe Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.SlimSAS slotThe Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industral SSD drives, servers and networking equipment.CPU AND MEMORY OVERCLOCKING READYFor AMD TR5 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS WRX90E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation computing.Power Stages in VRM AreaThe Pro WS WRX90E-SAGE SE voltage regulator module setup is comprised of (16*2)+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors demand, with stability for extreme overclocking.Active VRM Cooling SolutionsThe extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency.ProCool II ConnectorsProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.Onboard PCIe Power ConnectorsTwo additional 8-pin PCIe cable connectors built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.ECC R-DIMM Memory SupportThe Pro WS WRX90E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.ASUS Control Center ExpressThe Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks.THOROUGH THERMAL DESIGNChipset CoolingA dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency.10 Gb LAN CoolingAn optimally located and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance.M.2 Heatsinks with Active FanAn active fan provides an additional cooling method to M.2 slots. All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance for next-gen drives.COMPREHENSIVE FAN CONTROLSThorough and Flexible Way to Adjust the FansThe Pro WS WRX90E-SAGE SE offers advanced fan control, configurable via an IPMI web UI, Q-FAN in the UEFI BIOS*, or Fan Xpert 4 in Armoury Crate for Windows**Set BMC_SW to disabled to control fans via this method.Multiple Temperature SourceEach header can be connected to a 3A-12V high speed fan and set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4, UEFI and IPMI web interfaces.INNOVATIVE DIY DESIGN AND ROBUST RELIABILITYPCIe Q-release SlimThe new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot.This design also keeps the original method of removing the graphics card by pushing down on the retention clip.EZ DIY DesignSafeSlot & SafeDIMMPCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.24/7 ReliabilityBuilt for around-the-clock operationOptimized for 24/7 operation, the Pro WS WRX90E-SAGE SE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.Built for Firm ProtectionThe back-plate on the back of the motherboard provides protection for adjacent electrical components and circuits.
LongProductName - AMD WRX90, 8 x DIMM slots, DDR5, ECC, Realtek 1Gb Ethernet/ Intel dual 10Gb Ethernet, 256 Mb Flash ROM, UEFI AMI BIOS, EEB
LongSummaryDescription - ASUS PRO WS WRX90E-SAGE SE. Processor manufacturer: AMD, Processor socket: Socket sTR5. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Octa-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Manufacturer - Asus
Manufacturer_code - 90MB1FW0-M0EAY0
Memory - ECC - Yes
Memory - Memory channels - Octa-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 8
Memory - Supported memory types - DDR5-SDRAM
Model - 90MB1FW0-M0EAY0
name - ASUS Pro WS WRX90E-Sage SE, AMD WRX90 Mainboard, Sockel sTR5, DDR5
Name - ASUS PRO WS WRX90E-SAGE SE - Socket sTR5 - motherboard
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet interface type - 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Mini DisplayPorts quantity - 2
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket sTR5
Producer - ASUS
producerCode - 90MB1FW0-M0EAY0
productName - ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB
ProductName - PRO WS WRX90E-SAGE SE
productSize - Normal
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - USB 2.0 ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 6
Rear panel I/O ports - USB4 Gen 3x2 ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - ASUS PRO WS WRX90E-SAGE SE, AMD, Socket sTR5, DDR5-SDRAM, DIMM, Octa-channel, M.2, SATA III, SlimSAS
sizeX - 80
sizeY - 380
sizeZ - 365
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III, SlimSAS
Storage controllers - Supported storage drive types - HDD & SSD
Technical_details - The ASUS PRO WS WRX90E-SAGE SE is based on the AMD TRX50 chipset and supports AMD processors for Socket AM4. It has four DDR5 slots. The ASUS PRO WS WRX90E-SAGE SE also features seven PCIe 5.0 x16 slots (one with x8 lanes). The ASUS PRO WS WRX90E-SAGE SE also has 8-channel sound, a 10 Gigabit LAN, a 2.5 Gigabit LAN interface, four SATA3 ports, three M.2 ports, WiFi 7, Bluetooth 5.4 and a Range of USB interfaces. Item no.: 100042953 Mainboard type EAN 4711387441145 Manufacturer no. 90MB1FW0-M0EAY0 Socket sTR5 Max. supported CPUs 1 Processor Supported Models [Ryzen Threadripper 79xxX, Ryzen Threadripper PRO 79xxWX] Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series processors Chipset AMD TRX50 Slots PCIe x16 7x (of which: 6x PCIe x16, 1x PCIe x8) BIOS 256Mb Flash ROM, UEFI AMI BIOS Form factor SSI-CEB Use PC Memory number of sockets 8x DDR5 ASMedia ASM4242 Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 6 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller AMD TRX50 USB controller AMD TRX50 Sound Realtek ALC1220P Surround Sound High Definition Audio CODEC LAN Intel® dual 10Gb Ethernet Special features Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) Features power supply: 1x 24-pin, 2x 8-pin +12V, 2x 8-pin PCIe to CPU, 2 x 8-pin PCIe Further information In order to support the latest processor cores, a BIOS update may be required.
Title - ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB
title_en - Asus Pro WS WRX90E-SAGE SE AMD Motherboard
title_lv - Asus Pro WS WRX90E-SAGE SE AMD Mātesplate
title_ru - Asus Pro WS WRX90E-SAGE SE AMD Материнская Плата
URL - https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-wrx90e-sage-se/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1.15 kg
Weight - 4,70
weight - 4690
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Width - 305 mm
