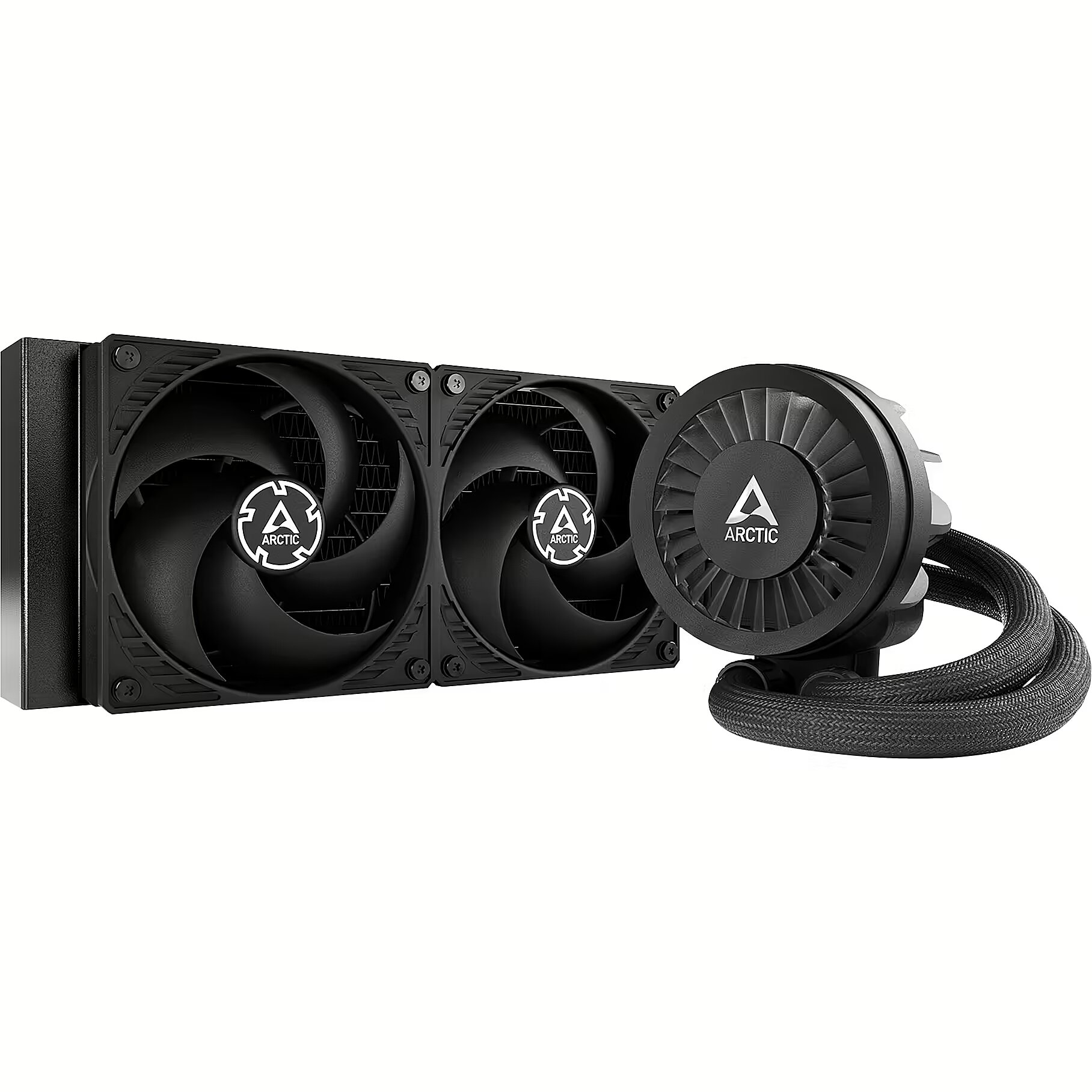

Arctic Liquid Freezer III 240 Black

Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFRE00134A
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: CPU Dzesētāji
category - Liquid Cooling|Sets & Bundles|AIO Liquid Coolers|240 mm AiOs
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category 1 - CPUs
Category 2 - CPU Kühler & Zubehör
Category Code - COC
Category_1 - Computer Cases and Cooling
Category_2 - Watercooling
Code - ACFRE00134A
code - ACFRE00134A
Colour - Black
Cooler type - Liquid
Desc - Ligzda (socket): LGA 1700 / AMD AM5, AM4, Ventilatora diametrs: 240 mm, Ventilatora ātrums (apgr.min.): 2800 apgr.min, Garantija: 2 gadi
Description - Liquid Freezer III 240 Multi Compatible All-in-One CPU Water Cooler Ready Out-of-the-Box - Easy Installation The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation. Future-Proof Compatibility The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation. Silent and Powerful VRM Fan The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters. Contact Frame for Intel LGA1700 and LGA1851 Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The patent-pending mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated. Optimised, In-House Developed Water Pump The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation. Complete Control or Simple Control Two connection cables - two control options: Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM. All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting. Native AMD Offset Mounting For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation. Improved Radiator Design The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time. High Static Pressure ARCTIC relies on the well-proven P fans, which have already received several awards for their outstanding performance. The P series is particularly suitable for use on heat sinks and radiators with a high fin density. Thanks to their high static pressure, they achieve significantly better results compared to fans designed for high air circulation. Limited Compatibility with Few Motherboards Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards
Design - Base plate material - Copper
Design - Fan connector - 4-pin
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
Dimensions - 277 (L) x 120 (W) x 38 (H) mm
EAN - 4895213704465
ean - 4895213704465
Eans - 4895213704465
EAN_code - 4895213704465
Fan size group - 120mm
Fan speed - 200—1800 rpm
Full Description Line - Freezer III 240|Liquid|LGA1700/SAM4/SAM5|Fan speed 200—1800 rpm|Dimensions 277 (L) x 120 (W) x 38 (H) mm|Colour Black|Weight 1.49 kg
Gross Weight Kg - 1,9
GTIN - 4895213704465
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_114903_1.png
LargeDescHTML -
LongDesc - Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
LongProductName - AMD/Intel, 2x 120 mm, 200-1800 RPM, 56.30 cfm, 2.20 mmH2O, FDB, PWM, 400-2500 RPM VRM, 800-2800 RPM Pump, 12 V DC, 1490 g
LongSummaryDescription - ARCTIC Liquid Freezer III 240 - Multi Compatible All-in-One CPU Water Cooler. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum airflow: 56.3 cfm, Airflow: 95.65 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
Manufacturer - Arctic
Manufacturer - ARCTIC
Manufacturer Code - ACFRE00134A
Manufacturer Name - Arctic Cooling
Manufacturer_code - ACFRE00134A
Model - ACFRE00134A
Model name - Freezer III 240
MPN - ACFRE00134A
Name - Arctic Liquid Freezer III 240, water cooling (black)
Name - Arctic Liquid Freezer III chłodzenie wodne AIO - 240mm
name - Arctic Liquid Freezer III CPU Komplett-Wasserkühlung - 240mm
Name - Dzesētājs Arctic Liquid Freezer III 240 Black
Name - K Cooler Wasserkühlung Arctic Liquid Freezer III 240 Black
Number of fans - 2
Packaging content - Package type - Hanging box
Performance - Airflow - 95.65 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 12 cm
Performance - Fan speed (max) - 1800 RPM
Performance - Fan speed (min) - 200 RPM
Performance - Fan static pressure - 2.2 mmH2O
Performance - Maximum airflow - 56.3 cfm
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump connector - 4-pin
Performance - Pump motor speed (max) - 2800 RPM
Performance - Pump motor speed (min) - 800 RPM
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Processor
Performance - Supported processor sockets - Intel LGA1851, LGA 1700, Socket AM4, Socket AM5
Performance - Type - All-in-one liquid cooler
Performance - VRM fan speed (max) - 2500 RPM
Performance - VRM fan speed (min) - 400 RPM
Power - Fan current - 0.1 A
Power - Fan voltage - 12 V
Power - Pump current - 350 mA
Power - Pump voltage - 12 V
Print Text - Performant liquid cooling system for Intel and AMD CPU's
Producer - Arctic
ProducerCode - ACFRE00134A
ProductName - Liquid Freezer III 240 - Multi Compatible All-in-One CPU Water Cooler
Radiator material - Aluminum
Shipping Box Depth Shipping/Package Box Dimensions - 36 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 8.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
ShortDescription -
Short description - Lüfter CPU Arctic Liquid Freezer III 240 (black) LGA1851/1700, AM5/AM4
ShortSummaryDescription - ARCTIC Liquid Freezer III 240 - Multi Compatible All-in-One CPU Water Cooler, All-in-one liquid cooler, 12 cm, 56.3 cfm, 95.65 m³/h, Black
Socket - LGA1700/SAM4/SAM5
Title - ARCTIC Liquid Freezer III 240 - Multi Compatible All-in-One CPU Water Cooler
Unit Box Height - 0.17
Unit Box Length - 0.29
Unit Box Width - 0.14
Unit Brutto Volume - 0.00837 cubm
Unit Gross Weight - 2.02 kg
Unit Net Weight - 1.49 kg
URL - https://www.arctic.de/en/Liquid-Freezer-III-240/ACFRE00134A
Vendor Homepage - www.arctic.de/en/Liquid-Freezer-III-240/ACFRE00134A
Warranty - 24 months
WarrantyInfo - 6 Years
Weight - 1,89
Weight - 1.9
Weight & dimensions - Cable length - 0.04 m
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Package depth - 294 mm
Weight & dimensions - Package height - 142 mm
Weight & dimensions - Package weight - 1.9 kg
Weight & dimensions - Package width - 171 mm
Weight & dimensions - Pump depth - 10.8 cm
Weight & dimensions - Pump height - 6.85 cm
Weight & dimensions - Pump width - 9.1 cm
Weight & dimensions - Radiator depth - 27.7 cm
Weight & dimensions - Radiator height - 3.8 cm
Weight & dimensions - Radiator width - 12 cm
Weight & dimensions - Tube diameter - 1.24 cm
Weight & dimensions - Tube inner diameter - 6 mm
Weight & dimensions - Tube length - 45 cm
Weight & dimensions - Weight - 1.49 kg
