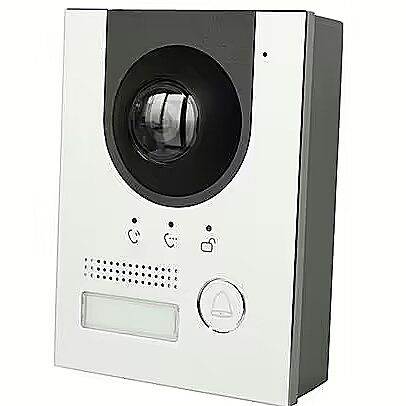

Dahua ENTRY PANEL IP DOORPHONE/VTO2202F-P-S2

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio - Built-in speaker(s) - Yes
Brand - Dahua Technology
BrandPartCode - DHI-VTO2202F-P-S2
Camera - Focal length range - 1.9 mm
Camera - Lens type - Wide fish-eye lens
Camera - Lens viewing angle, diagonal - 176.7°
Camera - Maximum frame rate - 30 fps
Camera - Maximum video resolution - 1280 x 720 pixels
Camera - Megapixel (approx.) - 2 MP
Camera - Optical sensor size - 25.4 / 2.5 mm (1 / 2.5")
Camera - Sensor type - CMOS
Camera - Viewing angle, horizontal - 168.6°
Camera - Viewing angle, vertical - 87.1°
Category - Video Intercom Systems
Category Code - DEV
Description - > Anodized alumimum front panel > CMOS low illumination 2MP HD colorful 160° fisheye camera > Video intercom function > Access control function that supports two locks > Mobile phone app, talk to the visitor or unlock the door remotely on > Compatible with 2-wire interface & RJ45 interface > IK07&IP65 > Support H.265 > Support surface and flush mount > PoE
Design - Control type - Buttons
Design - Housing material - Aluminium, Plastic
Design - IK code - IK07
Design - International Protection (IP) code - IP65
Design - LED indicators - Yes
Design - Placement supported - Vertical
Design - Product colour - Silver
dimensionalWeight - 540
dimensionalWeight - 571
Dimensions - 130 × 96 × 28.5 mm
Display - Video formats supported - H.265
Display - Wide Dynamic Range (WDR) - 120 dB
Full Description Line - 1xRJ45|1xAlarm In|1xAlarm Out|Dahua 2-wire switch (max. power supply distance 50 m), DC 48V 1A, Standard PoE
LongDesc -
LongProductName - 12W, 1/2.5", 2MP, CMOS, IK07, IP65, 120 dB, 130 × 96 × 28.5 mm, silver
LongSummaryDescription - Dahua Technology VTO2202F-P-S2. Video formats supported: H.265. Megapixel (approx.): 2 MP, Maximum video resolution: 1280 x 720 pixels, Sensor type: CMOS. Product colour: Silver, International Protection (IP) code: IP65, IK code: IK07. Ethernet LAN data rates: 10,1000 Mbit/s, Supported network protocols: SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP. Operating system installed: Embedded LINUX
Model - VTO2202F-P-S2
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,1000 Mbit/s
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Power over Ethernet (PoE) - Yes
Network - Supported network protocols - SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Power - AC adapter output current - 1 A
Power - AC adapter output voltage - 12 V
Power - Power consumption (typical) - 12 W
Power - Power source type - DC, PoE
Power - Power supply voltage - 48 V
Power supply requirements - Dahua 2-wire switch (max. power supply distance 50 m), DC 48V 1A, Standard PoE
producerCode - VTO2202F-P-S2
productName - Dahua Technology VTO2202F-P-S2 video intercom system 2 MP Silver
ProductName - VTO2202F-P-S2
productSize - Normal
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 20 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.47 kg
Shipping Box Width Shipping/Package Box Dimensions - 15 cm
ShortSummaryDescription - Dahua Technology VTO2202F-P-S2, H.265, 2 MP, 1280 x 720 pixels, CMOS, 25.4 / 2.5 mm (1 / 2.5"), 30 fps
sizeX - 200
sizeX - 205
sizeY - 90
sizeY - 150
sizeZ - 93
sizeZ - 150
Software - Operating system installed - Embedded LINUX
Technical details - Built-in speaker(s) - Yes
Technical details - Certification - FCC, UL
Technical details - Colour - Yes
Technical details - Compliance certificates - CE
Technical details - Connectivity technology - Wired
Technical details - Maximum number of cameras supported - 1
Technical details - Speakerphone - Yes
Technical details - Sustainability certificates - CE
Technical details - Two-way talk - Yes
Title - Dahua Technology VTO2202F-P-S2 video intercom system 2 MP Silver
Unit Box Height - 0.09
Unit Box Length - 0.2
Unit Box Width - 0.15
Unit Brutto Volume - 0.0027 cubm
Unit Gross Weight - 0.47 kg
Unit Net Weight - 0.35 kg
URL - https://www.dahuasecurity.com/products/All-Products/Video-Intercoms/2-Wire-Series/Villa-Door-Station/Pro-Series/VTO2202F-P-S2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Video-Intercoms/IP-Series/Villa-Door-Station/Pro-Series/VTO2202F-P-S2
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 470
weight - 475
Weight & dimensions - Depth - 28.5 mm
Weight & dimensions - Height - 130 mm
Weight & dimensions - Weight - 350 g
Weight & dimensions - Width - 96 mm
