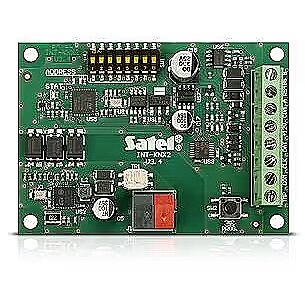

Satel KNX BUS MODULE/INTEGRA INT-KNX-2

Category Code - ADM
Description - KNX system integration module The INT-KNX-2 is a module in the form of expander, which combines the functionality of advanced alarm system based on INTEGRA control panel with the KNX system. Combining the INTEGRA system flexibility with a wide range of KNX devices extends the capabilities of both systems. This solution is also associated with cost savings. The capability of using the alarm system keypads to control the KNX devices eliminates the need to purchase expensive KNX control panels. The INT-KNX-2 module makes it possible to control the actuators by using the panel, while there is also the capability of reverse transfer of information from the KNX system to the control panel. The BTM module is not required for installation, because the INT-KNX-2 is equipped with KNX socket for direct connection to the KNX bus. The module configuration settings are made in the computer with DLOADX program installed. The module can be mounted either inside the enclosure with the control panel or outside of it in the OPU-1 A universal enclosure.
dimensionalWeight - 136
Dimensions - 80 x 57 mm
Features - Certification - CE
Features - Device type - Alarm receiver
Features - Product colour - Green
Features - Product type - Relay module
Features - Quantity per pack - 1 pc(s)
Full Description Line - Dimensions 80 x 57 mm|Unit Brutto Volume 0.0006311 cubm
Power - Input voltage - 12 V
Power - Trigger current - 50 mA
producerCode - INT-KNX-2
productName - Satel INT-KNX-2 alarm / detector accessory
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 16.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 8.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.074 kg
Shipping Box Width Shipping/Package Box Dimensions - 4.5 cm
sizeX - 160
sizeY - 85
sizeZ - 50
Unit Box Height - 0.085
Unit Box Length - 0.165
Unit Box Width - 0.045
Unit Brutto Volume - 0.0006311 cubm
Unit Gross Weight - 0.074 kg
Unit Net Weight - 0.032 kg
Vendor Homepage - https://www.satel.pl/en/produktid/932
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 70
Weight & dimensions - Diameter - 3.2 cm
Weight & dimensions - Height - 57 mm
Weight & dimensions - Width - 80 mm
