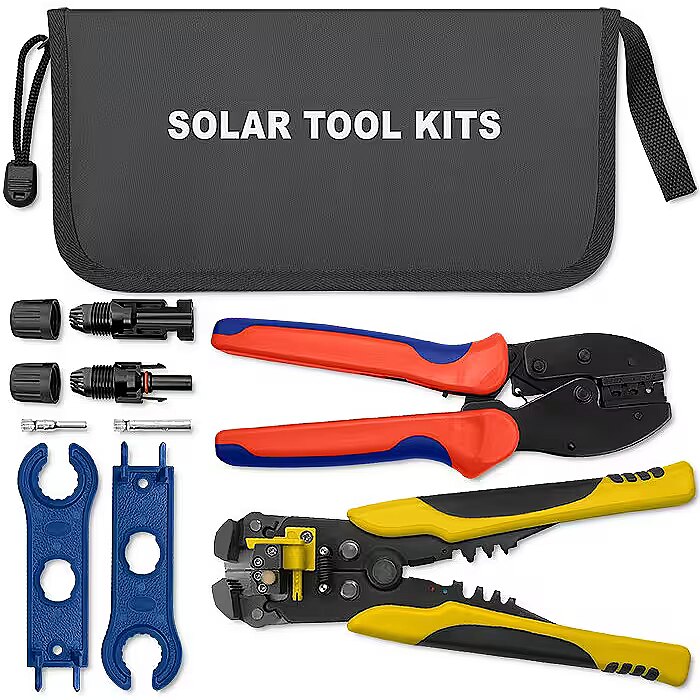

Accessories included - 1 x Crimping tool for MC4 connectors 2 x Connectors type MC4 1 x Auto wire stripper 2 x MC4 Solar connector wrench 1 x Practical tool storage case
Description - Ideal for PV professionals and beginners

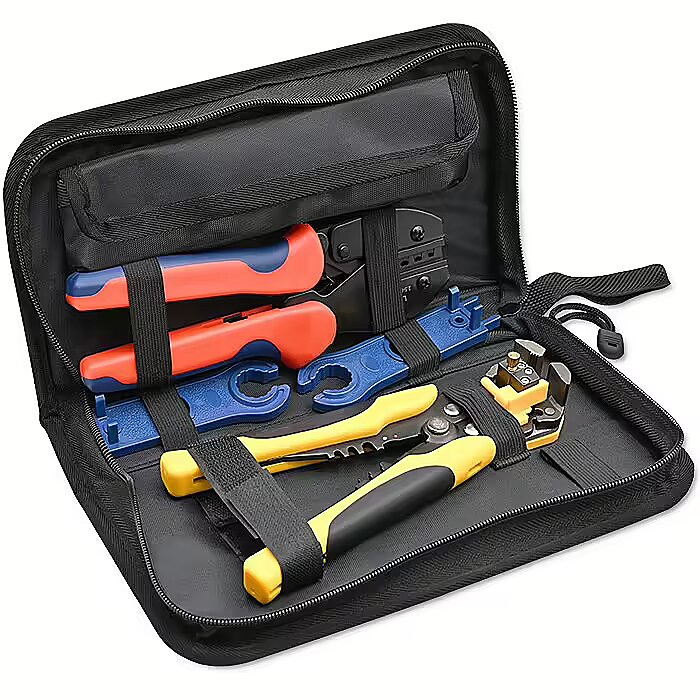

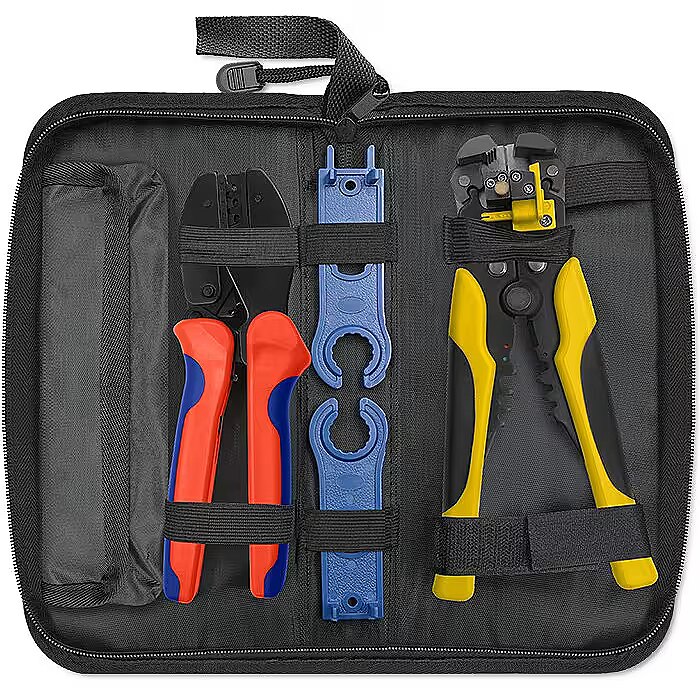

The practical solar tool storage case is sure to make it easier to carry your tools when assembling your solar installation and protect them from accidental and lost mechanical damage. All tools are compatible with MC4 connectors, allowing you to carry out all the work involved in assembling solar connectors and connecting wires to the photovoltaic installation. You will already be able to easily strip insulation from wires or cut cables and wires of different diameters.
Everything you need to connect your solar panels

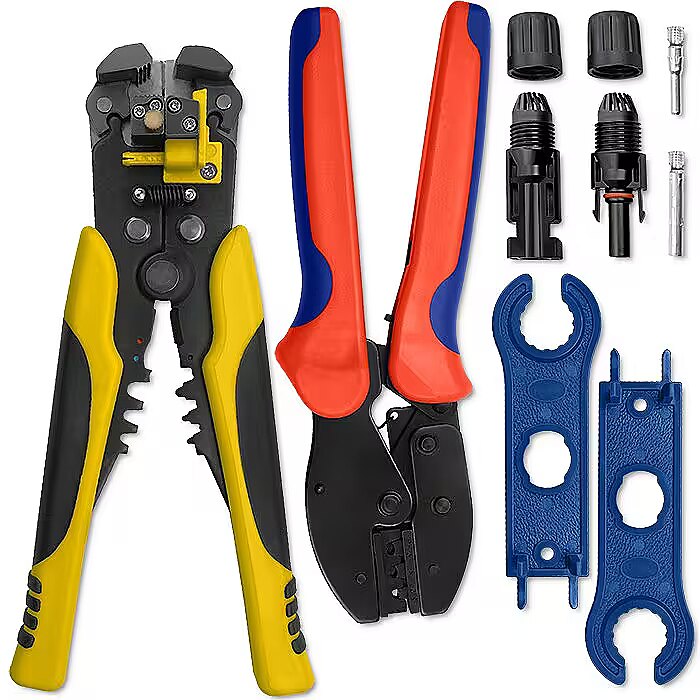

Qoltec brand tools meet the highest standards of product quality and safety of use and the quality of the product influences the efficiency, accuracy and precision of the work performed. The tool set includes: MC4 connector crimper Auto wire stripper Set of spanners for MC4 connectors Connectors type MC4 Practical storage case Crimping tool for MC4 connectors and 2,5-6,0mm cables
The practical crimping tool will allow the efficient and safe crimping of male and female solar connectors of type MC4. The crimper operates on the ratchet principle, has an automatic locking device and three working sockets for wires of 2.5 mm, 4.0 mm and 6.0 mm. The product is characterised by its robust construction made of high hardness steel and convenience of use.
Material: tool steel
Weight: 0.440kg
Dimentions: 210 x 70 x 20 mm
Auto wire stripper
The auto wire stripper is a very handy tool designed for stripping insulation from single conductors with diameters: 0.5 - 6 mm (24-10 AWG) or strands of multi-conductor cables, automatic adjustment to cable cross-section. It has a rebound spring, which greatly relieves the hand and makes the work easier. The main functions of this tool are stripping insulation, crimping wires and precise cutting.
Material: Tool steel + plastic
Weight: 0.320kg
Dimensions: 205 x 100 x 35 mm
MC4 solar connector - fast and safe connection of PV panels
Qoltec brand connectors are used to connect PV panels in photovoltaic installations, using suitable solar cables. The connectors guarantee a tight clamping of the cablerobust construction and high mechanical resistance, the connectors are sure to last for many years.
Material: PC + tin-plated copper
Weight: 0.010kg
Dimentions: 65 x 20 x 17 mm
Spanners for MC4 photovoltaic connectors
The set contains a set of 2 spanners for the quick assembly and disassembly of solar connectors, i.e. MC4 male and female connectors. The product is characterised by high mechanical resistance, strength and lightweight construction.
Material: Polipropylen
Weight: 0.025kg
Dimentions: 120 x 38 x 5 mm
dimension depth - 60 mm
dimension height - 140 mm
Dimensions - (D/L x W x H): 145 x 290 x 55 mm
dimension weight - 1105 g
dimension width - 280 mm
ean - 5901878526102
Endurance test -
guarantee - 24
guarantee_type - external
name - Solar tool kit compatibl with MC4 connectors
Operating temperature -
Other features -
producer - Qoltec
vendpn - 52610
Weight - 1.106 kg
