Accessories included -
ARTIKEL1 - TVS-H1688X-W1250-32G 16BAY
ARTIKEL2 - 3.3 GHZ 6C 32GB DDR4 4 X 2.5GBE
Brand - QNAP
BrandPartCode - TVS-H1688X-W1250-32G
Built-in flash memory - 5 GB
Built-in RAM memory - 32 GB
Category - NAS & Storage Servers
Category - Root/Electronics/Networks and communication/NAS - file servers
Description - TVS-h1688X Serwer NAS z procesorem Intel Xeon W desktop i systemem QuTS hero jest idealny do obsługi wysokiej szybkości we współpracy przy multimediach poprzez zastosowanie Thunderbolt 3 i 10GbE. Wydajne urządzenie TVS-h1688X jest wyposażone w zaawansowany procesor Intel Xeon W i umożliwia instalację dwóch kart rozszerzeń QNAP QXP-T32P Thunderbolt 3 PCIe (sprzedawanych osobno) w celu uzyskania czterech portów Thunderbolt 3, dzięki czemu jest to idealne rozwiązanie dla użytkowników Mac i Windows z Thunderbolt, umożliwiając im szybką współpracę przy multimediach. Wbudowana łączność 10GbE i 2,5GbE obsługuje Trunking portów i przełączanie awaryjne, aby zapewniać jeszcze większą przepustowość i wydajność przy wymagających tego zastosowaniach biznesowych. Urządzenie TVS-h1688X, korzystające z systemu operacyjnego QuTS hero opartego na systemie plików ZFS, obsługuje liniową deduplikację danych na poziomie bloków i kompresję, niemal nieograniczoną liczbę migawek, SnapSync w czasie rzeczywistym oraz technologie pamięci podręcznej odczytu/zapisu, pomagając firmom osiągnąć niezawodną wydajność na poziomie usług, od kreatywnych przepływów pracy po zastosowanie związane z serwerem plików, serwerem wirtualizacji i wydajnym tworzeniem kopii zapasowych plików i przywracaniem danych.
Design - Built-in display - Yes
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Tower
Design - Cooling type - Active
Design - Display type - LCD
Design - Fan diameter - 8 cm
Design - Fan diameter 2 - 9.7 cm
Design - LED indicators - HDD, LAN, SSD, System, USB
Design - Number of fans - 5 fan(s)
Design - Product colour - Black
dimension depth - 435 mm
dimension height - 480 mm
Dimensions - 303,84 × 369,89 × 319,8 mm
dimension weight - 16000 g
dimension width - 450 mm
ean - 4713213518403
EAN - 4713213518403
EANCode - 4713213518403
Eans - 4713213518403
Expansion slots - 1 x PCIe 3.0 x 8
Expansion slots - 2 x PCIe 3.0 x 4
Fan - 8 cm
Fan - 9.5 cm
Gross Weight Kg - 16,3
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 4713213518403
guarantee - 36
guarantee_type - normal
HERSTELLER - QNAP
Hot-swapping support - Yes
Housing - Tower
HSTNUMMER - TVS-H1688X-W1250-32G
I/O connectors - 1 x HDMI
I/O connectors - 2 x USB (Type C)
I/O connectors - 4 x USB 3.1
Logistics data - Harmonized System (HS) code - 84714100
LongDesc - The high-capacity TVS-h1688X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1688X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memoryIntel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1688X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1688X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.Streamline video editing and 4K workflows with Thunderbolt™ 3 connectivityYou can install two QXP-T32P Thunderbolt™ 3 expansion cards (sold separately) to the PCIe Gen 3 x4 slots of the TVS-h1688X and transform it into a Thunderbolt™ 3 NAS with quad-port Thunderbolt™ 3 connectivity. Up to four Thunderbolt™-equipped workstations can be connected to the TVS-h1688X to achieve greater teamwork efficiency in 4K workflows, file storage, backup, and sharing. An SLC/MLC SSD RAID 5 configuration is recommended for the highest possible performance and the best storage allocation for your NAS.Dual 10GbE connectivity optimizes high-speed data transferThe TVS-h1688X comes with a pre-installed dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking, to improve bandwidth-demanding data center, virtualization applications, and high-speed backup and recovery. The TVS-h1688X is also ideally matched with QNAP’s managed and unmanaged 10GbE switches to form high-speed, secure and scalable network environments without going over budget.Direct 4K HDMI outputThe TVS-h1688X features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-h1688X to an HDMI display, you can directly watch multimedia content saved on the NAS with QNAP RM-IR004 remote control (sold separately).Set SSD caching to boost IOPS with M.2 NVMe SSDThe TVS-h1688X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1688X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.Set SSD caching to boost IOPS with M.2 NVMe SSDThe TVS-h1688X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1688X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.Data integrity is keyQuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.Data reduction improves storage efficiency and performanceInline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.Multi-level cache technologyMain memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.RAID Z enables robust data protectionMultiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.QSAL (QNAP SSD Antiwear Leveling) enhances data protectionRAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.App Center ecosystem extends NAS functionalityApps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TVS-h1688X.Inline data deduplication, compression, and compaction drives big data storage efficiencyQuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TVS-h1688X optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.Real-time SnapSync ensures minimal RPO with real-time disaster recoveryReal-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.Snapshots multiply backup protectionAttain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.HBS simplifies 3-2-1 backup plansHBS centralizes backup, restoration, and synchronization for easily transferring data in the TVS-h1688X to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.All-in-one virtual machine and container hosting solutionYou can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.Virtualization StationRun multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.Container StationExperience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.License-free VMware® and Hyper-V backup applianceWith Hyper Data Protector, the TVS-h1688X becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.Move business data to the cloud and enjoy low latency access to cloud-based dataThe TVS-h1688X perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.HybridMount file-based cloud gatewayFlexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.VJBOD Cloud block-based cloud gatewayVJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.Subscribe to QVR Elite surveillance solution for 24/7 securityQVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TVS-h1688X and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows®/Mac® or mobile devices, taking full control over monitored areas becomes more convenient and easier.Build an affordable Fibre Channel SAN environmentCommon Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TVS-h1688X, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.More productivity applicationsBoxafeSafeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TVS-h1688X.Security CounselorA security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.QsirchQNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
LongProductName - 12 x 3.5", 4 x 2.5", Intel Xeon W-1250, 32GB ECC UDIMM DDR4, 5GB Flash, LAN, LCD, 550W, 100 - 240V, 303.84 × 369.89 × 319.8 mm, 13.41 kg
LongSummaryDescription - QNAP TVS-h1688X. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Intel® Xeon®, Processor model: W-1250, Processor frequency: 3.3 GHz. Internal memory: 32 GB, Internal memory type: DDR4. Operating system installed: QuTS hero
Management, monitoring, configuration -
Manufacturer Code - TVS-H1688X-W1250-32G
Manufacturer Name - QNAP
Max. number of disks - 12
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Flash memory - 5000 MB
Memory - Internal memory - 32 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 128 GB
Memory - Memory form factor - UDIMM
Memory - Memory slots - 4
Memory type - DDR4

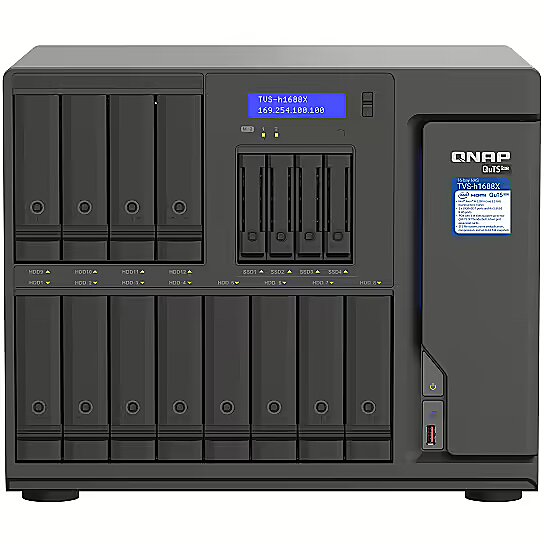

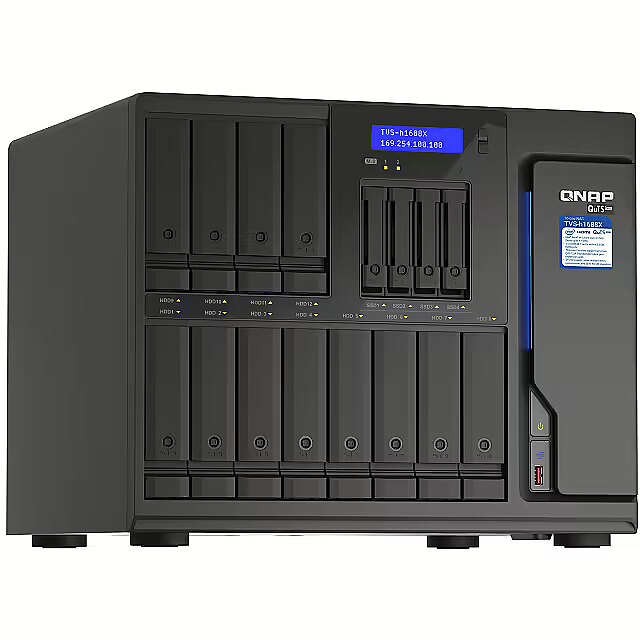

Name - QNAP TVS-h1688X-W1250-32G
name - TVS-h1688X-W1250-32G Intel Xeon W-1250 32GB
Network - Copper ethernet cabling technology - 10GBASE-T
Network - DHCP client - Yes
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100,1000,2500,10000 Mbit/s
Network - Ethernet LAN data rate supported (max) - 10000 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Link aggregation - Yes
Network - Load balancing system - Yes
Network - Supported network protocols - IPv4, IPv6
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10Gbit/s 10GBase-T
Network interface - 4 x 10/100/1000/2500 Mbit/s
Network protocols - Port 2,5 Gigabit Ethernet (2,5G/1G/100M) 4 (także obsługa 10M) Port 5 Gigabit Ethernet (5G/2,5G/1G/100M) Opcjonalne przez kartę Port 10 Gigabit sieci Ethernet 2 x 10GBASE-T (10G/1G) Port 25 Gigabit sieci Ethernet Opcjonalne przez kartę
Number of available memory slots - 2
Number of fans - 5
Number of HDDs installed - 0
Number of memory slots used - 2
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters - Single, RAID 0, 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
Other features -
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Drive tray key included - Yes
Packaging content - Number of screws - 72
Packaging content - Power cables quantity - 1
Packaging content - Quick installation guide - Yes
Performance - Access Control List (ACL) - Yes
Performance - Backup function - Yes
Performance - Browser supported - Apple Safari, Google Chrome, Internet Explorer, Mozilla Firefox
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - Noise level - 25.8 dB
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Third-party support - Yes
Performance - Type - NAS
Performance - USB copy function - Yes
Ports & interfaces - Concurrent connections - 10000
Ports & interfaces - Ethernet LAN (RJ-45) ports - 6
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4b
Ports & interfaces - PCI Express x4 (Gen 3.x) slots - 2
Ports & interfaces - PCI Express x8 (Gen 3.x) slots - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input voltage - 100 - 240 V
Power - Fan voltage - 12 V
Power - Number of power supply units - 1
Power - Power consumption (sleep) - 91.26 W
Power - Power consumption (typical) - 108.67 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 550 W
Power supply - 550 W PSU, 100240 V
Processor - Intel Xeon W-1250 6-core/12-thread processor, up to 4.7 GHz
Processor - CPU configuration (max) - 1
Processor - On-board graphics card model - Intel UHD Graphics P630
Processor - Processor boost frequency - 4.7 GHz
Processor - Processor cache - 12 MB
Processor - Processor cores - 6
Processor - Processor family - Intel® Xeon®
Processor - Processor frequency - 3.3 GHz
Processor - Processor manufacturer - Intel
Processor - Processor model - W-1250
Processor - Processor threads - 12
Processor special features - Embedded options available - No
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Execute Disable Bit - Yes
Processor special features - Idle States - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel Clear Video Technology - Yes
Processor special features - Intel Trusted Execution Technology - Yes
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
producer - QNAP
Producer - Qnap
ProducerCode - TVS-h1688X-W1250-32G
ProductName - TVS-h1688X
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - 50 (5+0)
RAID levels - 60 (6+0)
ShortDescription -
Short description - QNAP NAS TVS-h1688X-W1250-32G (16 Bay)
ShortSummaryDescription - QNAP TVS-h1688X, NAS, Tower, Intel® Xeon®, W-1250, 32 GB, DDR4
Software - Linux operating systems supported - CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Software - Operating system installed - QuTS hero
Software - Operating system version - h5.0.0
Software - Other operating systems supported - IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11
Software - Server operating systems supported - Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Stck_Kart - 1
Stck_Pal - 1
Storage - Disk roaming - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 16
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, 50, 60, JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5,3.5,M.2
Storage - Supported file systems - FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storno - Y
Title - QNAP TVS-h1688X NAS Tower Intel® Xeon® W-1250 32 GB DDR4 QuTS hero Black
Total number of memory slots - 4
URL - https://www.qnap.com/en/product/tvs-h1688x
vendpn - TVS-h1688X-W1250-32G
WarrantyInfo - 3 years
Weight - 13.41 kg
Weight & dimensions - Depth - 319.8 mm
Weight & dimensions - Height - 303.8 mm
Weight & dimensions - Package weight - 16.3 kg
Weight & dimensions - Weight - 13.4 kg
Weight & dimensions - Width - 369.9 mm
