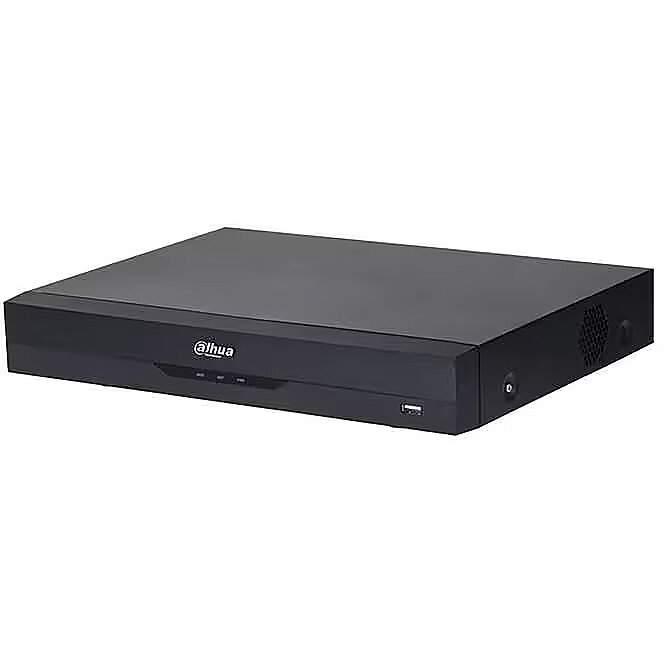

Dahua DVR 16CH HDCVI PENTABRID AI/XVR5116HS-I3

15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - XVR5116HS-I3
Camera Compatibility - AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HDCVI 8MP/HD-TVI/TurboHD 5MP/IP
Category - Digital Video Recorders (DVR)
Category Code - STD
Description - Pentabrid capability: Each channel supports up to 6MP: IP, HDCVI, AHD, TVI and CVBS access can be configured 16-channel BNC interface Recording: HDCVI/AHD/HD-TVI recording:, 5MP, 4MP, 3MP, 2MP All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps) IP: 16+8 channels, each channel up to 6MP, Max 128 Mbps incoming bandwidth AI Coding/H.265+/H.265/H.264+/H.264 video compression G.711A, G.711U, PCM audio compression, 1x SATA interface up to 16 TB storage VGA/HDMI up to 4K output RJ-45, 2x USB ports, RS485 No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels Mini 1U case, mouse included ONVIF 16.12, CGI Conformant, Smart Search Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more AI: Up to 2 channels video stream (analog channel) Perimeter Protection Up to 16 channels video stream (analog channel) SMD Plus Up to 2 channels video stream (analog channel) human face recognition IoT & POS functionalities Free IP monitoring software available
Dimensions - 260.0 mm × 237.4 mm × 47.6 mm
DVR type - 8 Channel
Full Description Line - 8 Channel|Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HDCVI 8MP/HD-TVI/TurboHD 5MP|SATA|USB|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|DC12V, 2A
GTIN - 6923172534095
Hard drive - HDD interface - SATA
Hard drive - Maximum HDD capacity - 16 TB
HDMI Input/Output connectors - 1
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
LongProductName - 6 MP, 16 Channel, RJ-45, USB, RS-485, HDMI, VGA, H.265+, H.265, 1080P, 1U
LongSummaryDescription - Dahua Technology XVR5116HS-I3. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Audio input: 1 RCA, Audio output: 1 RCA, Video in: HDCVI/AHD/TVI/CVBS/IP. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Supported network protocols - HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Packaging data - Package depth - 333 mm
Packaging data - Package height - 315 mm
Packaging data - Package width - 89 mm
Performance - Analog signal format system - NTSC, PAL
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, PCM
Performance - Backup function - Yes
Performance - Bit rate - 32 Kbit/s
Performance - Certification - CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
FCC: Part 15 Subpart B
Performance - Channels quantity - 16 channels
Performance - Dual stream support - Yes
Performance - Maximum video resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Product colour - Black
Performance - PTZ control - Yes
Performance - Rack capacity - 1U
Performance - Video capturing speed (NTSC) - 30 fps
Performance - Video capturing speed (PAL) - 25 fps
Performance - Video compression formats - H.264, H.264+, H.265, H.265+
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
Performance - Video streaming - Yes
Ports & interfaces - Audio input - 1 RCA
Ports & interfaces - Audio output - 1 RCA
Ports & interfaces - BNC input ports - 16
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Ports & interfaces - Video in - HDCVI/AHD/TVI/CVBS/IP
Power - DC voltage - 12 V
Power - Power supply type - DC
Power supply requirements - DC12V, 2A
ProductName - XVR5116HS-I3
SATA Interface - Yes/Yes
Shipping Box Depth Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.54 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortSummaryDescription - Dahua Technology XVR5116HS-I3, Black, 3840 x 2160 pixels, H.264, H.264+, H.265, H.265+, G.711 A-law, G.711 μ-law, PCM, 25 fps, 30 fps
Title - Dahua Technology XVR5116HS-I3 digital video recorder (DVR) Black
Unit Box Height - 0.315
Unit Box Length - 0.335
Unit Box Width - 0.09
Unit Brutto Volume - 0.009497 cubm
Unit Gross Weight - 1.54 kg
Unit Net Weight - 0.9 kg
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5116HS-I3
USB Interface - Yes/Yes
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/4K-N/5MP-Series/XVR5108HS-4KL-I3
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 237.4 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Weight - 1.17 kg
Weight & dimensions - Width - 260 mm
