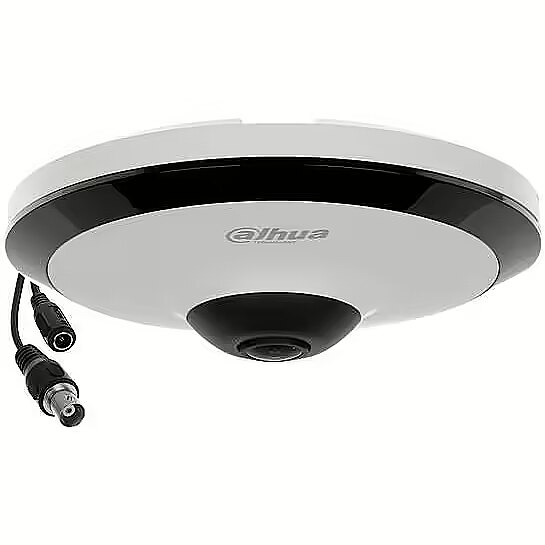

Dahua Fisheye, 1944p, 5MP, White

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio - Audio formats supported - G.726, PCM
Audio - Audio input channels - 1 channels
Audio - Audio output channels - 1 channels
Audio - Built-in microphone - Yes
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Brand - Dahua Technology
BrandPartCode - DH-IPC-EW5541P-AS
Camera - Adjustment shutter speed - Auto/Manual
Camera - Camera shutter speed - 1/3 -1/100000 s
Camera - Lens viewing angle, diagonal - 180°
Camera - Lens viewing angle, horizontal - 180°
Camera - Lens viewing angle, vertical - 180°
Camera - Minimum illumination - 0.006 lx
Camera - White balance - Auto, Manual, Natural, Outdoor, Street lamp
Camera design - Other
Category - Security Cameras
Category Code - FNC
Description - 1/2.7” 5MP progressive scan CMOS, 2592×1944 @ 25FPS Minimum illumination: 0.006 Lux@F2.0 (Color, 30IRE). 0.0006 Lux@F2.0 (B/W, 30IRE), 0 Lux (Illuminator on) Illumination Distance: 10 m True Day/Night ICR, BLC/HLC/True WDR 120 dB/3D DNR 1.4 mm fixed lens (180°) Memory Slot: Micro SD, Max 256GB, 1/1 Alarm In/Out, 1/1 Audio In/Out (+Built in Mic) H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P No protection, indoor use only, -10°C~+50°C, PoE / 12VDC power, 7.3W, metal + plastic case IVS (Perimeter Protection): Tripwire; intrusion Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. Free IP monitoring software available Advanced Intelligent Functions: Tripwire, Intrusion, Heat map, People counting
Design - Housing material - Metal, Plastic
Design - Mounting type - Ceiling/wall
Design - Product colour - Black, White
Dimensions - 44.6 mm × Φ126.2 mm
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 1.4 mm
Full Description Line - Pixel Resolution 5 Mega Pixel|Focal Length 1.4 mm|Sensor size 1/2.7"|Microphone Built-in|Lens Mount M12|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC/PoE|Environment Outdoor|Operating temperature range –10°C to +50°C|Dimensions 44.6 mm × Φ126.2 mm
GTIN - 6939554993855
Image sensor - Number of effective pixels (H x V) - 2592 x 1944 pixels
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens Mount - M12
Lens system - Closest focusing distance - 2 m
Lens system - Detect distance - 28 m
Lens system - Focal length range - 1.4 mm
Lens system - Identify distance - 2.8 m
Lens system - Maximum aperture number - 2
Lens system - Number of lenses - 1
Lens system - Observe distance - 11.2 m
Lens system - Recognize distance - 5.6 m
LongDesc - Launched by Dahua Technology, Dahua WizMind is a full portfolio ofsolutions composed of project-oriented products including IPC, NVR,PTZ, XVR, Thermal and software platform which adopts industry-leadingdeep learning algorithms. Focusing on customer's requirements,WizMind provides precise, reliable and comprehensive AI solutions forverticals.With fisheye lens, Dahua Fisheye series camera can realize 360°surveillance, and it is widely applied in various scenes such as airports,shopping centers, banks and hotels.Smart H.265+ & Smart H.264+With advanced scene-adaptive rate control algorithm, Dahua smartencoding technology realizes the higher encoding efficiency than H.265and H.264, provides high-quality video, and reduces the cost of storageand transmission.Heat MapDuhua heat map technology is used to display the crowd density andpeople appearance probability. Display the crowd status by differentcolors. Generally, the crowd status is the statistics of people quantity inspace and time dimensions.In Area No.With advanced stereo image technology and deep leaning algorithm,Dahua In Area No. technology recognizes human targets accurately tocount people in area in real-time. You can set people quantity threshold,when the number larger or smaller than the threshold, it triggerslinkage. It is applicable in the scene that has limit on people quantity.True WDRWith advanced Wide Dynamic Range (120dB WDR) technology, Dahuanetwork camera provides clear details in the environment of strongbrightness contrast. The bright and dark area can get clear video even inhigh brightness environment or with backlight shadow.Cyber SecurityDahua network camera is equipped with a series of key securitytechnologies, such as security authentication and authorization, accesscontrol, trusted protection, encrypted transmission, and encryptedstorage, which improve its security defense and data protection, andprevent malicious programs from invading the device.Protection (wide voltage)The camera allows ±30% (for some power supplies) input voltagetolerance (wide voltage range), and it is widely applied to outdoorenvironment with instable voltage.
LongProductName - 5MP WizMind IR Fisheye Network CAMERA
LongSummaryDescription - Dahua Technology WizMind IPC-EW5541P-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Metal, Plastic. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Detect distance: 28 m, Observe distance: 11.2 m, Recognize distance: 5.6 m
Management features - Management software - Smart PSS, DSS, DMSS
Management features - Web browser - Yes
Microphone - Built-in
MicroSD Card Slot Input/Output connectors - 1
Min. Illumination - 0.006 Lux
Network - Ethernet LAN - Yes
Network - Number of users - 20 user(s)
Network - Supported network protocols - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 10 m
Night vision - Number of illumination LEDs - 3
Operating temperature range - –10°C to +50°C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 50 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package weight - 411 g
Performance - Certification - CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Pixel Resolution - 5 Mega Pixel
Power - DC output voltage - 12
Power - Power consumption (max) - 7.8 W
Power - Power consumption (Power over Ethernet (PoE)) - 4.4 W
Power - Power consumption (typical) - 3.6 W
Power - Power source type - DC, PoE
Power consumption - 7.3 Watts
Power options - 12V/PoE
Power supply requirements - 12V DC/PoE
ProductName - IPC-EW5541P-AS
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Intelligent Video Surveillance (IVS) system features - Heat map, Intrusion, Tripwire
Security - Video motion detection - Yes
Sensor size - 1/2.7"
Shipping Box Depth Shipping/Package Box Dimensions - 16 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.488 kg
Shipping Box Width Shipping/Package Box Dimensions - 16 cm
ShortSummaryDescription - Dahua Technology WizMind IPC-EW5541P-AS, IP security camera, Indoor & outdoor, Wired, 120 dB, CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part..., Ceiling/wall
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Internal memory - 512 MB
Storage - Maximum memory card size - 256 GB
Storage - ROM capacity - 128 MB
Supports card capacities up to - 256GB
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology WizMind IPC-EW5541P-AS IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Unit Box Height - 0.14
Unit Box Length - 0.16
Unit Box Width - 0.16
Unit Brutto Volume - 0.003584 cubm
Unit Gross Weight - 0.488 kg
Unit Net Weight - 0.299 kg
URL - https://www.dahuasecurity.com/products/
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/Panoramic-Series/Fisheye/IPC-EW5541-AS
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2592 x 1944 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2592 x 1944
Video - Supported video modes - 720p
Video - Total megapixels - 5 MP
Video - Video compression formats - H.264, H.264B, H.264H, H.265
Video - Video formats supported - H.264+, H.265+
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Diameter - 12.6 cm
Weight & dimensions - Height - 44.6 mm
Weight & dimensions - Weight - 299 g
