ID: 926188
Tootekood: IPC-HDBW3541F-AS-0280B-S2
Laos 5 üksused
Garantii: 3 aastat

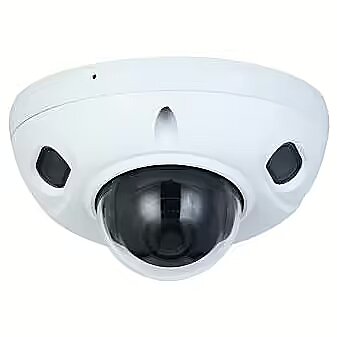

Dahua Dome, 1668p, 5MP, White
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: esmaspäeval, 09.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: esmaspäeval, 09.12.2024
- Kulleri kohaletoimetamine 3,99 €: esmaspäeval, 09.12.2024
Kõik parameetrid
Atmiņas kartes ligzda
: microSD
Ava
: F1.4
FPS maksimaalse resolutsiooni juures
: 20
Kaal (g)
: 423
Kaamerate arv komplekti kohta
: 1
Kasutamine
: Indoor/Outdoor
Kodeerimine
: H.264, H.265
Lahutusvõime
: 2960x1668
Mikrofon
: Ir
SIM-kaardi pesa
: Nav
Söötmine
: 12V adapteris, PoE
Töötemperatuur MAX (°C)
: 60
Töötemperatuur MIN (°C)
: -40
Vaatamisnurk
: 111°
Värv
: Balta
Veekindlus
: IP67
Võrguühendused
: Ei ole
Täpsem spetsifikatsioon
Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Dome
Category Code - FNC
Colour - White
Description - 1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @20FPS Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE) True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR 2.8 mm fixed lens (111°) Up to 30 meters Smart IR Illumination H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec Built-in MIC, G.711a; G.711Mu; PCM; G.726; G.723 encoding Micro SD card up to 256GB supported 1/1 audio IO, / Alarm I/O Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 5.9W max Smart capabilities: Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Free IP monitoring software available
Dimensions - 64.8 mm × Φ111.0 mm
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Min. Illumination 0.005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 64.8 mm × Φ111.0 mm
IR Illumination - Yes
Min. Illumination - 0.005 Lux
Model - IPC-HDBW3541F-AS-0280B-S2
Network Camera Type - Fixed Dome/HDTV/Megapixel/Outdoor
Operating temperature range - -40°C~+60°C
Pixel Resolution - 5 Mega Pixel
Power consumption - 5.9 Watts
Power supply requirements - 12 VDC/PoE (802.3af)
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7”
Shipping Box Depth Shipping/Package Box Dimensions - 14 cm
Shipping Box Height Shipping/Package Box Dimensions - 12 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.57 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
Supports card capacities up to - 256GB
Unit Brutto Volume - 0.002352 cubm
Unit Gross Weight - 0.57 kg
Unit Net Weight - 0.423 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541F-AS-S2
Warranty - 36 months
