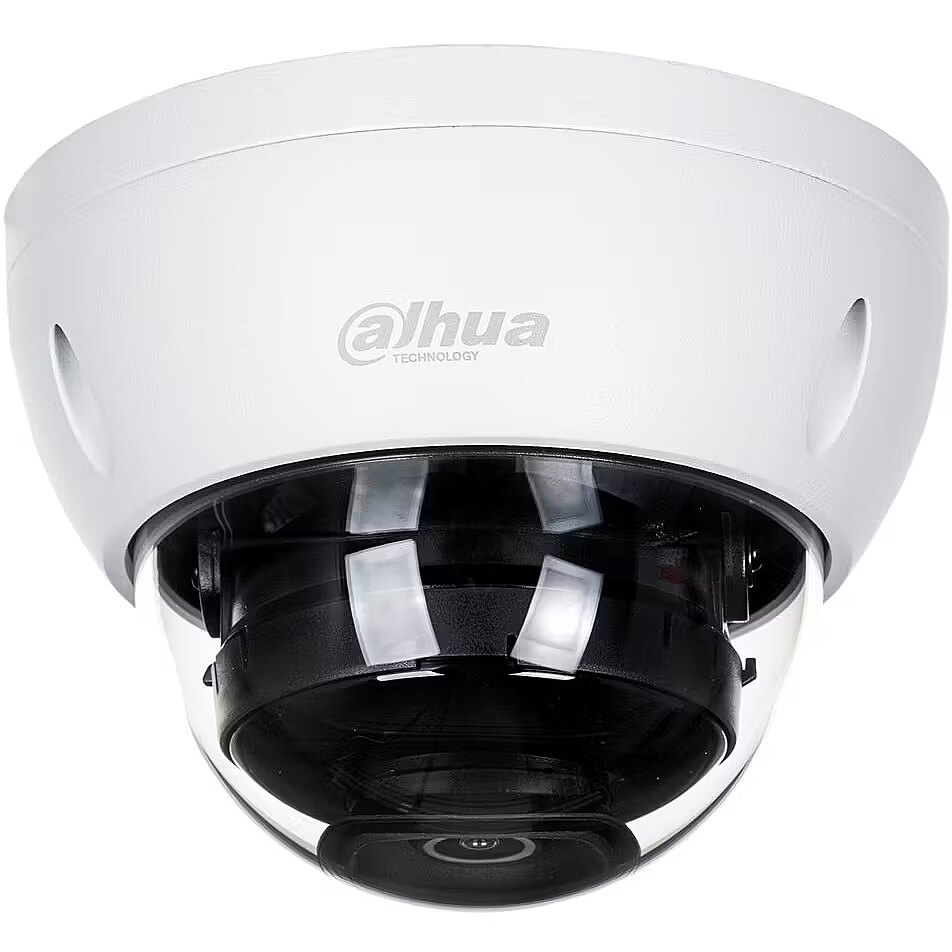

Dahua Dome, 1080p Full HD, 2MP, White

Audio - Built-in microphone - No
Audio - Built-in speaker(s) - No
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Brand - Dahua Technology
BrandPartCode - IPC-HDBW1230E-0280B-S5
Camera - Angle of rotation - 355°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Camera shutter type - Electronic
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 120°
Camera - Lens viewing angle, horizontal - 102°
Camera - Lens viewing angle, vertical - 54°
Camera - Pan range - 0 - 355°
Camera - Tilt angle range - 0 - 65°
Camera - White balance - Auto, Custom modes, Manual, Natural, Outdoor
Camera design - Dome
Category - Security Cameras
Category Code - FNC
Description - With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. 1/2.8” 2Megapixel progressive CMOS, 1920×1080 @30FPS FullHD realtime Minimum illumination: 0.01 Lux @ F2.0 True Day/Night (ICR), BLC/ HLC/ DWDR / 3D DNR Fixed lend 2.8 mm Lens (102°) Up to 30 meters IR Illumination, Smart IR H.265+/H.265/H.264+/H.264 encoding, ONVIF (Profile S/Profile T); CGI; P2P; Genetec Dome design, IK10, IP67, -40°C~+60°C, PoE / 12VDC power Free IP monitoring software available
Design - Form factor - Dome
Design - Housing material - Metal
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White
dimensionalWeight - 457
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type Fixed Dome|Pixel Resolution 2 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Min. Illumination 0.01 Lux|Power options PoE/12V|Power supply requirements PoE /12VDC|Environment Outdoor|Operating temperature range -40°C~+60°C
GTIN - 6939554944024
Image sensor - Number of effective pixels (H x V) - 1920 x 1080 pixels
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Lens system - Closest focusing distance - 0.5 m
Lens system - Detect distance - 38.6 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Identify distance - 3.9 m
Lens system - Maximum aperture number - 2
Lens system - Observe distance - 15.4 m
Lens system - Recognize distance - 7.7 m
LongDesc -
LongProductName - Dome, 1920 x 1080, 2 MP, CMOS, 1/2.8", IP67, IK10, RJ-45, DWDR, DC/PoE
LongSummaryDescription - Dahua Technology Entry IPC-HDBW1230E-0280B-S5. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 54°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Detect distance: 38.6 m, Observe distance: 15.4 m, Recognize distance: 7.7 m
Management features - Web browser - Yes
Min. Illumination - 0.01 Lux
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Streaming method - Multicast
Network - Supported network protocols - IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
Network - Wi-Fi - No
Network Camera Type - Fixed Dome
Night vision - Night vision - Yes
Operating temperature range - -40°C~+60°C
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Manual - Yes
Packaging content - Memory card included - No
Packaging content - Number of cameras - 1
Packaging data - Package weight - 500 g
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Motion detection - Yes
Performance - Placement supported - External / Internal
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Pixel Resolution - 2 Mega Pixel
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Built-in battery - No
Power - DC output voltage - 12
Power - Power consumption (max) - 4.4 W
Power - Power consumption (Power over Ethernet (PoE)) - 5.1 W
Power - Power source type - DC, PoE
Power options - 12V/PoE
Power supply requirements - PoE /12VDC
producerCode - IPC-HDBW1230E-0
ProductName - IPC-HDBW1230E-0280B-S5
productName - IP CAMERA DAHUA IPC-HDBW1230E-0280B-S5
productSize - Normal
Security - Active tampering alarm - Yes
Security - HTTPS encryption - Yes
Security - Mirror - Yes
Security - Video motion detection - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 14 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.495 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - Dahua Technology Entry IPC-HDBW1230E-0280B-S5, IP security camera, Outdoor, Wired, Ceiling/Wall/Pole, White, Dome
sizeX - 142
sizeY - 140
sizeZ - 115
Storage - Built-in HDD - No
Storage - Internal memory - 64 MB
Storage - Maximum memory card size - 256 GB
Storage - ROM capacity - 16 MB
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology Entry IPC-HDBW1230E-0280B-S5 security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Unit Box Height - 0.11
Unit Box Length - 0.14
Unit Box Width - 0.14
Unit Brutto Volume - 0.002156 cubm
Unit Gross Weight - 0.495 kg
Unit Net Weight - 0.3 kg
URL - https://www.dahuasecurity.com/mena/products/All-Products/Network-Cameras/Entry-Series/2MP/IPC-HDBW1230E-S5
Vendor Homepage - www.dahuasecurity.com
Video - Analog signal format system - NTSC, PAL
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 1920 x 1080 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Video - Supported video modes - 240p, 480p, 576p, 720p, 960p, 1080p
Video - Total megapixels - 2 MP
Video - Video compression formats - H.264, H.265, M-JPEG
Video - Video compression formats - H.264B
Video - Video compression formats - H.265
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 496
Weight & dimensions - Diameter - 11 cm
Weight & dimensions - Height - 81 mm
Weight & dimensions - Weight - 350 g
