Audio - Audio input channels - 1 channels
Audio - Audio output channels - 1 channels
Audio - Signal-to-Noise Ratio (SNR) - 55 dB
Audio - Voice codecs - G.711a
Audio - Voice codecs - G.711Mu
Audio - Voice codecs - G.711Mu, G.711a, G.722.1, G.726, MP2L2, PCM
Audio - Voice codecs - G.722.1
Audio - Voice codecs - G.726
Audio - Voice codecs - MP2L2
Audio - Voice codecs - PCM
Brand - Dahua Technology
BrandPartCode - DH-SD3E405DB-GNY-A-PV1
Camera - Camera shutter speed - 1/1 - 1/30000 s
Camera - Minimum illumination - 0.0005 lx
Camera - Pan preset speed - 35.7 °/sec
Camera - Pan range - 0 - 355°
Camera - Pan speed - 36 °/sec
Camera - Tilt angle range - -15 - 90°
Camera - Tilt preset speed - 27.1 °/sec
Camera - Tilt speed - 25.8 °/sec
Camera - White balance - Indoor
Camera - White balance - Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera - White balance - Manual
Camera - White balance - Natural
Camera - White balance - Outdoor
Camera - White balance - Sodium lamp
Camera - White balance - Street lamp
Category - Security Cameras
Design - Form factor - Turret
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling/wall
Design - Product colour - White
dimensionalWeight - 2741
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Auto focus - Yes
Lens system - Closest focusing distance - 1.5 m
Lens system - Detect distance - 270 m
Lens system - Digital zoom - 16x
Lens system - Focal length range - 2.7 - 13.5 mm
Lens system - Focus - Motorized/Manual
Lens system - Identify distance - 27 m
Lens system - Maximum aperture number - 3
Lens system - Minimum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 106.6 m
Lens system - Optical zoom - 5x
Lens system - Recognize distance - 54 m
Lens system - Zoom capability - Yes
LongDesc -

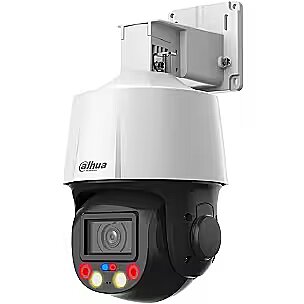

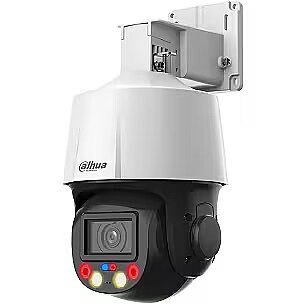

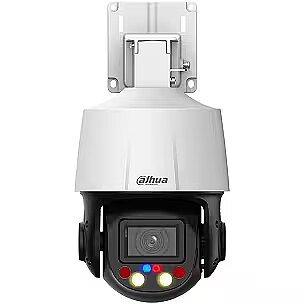

LongProductName - 4MP 5x TiOC WizSense Network PTZ Camera
LongSummaryDescription - Dahua Technology WizSense SD3E405DB-GNY-A-PV1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Tilt angle range: -15 - 90°, Tilt speed: 25.8 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 16x, Detect distance: 270 m
Management features - Management software - DMSS;DSS Pro
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Number of users - 20 user(s)
Network - Streaming method - Multicast
Network - Streaming method - Multicast, Unicast
Network - Streaming method - Unicast
Network - Supported network protocols - FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
Network - Wi-Fi - No
Night vision - Night vision - Yes
Night vision - Night vision distance - 50 m
Night vision - Number of illumination LEDs - 6
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package weight - 2.1 kg
Performance - Auto-tracking - Yes
Performance - Certification - CE: EN55032/EN55024/EN50130-4
FCC: Part15 B, ANSI C63.4-2014
Performance - Connectivity technology - Wired
Performance - Placement supported - Indoor & outdoor
Performance - Preset points - Yes
Performance - PTZ control - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 15 W
Power - Power consumption (typical) - 4.5 W
Power - Power source type - DC, PoE
producerCode - SD3E405DB-GNY-A-PV1
productName - Dahua Technology WizSense SD3E405DB-GNY-A-PV1 Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
ProductName - SD3E405DB-GNY-A-PV1
productSize - Normal
Security - Active tampering alarm - Yes
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object, Face detection, Human detection, Intrusion, Missing object, Tripwire, Vehicle detection
Security - Intelligent Video Surveillance (IVS) system features - Face detection
Security - Intelligent Video Surveillance (IVS) system features - Human detection
Security - Intelligent Video Surveillance (IVS) system features - Intrusion
Security - Intelligent Video Surveillance (IVS) system features - Missing object
Security - Intelligent Video Surveillance (IVS) system features - Tripwire
Security - Intelligent Video Surveillance (IVS) system features - Vehicle detection
Security - Video motion detection - Yes
ShortSummaryDescription - Dahua Technology WizSense SD3E405DB-GNY-A-PV1, IP security camera, Indoor & outdoor, Wired, CE: EN55032/EN55024/EN50130-4 FCC: Part15 B, ANSI C63.4-2014, Ceiling/wall, White
sizeX - 289
sizeY - 189
sizeZ - 251
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storage - RAM capacity - 512 MB
Storage - ROM capacity - 128 MB
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Mobile operating systems supported - iOS
Title - Dahua Technology WizSense SD3E405DB-GNY-A-PV1 Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
URL - https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD3/SD3E405DB-GNY-A-PV1
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Image stabilizer - Yes
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 2D noise reduction, 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 288
Video - Supported graphics resolutions - 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 704 x 576
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1280 x 960
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.264, H.264+, H.264B, H.265, H.265+, M-JPEG
Video - Video compression formats - H.264B
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
WarrantyInfo -
warrantyLength - 24
warrantyType - F
weight - 2044
Weight & dimensions - Depth - 142.6 mm
Weight & dimensions - Height - 236.1 mm
Weight & dimensions - Weight - 1.5 kg
Weight & dimensions - Width - 140 mm
