Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Camera tilt control - Yes
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 75°
Camera - Viewing angle, diagonal - 114°
Camera - Viewing angle, horizontal - 98°
Camera - Viewing angle, vertical - 54°
Design - Built-in microphone - Yes
Design - Form factor - Turret
Design - Housing material - Metal
Design - Housing material - Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
dimensionalWeight - 588
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Fixed focal length - 2.8 mm
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Management features - Dedicated application - Hik-Connect (Android, iOS)
Management features - Web-based management - Yes
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.3af
Network - Number of users - 32 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Wi-Fi - No
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Packaging content - Number of cameras - 1
Performance - Certification - FCC: 47 CFR Part 15, Subpart B, EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, UL 62368-1, IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, IS 13252 (Part 1): 2010/IEC 60950-1: 2005, CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/200
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 0.4 A
Power - DC output voltage - 12
Power - Power consumption (max) - 5 W
Power - Power consumption (Power over Ethernet (PoE)) - 6.5 W
Power - Power source type - DC, PoE
producerCode - DS-2CD1343G2-LIU

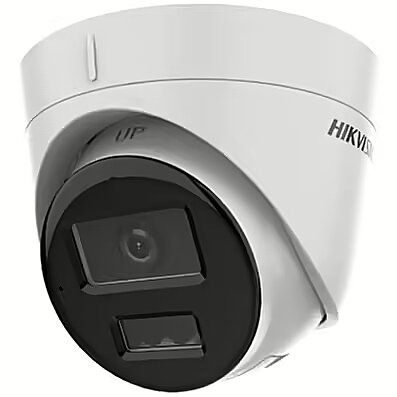

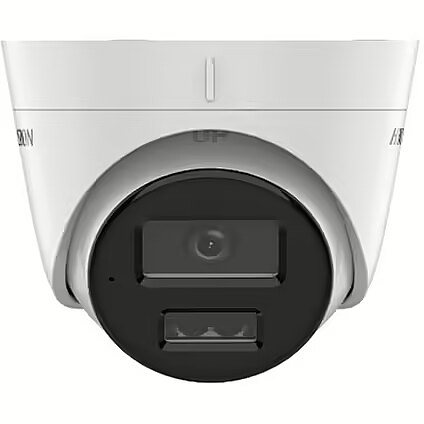

productName - IP camera Hikvision DS-2CD1343G2-LIU(2.8mm)
productSize - Normal
Security - Digital watermark - Yes
Security - Heartbeat - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
sizeX - 140
sizeY - 150
sizeZ - 140
Storage - Built-in HDD - No
Video - Bit rate - 32 Kbps - 8 Mbps
Video - Frame rate - 20 fps
Video - Gain control type - Auto
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Image quality adjustment - White balance
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 640 x 360
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
warrantyLength - 36
warrantyType - G
weight - 530
Weight & dimensions - Diameter - 11 cm
Weight & dimensions - Height - 89.2 mm
Weight & dimensions - Package depth - 150 mm
Weight & dimensions - Package height - 141 mm
Weight & dimensions - Package weight - 560 g
Weight & dimensions - Package width - 150 mm
Weight & dimensions - Weight - 340 g
