Category Code - FNC

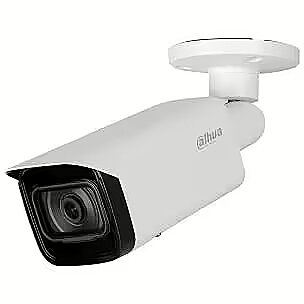

Description - IPC-HFW5541T-ASE-S3 5MP IR Fixed-focal Bullet WizMind Network Camera * The parameters and datasheets below can only be applied to 5541-ASE-S3 series. > 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960×1668) @25/30fps. > Built-in IR LED, and the max. illumination distance is 80 m. > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC. > 12 VDC/PoE power supply; ePoE. > IP67 and IK10 protection. > SMD 3.0.
Dimensions - 244.1 × 79.0 × 75.9 mm
Effective pixels - 2960×1668
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm; 3.6 mm; 6 mm; 8mm
Full Description Line - Type Fixed/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm; 3.6 mm; 6 mm; 8mm|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 2960×1668|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|Power options 12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions 244.1 × 79.0 × 75.9 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0005 Lux
Model - IPC-HFW5541T-ASE-0360B-S3-B
Network Camera Type - Fixed/Outdoor
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 5 Mega Pixel
Power consumption - 4.1 Watts
Power options - 12V
Power supply requirements - 12 VDC/PoE (802.3af)/ePoE
Sensor size - 1/2.7" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 30 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.21 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
Unit Box Height - 0.11
Unit Box Length - 0.3
Unit Box Width - 0.12
Unit Brutto Volume - 0.00396 cubm
Unit Gross Weight - 1.21 kg
Unit Net Weight - 0.82 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541T-ASE-S3=S3
Warranty - 36 months
