Audio - Audio system - 2-way
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Brand - Reolink
BrandPartCode - 6975253983391
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Pan range - 0 - 355°
Camera - Pan speed - 90 °/sec
Camera - Tilt angle range - 0 - 90°
Camera - Tilt speed - 60 °/sec
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Code - PCTMXPT4K01
Design - Form factor - Dome

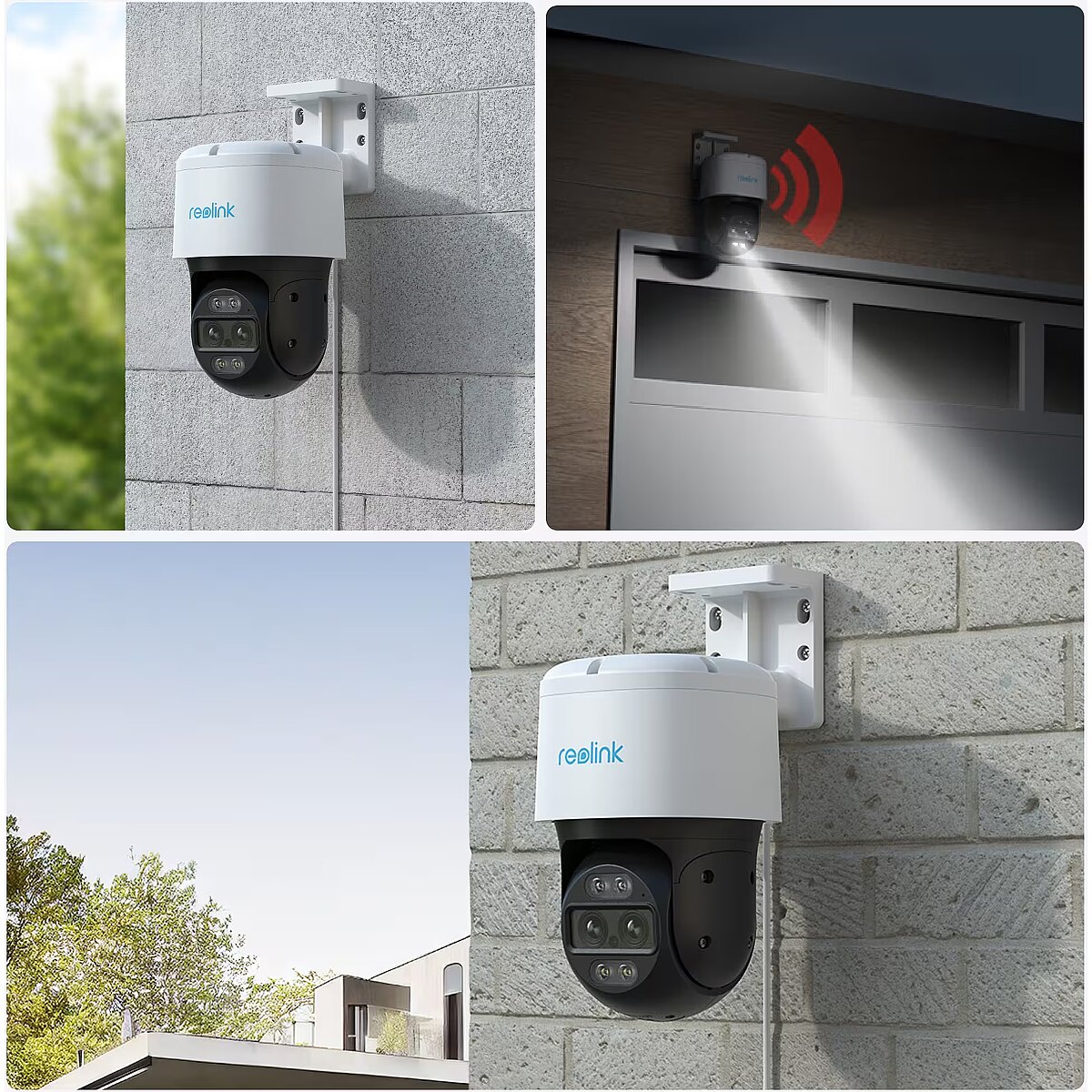

Design - Mounting type - Ceiling/wall
Design - Product colour - White, Black
Design - Protection features - Weatherproof
Design > Chassis type - PTZ
Design > Protection features - IP65
EAN - 6975253983391
GTIN - 6975253983391
Image sensor - Number of sensors - 2
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Sensor type - CMOS
Lens system - Maximum aperture number - 1.6
Lens system > Lens type - 2.8mm/F1.6
Link - https://reolink.com/product/trackmix-series-p760/
LongDesc - Experience a whole new way of tracking with Reolink TrackMix Series P760. With pan, tilt, and 6X hybrid zoom, it can automatically track the detected target and zoom it for more details. With a wide-angle lens and a telephoto lens, it shows both full-view and close-up images of the same event on one screen. Go beyond Full HD and experience never-before-seen details with this 4K camera.Dual LensWide-angle & telephoto lenses for full-view and close-up images.Auto-Zoom TrackingPan 355° and tilt 90° to tack and zoom in on a moving target automatically.6X Hybrid ZoomRetain more details by seamlessly blending optical and digital zoom.Fast, Easy & Lower-Cost PoE InstallationSetting up this camera is effortless, even for beginners.Thanks to the power over Ethernet technology, a single cable manages both data and a stable power supply.Unleash 4K 8MP Visual BrillianceDive into 4K 8MP unparalleled clarity and experience breathtakingly vivid footage without missing a single detail.Illuminate the Night in Vivid ColorExperience enhanced nighttime with vibrant colors and rich details, even in low-light conditionsSmart Detection Tailored to Your NeedsExperience customized security with Person/Vehicle/Motion Detection feature, offering precise alerts and notifications tailored to your specific security requirements.Double Warning for the UnwelcomeEnhance your security with double warning method. With siren and spotlights both activated, this camera can deter intruders and other threats effectively.Talk Anytime, from AnywhereEngage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.Flexible Storage ChoicesEnjoy the flexibility of multiple storage options with support for up to 256GB SD cards, NVR systems, and FTP servers to suit your specific needs and preferences.
LongProductName - 1/3"+1/2.8"CMOS, 8 Mpix, 10M/100Mbps RJ45, 228.2 x 147 x 129 mm, 1.21 kg
LongSummaryDescription - Reolink TrackMix Series P760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, PoE Connection, Color Night Vision. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Black, Form factor: Dome. Tilt angle range: 0 - 90°, Tilt speed: 60 °/sec, Pan range: 0 - 355°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Night vision distance: 30 m, LED type: IR, Infra-red wavelength: 850 nm
Management features - Reset button - Yes
Manufacturer - Reolink
Memory > Memory slots - Micro SD, Max. 256GB
MPN - PCTMXPT4K01

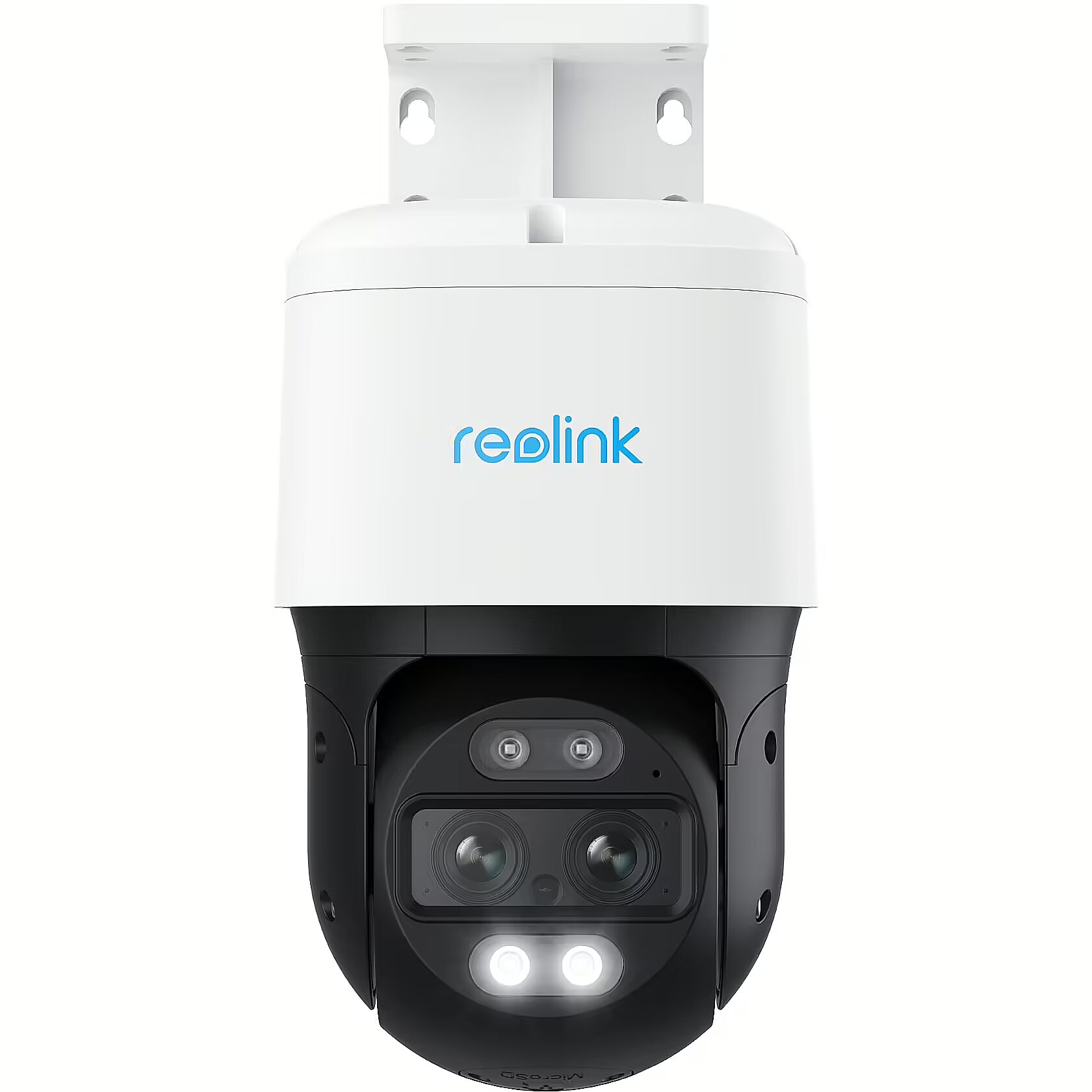

Name - Reolink TrackMix Series P760 PoE Cam
Name - Reolink | 4K Dual-Lens Auto Tracking PoE Security Camera with Smart Detection | TrackMix Series P760 | PTZ | 8 MP | 2.8mm/F1.6 | IP65 | H.264/H.265 | Micro SD, Max. 256GB
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.1af
Network - Number of users - 20 user(s)
Network - Supported network protocols - HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Network - User access level - Administrator, User
Network - Wi-Fi - No
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 2
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 190.00 mm
Package features > Gross width (mm) - 205.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 82, 82 pc(s)
Package features > Paper/Pasteboard - 140.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.15 kg
Package features > TI weight (kg) - 0.01 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes

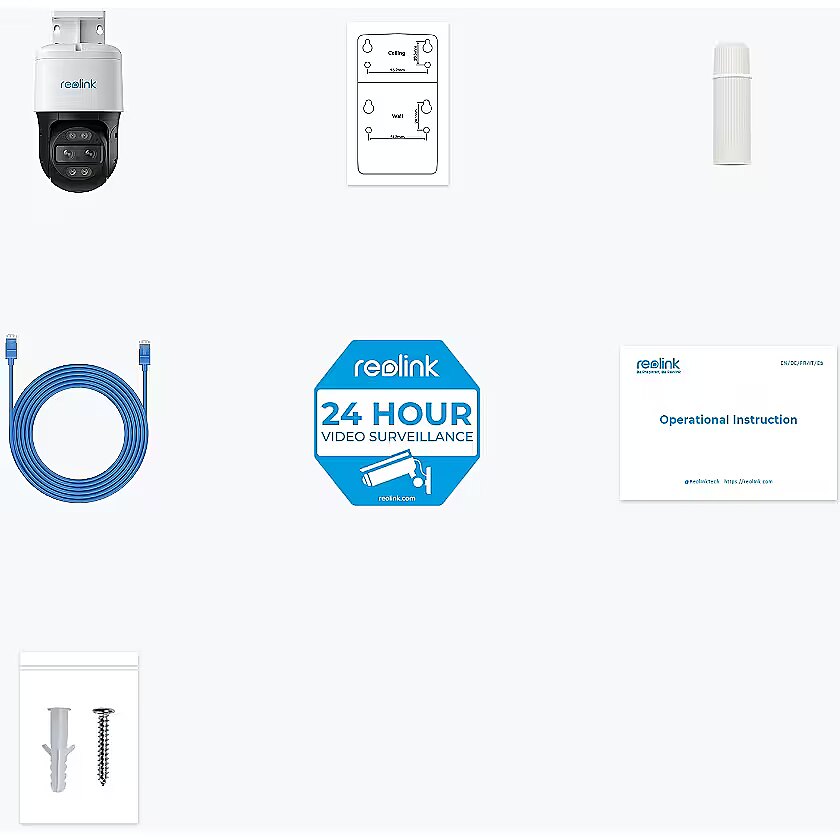

Packaging content - Cables included - LAN (RJ-45)
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 190 mm
Packaging data - Package weight - 1.76 kg
Packaging data - Package width - 205 mm
Performance - Built-in light - Yes
Performance - Colour temperature - 6500 K
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Luminous flux - 450 lm
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance > Video compression formats - H.264/H.265
Picture quality > Camera type - Outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 2 A
Power - DC output voltage - 12, 48
Power - Power consumption (max) - 12 W
Power - Power source type - DC, PoE
ProductName - Reolink TrackMix Series P760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, PoE Connection, Color Night Vision
ShortSummaryDescription - Reolink TrackMix Series P760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, PoE Connection, Color Night Vision, IP security camera, Indoor & outdoor, Wired, 450 lm, 6500 K, Ceiling/wall
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
System requirements - Mac operating systems supported - Yes
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Windows operating systems supported - Yes
Technical details > Gross weight - 1.91 kg
Technical details > Net weight - 1.76 kg
Technical details > Producer - Reolink, Reolink
Technical details > Producer product family - 4K Dual-Lens Auto Tracking PoE Security Camera with Smart Detection
Technical details > Producer product name - TrackMix Series P760
Title - Reolink TrackMix Series P760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, PoE Connection, Color Night Vision
URL - https://reolink.com/product/trackmix-series-p760/
Video - Frame rate - 25 fps
Video - Maximum resolution - 3840 x 2160 pixels
Video - Supported graphics resolutions - 3840 x 2160
Video - Supported video modes - 2160p
Video - Total megapixels - 8 MP
Video - Video compression formats - H.264, H.265
Video - Video recording - Yes
Video > Maximum video resolution - 3840 x 2160 pixels
Video > Max IR distance - Up to 30 meters
Video > Megapixel - 8 MP
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 129 mm
Weight & dimensions - Weight - 1.21 kg
Weight & dimensions - Width - 228.2 mm
