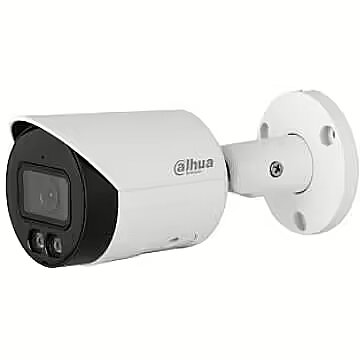

Dahua Bullet, 1668p, 5MP, White

Audio - Audio codecs - G.711a, G.711Mu, G.726, PCM
Audio - Built-in loudspeaker - No
Audio - Built-in microphone - Yes
Audio - Two-way talk - N
Camera - Adjustment shutter speed - Auto/Manual
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Horizontal rotation angle - 0 - 360°
Camera - Lens viewing angle, horizontal - 111°
Camera - Lens viewing angle, vertical - 58°
Camera - Minimum illumination - 0.007 lx
Camera - Motion detection - Yes
Camera - People detection - Yes
Camera - Vertical rotation angle - 0 - 90°
Camera - Viewing angle, diagonal - 132°
Camera design - Bullet
Category - Root/Electronics/Networks and communication/Monitoring/Monitoring IP
Category Code - FNC
Colour - White
Description - "5MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera > 5-MP 1/2.7"" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Supports max. 256 G Micro SD card; built in MIC. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > SMD Plus"
Design - Form factor - Tube/dome
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Wall/ceiling
Design - Product colour - White
dimensionalWeight - 430
Dimensions - 166.2 × 70 × 70 mm
Eans - 6923172581563
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7"|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 166.2 × 70 × 70 mm
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - HD CMOS
IR Illumination - Yes
Lens Mount - M12
Lens system - Closest focusing distance - 1.1 m
Lens system - Focal length range - 2.8 mm
Lens system - Lens type - Fixed focal length lens
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Management features - Web-based management - Yes
Management features - Web browser - Yes
Microphone - Built-in
Min. Illumination - 0.0007 Lux
Model - IPC-HFW2549S-S-IL-0280B
Name - Dahua IPC-HFW2549S-S-IL-0280B
Network - 4G LTE - No
Network - Bluetooth - No
Network - Ethernet interface type - 10 Megabit Ethernet
Network - Ethernet interface type - 100 Megabit Ethernet
Network - Networking standards - IEEE 802.3af
Network - Wi-Fi - No
Network Camera Type - HDTV/Megapixel/Outdoor
Night vision - LED type - IR / White light LED
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 1 / 1
Operating temperature range - –40 °C to +60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Number of cameras - 1
Performance - Connectivity technology - Wired
Performance - Placement supported - Outdoor
Performance - Signal-to-Noise Ratio (SNR) - 56 dB
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - 120 dB
Pixel Resolution - 5 Mega Pixel
Power - DC output voltage - 12
Power - Power consumption (max) - 4.6 W
Power - Power consumption (Power over Ethernet (PoE)) - 5.5 W
Power - Power consumption (typical) - 2.2 W
Power - Power source type - DC, PoE
Power consumption - 2.9 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
Producer - Dahua Technology
producerCode - IPC-HFW2549S-S-IL-0280B
ProducerCode - IPC-HFW2549S-S-IL-0280B
productName - IP Camera DAHUA IPC-HFW2549S-S-IL-0280B White
productSize - Normal
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7"
Shipping Box Depth Shipping/Package Box Dimensions - 21 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 10.5 cm
ShortDescription -
sizeX - 205
sizeY - 100
sizeZ - 105
Storage - RAM capacity - 256 MB
Storage - ROM capacity - 128 MB
Supports card capacities up to - 256GB
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - iOS
Unit Box Height - 0.1
Unit Box Length - 0.21
Unit Box Width - 0.105
Unit Brutto Volume - 0.002205 cubm
Unit Gross Weight - 0.6 kg
Unit Net Weight - 0.47 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HFW2549S-S-IL
Video - Frame rate - 20 fps
Video - Maximum resolution - 2960 x 1668 px
Video - Total megapixels - 5 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.264B
Video - Video compression formats - H.264H
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
Warranty - 36 months
warrantyLength - 36
warrantyType - F
weight - 600
Weight & dimensions - Depth - 166.2 mm
Weight & dimensions - Height - 70 mm
Weight & dimensions - Weight - 480 g
Weight & dimensions - Width - 70 mm
