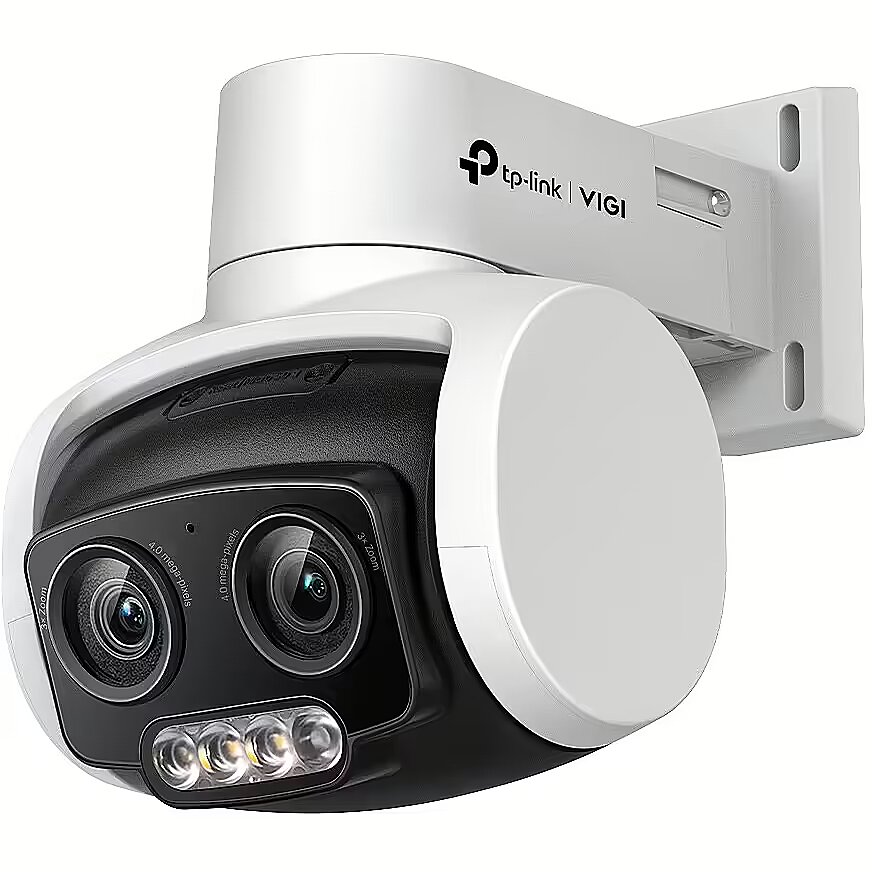

TP-LINK VIGI C540V, 1440p, 4MP, White

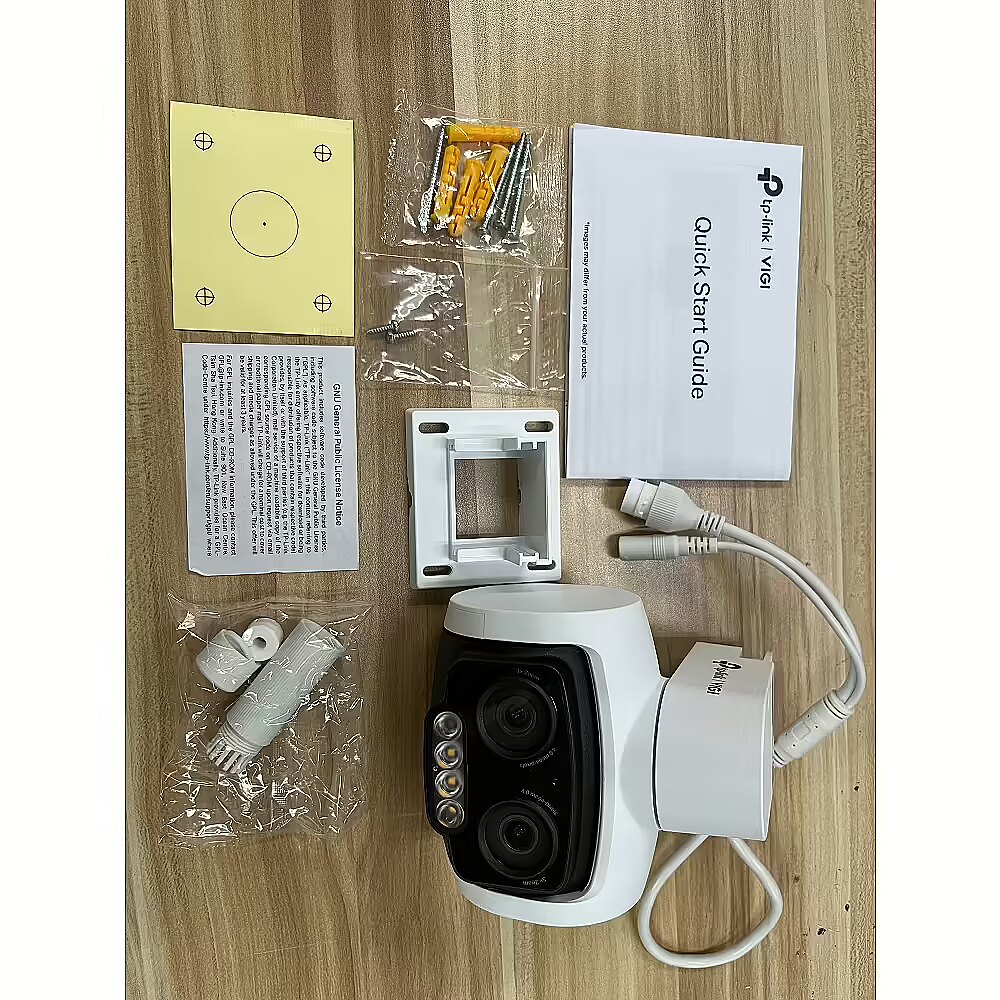

Accessories included - VIGI C540V camera Quick installation guide Sealing elements for the cable Mounting accessories
ARTIKEL1 - 4MP VARIED PT CAMERA
ARTIKEL2 - DUAL-LENS FOCAL FULL-COLOR
Audio - Audio input - Yes
Audio - Audio output - Yes
Audio - Built-in loudspeaker - Yes
Audio - Built-in microphone - Yes
Brand - TP-Link
BrandPartCode - VIGI C540V
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 100°
Camera - Lens viewing angle, horizontal - 84°
Camera - Lens viewing angle, vertical - 46°
Camera - Pan range - 0 - 332°
Camera - Pan speed - 55 °/sec
Camera - Tilt angle range - 0 - 120°
Camera - Tilt speed - 40 °/sec
Category - Security Cameras
Code - VIGI C540V
Color - White
Connectors - microSD
Connectors - RJ-45
Description - VIGI 4MP Outdoor Full Color Dual Lens Varifocal Pan/Tilt Network Camera Super High Quality 4MP: The camera is equipped with a 4MP sensor that can capture even the smallest details. Full color for 24 hours: Details in full color are available all day long, even in complete darkness. This is possible thanks to a sensitive transducer and 4 built-in LED spotlights. 3× Zoom: Enables you to view objects more closely over wide areas. Instant Zoom: Zooming is instantaneous, with no delays or image dragging. People and Vehicle Classification: Distinguishing people and vehicles from other objects allows you to receive more accurate event notifications. Smart Detection: Receive notifications and check what happens when someone covers the camera, takes/leaves an object, or enters/leaves a specific area. Efficient Pan and Tilt: Customized patrol routes and automatic tracking provide more precise monitoring of key areas and increase the security of your property. Active Protection: Warn potential intruders immediately with sound and light when detecting unexpected events. Two-way audio transmission: With the support of the intercom function, you can conduct a two-way conversation from wherever you are. H.265+ encoding: Video compression without loss of image quality reduces network load and saves disk space. IP66 tightness class: The tight housing ensures stable operation of the device in outdoor conditions. Flexible management and storage: Take full control of your security with four management methods: Web interface, NVR interface, VIGI App and VIGI Security Manager. Local storage is available for each method, as well as storage on an inserted microSD card (up to 256GB, card not included).
Design - Form factor - Bullet
Design - Housing material - Plastic
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White
Design - Product colour - White, Black
Design > Chassis type - PTZ
Design > Protection features - IP66
dimensionalWeight - 912
dimension depth - 190 mm
dimension height - 160 mm
Dimensions - 107× 136× 139 mm
dimension weight - 710 g
dimension width - 150 mm
EAN - 4895252500837
ean - 4895252500837
EANCode - 4895252500837
Frames per second - 30
Gross Weight Kg - 1,05
GRUPPE1 - Security
GRUPPE2 - Camera
GTIN - 4895252500837
GTIN - 4895252500844
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
HSTNUMMER - VIGI C540V
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens - Focal Length: 4-12mm (Mixed Zoom) Aperture: F1.6 Field of view: Horizontal: 84°, Vertical: 46°, Diagonal: 100° Lens holder: M12*P 0.5
Lens system - Digital zoom - 3x
Lens system - Focal length range - 4 - 12 mm
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Zoom capability - Yes
Lens system > Lens type - 4-12mm/F1.6
Link - https://www.tp-link.com/in/business-networking/vigi-network-camera/vigi-c540v/
LongDesc - See More With Less4MP Outdoor Full-Color Dual-LensVarifocal Pan Tilt Network CameraClarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Powerful Pan TiltCover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route).Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.Automatic TrackingContinues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.Smart Detection for Efficient MonitoringBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.Active DefenseWarn potential intruders instantly with sound and light when abnormal events are detected.Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere.PoE & IP66Outdoor PoE connection makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance. Smart Video Coding by H.265+Compresses the video size without sacrificing video quality, easing the network load and saving disk space.Flexible StorageLocal storage is available for each method, as well as onbsoard storage with an SD card slot (up to 256 GB).Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 1/3” Progressive Scan CMOS, f 4-12 mm, F1.6, 2560 X 1440 px, IR LED850nm 30m Max, RJ45 10/100M, POE, 139x136x107 mm
LongSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Housing material: Plastic. Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 3x, Focal length range: 4 - 12 mm
Management, monitoring, configuration - Alarm and event management: Smart Events: Classification of people and vehicles Intrusion detection Line crossing detection People detection Vehicle detection Zone entry detection Zone exit detection Object abandonment detection Object deletion detection Basic events: Motion detection Video manipulation detection Exception (failed login) Alarm call: Video recording to memory card Push notifications Audible warning Flashing white light Outgoing notification: Push notification
Manufacturer Code - VIGI C540V
Manufacturer Name - TP-LINK
Memory > Memory slots - Micro SD, Max. 256GB
Memory card reader - Yes
Memory standard - SDXC
Microphone - Yes
Min. illuminance - 0 lx
Motion detection - Yes
name - TP-Link VIGI C540V Dual Lens 4MP Camera
Name - TP-LINK | Network surveillance camera | VIGI C540V | 36 month(s) | PTZ | 4 MP | 4-12mm/F1.6 | Power over Ethernet (PoE) | IP66 | H.265/H.264 | Micro SD, Max. 256GB
Network - Bluetooth - No
Network - Cloud-managed - Yes
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - No
Networking > Power over Ethernet (PoE) - Yes
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Night mode - Yes
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 1
Night vision - Number of infrared LEDs - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 189.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 148.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 386 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Number of cameras - 1
Performance - Certification - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Placement supported - Outdoor
Performance - PTZ control - Yes
Performance - Type - IP security camera
Performance > Video compression formats - H.265/H.264
Picture quality > Camera type - Outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 14 W
Power - Power consumption (typical) - 2.9 W
Power - Power source type - DC, PoE
Power - Power source type - PoE
Power supply -
producer - TP-LINK
producerCode - VIGI C540V
productName - TP-Link VIGI C540V Outdoor 4 MP security camera
ProductName - VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
productSize - Normal
Protection class - IP66
Resolution - 2560 x 1440
Security -
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Password reset via email - Yes
Security - Video motion detection - Yes
Sensor - 1/3 Progressive Scan CMOS
Short description - TP-LINK 4MP IP-Cam (4mm Lens) Dual-Lens Varied Focal Full-Color PT Camera
ShortSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera, IP security camera, Indoor & outdoor, Wired, CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, Ceiling, White, Black
sizeX - 150
sizeY - 160
sizeZ - 190
Speakers built-in - Yes
Special functions -
Stck_Kart - 12
Stck_Pal - 0
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage - Memory card reader microSD Memory card reader - Yes
Storno - Y
System Requirements -
Technical details > Gross weight - 0.86 kg
Technical details > Net weight - 0.66 kg
Technical details > Producer - TP-LINK
Technical details > Producer product family - Network surveillance camera
Technical details > Producer product name - VIGI C540V
Technical details > Warranty - 36 month(s)
Title - TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
Two-way transmission - Yes
URL - https://www.tp-link.com/uk/business-networking/vigi-network-camera/vigi-c540v/
vendpn - VIGI C540V
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 256 Kbps - 4 Mbps
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - DNR
Video - Image quality adjustment - Mirror
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 1280 x 720
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Supported graphics resolutions - 1920 × 1080
Video - Supported graphics resolutions - 2048 x 1280
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2560 x 1440
Video - Supported video modes - 720p, 1080p, 1440p
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video formats supported - H.264, H.264+, H.265, H.265+
Video - Video recording - Yes
Video - Video streaming - Yes
Video > Megapixel - 4 MP
Viewing angle, horizontal - 84 °
Viewing angle, vertical - 46 °
Warranty - 36
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 430 g
weight - 710
Weight & dimensions - Depth - 107 mm
Weight & dimensions - Depth - 139 mm
Weight & dimensions - Height - 107 mm
Weight & dimensions - Height - 139 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Package weight - 660 g
Weight & dimensions - Weight - 430 g
Weight & dimensions - Width - 136 mm
Wireless communication - No
