Accessories included -

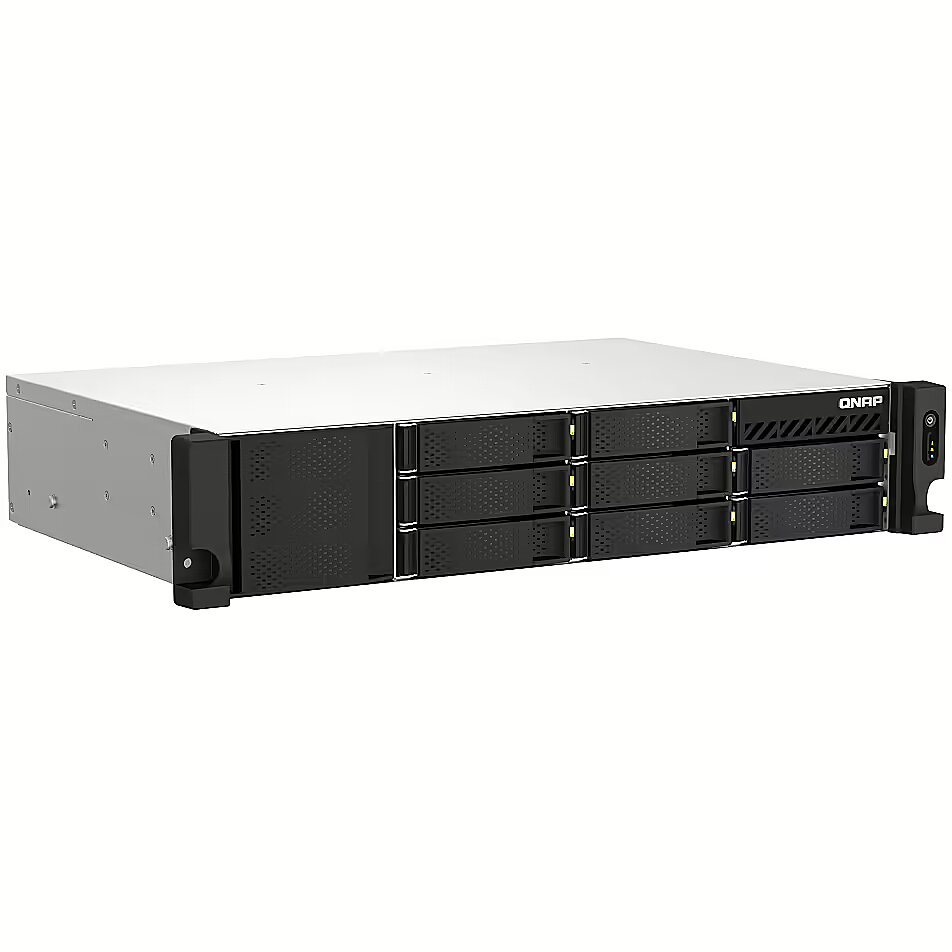

ARTIKEL1 - TS-864EU-8G 2U 8BAY N5095 4QC
ARTIKEL2 - 8GB DDR 4 2X 2.5GBE 2X USB3.2 II
Brand - QNAP
BrandPartCode - TS-864EU-8G
Breite - 0
Built-in flash memory - 4 GB
Built-in RAM memory - 8 GB
Category - NAS & Storage Servers
Description - TS-864eU Montowany w stelażu serwer 2,5GbE NAS w płytkiej obudowie zapewniającej oszczędność miejsca, i z możliwością rozbudowy PCIe oraz wyjściem HDMI.
Model TS-864eU jest wyposażony w czterordzeniowy procesor Intel Celeron N5095 (o taktowaniu zwiększanym do 2,9 GHz). Płytka obudowa zapewnia oszczędność miejsca, ułatwiając montaż w małych szafkach na media lub w miejscach z dużą ilością okablowania. Dzięki możliwości rozbudowy przestrzeni dyskowej i bogatym w funkcje aplikacjom model TS-864eU zapewnia większe możliwości niż modele poprzedniej generacji.
Łączność 2,5GbE
Ustawiając trunking portów z dwoma wbudowanymi portami 2,5GbE, można uzyskać prędkość transferu do 5 Gb/s.
Wyjście HDMI
Obsługa odtwarzania multimediów 4K i transkodowania w czasie rzeczywistym.
Możliwość rozbudowy PCIe
Gniazdo PCIe pozwala zainstalować adaptery 2,5/5/10GbE, karty QM2 lub karty rozszerzeń USB 3.2 Gen 2 (10 Gb/s).
Interfejs USB
Dwa porty USB 3.2 Gen 2 10 Gb/s zapewniające szybsze przesyłanie danych.
Tworzenie kopii zapasowych i przywracanie danych
Ochrona komputerów PC/Mac, maszyn wirtualnych, kontenerów oprogramowania, danych w chmurze i usług SaaS.
Aplikacje w chmurze hybrydowej
Bramy pamięci masowej w chmurze umożliwiają zastosowania w chmurze hybrydowej, dodatkowo umożliwiając rezerwację pamięci podręcznej na serwerze NAS.
TS-864eU-8G
4-rdzeniowy/4-wątkowy procesor Intel Celeron N5095 o taktowaniu zwiększanym do 2,9 GHz, 8 GB RAM
Design - Chassis type - Rack (2U)
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - LED indicators - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
dimension depth - 595 mm
dimension height - 215 mm
Dimensions - 88,6 x 482,14 x 318,13 mm
dimension weight - 9260 g
dimension width - 535 mm
Disk type - HDD
Disk type - SSD
ean - 4711103082195
EANCode - 4711103082195
Expansion slots - 1 x PCIe 3.0 x 2
Fan - 6 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 4711103082195
guarantee - 36
guarantee_type - normal
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
HERSTELLER - QNAP
Hoehe - 0
Hot-swapping support - Yes
Housing - Rack 2U
HSTNUMMER - TS-864EU-8G
I/O connectors - 1 x HDMI
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 2 x USB 2.0
I/O connectors - 2 x USB 3.1
Laenge - 0
LongDesc - The TS-864eU is powered by Intel® Celeron® N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU surpasses the previous generation.Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GBThe TS-864eU is powered by Intel® Celeron® N5095/N5105 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.Build a High-Speed 2.5GbE Network EnvironmentQNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.A fast 2.5GbE NASA QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.Upgrade computers and serversServers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.Add a 5GbE port to laptopsLaptops and upgrade-limited computers can use QNAP’s portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.A switch that supports 2.5GbE+QNAP’s 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.Future-proof your IT infrastructure for high-speed networksThe TS-864eU is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.Enhance productivity with multiple USB portsWith two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-864eU. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.Abundant I/O capabilities with PCIe expansionThe TS-864eU has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.SSD Caching and Auto Tiering for Optimized Storage EfficiencyThe TS-864eU supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-864eU with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.Faster image identification with integrated Intel® OpenVINO™ AI engine.With integrated Intel® OpenVINO™ AI computing resources, the TS-864eU accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.Direct 4K HDMI output for multimedia and virtual machine displayThe TS-864eU features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 1.4b output supports up to 4K @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-864eU to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-864eU as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.QTS 5, Fast, smooth, and easy-to-use!The TS-864eU comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.Brighter. Smoother. You’ll like it.When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.Get started with the notice boardWhen performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.Smooth and reactive user interfaceWhether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.Comprehensive backup and disaster recovery solutionThe TS-864eU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.PC/Laptop backupFor Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.Remote backup for NASHybrid Backup Sync makes it easy to back up data from a TS-864eU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.VM backupEnjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.SaaS backupSafeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.Cloud backup for NASHybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.QuDedup technologyHybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.Multi-version snapshots mitigate ransomware threatsThe TS-864eU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.Volume and LUN snapshotsTake snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.Instantly restore snapshotsSnapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.Back up snapshotsMultiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-864eU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.The best file storage and collaboration centerThe TS-864eU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.File StationManage, access, and share all the files in the TS-864eU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.QsyncMake any file uploaded to a TS-864eU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.QsirchQNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.QfilingAutomate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.Comprehensive security and privilege settingsThe TS-864eU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.Simplified privilege settingsThe TS-864eU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.QuFirewall protectionSupports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.Security CounselorA security portal for the TS-864eU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.Malware RemoverRegularly scan your TS-864eU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.All-in-one solution for hosting virtual machines and containersBy running multiple virtual machines and containers on the TS-864eU, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.Virtualization StationRun multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.Conainer StationExperience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.Linux StationRun Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.Single Root I/O Virtualization (SR-IOV)By installing an SR-IOV compatible PCIe SmartNIC in the TS-864eU, you can allocate bandwidth resources from a physical network card directly to VMs, increasing network efficiency and reduced CPU overheads.Smart surveillance solution for 24/7 securityQVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-864eU and enjoy simplified camera management, storage space allocation, camera live viewing and playback.Flexible and economical storage expansionQNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-864eU storage as needed to accommodate data and business growth.Attach QNAP expansion enclosuresConnect expansion enclosures to the TS-864eU, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.Mount cloud storage or remote file serversMount cloud storage or remote file servers to expand the capacity of the TS-864eU while also centrally managing files on the NAS, cloud storage, and remote devices.More productivity-boosting applicationsThe TS-864eU provides an App Center that includes feature-rich apps to expand your NAS potential!QuObjectsRun a high-performance S3 compatible development environment on your TS-864eU to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.Notification CenterConsolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.QmiixAn Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.QmailAgentCentralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.Browser StationRemotely access protected data on the same LAN as the TS-864eU without going through complex VPN settings.QuFTPThe TS-864eU can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
LongProductName - 8 x 3.5", Intel Celeron N5105/N5095, 8 GB SO-DIMM DDR4 (1 x 4 GB), 4GB Flash, LAN, 300W, 100-240V, 88.6 x 482.14 x 318.13 mm
LongSummaryDescription - QNAP TS-864EU-8G. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III, Supported storage drive interfaces: Serial ATA II, Serial ATA III. Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor boost frequency: 2.9 GHz. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 16 GB. Ethernet LAN data rates: 100,1000,2500 Mbit/s. HDMI version: 1.4b
Management, monitoring, configuration -
Max. number of disks - 8
Max memory size - 16 GB
Memory - Flash memory - 4000 MB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 16 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 2
Memory type - SODIMM DDR4
name - Nas server TS-864eU-8G 8x0HDD Intel Celeron N5095 8GB
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100,1000,2500 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of fans - 3
Number of HDDs installed - 0
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Number of screws - 56
Performance - Access Control List (ACL) - Yes
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Performance - Web-based management - Yes
Ports & interfaces - Concurrent connections - 1500
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4b
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input voltage - 100 - 240 V
Power - Fan voltage - 12 V
Power - Number of power supply units - 1
Power - Power consumption (sleep) - 24.776 W
Power - Power consumption (typical) - 51.022 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 300 W
Power supply - Zasilacz 300W, 100-240 V
Processor - 4-rdzeniowy/4-wątkowy procesor Intel Celeron N5095 o taktowaniu zwiększanym do 2,9 GHz
Processor - Number of processors supported - 1
Processor - On-board graphics card model - Intel® UHD Graphics
Processor - Processor boost frequency - 2.9 GHz
Processor - Processor cores - 4
Processor - Processor family - Intel® Celeron®
Processor - Processor manufacturer - Intel
Processor - Processor threads - 4
producer - QNAP
ProductName - TS-864EU-8G
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - 50 (5+0)
RAID levels - 60 (6+0)
RAID levels - JBOD
ShortSummaryDescription - QNAP TS-864EU-8G, NAS, Rack (2U), Intel® Celeron®, Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Operating system installed - QNAP Turbo System
Software - Operating system version - 5.0.0
Software - Windows operating systems supported - Yes
Stck_Kart - 1
Stck_Pal - 2
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of storage drives supported - 8
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, 50, 60, JBOD
Storage - RAID support - Yes
Storage - Storage drive interface - Serial ATA III
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5,3.5"
Storage - Supported file systems - FAT32, HFS+, NTFS, ext3, ext4
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storno - Y
Title - QNAP TS-864EU-8G NAS/storage server Rack (2U) Ethernet LAN Black
Total number of memory slots - 2
URL - https://www.qnap.com/en?ref=header_logo
vendpn - TS-864eU-8G
WarrantyInfo -
Weight - 6.68 kg
Weight & dimensions - Depth - 318.1 mm
Weight & dimensions - Height - 88.6 mm
Weight & dimensions - Package weight - 9.25 kg
Weight & dimensions - Weight - 6.68 kg
Weight & dimensions - Width - 482.1 mm
