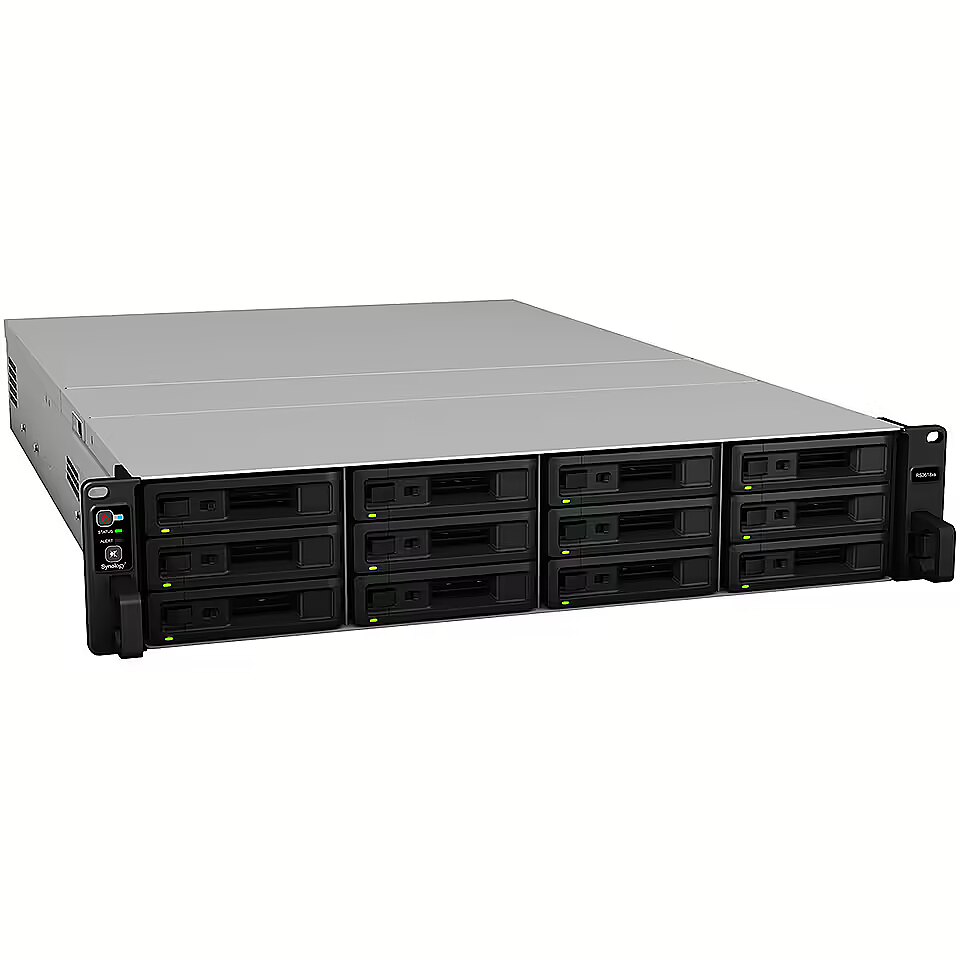

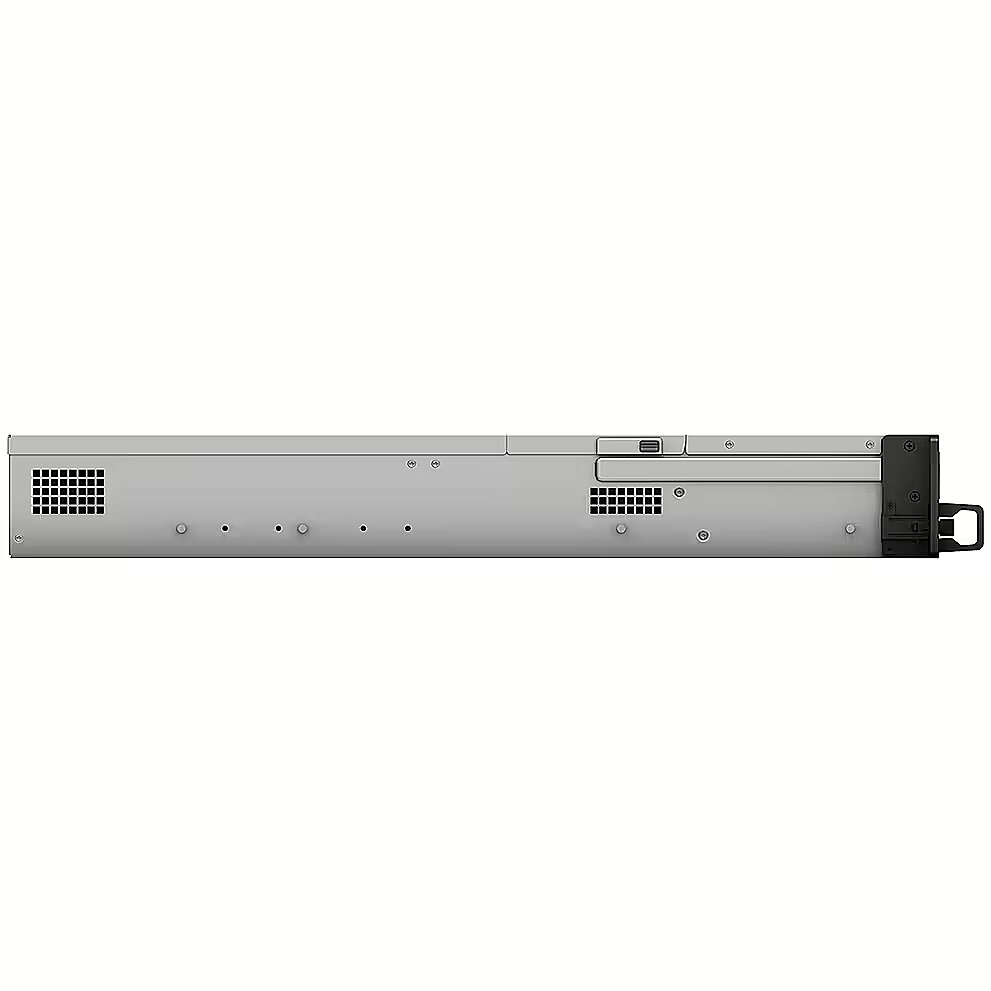

Synology RackStation RS3618xs, 2U 12-Bay

Accessories included - - RS3618xs main unit
- Quick installation guide
- Accessory package
- Power cable
Built-in RAM memory - 8 GB
Category_1 - Network and Servers
Category_2 - NAS
Description - Synology RackStation RS3618xs is a reliable and powerful network storage solution for large enterprises with demanding business applications. RS3618xs server, simplifies data management, optimizes the virtualization of environments and allows you to quickly increase storage capacity, minimizing the time of configuration and maintenance of the device. The Synology RS3618xs server is covered by a 5-year limited Synology warranty.
Synology RS3618xs is a 12-bay, 2U network storage solution with a quad-core processor and 8 GB of DDR4 memory (expandable to 64 GB) that will meet the requirements of large enterprises. With the Aggregation Link technology enabled for the 10GbE network, the RS3618xs provides high performance and sequential bandwidth of more than 3,900 MB/s and 133,500 IOPS operations in random mode for iSCSI1 as part of the RAID 5 configuration. The transmission rate of encrypted data can exceed 2300 MB/sec read mode and 1177 MB/sec in write mode.
The RS3618xs offers excellent flexibility thanks to the ability to scale up to 36 drives by connecting two Synology RX1217 or RX1217RP expansion units. The memory capacity can be easily extended to suit business needs.
Design - Chassis type - Rack (2U)
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - LED indicators - HDD
Design - LED indicators - Power
Design - Number of fans - 4 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 23001
dimension depth - 230 mm
dimension height - 850 mm
Dimensions - - 88 × 430.5 × 692 mm
- 88 × 482 × 724 mm (with server handle)
dimension weight - 18750 g
dimension width - 615 mm
Disk type - HDD
Disk type - SSD
ean - 4711174723058
EAN - 4711174723058
EAN_code - 4711174723058
Expansion slots - 2 x PCIe 3.0 x 8
Fan - 8 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Gross Weight Kg - 19,5
guarantee - 60
guarantee_type - normal
HDD interface - SATA
Hot-swapping support - Yes
Housing - Rack 2U
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 2 x USB 3.0
I/O connectors - 4 x RJ-45 LAN
Important - Uzyskaj cenę specjalną na ten produkt wypełniając formularz rejestracji projektu. Odeślij do swojego handlowca lub  maciej.michalak@ab.pl
Logistics data - Harmonized System (HS) code - 84714100
Management, monitoring, configuration -
Manufacturer - Synology
Manufacturer Code - RS3618XS
Manufacturer Name - Synology
Manufacturer_code - RS3618xs
Max. number of disks - 12
Max memory size - 64 GB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 64 GB
Memory - Memory clock speed - 2133 MHz
Memory - Memory slots - 4
Memory type - DDR4
name - Server NAS RS3618xs 12x0HDD 8GB 4x2.7Ghz 4xGbE 2xPCIe
Name - Synology RackStation RS3618xs, NAS
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - iSCSI support - Yes
Network - Link aggregation - Yes
Network - Supported network protocols - CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network architecture - GigabitEthernet
Network interface - 4 x 10/100/1000 Mbit/s
Network protocols -
Number of fans - 4
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters -
Other features -
Other features - Certification - EAC, VCCI, CCC, RCM, FCC, CE, BSMI
Other features - Compliance certificates - RoHS
Other features - Processor ARK ID - 91202
Packaging content - Cables included - AC
Packaging content - Quick installation guide - Yes
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Chrome, Firefox, Internet Explorer 10, Safari
Performance - Device class - Small & Medium Business
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - Noise level - 50.2 dB
Performance - Number of users - 16000 user(s)
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - HTTPS
Performance - Security algorithms - SSH
Performance - Security algorithms - SSL/TLS
Performance - Share folder - CIFS/AFP/FTP
Performance - System log - Yes
Performance - Type - NAS
Performance - Web-based management - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - PCI Express x8 (Gen 3.x) slots - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (HDD standby) - 55.05 W
Power - Power consumption (typical) - 142.76 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 500 W
Power supply - - AC input power 100-240 V (AC)
- Frequency 50/60 Hz, single phase
Processor - Quad-core Intel Xeon D-1521 processor with 2.4 GHz (maximum 2.7 GHz with Turbo Boost technology)
Processor - Conflict-Free processor - Yes
Processor - CPU configuration (max) - 1
Processor - ECC supported by processor - Yes
Processor - Maximum internal memory supported by processor - 128 GB
Processor - PCI Express configurations - 1x4
Processor - PCI Express configurations - 1x8
Processor - PCI Express configurations - 1x16
Processor - PCI Express slots version - 2.0
Processor - PCI Express slots version - 3.0
Processor - Processor boost frequency - 2.7 GHz
Processor - Processor cache - 6 MB
Processor - Processor code - SR2DF
Processor - Processor codename - Broadwell
Processor - Processor cores - 4
Processor - Processor family - Intel® Xeon® D
Processor - Processor frequency - 2.4 GHz
Processor - Processor lithography - 14 nm
Processor - Processor manufacturer - Intel
Processor - Processor model - D-1521
Processor - Processor operating modes - 64-bit
Processor - Processor package size - 37.5 x 37.5 mm
Processor - Processor series - Intel Xeon D-1500
Processor - Processor socket - BGA 1667
Processor - Processor threads - 8
Processor - Scalability - 1S
Processor - Stepping - V2
Processor - Thermal Design Power (TDP) - 45 W
Processor special features - Embedded options available - No
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Execute Disable Bit - Yes
Processor special features - Idle States - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel Enhanced Halt State - Yes
Processor special features - Intel Secure Key Technology version - 1.00
Processor special features - Intel Trusted Execution Technology - Yes
Processor special features - Intel TSX-NI - Yes
Processor special features - Intel TSX-NI version - 1.00
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
Processor special features - Intel® AES New Instructions (Intel® AES-NI) - Yes
Processor special features - Intel® Hyper Threading Technology (Intel® HT Technology) - Yes
Processor special features - Intel® OS Guard - Yes
Processor special features - Intel® Secure Key - Yes
Processor special features - Intel® Turbo Boost Technology - 2.0
Processor special features - Maximum number of PCI Express lanes - 32
Processor special features - Memory channels supported by processor - Dual
Processor special features - Memory types supported by processor - DDR3-SDRAM
Processor special features - Memory types supported by processor - DDR4-SDRAM
Processor special features - Thermal Monitoring Technologies - Yes
Processor special features - UART - Yes
producer - Synology
producerCode - RS3618xs
productName - Synology RackStation RS3618xs NAS Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 DiskStation Manager Black
productSize - Normal
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
Short description - Synology NAS Rack Station RS3618xs (12-Bay) 2U
sizeX - 850
sizeY - 220
sizeZ - 615
Software - Mac compatibility - Yes
Software - Mac operating systems supported - Mac OS X 10.11 El Capitan
Software - Mac operating systems supported - Mac OS X 10.12 Sierra
Software - Operating system installed - DiskStation Manager
Software - Server operating systems supported - Windows Server 2012
Software - Server operating systems supported - Windows Server 2012 R2
Software - Windows operating systems supported - Windows 7
Software - Windows operating systems supported - Windows 10
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Maximum supported storage capacity - 144 TB
Storage - Number of storage drives supported - 12
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - F1
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5"
Storage - Storage drive sizes supported - 3.5"
Storage - Supported file systems - BTRFS
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - Fat
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - Serial ATA, Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Total capacity of all disks installed - 0 KB
vendpn - RS3618xs
warrantyLength - 60
warrantyType - F
Weight - 14.5 kg
Weight - 18,60
weight - 18660
Weight & dimensions - Depth - 692 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 14.5 kg
Weight & dimensions - Width - 430.5 mm
