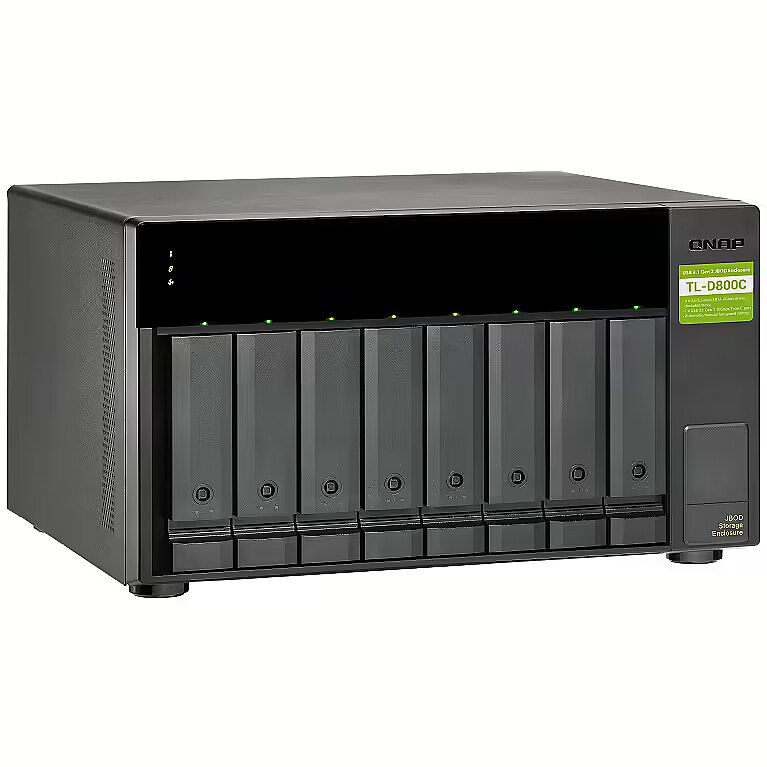

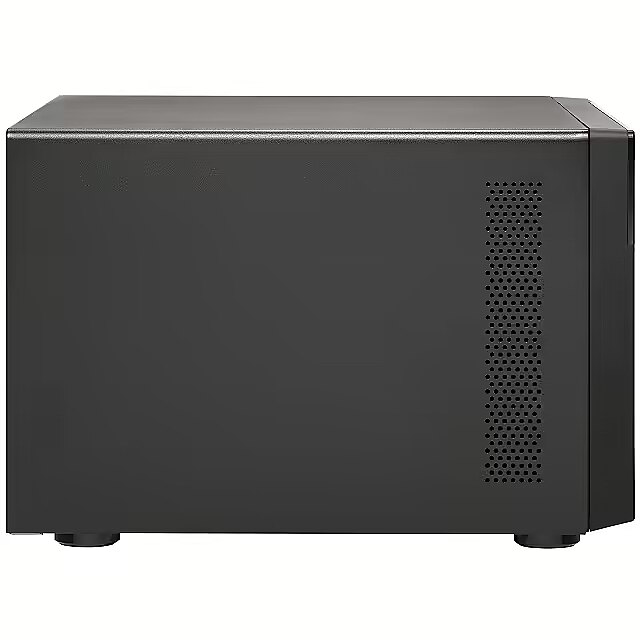

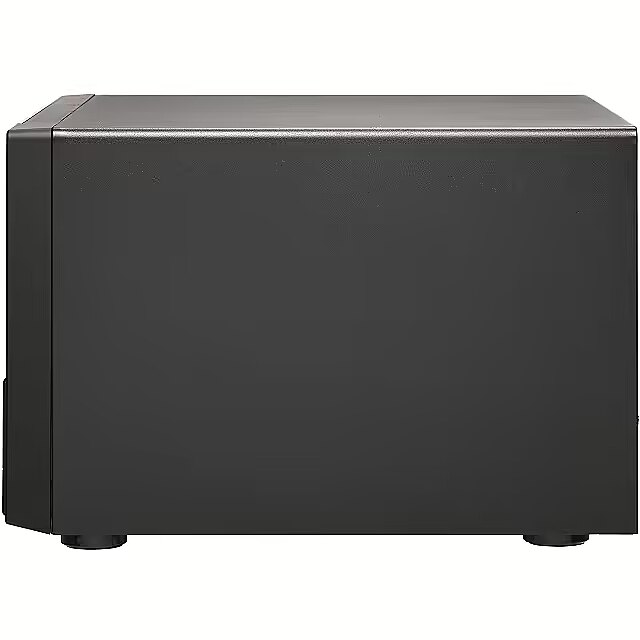

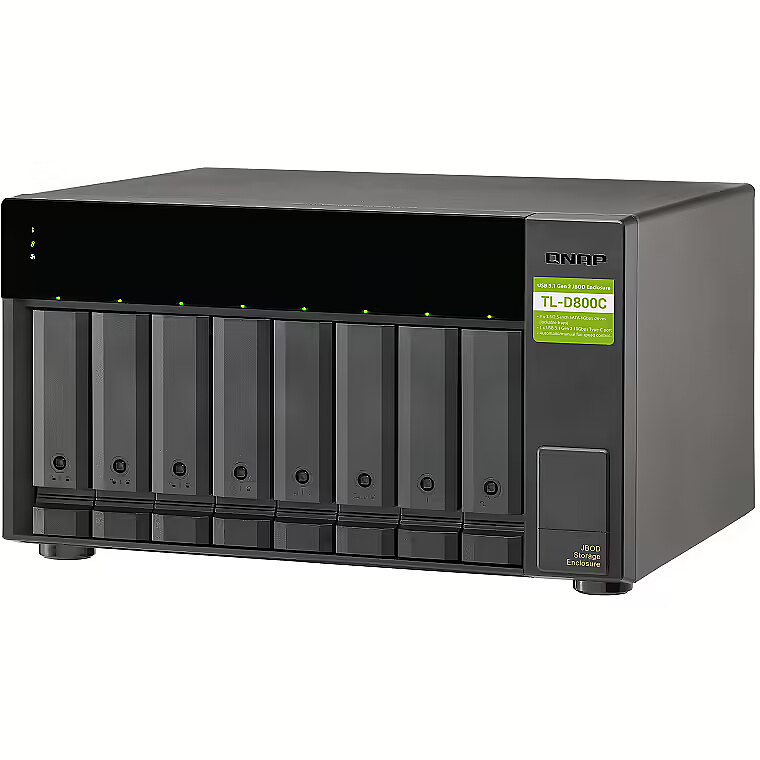

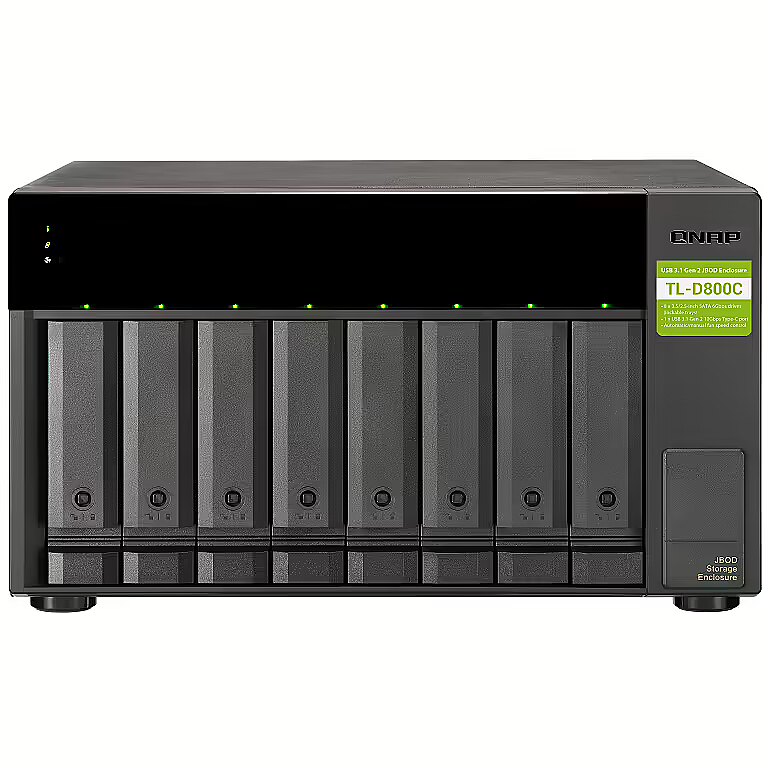

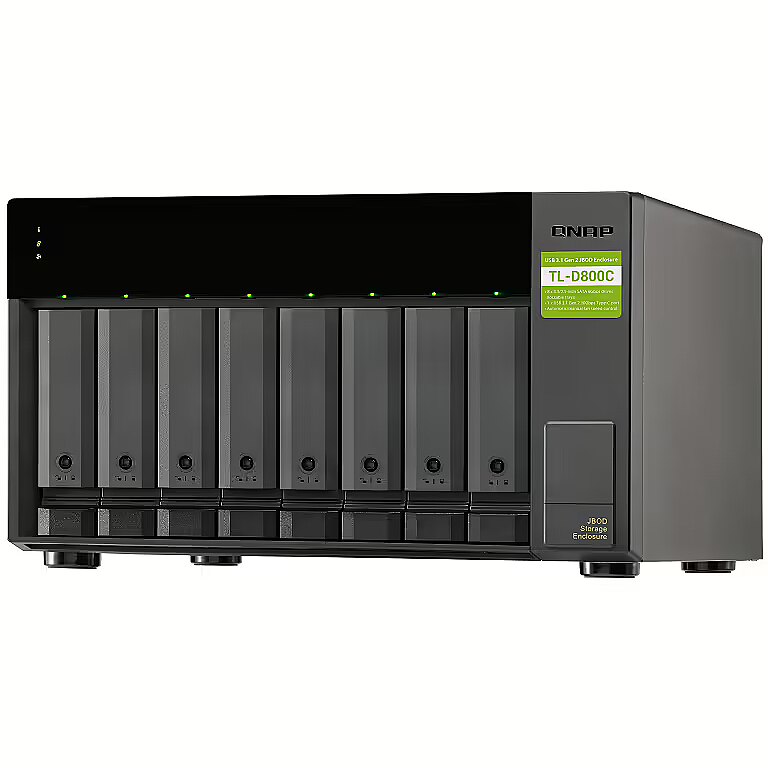

Qnap TL-D800C Expansion Unit, 8-Bay

Accessories included -
ARTIKEL1 - TL-D800C EXPANSION UNIT
ARTIKEL2 - 8 BAY
Brand - QNAP
BrandPartCode - TL-D800C
Category - Root/Electronics/Networks and communication/NAS - file servers
Category - Storage Drive Enclosures
Category_1 - Hard Drives and Pendrives
Category_2 - External cases for HDD
Description - Obudowa JBOD TL-D800C umożliwia tworzenie kopii zapasowych i rozbudowę systemu QNAP NAS. Model TL-D800C oferuje osiem 3,5-calowych wnęk na dyski SATA 6 Gb/s z łącznością USB 3.2 Gen2 (10 Gb/s) Type-C, zapewniając możliwość szybkiej i płynnej rozbudowy.
Design - Fan diameter - 12 cm
Design - Key lock - Yes
Design - LED indicators - Fan fail, HDD, Link
Design - Number of fans - 2 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black, Grey
Design - Product type - HDD/SSD enclosure
dimension depth - 295 mm
dimension height - 390 mm
Dimensions - 188,2 × 329,3 × 281,4 mm
dimension weight - 7700 g
dimension width - 420 mm
ean - 4713213516188
EANCode - 4713213516188
Eans - 4713213516188
EAN_code - 4713213516188
Fan - 12 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
GRUPPE1 - Storage
GRUPPE2 - NAS Server
GTIN - 4713213516188
guarantee - 36
guarantee_type - normal
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
HERSTELLER - QNAP
Housing - Tower
HSTNUMMER - TL-D800C
I/O connectors - 1 x USB 3.1
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - High-speed USB transferThe TL-D800C features high-speed USB 3.2 Gen2 Type-C connectivity and built-in USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer. The TL-D800C not only provides you higher file transfer performance than USB 3.2 Gen1 (USB 3.2 Gen 1) but offers a more cost-effective option than other storage enclosures on the market.Flexible storage configuration and managementThe TL-D800C provides software-controlled configurations for greater management flexibility. Users can use the QTS / QuTS hero Storage & Snapshots Manager to configure the TL-D800C as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D800C, you can easily expand storage capacity.JBOD migration speeds up remote file transfersMigrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-D800C supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-D800C to another place and connect it with the NAS to experience the device’s simple plug and play feature and fast data migration.Use TL-D800C as a high-capacity disk drive reader by setting up single disk modeYou can treat each disk in your TL-D800C as an individual storage space, and also use it as a removable drive. It can function like a high-capacity disk drive reader. When one of disk reaches data storage limitation, you can remove it and put it into a dry box. Then swap a different disk into theTL-D800C empty drive slot. After that, you can install the disk that reached full data capacity into the TL-D800C and connect it with a NAS for direct file access.Versatile usage scenarios to meet storage expansion needsThe TL-D800C meets many storage expansion requirements for the home and office.Scenario 1: Expand your NAS capacityThe TL-D800C provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-D800C to their NAS and using the Storage & Snapshots Manager in QTS or QTS hero, users can easily configure and manage their storage expansion. The TL-D800C supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.Scenario 2: External storage for your NASYou can use the TL-D800C to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QTS hero to set up and manage your TL-D800C and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.
LongProductName - 8x 2.5"/3.5" SATA, 1x USB 3.2 Gen 2 Type-C, 250 W PSU, 100-240V, 188.2 x 329.3 x 281.4 mm, 6.18 kg
LongSummaryDescription - QNAP TL-D800C. Product type: HDD/SSD enclosure. Number of storage drives supported: 8, Storage drive size: 2.5/3.5", Supported storage drive interfaces: Serial ATA II, Serial ATA III. Data transfer rate: 6 Gbit/s. Hot-swap. Product colour: Black, Grey. USB connector type: USB Type-C
Management, monitoring, configuration -
Manufacturer - Qnap
Manufacturer_code - TL-D800C
Max. number of disks - 8
Name - QNAP TL-D800C (USB)
Name - QNAP TL-D800C, Drive Enclosure (Black)
name - TL-D800C (USB) expans. unit JBOD USBC
Network protocols -
Number of fans - 2
Number of HDDs installed - 0
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -

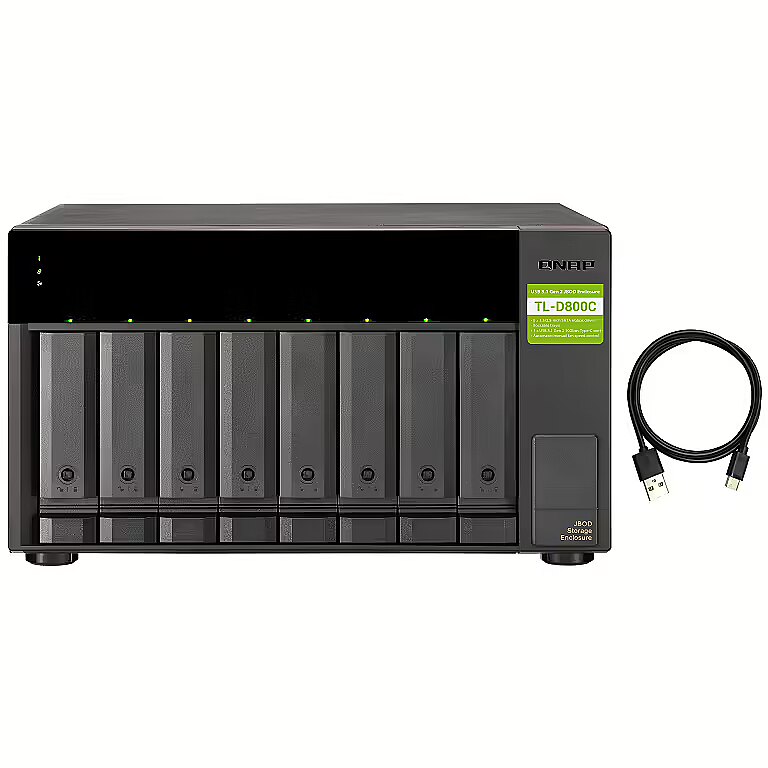

Packaging content - Cables included - USB Type-C to USB Type-A
Packaging content - Manual - Yes
Packaging content - Number of keys included - 2 pc(s)
Packaging content - Screws included - Yes
Performance - Country of origin - Taiwan
Performance - Data transfer rate - 6 Gbit/s
Performance - Noise level - 26.2 dB
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Female
Ports & interfaces - USB connector type - USB Type-C
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 3.2 Gen 2 (3.1 Gen 2)
Power - AC adapter frequency - 50/60 Hz
Power - AC adapter input voltage - 100 - 240 V
Power - Power source type - AC
Power supply - 250 W PSU, 100240 V
producer - QNAP
Producer - Qnap
ProducerCode - TL-D800C (USB)
ProductName - TL-D800C
ShortDescription -
ShortSummaryDescription - QNAP TL-D800C, HDD/SSD enclosure, 2.5/3.5", Serial ATA II, Serial ATA III, 6 Gbit/s, Hot-swap, Black, Grey
Stck_Kart - 1
Stck_Pal - 2
Storage - Hot-swap - Yes
Storage - Number of storage drives supported - 8
Storage - Storage drive size - 2.5/3.5"
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storno - Y
Technical_details - Type: Drive Enclosure Color: Black EAN: 4713213516188 Manufacturer No.: TL-D800C Suitable for: NAS system Drive bays: 8 pieces : 8 pieces Connections: 1x USB-C 3.2 Gen 2 (10 Gbit/s) : SATA : The designation USB 3.2 Gen 2 corresponds to the former designation USB 3.1 Gen 2 / USB 3.1. Front panel: LED indicators: HDD 1-8, status, link, fan error Notes: Fan Mode Switch (Auto, High, Medium, Low), 2x 120mm fans present Compatible with: MacOS, Windows Power supply: 250 watts Accessories: 1x power cable, 1x USB Type-C to Type-A cable, 2x hard disk tray keys, 1x USB cable clip, 24x screws for 3.5" HDD, 32x screws for 2.5" HDD, quick start guide Weight: 6.2kg
Title - QNAP TL-D800C storage drive enclosure HDD/SSD enclosure Black, Grey 2.5/3.5"
URL - https://www.qnap.com/en/product/tl-d800c
vendpn - TL-D800C
Warranty - 24 months
WarrantyInfo - 2-year
Weight - 6.18 kg
Weight - 7,80
Weight & dimensions - Depth - 281.4 mm
Weight & dimensions - Height - 188.2 mm
Weight & dimensions - Package weight - 7.54 kg
Weight & dimensions - Weight - 6.18 kg
Weight & dimensions - Width - 329.3 mm
