Brand - Equip
BrandPartCode - 650316
Category - TV Mounts & Stands
Design - AV accessories - Black
Design - AV accessories - CE
Design - AV accessories - Steel
Design - Certification - CE
Design - Housing material - Steel
Design - Product colour - Black
EAN - 4015867198933
Ergonomics - AV accessories - -20 - 10 °
Ergonomics - AV accessories - -90 - 90 °
Ergonomics - AV accessories - 62 mm
Ergonomics - AV accessories - 475 mm

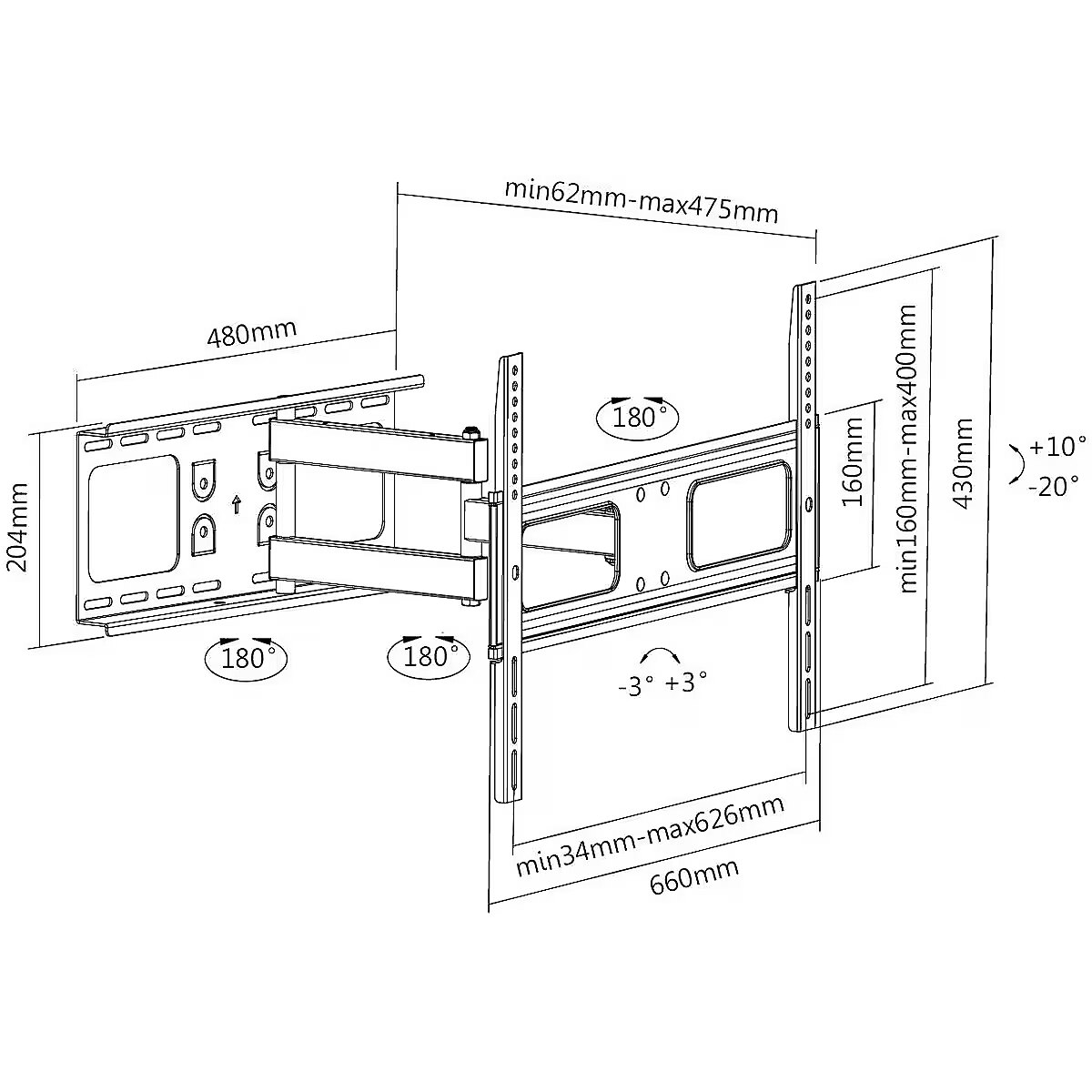

Ergonomics - Distance to the wall (max) - 47.5 cm
Ergonomics - Distance to the wall (max) - 475 mm
Ergonomics - Distance to the wall (min) - 6.2 cm
Ergonomics - Distance to the wall (min) - 62 mm
Ergonomics - Swivel angle range - -90 - 90 °
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Tilt angle range - -20 - 10 °
Ergonomics - Tilt angle range - -20 - 10°
Gross Weight Kg - 7
GTIN - 4015867198933
Logistics data - Harmonized System (HS) code - 85299097

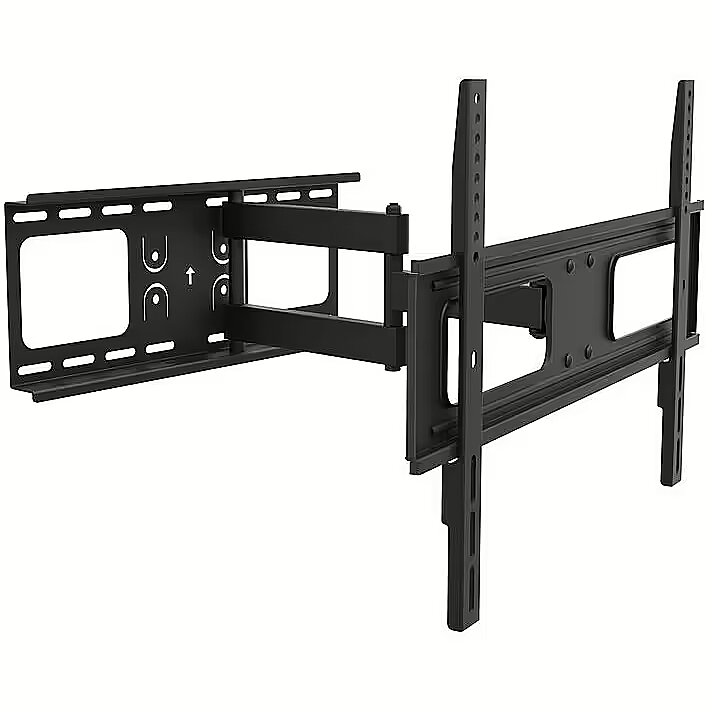

LongDesc - The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
LongProductName - 37 - 80", 50 kg
LongSummaryDescription - Equip 37"-70” Articulating TV Wall Mount Bracket. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -20 - 10°, Swivel angle range: -90 - 90°, Distance to the wall (min): 6.2 cm, Distance to the wall (max): 47.5 cm. Product colour: Black
Manufacturer Code - 650316
Manufacturer Name - EQUIP
Mounting - AV accessories - 1
Mounting - AV accessories - 32 "
Mounting - AV accessories - 50 kg
Mounting - AV accessories - 70 "
Mounting - AV accessories - 200 x 200 mm
Mounting - AV accessories - 200 x 200.300 x 300.400 x 200.400 x 400.600 x 400 mm
Mounting - AV accessories - 600 x 400 mm
Mounting - AV accessories - Wall
Mounting - Maximum screen size - 70 "
Mounting - Maximum screen size - 177.8 cm (70")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 32 "
Mounting - Minimum screen size - 81.3 cm (32")
Mounting - Minimum VESA mount - 200 x 200 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Mounting - VESA mounting interface - 200 x 200.300 x 300.400 x 200.400 x 400.600 x 400 mm
Packaging content - AV accessories - Y
Packaging content - Quick installation guide - Y
Packaging content - Quick installation guide - Yes
Packaging content - Screws included - Y
Packaging content - Screws included - Yes
Packaging data - AV accessories - 70 mm
Packaging data - AV accessories - 220 mm
Packaging data - AV accessories - 700 mm
Packaging data - AV accessories - 6000 g
Packaging data - Package depth - 70 mm
Packaging data - Package height - 700 mm
Packaging data - Package weight - 6 kg
Packaging data - Package weight - 6000 g
Packaging data - Package width - 220 mm
ProductName - 37"-70” Articulating TV Wall Mount Bracket
Short description - LCD/SIGNAGE-WANDHALTERUNG SCHWENK- UND NEIGBAR bis 50 KG 37"-80" VESA-konform Max. 600 x 400 Tragfähigkeit: 50 Kg
ShortSummaryDescription - Equip 37"-70” Articulating TV Wall Mount Bracket, 200 x 200 mm, 600 x 400 mm, -20 - 10°, -90 - 90°, Steel, Black
Technical details - AV accessories - EQUIP
Technical details - Vendor - EQUIP
Title - Equip 37"-70” Articulating TV Wall Mount Bracket
touch pads - AV accessories - 85299097
URL - https://www.equip-info.net/TV-and-Monitor/650316/p-1074.htm
WarrantyInfo -
Weight & dimensions - AV accessories - 410 mm
Weight & dimensions - AV accessories - 470 mm
Weight & dimensions - AV accessories - 658 mm
Weight & dimensions - AV accessories - 5700 g
Weight & dimensions - Depth - 470 mm
Weight & dimensions - Height - 658 mm
Weight & dimensions - Weight - 5.7 kg
Weight & dimensions - Weight - 5700 g
Weight & dimensions - Width - 410 mm
