Edbak MBV1155

Brand - Edbak
BrandPartCode - MBV1155-L
Category - Signage Display Mounts
Code - MBV1155-L
Design - Certification - RoHS
Design - Housing material - Aluminium
Design - Product colour - Black
Design > Colour of product - Black
Design > VESA mounting - Yes
EAN - 5902841112162
Ergonomics - Cable management - Yes
Ergonomics - Ceiling mounting tube length (max) - 113.5 cm
Ergonomics - Ceiling mounting tube length (min) - 53.5 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Telescopic - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 18°
Ergonomics > Tilt angle - +18 °
GTIN - 5902841112162
Link - https://edbak.com/en/products/video-wall-menu-board-mounts/menu-board-mounts/menu-board-ceiling-mounts/mbv1155-l/

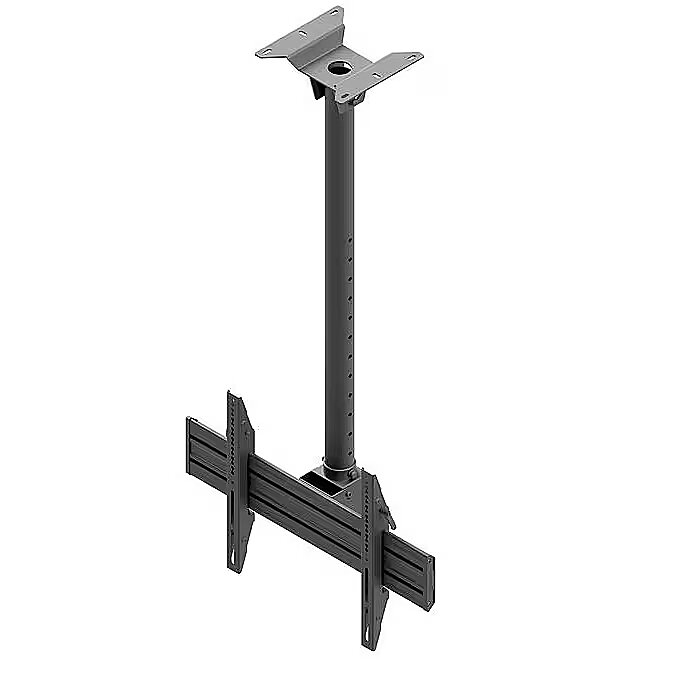

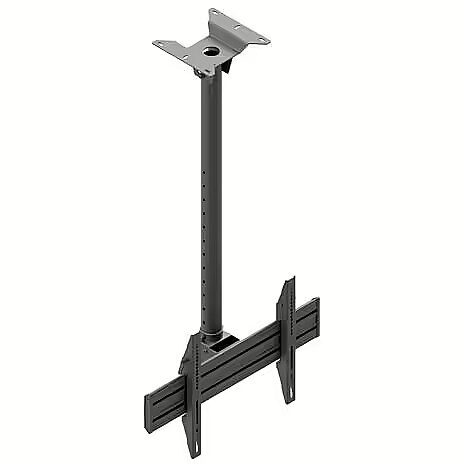

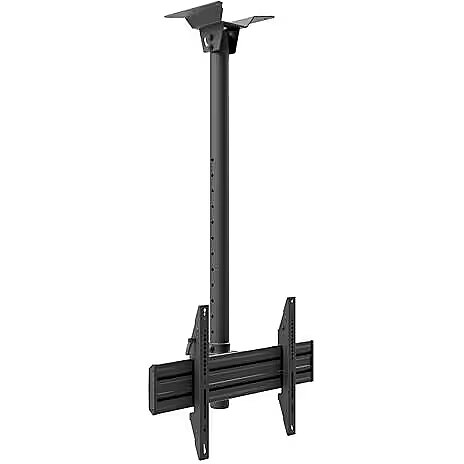

LongDesc - MBV1155-L is a robust and accurately manufactured ceiling screen mount. It features a slim structure and simple design. Stepwise height adjustment ensures accurate fastening, and the integrated cable routing system allows the cabling to be hidden, guaranteeing aesthetic appearance. Equipped with safety devices that protect the screen against falling, it is perfect for hotels, restaurants and public buildings. The MBV1155-L mount is a perfect solution for those who value aesthetics and comfort during use.
LongProductName - Menu Board Ceiling Mount for One 42″-57″ Screen, Landscape
LongSummaryDescription - Edbak MBV1155-L. Maximum weight capacity: 70 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 144.8 cm (57"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 18°. Product colour: Black
Mounting - Maximum screen size - 144.8 cm (57")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 70 kg
Mounting - Minimum screen size - 106.7 cm (42")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting > Maximum screen size compatibility - 57 "
Mounting > Maximum weight (capacity) - 70 kg
Mounting > Mounting interface compatibility (max) - 600×400 mm
Mounting > Mounting interface compatibility (min) - 100×100 mm
Mounting > VESA mounting interfaces - 100×100; 600×400 mm
Name - EDBAK | Ceiling mount | MBV1155-L | 42-57 " | Maximum weight (capacity) 70 kg | Black
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 1300 mm
Package features > Gross height (mm) - 165 mm
Package features > Gross width (mm) - 315 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 26 pc(s)
Package features > Paper/Pasteboard - 1500.00 g
Package features > Tare weight (kg) - 1.50 kg
Package features > Volume (m3) - 0.0675675 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 310 mm
Packaging data - Package height - 185 mm
Packaging data - Package weight - 15.5 kg
Packaging data - Package width - 1310 mm
ProductName - MBV1155-L
ShortSummaryDescription - Edbak MBV1155-L, 70 kg, 106.7 cm (42"), 144.8 cm (57"), 100 x 100 mm, 600 x 400 mm, 0 - 18°
Technical details - Easy to install - Yes
Technical details - Orientation - Landscape
Technical details > Gross weight - 15.6 kg
Technical details > Net weight - 14.1 kg
Technical details > Other features - Screen orientation: landscape
Technical details > Placement - Ceiling mount
Technical details > Producer - EDBAK
Technical details > Producer product family - Menu Board Ceiling Mount for One Screen
Technical details > Product name - MBV1155-L
Technical details > Screen size compatibility - 42-57 "
Title - Edbak MBV1155-L signage display mount 144.8 cm (57") Black
URL - https://edbak.com/en/products/video-wall-menu-board-mounts/menu-board-mounts/menu-board-ceiling-mounts/mbv1155-l/
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo - Limited 5-year’s
Weight & dimensions - Depth - 250 mm
Weight & dimensions - Height - 1363 mm
Weight & dimensions - Weight - 14 kg
Weight & dimensions - Width - 720 mm
