Accessories included - - Wall mount
- Fitting elements
- User's Guide
Brand - Techly
BrandPartCode - ICA-LCD 104BK
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Category - TV Mounts
Color - Black
Corner mount - No

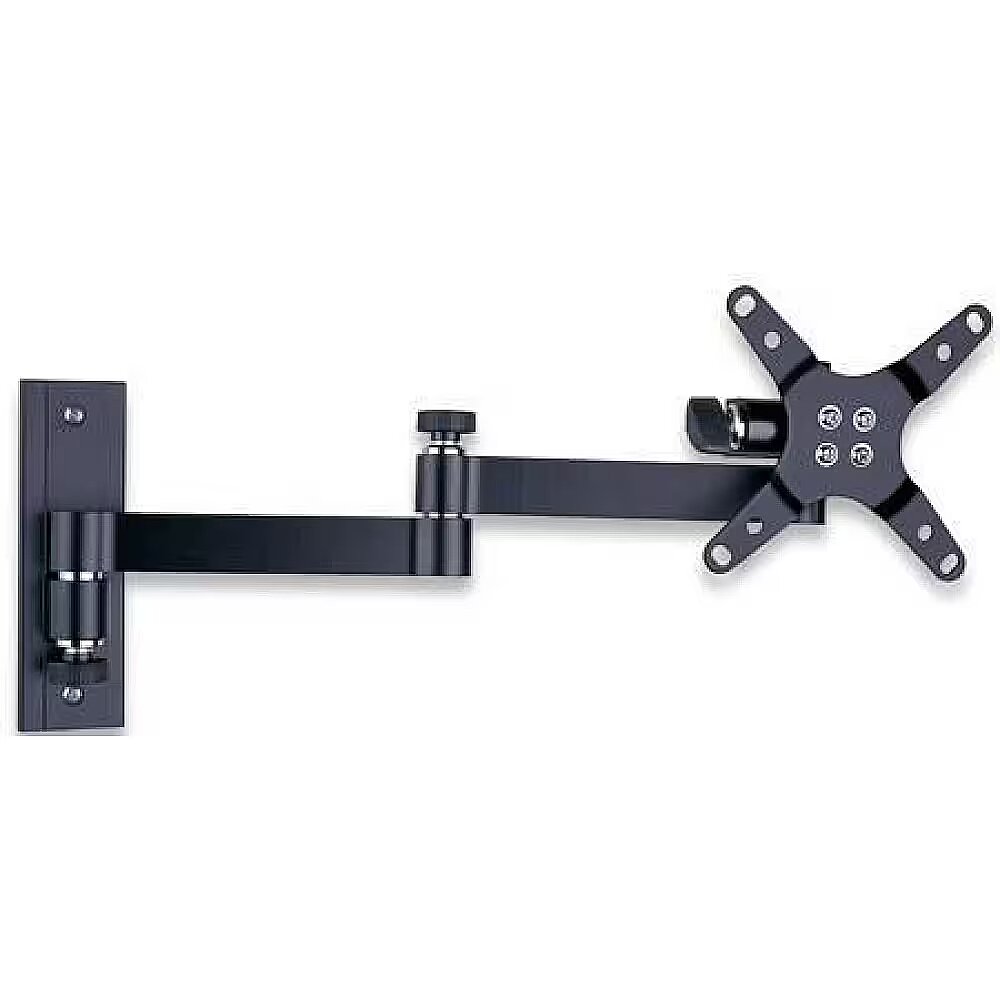

Description - Wall mount LCD / LED 13-30 inch dual arm
- Enables secure mounting on the LCD / LCD display or TV
- Steel construction guarantees maximum safety
- Mounting the display in VESA standard
- Two-hinged boom with adjustable distance from the wall
- Ability to adjust the tilt angle
- The ability to adjust the rotation in the horizontal plane
- Ideal for home, office and commercial use
Design - Anti-theft function - No
Design - Product colour - Black
dimension depth - 50 mm
dimension height - 200 mm

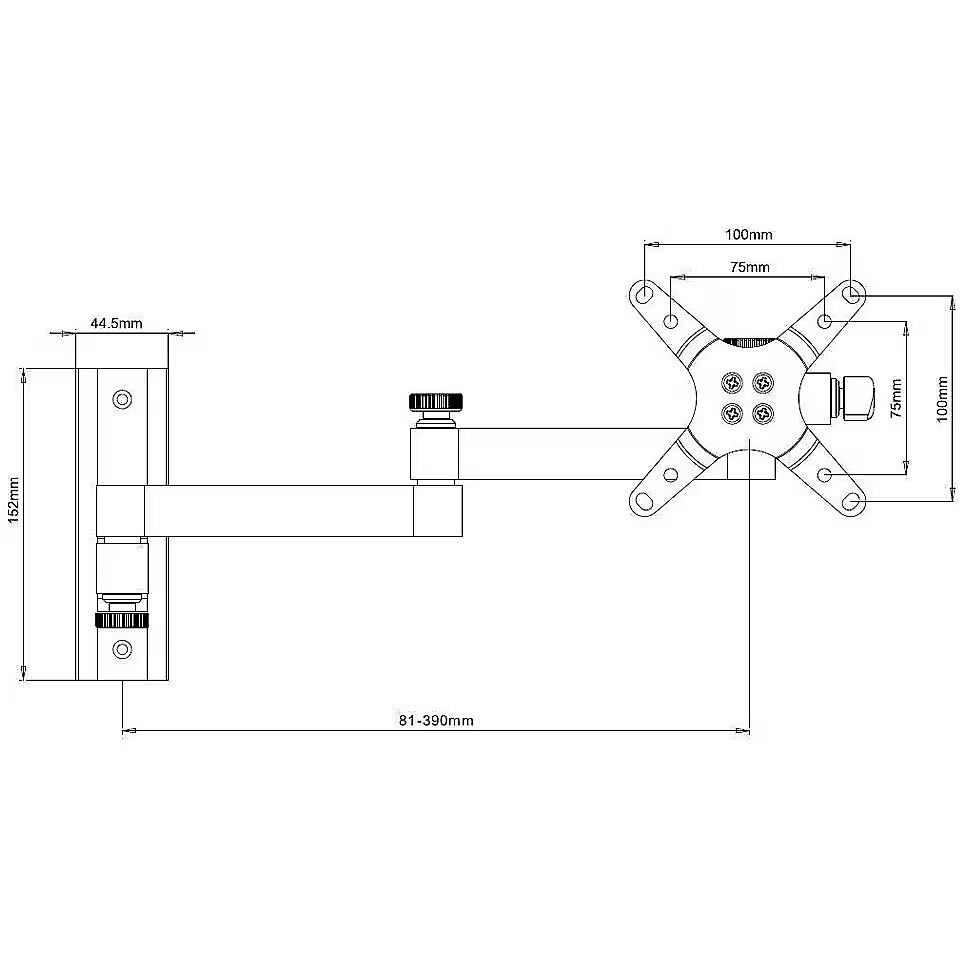

Dimensions - Dimensions: 116 x 152 x (81 - 390) mm
dimension weight - 1091 g
dimension width - 160 mm
ean - 8057685301498
Eans - 8057685301498
Ergonomics - Built-in spirit level - No
Ergonomics - Distance to the wall (max) - 39.2 cm
Ergonomics - Distance to the wall (min) - 8.1 cm
Ergonomics - Swivel angle - 180°
Ergonomics - Tilt angle range - -15 - 15°
GTIN - 8057685301498
guarantee - 36
guarantee_type - external
Horizontal adjustment - 180 °
Load (max) - 15 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc -
LongProductName - 13"-30" Wall Bracket for LED LCD TV Tilt 3 Joints Black
LongSummaryDescription - Techly 13-30" Wall Bracket for LED LCD TV Tilt 3 Joints Black" ICA-LCD 104BK. Maximum weight capacity: 15 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: -15 - 15°, Distance to the wall (min): 8.1 cm, Distance to the wall (max): 39.2 cm. Product colour: Black
Mounting - Maximum screen size - 76.2 cm (30")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 15 kg
Mounting - Minimum screen size - 33 cm (13")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 2
Name - Techly Uchwyt ścienny LCD (301498) 30" czarny
name - Wall mount LCD / LED 13-30 inch double arm, black
Other features -
Packaging content - Mounting kit - Yes
producer - Techly
Producer - Techly
ProducerCode - 301498
ProductName - 13-30" Wall Bracket for LED LCD TV Tilt 3 Joints Black" ICA-LCD 104BK
Range (max) - 390 mm
Range (min) - 81 mm
Range adjustment - Yes
Screen size (max) - 30 ''
Screen size (min) - 13 ''
ShortDescription - Trójprzegubowe ramię do monitorów LCD 13-30" do 15kg
ShortSummaryDescription - Techly 13-30" Wall Bracket for LED LCD TV Tilt 3 Joints Black" ICA-LCD 104BK, 33 cm (13"), 76.2 cm (30"), 75 x 75 mm, 100 x 100 mm, -15 - 15°, Black
Stuff - Steel
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Technical details - Warranty period - 10 year(s)
Title - Techly 13-30" Wall Bracket for LED LCD TV Tilt 3 Joints Black" ICA-LCD 104BK
Type - Wall
URL - https://www.techly.com/13-30-wall-bracket-for-led-lcd-tv-tilt-3-joints-black.html
Usage - Monitors
Usage - TV
vendpn - 301498
Vertical adjustment - 15 °
VESA - 75 x 75
VESA - 100 x 100
WarrantyInfo -
Weight - 1.1 kg
Weight & dimensions - Depth (max) - 39 cm
Weight & dimensions - Depth (min) - 8.1 cm
Weight & dimensions - Height - 152 mm
Weight & dimensions - Weight - 1.16 kg
Weight & dimensions - Width - 116 mm
