Techly Full-Motion Wall Bracket for TV, 42-70"

Accessories included - Wall mount Level Fitting elements User's Guide
Brand - Techly
BrandPartCode - ICA-PLB 147XL
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Category - TV Mounts
Color - Black
Corner mount - No
Description - Wall mounted LCD/LED 42-70cali, adjustable, 70kg
Enables secure mounting on the LCD / LCD display or TV Steel construction guarantees maximum safety Mounting the display in VESA standard Adjustable display distance from the wall Ability to adjust the tilt angle The ability to adjust the rotation in the horizontal plane In the set, the spirit level is easy to assemble Ideal for home, office and commercial use
Design - Anti-theft function - No
Design - Product colour - Black
dimensionalWeight - 4232
dimension depth - 90 mm
dimension height - 890 mm

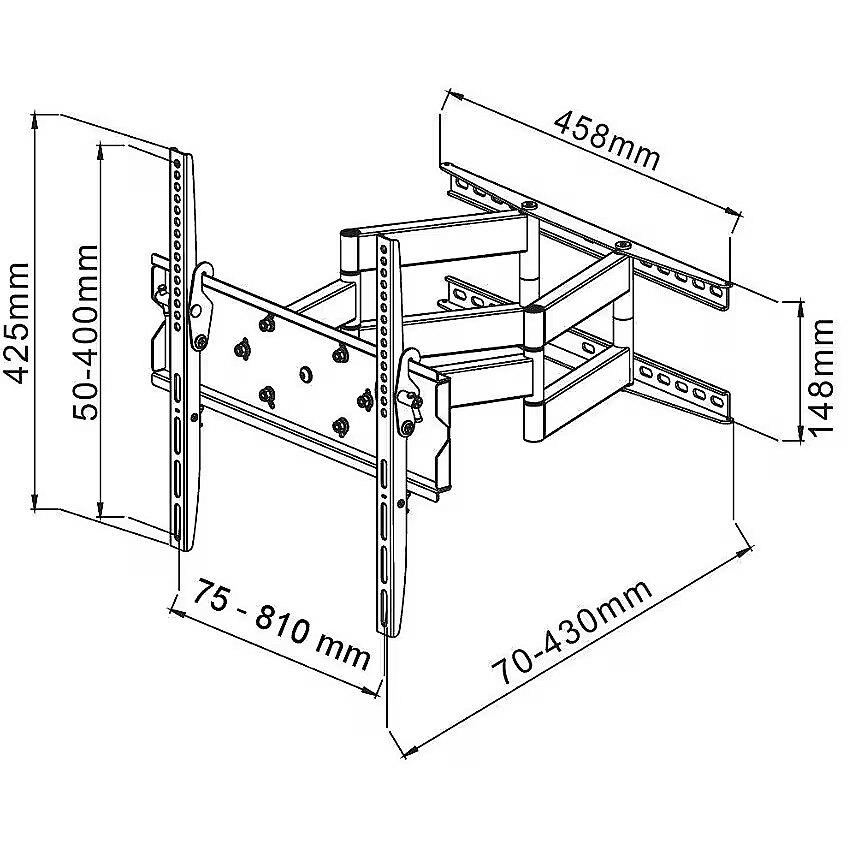

Dimensions - Dimensions: 850 x 425 x (70 - 430) mm
dimension weight - 10300 g
dimension width - 175 mm
ean - 8057685301436
Eans - 8057685301436
Ergonomics - Built-in spirit level - Yes
Ergonomics - Distance to the wall (max) - 43 cm
Ergonomics - Distance to the wall (min) - 7 cm
Ergonomics - Number of pivot points - 3
Ergonomics - Suitable for curved screen - Yes
Ergonomics - Swivel angle - 90°
Ergonomics - Tilt angle range - -12 - 0°
GTIN - 8057685301436
guarantee - 36
guarantee_type - external
Horizontal adjustment - 90 °
Load (max) - 70 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc -
LongProductName - 42"-70" Wall Bracket for LED LCD TV Full-Motion Dual Arm
LongSummaryDescription - Techly 42-70" Wall Bracket for LED LCD TV Full-Motion Dual Arm" ICA-PLB 147XL. Maximum weight capacity: 70 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 50 x 50 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -12 - 0°, Distance to the wall (min): 7 cm, Distance to the wall (max): 43 cm. Product colour: Black
Mounting - Maximum screen size - 177.8 cm (70")
Mounting - Maximum VESA mount - 800 x 400 mm
Mounting - Maximum weight capacity - 70 kg
Mounting - Minimum screen size - 106.7 cm (42")
Mounting - Minimum VESA mount - 50 x 50 mm
Mounting - Mounting type - Wall
Mounting - Panel mounting interface - 50 x 50
Mounting - Panel mounting interface - 50 x 50,75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 200,600 x 400,700 x 400,800 x 400
Mounting - Panel mounting interface - 75 x 75
Mounting - Panel mounting interface - 100 x 100 mm
Mounting - Panel mounting interface - 200 x 100
Mounting - Panel mounting interface - 200 x 200 mm
Mounting - Panel mounting interface - 300 x 300 mm
Mounting - Panel mounting interface - 400 x 200
Mounting - Panel mounting interface - 400 x 300 mm
Mounting - Panel mounting interface - 400 x 400
Mounting - Panel mounting interface - 600 x 200
Mounting - Panel mounting interface - 600 x 400
Mounting - Panel mounting interface - 700 x 400
Mounting - Panel mounting interface - 800 x 400
Name - Techly Uchwyt ścienny LCD (301436) 70"
name - Wall mount for LCD/LED 42-70 inches adjustable, 70 kg, black
Other features -
Other features - Number of products included - 1 pc(s)
Other features - Size - XL
producer - Techly
Producer - Techly
producerCode - 301436
ProducerCode - 301436
ProductName - 42-70" Wall Bracket for LED LCD TV Full-Motion Dual Arm" ICA-PLB 147XL
productName - Techly 42-70" Wall Bracket for LED LCD TV Full-Motion Dual Arm" ICA-PLB 147XL
productSize - Normal
Range (max) - 430 mm
Range (min) - 70 mm
Range adjustment - Yes
Screen size (max) - 70 ''
Screen size (min) - 42 ''
ShortDescription - Solidne i elastyczne mocowanie dużych LCD 40-70" do 70kg
ShortSummaryDescription - Techly 42-70" Wall Bracket for LED LCD TV Full-Motion Dual Arm" ICA-PLB 147XL, 106.7 cm (42"), 177.8 cm (70"), 50 x 50 mm, 800 x 400 mm, -12 - 0°, Black
sizeX - 920
sizeY - 115
sizeZ - 200
Stuff - Steel
Technical details - Compliance certificates - RoHS
Technical details - Number of joints - 3
Technical details - Sustainability certificates - RoHS
Technical details - Warranty period - 10 year(s)
Title - Techly 42-70" Wall Bracket for LED LCD TV Full-Motion Dual Arm" ICA-PLB 147XL
Type - Wall
URL - https://www.techly.com/42-70-wall-bracket-for-led-lcd-tv-full-motion-dual-arm.html
Usage - Monitors
Usage - TV
vendpn - 301436
Vertical adjustment - 12 °
VESA - 50 x 50
VESA - 75 x 75
VESA - 100 x 100
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 600 x 200
VESA - 600 x 400
VESA - 800 x 400
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 8.34 kg
weight - 8500
Weight & dimensions - Depth (max) - 43 cm
Weight & dimensions - Depth (min) - 7 cm
Weight & dimensions - Height - 425 mm
Weight & dimensions - Weight - 8.76 kg
Weight & dimensions - Width - 810 mm
