Newstar TV/Monitor Ceiling Mount, 10-40"

75 mm x 75 mm VESA mounting interface - Yes
200 mm x 200 mm VESA mounting interface - Yes
Accessories included - Akcesoria montażowe
Brand - Neomounts
BrandPartCode - FPMA-C200BLACK
Category - Signage Display Mounts
Category Code - MAS
Color - Black
Colour - Black
Corner mount - No
Description -
Description - NEWSTAR FLAT SCREEN CEILING MOUNT (HEIGHT: 64-105 CM) 10-40" BLACK

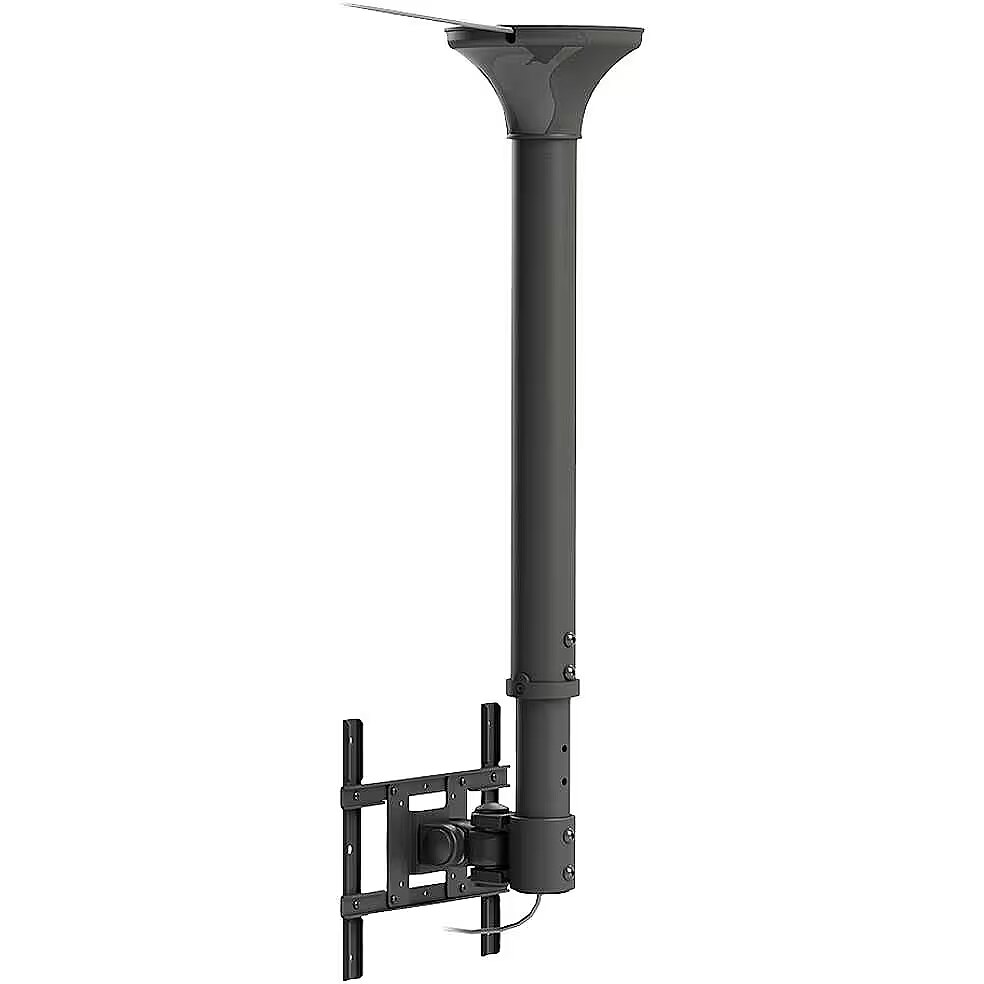

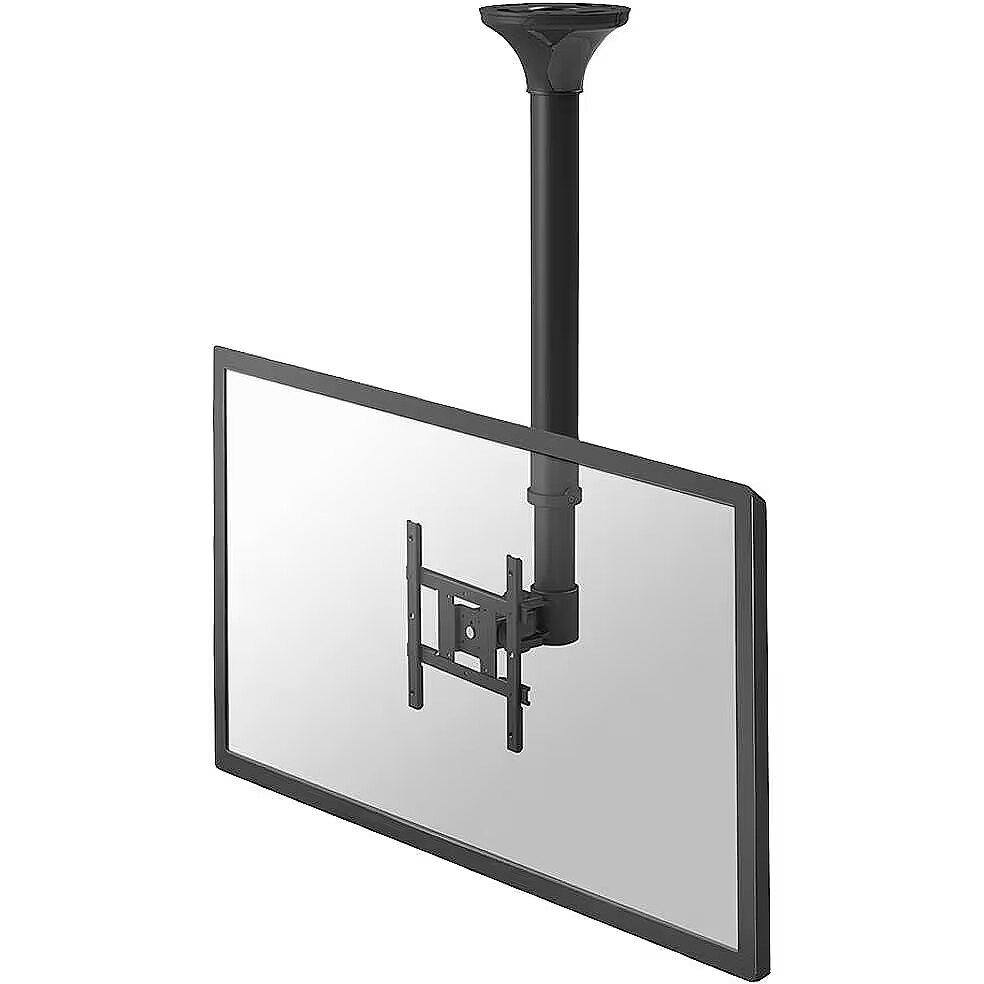

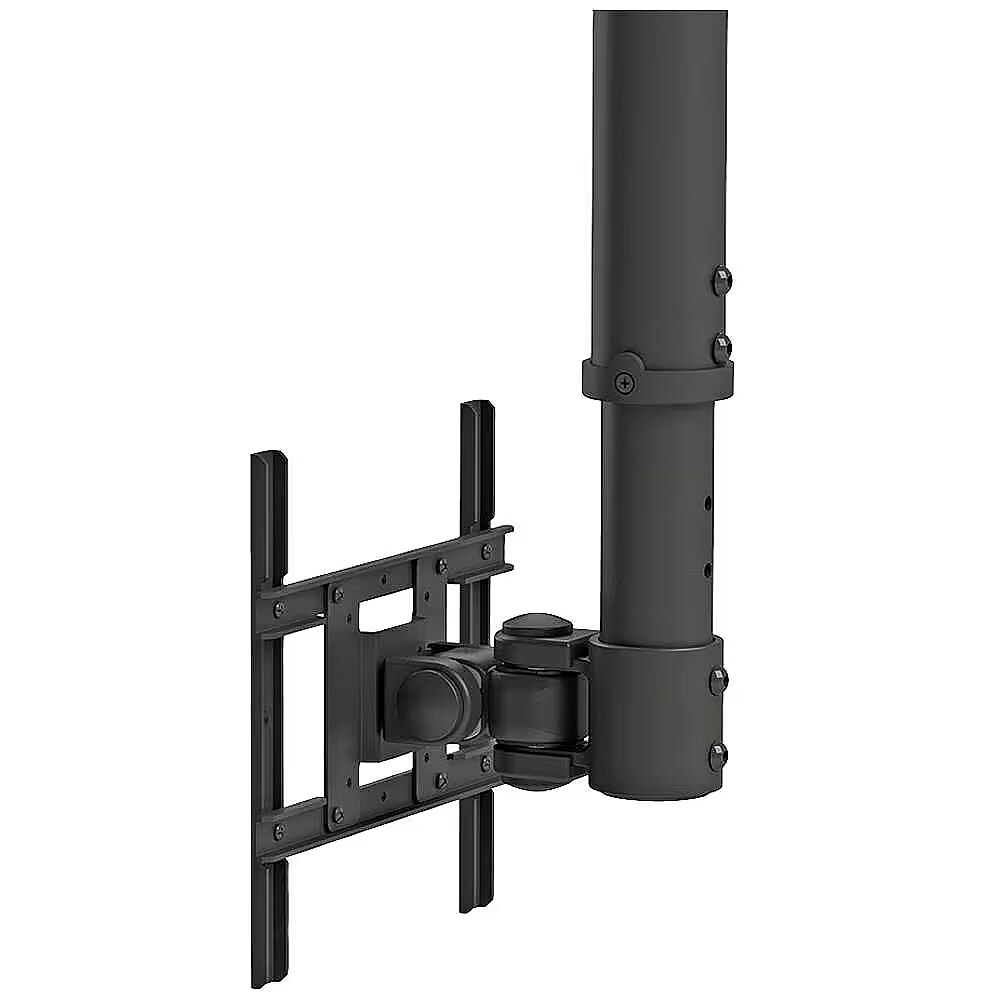

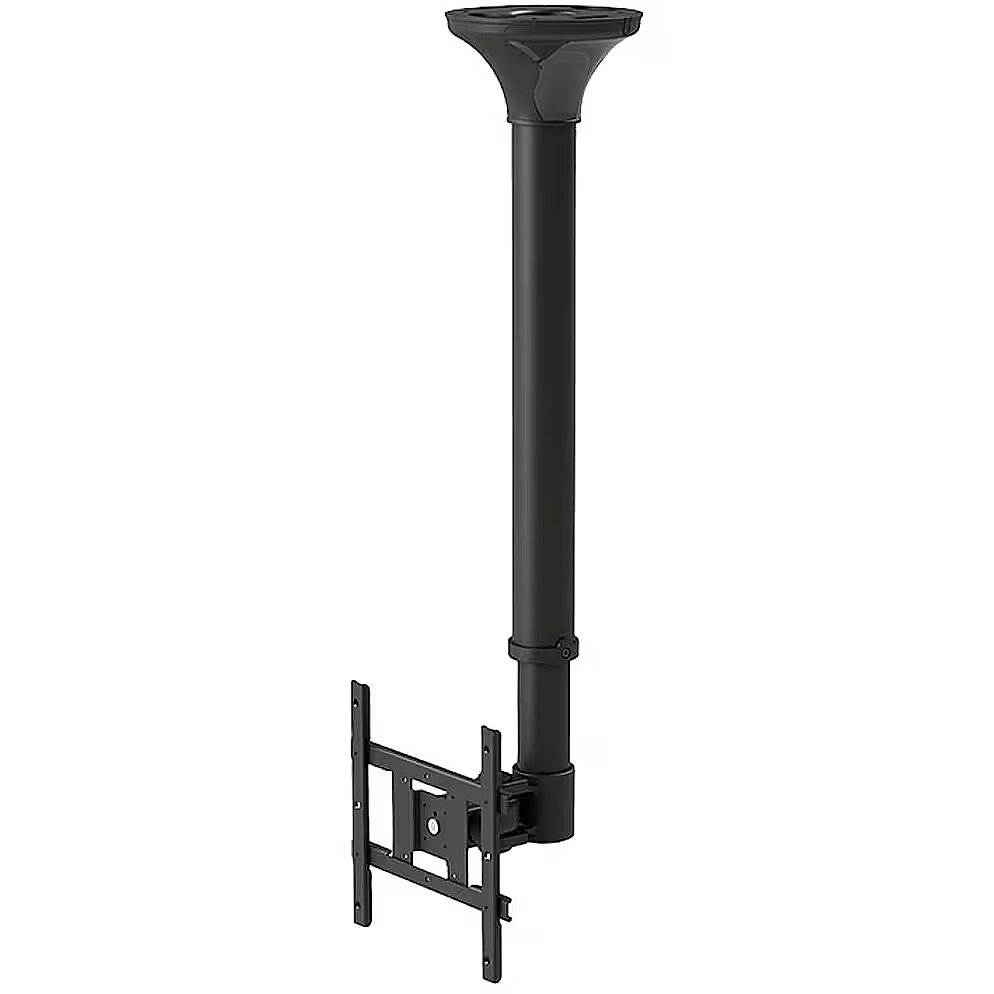

Description - The NewStar ceiling mount, model FPMA-C200BLACK is a tilt- and swivel ceiling mount for flat screens up to 40”. This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option. NewStars’ unique tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimeters. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. NewStar FPMA-C200BLACK has two pivot points and is suitable for screens up to 40" (100 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using NewStar VESA adapter plates. All installation material is included with the product. - Screens: 1 - Screen size: 10-40" - Max. weight:20kg - VESA minimum: 75x75mm - VESA maximum: 200x200mm - Depth: 9cm - Height: 64-104cm - Tilt: 180° - Rotation: 360° - Swivel: 180°
Design - Housing material - Steel
Design - Product colour - Black
dimension depth - 185 mm
dimension height - 740 mm
Dimensions -
dimension weight - 6600 g
dimension width - 220 mm
ean - 8717371444235
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment - 9 cm
Ergonomics - Height adjustment - Yes

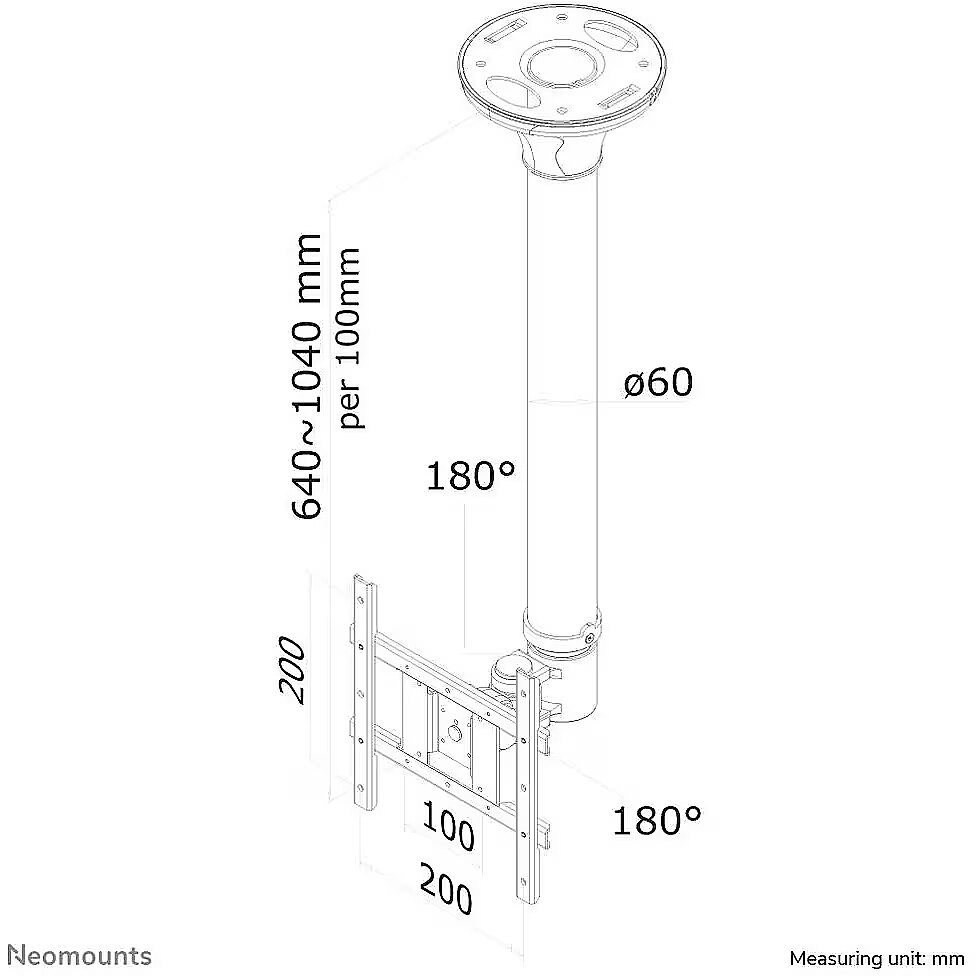

Ergonomics - Height adjustment range - 640 - 1040 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle - 180°
Ergonomics - Tilt angle range - 0 - 180°
Fits screens sized - 10-40"
Full Description Line - Max. weight 20 kg|Fits screens sized 10-40"|75 mm x 75 mm|200 mm x 200 mm|Colour Black
GTIN - 8717371444235
guarantee - 60
guarantee_type - normal
Height - 190.000000
Height adjustment - Yes
Horizontal adjustment - 180 °
Length - 750.000000
Load (max) - 20 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 6.6 kg
Logistics data - Master (outer) case height - 190 mm
Logistics data - Master (outer) case length - 225 mm
Logistics data - Master (outer) case net weight - 6 kg
Logistics data - Master (outer) case width - 760 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 40 pc(s)
Logistics data - Quantity per master (outer) case - 1 pc(s)
LongDesc - The Neomounts ceiling mount, model FPMA-C200BLACK is a tilt- and swivel ceiling mount for flat screens up to 40". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.Neomounts FPMA-C200BLACK has two pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates.All installation material is included with the product.
LongProductName - Neomounts TV/Monitor Ceiling Mount for 10"-40" Screen, Height Adjustable - Black
LongSummaryDescription - Neomounts monitor ceiling mount. Maximum weight capacity: 20 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 101.6 cm (40"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 640 - 1040 mm, Tilt angle range: 0 - 180°, Swivel angle: 180°. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - FPMA-C200BLACK
Max. weight - 20 kg
Maximum weight (capacity), kg - 20
Motorized - No
Mounting - Maximum screen size - 101.6 cm (40")
Mounting - Maximum VESA mount - 200 x 200 mm
Mounting - Maximum weight capacity - 20 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100,100 x 200,200 x 200,200 x 100
name - FPMA-C200BLACK LCD CEILING MOUNT
Other features -
Other features - Country of origin - Taiwan
Packaging data - Package depth - 225 mm
Packaging data - Package height - 190 mm
Packaging data - Package width - 760 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts monitor ceiling mount
Range (max) - 104 cm
Range (min) - 64 cm
Range adjustment - Yes
Screen size (max) - 40 ''
Screen size (min) - 10 ''
Shipping Box Depth Shipping/Package Box Dimensions - 75 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 6.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 19 cm
Short summary - Neomounts by Newstar TV/Monitor Ceiling Mount for 10"-40" Screen, Height Adjustable - Black
ShortSummaryDescription - Neomounts monitor ceiling mount, 20 kg, 25.4 cm (10"), 101.6 cm (40"), 75 x 75 mm, 200 x 200 mm, 640 - 1040 mm
Stand/mount type - Ceiling
Tilt - Yes
Title - Neomounts monitor ceiling mount
Turn - Yes
Type - Ceiling
Unit Box Height - 0.22
Unit Box Length - 0.75
Unit Box Width - 0.19
Unit Brutto Volume - 0.03135 cubm
Unit Gross Weight - 6.7 kg
Unit Net Weight - 6.7 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C200BLACK
Usage - Monitors
Usage - TV
Vendor Homepage - http://en.newstar.eu/av-mounts/flat-screen-mounts/ceiling-mounts/newstar-flat-screen-ceiling-mount-11/?alstart=0
vendpn - FPMA-C200BLACK
Vertical adjustment - 180 °
VESA - 75 x 75
VESA - 200 x 200
VESA-standard, mm - 75 x 75
VESA-standard, mm - 200 x 200
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 6.610000
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 1040 mm
Wheels - No
Width - 215.000000
