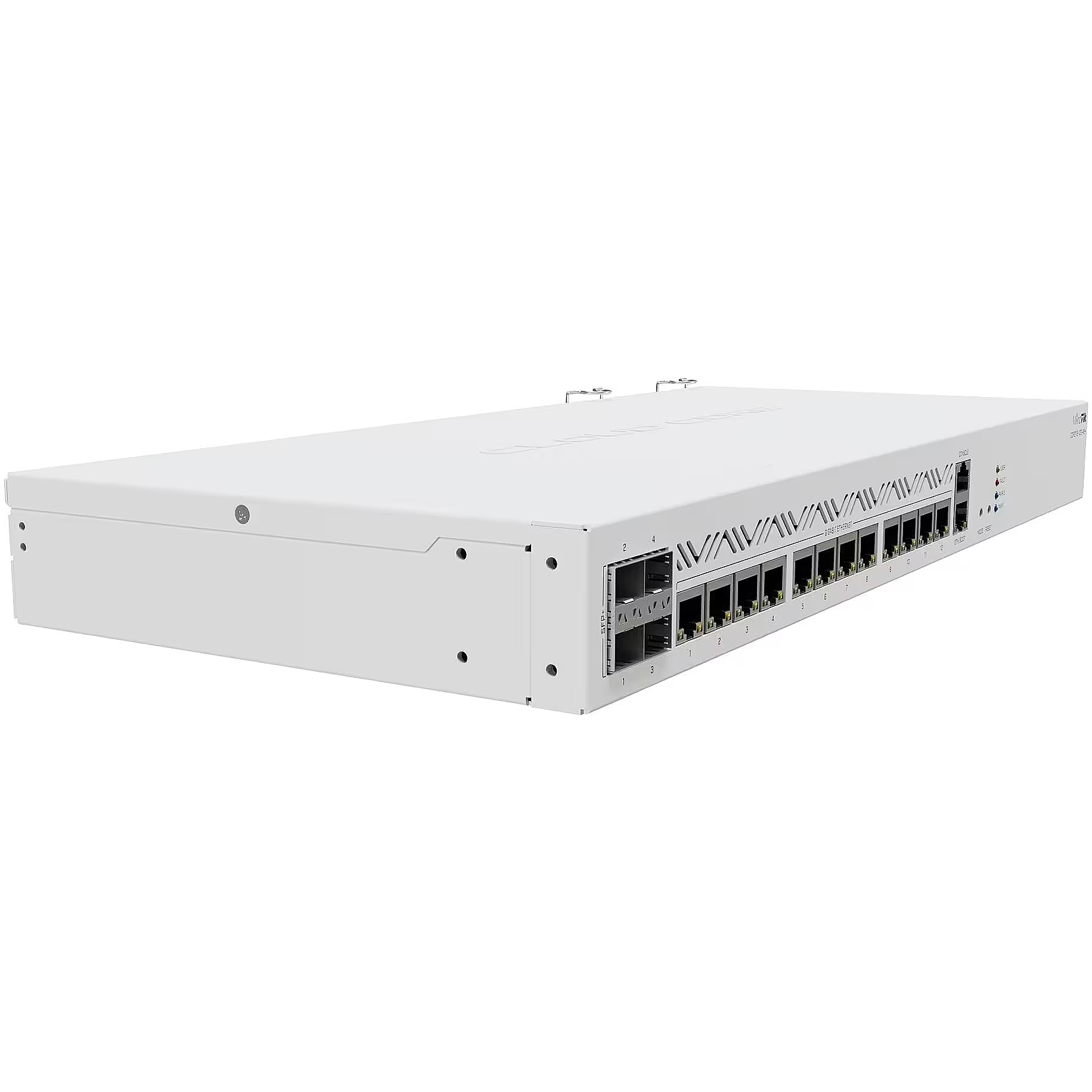

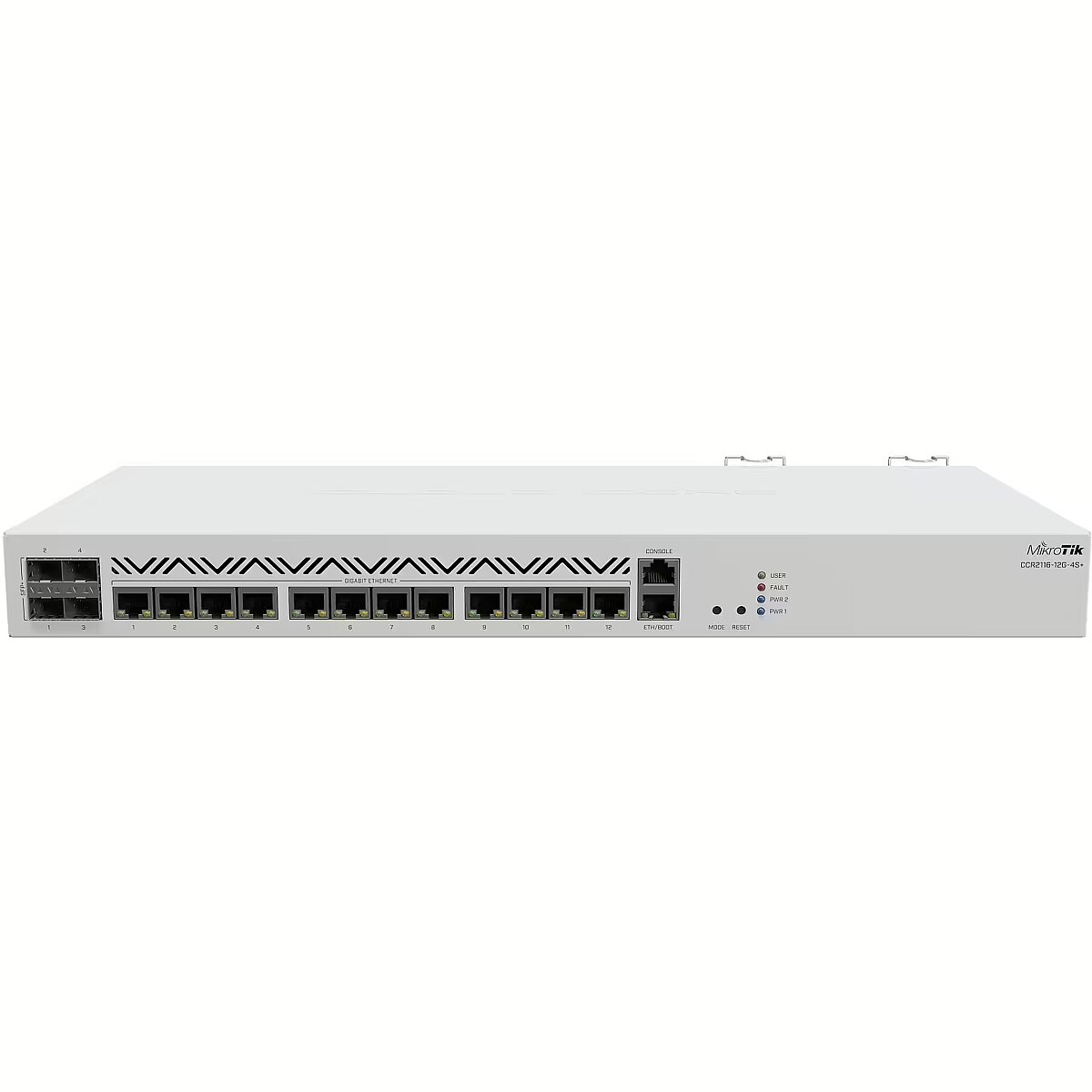

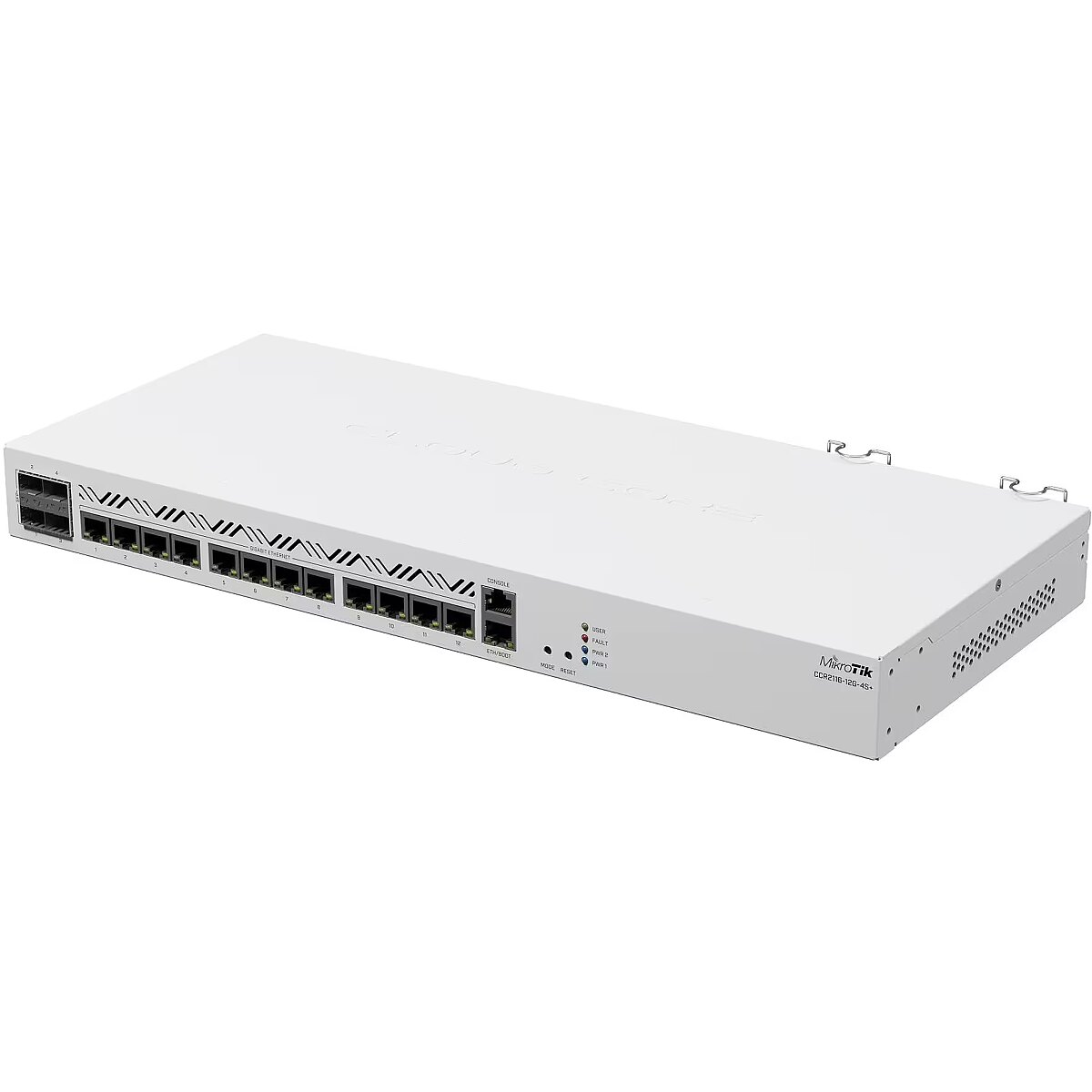

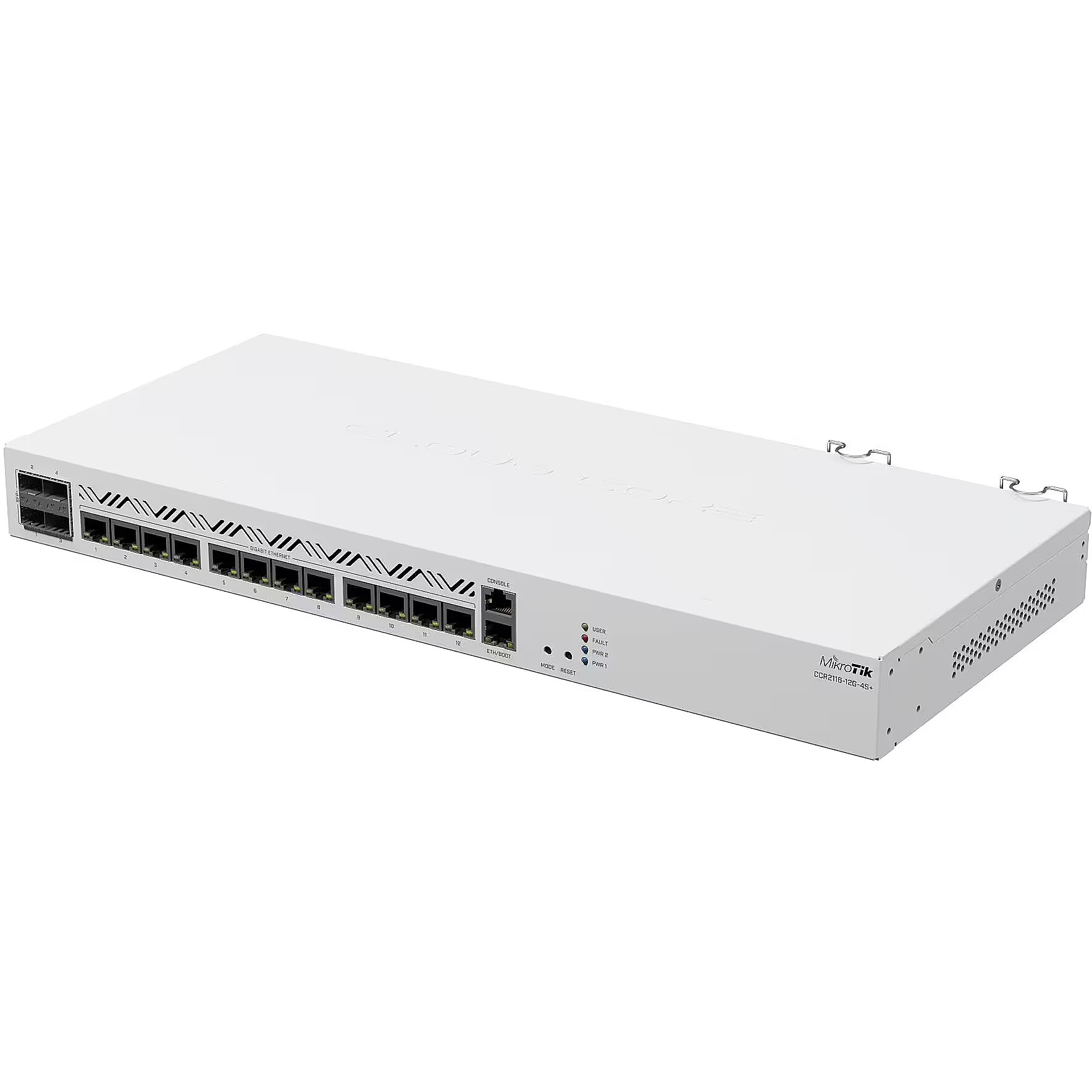

MikroTik CCR2116-12G-4S+

10/100/1000BASE-T/SFP combo Ports - 13
Accessories included -
brand - MikroTik
category - MikroTik > Ethernet rūteri > Cloud Core Router
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
CnCode CnCode - 85176200
Code - CCR2116-12G-4S+
Color - White
Console Ports - 1
Description - GFS2116-12G-4S+ Forget about CPU limitations in 10G settings with this powerful 16-core ARM processor-based CCR. Double the performance of our existing 36-core CCR, 6x faster BGP performance. Includes M. 2 PCIe slot.
Description - MIKROTIK CCR2116-12G-4S+ We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU. But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading! Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes. Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more. If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about. CCR2116-12G-4S+: technology tested by time, built for the future.
Design - Product colour - White
dimensionalWeight - 1751
dimension depth - 70 mm
dimension height - 500 mm
Dimensions - 443 x 199 x 44 mm
dimension weight - 3000 g
dimension width - 280 mm
EAN - 4752224007919
ean - 4752224007919
Features - Built-in processor - Yes
Features - Internal memory type - DDR4
Features - Mean time between failures (MTBF) - 200000 h
Features - Processor frequency - 2000 MHz
Features - Temperature monitoring - Yes
Full Description Line - CCR2116-12G-4S+|Network Device Type Router|13x10/100/1000BASE-T/SFP combo|4xSFP+|1xConsole|Memory (RAM) 16GB|Power consumption 72 Watts
guarantee - 12
guarantee_type - normal
Hard drive > Storage capacity - 128 MB
height - 0.08 m
I/O ports - 1 x Console port (RJ-45)
I/O ports - 4 x 10Gbit SFP/SFP+
I/O ports - 13 x 10/100/1000 Mbit/s
length - 0.49 m
Link - https://help.mikrotik.com/docs/pages/viewpage.action?pageId=67633301
Management, monitoring, configuration -
Manufacturer - MikroTik
Memory (RAM) - 16GB
Model - CCR2116-12G-4S+
mpn - CCR2116-12G-4S+
MPN - CCR2116-12G-4S+
Name - Mikrotik CCR2116-12G-4S+
Name - Mikrotik Cloud Core Router CCR2116-12G-4S+, 16-CORE 2 GHZ ARM CPU, 16 GB DDR4 RAM, 4x10G SFP+ ports, 13xGigabit LAN ports, 1x RJ45 Serial port, 1x M.2 slots, 16 core CPU, 16 GB RAM, Dual redundant power supply, RouterOS L6 | Cloud Core Router | CCR2116-12G-4S+ | Ethernet LAN (RJ-45) ports 13 | 12 month(s)
name - Router 13xGbE 4xSFP+ CCR2116-12G-4S+
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN data rates - 1000 Mbit/s
Network architecture - GigabitEthernet
Network Device Type - Router
Networking > CPU frequency - 2000 MHz
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions > Operating temperature (T-T) - -20°C to 60°C °C
Other features - Architecture: 64-bit ARM Processor: AL73400 Number of processor cores: 16 Nominal processor frequency: 2 GHz RouterOS licence: 6 Operating system: RouterOS RAM size: 16 GB Memory size: 128 MB Memory type: NAND Tested ambient temperature: -20°C to 60°C
Other features > Ethernet LAN (RJ-45) ports - 13
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 277 mm
Package features > Gross height (mm) - 68 mm
Package features > Gross width (mm) - 488 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 94 pc(s)
Package features > Paper/Pasteboard - 361.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.009191968 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/7/6/5/5/3/c0bfbb51041e88be112c2f0eae6edd98/original.pdf
Ports & interfaces - Ethernet LAN (RJ-45) ports - 13
Ports & interfaces - Installed SFP+ modules quantity - 4
Ports & interfaces > SFP+ ports quantity - 4
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 72 W
Power > Power consumption (max) - 72 W
Power consumption - 72 Watts

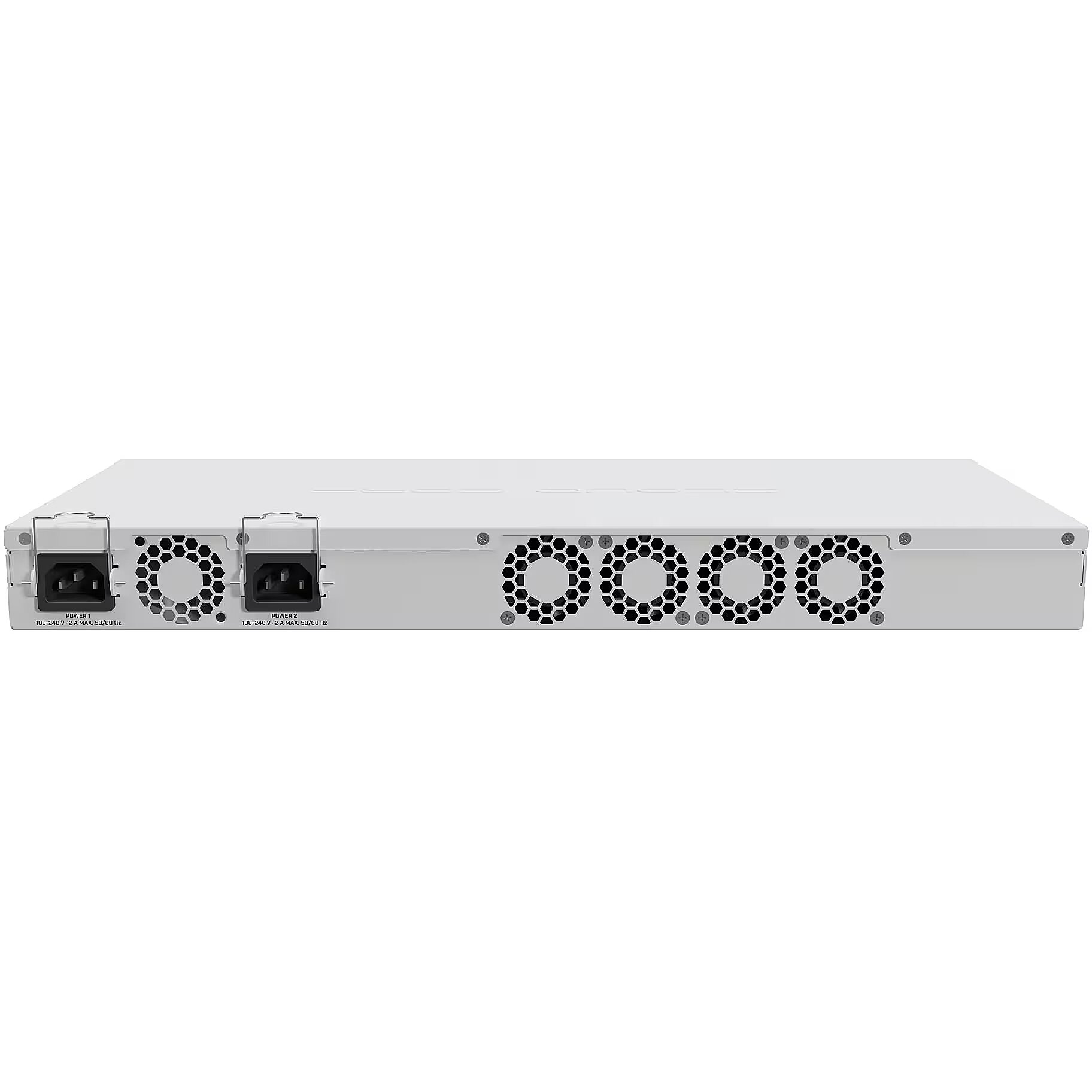

Power supply - Number of AC inputs: 2 AC input range: 100-240 V Power supply voltage rating: 12 V Power supply rated current: 10.8 A Maximum power consumption: 72 W
Processor > Processor model - AL73400
producer - MikroTik
producerCode - CCR2116-12G-4S+
Producer product family - Cloud Core Router
Producer product name - CCR2116-12G-4S+
Product model code - CCR2116-12G-4S+
productName - Mikrotik CCR2116-12G-4S+ wired router Gigabit Ethernet White
productSize - Normal
Security -
SFP+ Ports - 4
Shipping Box Depth Shipping/Package Box Dimensions - 49 cm
Shipping Box Height Shipping/Package Box Dimensions - 28 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.833 kg
Shipping Box Width Shipping/Package Box Dimensions - 6.5 cm
sizeX - 490
sizeY - 65
sizeZ - 275
Software -
Special functions -
System Requirements -
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 2.86 kg
Technical details > Net weight - 2.459 kg
Technical details > Other features - We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU. But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading! Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes. Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more. If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about. CCR2116-12G-4S+: technology tested by time, built for the future.
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS (v7 only)
Technical details > Warranty - 12 month(s)
title - MikroTik CCR2116-12G-4S+
Type - xDSL
Unit Box Height - 0.28
Unit Box Length - 0.49
Unit Box Width - 0.065
Unit Brutto Volume - 0.008918 cubm
Unit Gross Weight - 2.83 kg
Unit Net Weight - 2 kg
Vendor Homepage - mikrotik.com/product/ccr2116_12g_4splus
vendpn - CCR2116-12G-4S+
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
Warranty - 12
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Weight - 2.9
weight - 2.9 kg
weight - 2885
width - 0.28 m
