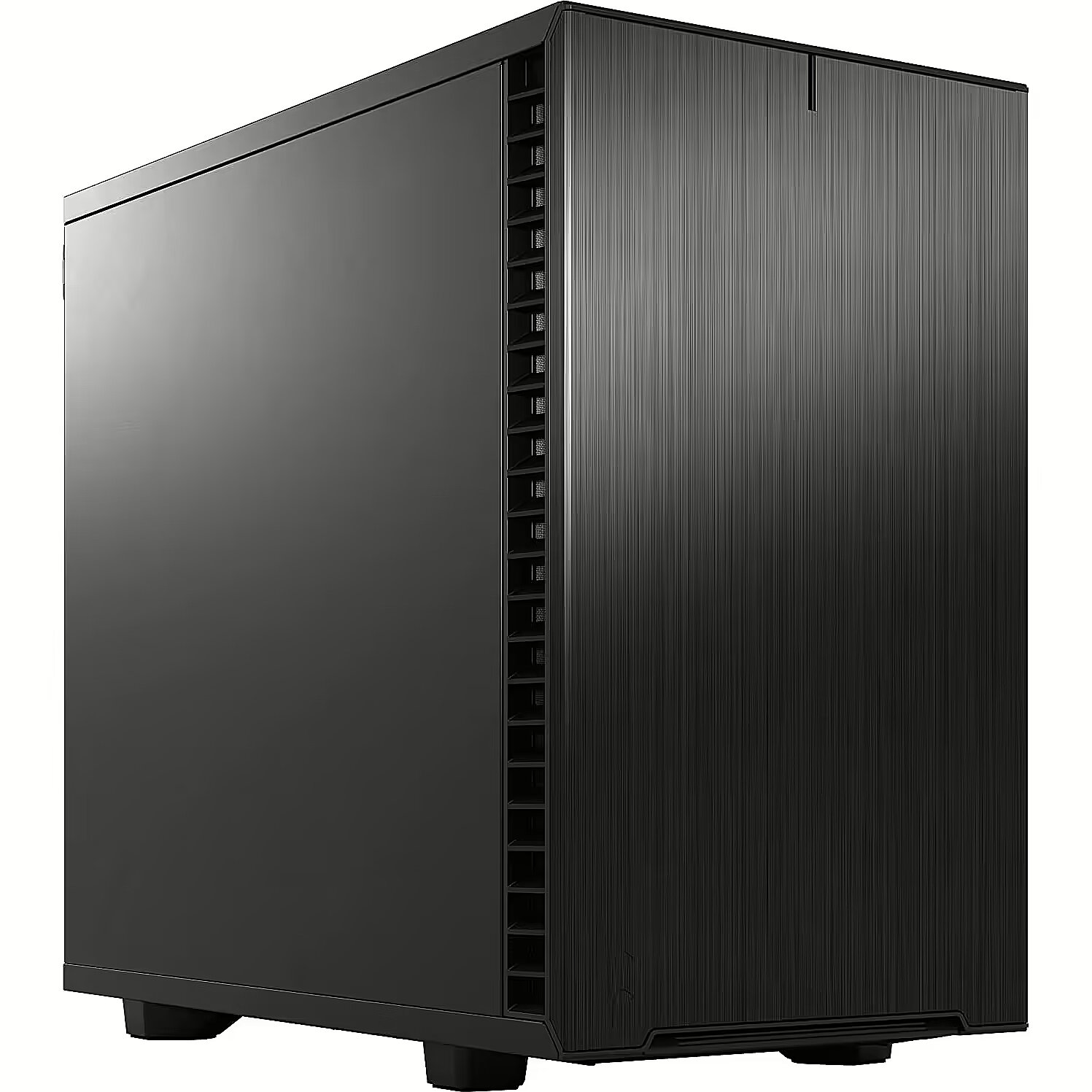

Fractal Design Define 7 Nano, Black, Closed

category - Cases & Modding|PC Cases|Mini Cases|Mini-ITX Cases
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
code - FD-C-DEF7N-01
Code - FD-C-DEF7N-01
Cooling > Front radiator sizes supported - 120/240, 140/280 mm
Cooling > Rear fans diameters supported - 1x 120 mm (1x Dynamic X2 GP-12 included) mm
Cooling > Top radiator sizes supported - N/A mm
Design > Anti-dust filter - Top, Front, Bottom and PSU
Design > Colour of product - Black Solid
Design > Form factor - Mini ITX, Mini-DTX
Design > Maximum CPU cooler height - 16.7 cm
Design > Maximum PSU length - 16.5 cm
Design > Side window - Yes
EAN - 7340172702832
ean - 7340172702832
EAN_code - 7340172702832
Features > Compatibility - Motherboard compatibility Mini ITX / Mini-DTX
Link - https://www.fractal-design.com/products/cases/define/define-7-nano/black-solid/
Manufacturer - Fractal Design
Manufacturer_code - FD-C-DEF7N-01
Name - Fractal Design Define 7 Nano black Solid, Tower Case (black)
name - Fractal Design Define 7 Nano Mini-ITX Gehäuse - schwarz
Name - Fractal Design | Define 7 Nano | Side window | Black Solid | Mini ITX, Mini-DTX | Power supply included No | ATX
Other features > Dimensions (WxDxH) - 205 x 399 x 361 mm
Other features > Drive bays - 2.5" - 3 (2 included); 3.5"/2.5" - 1 (included)
Other features > Expansion slots - 2
Other features > Power supply type - ATX
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 417.00 mm
Package features > Gross height (mm) - 471.00 mm
Package features > Gross width (mm) - 277.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 32 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > PET - 13 g
Package features > Plastic (No PET) - 400.00 g
Package features > Tare other - 12 g
Package features > Tare weight (kg) - 1.40 kg
Package features > Volume (m3) - 0.05 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/5/9/7/2/7/3/d0de71ebe3f499eea87da47ae0640f6c/original.pdf
Ports & interfaces > Interface - Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
Power supply > Power supply included - No
Producer product name - Define 7 Nano
Technical details > Gross weight - 8.60 kg
Technical details > Net weight - 7.20 kg
Technical details > Other features - Room for GPU up to 306 mm with a 25 mm front fan
Technical details > Producer - Fractal Design
Technical_details - Type: Tower case Color: Black EAN: 7340172702832 Manufacturer No.: FD-C-DEF7N-01 Design: midi tower Motherboard form factor: Mini DTX Material: steel Internal dimensions: maximum 306 mm : maximum 167 mm : ATX : maximum 200mm Drive bays: 2 pieces : 1 piece Slots: 2 pieces Front ports: 2x audio, 2x USB-A 2.0, 2x USB-A 3.2 Gen 1 (5 Gbps), 1x USB-C 3.2 Gen 2 (10 Gbps) : The designation USB 3.2 Gen 1 corresponds to the former designation USB 3.1 Gen 1 / USB 3.0. : The designation USB 3.2 Gen 2 corresponds to the former designation USB 3.1 Gen 2 / USB 3.1. Front: 1x Dynamic X2 GP-14 fan available, another 140 mm fan can be installed, alternatively 2x 120 mm fans can be installed Rear: 1x Dynamic X2 GP-12 fan available Notes: 2x 120 or 1x 140 slim fan (max 15 mm) can be installed on the top, 1x 120 mm fan can be installed on the bottom (requires removing the HDD tray), dust filter: top, front, bottom and power supply, space for cable management: 15-25 mm, rubber grommets Water cooling possible: Yes Front: 120, 240 mm, 140, 280 mm (316 mm max height, 146 mm max width, 280 mm recommended in “Push” configuration for easier installation), Top: up to 120, 240 mm (max. 38 mm RAM/ CPU pump block with 121 mm wide radiators), rear: 120 mm Dimensions: Width: 205mm x Height: 361mm x Depth: 399mm Weight: 7.2kg
Warranty - 24
Warranty - 24 month(s)
Weight - 8,35
