Air Duct - No
Category - Datortehnika :: Datoru komponentes :: Korpusi
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Midi Tower
Code - MCB-Q500L-KANN-S00
Color - Black
Desc - Korpusa tips: Mid Tower (ATX), Barošanas bloks: Nav, Krāsa: Melna, Materiāls: Plastmasa / Tērauds, 5.25” sloti: Nav, 3.5” sloti: 2, 2.5” sloti: 2, Audio ieeja: Ir, Audio izeja: Ir, USB 2.0: Nav, USB 3.0: 2, Garantija: 2 gadi

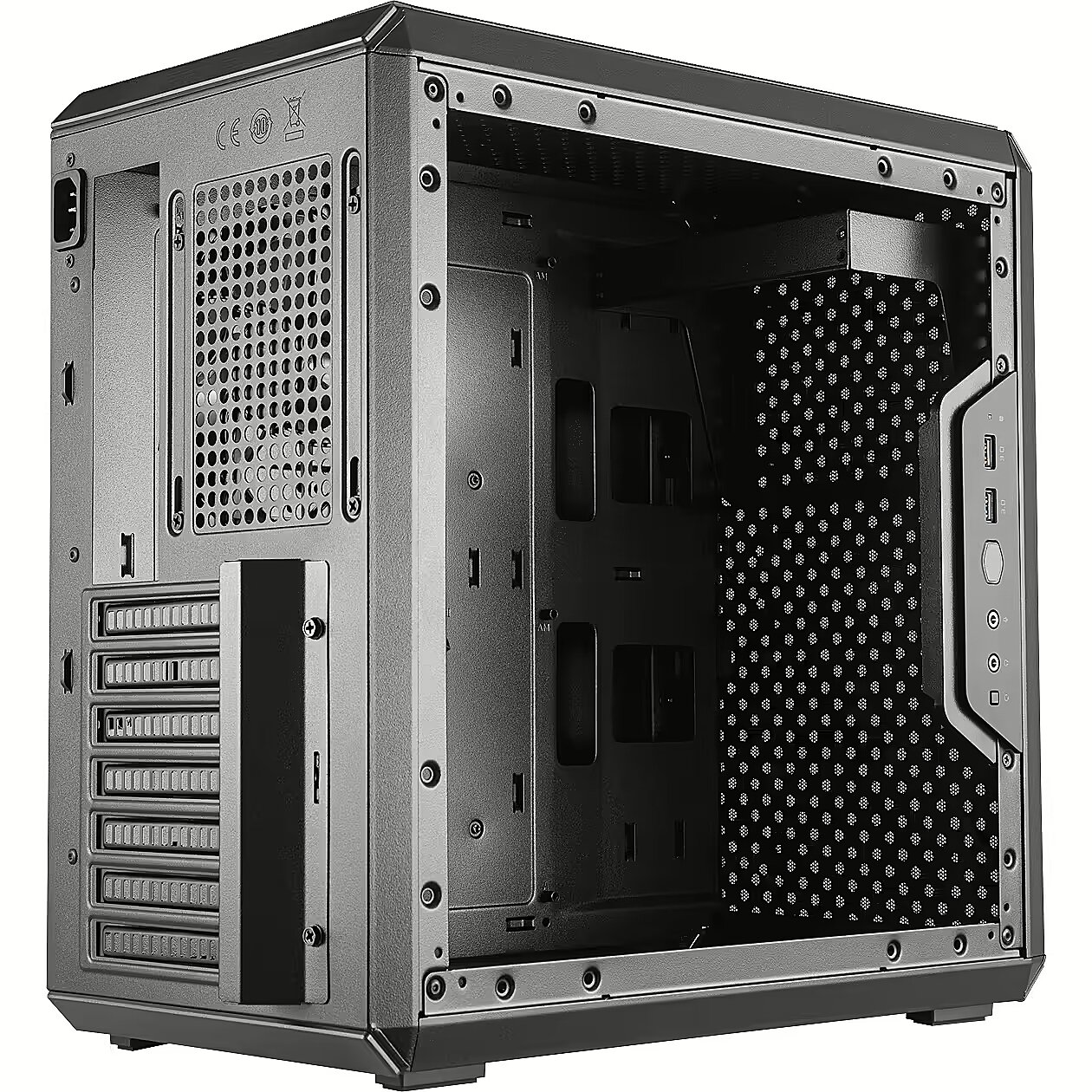

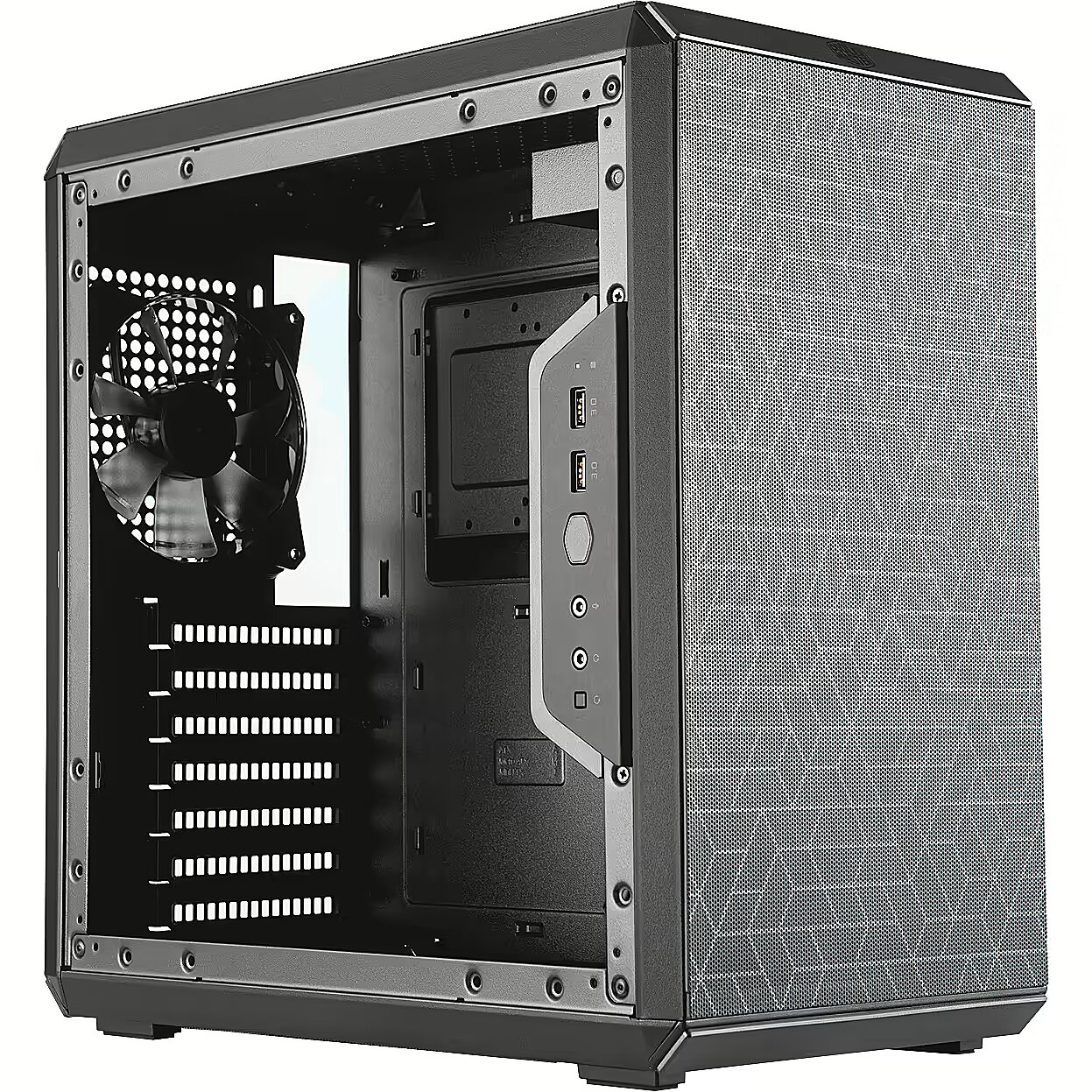

Description - ORIENTATION & A MOVABLE I/O PANEL

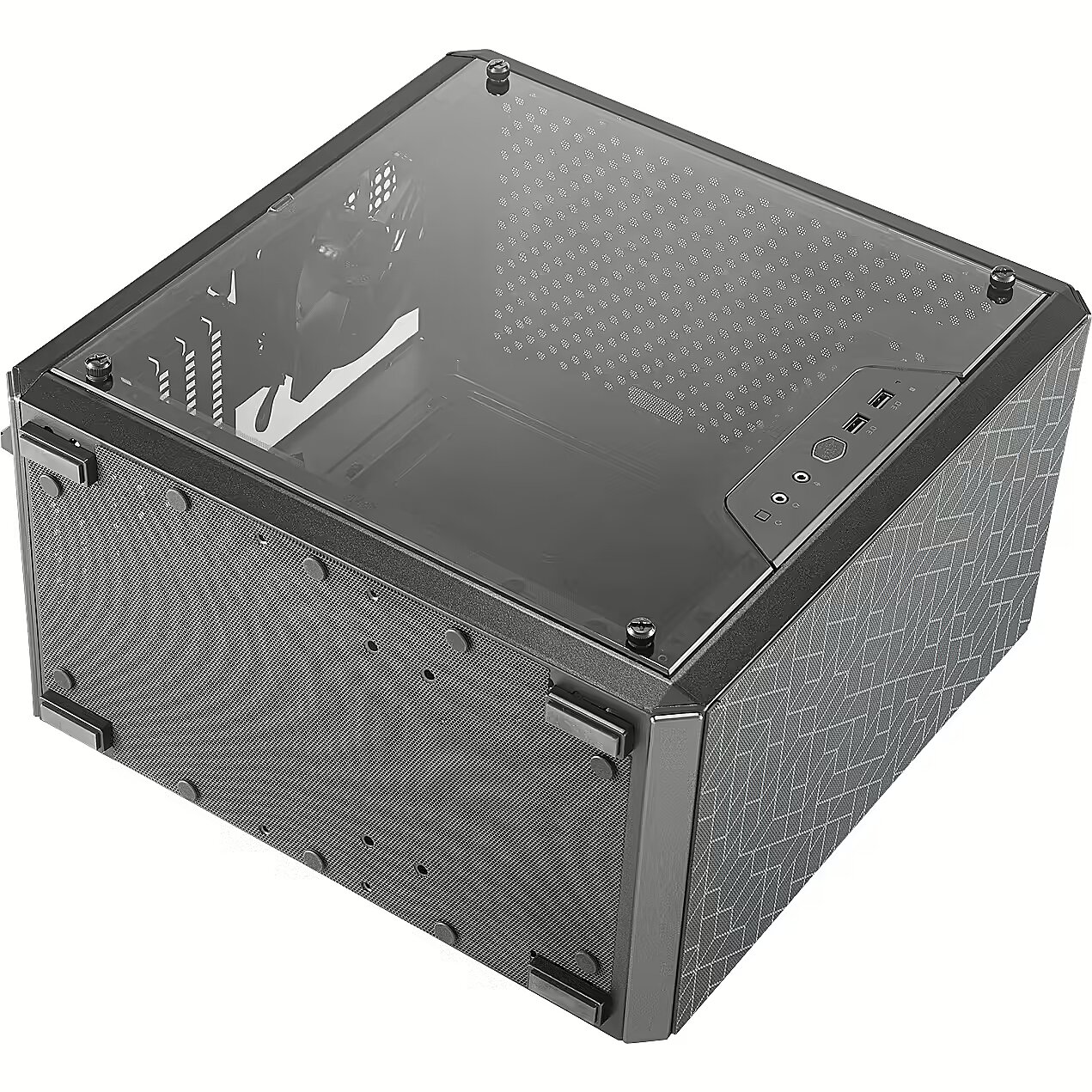

The modular MasterBox Q500L can orient vertically and horizontally with rubberized thumbscrews that also act as feet. Depending on hardware configuration, the movable I/O panel can be relocated to multiple positions to retain its accessibility.
VERSATILE PSU BRACKET
The PSU bracket enables the PSU to adapt to different clearance requirements and motherboard form factors. The PSU bracket can shift up or down for top radiator/graphics card clearance and can also be relocated for ITX systems.

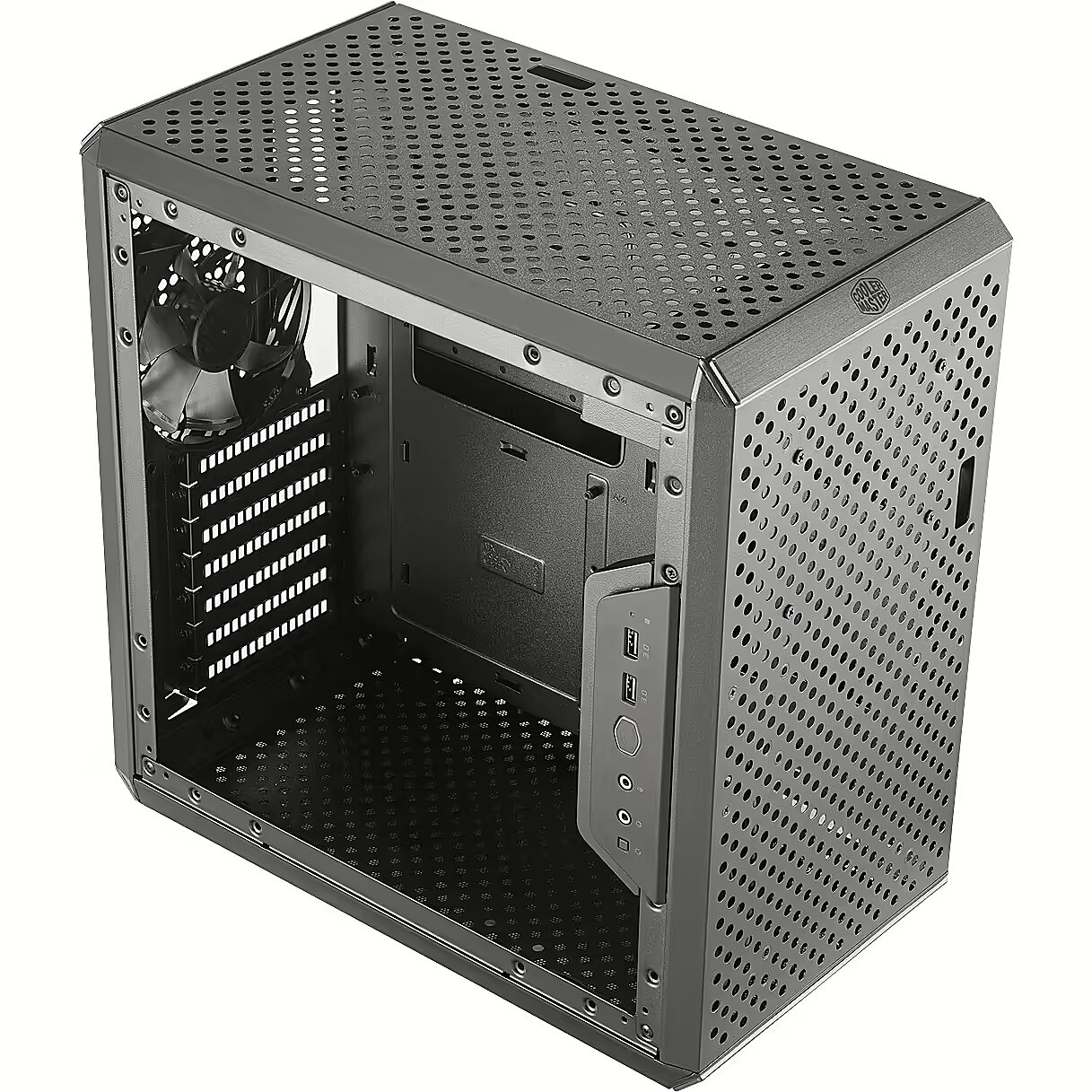

FULLY PERFORATED CHASSIS
The top, front, rear, and bottom panels are fully perforated to support various fan configurations.
MAGNETIC DUST FILTERS
The magnetic dust filters feature a unique design. Magnets allow for quick removal and installation for easy cleaning of the dust filters with rubber stompers to keep the filters from sliding.
COOLING SUPPORT
The bottom supports up to two 120mm fans.

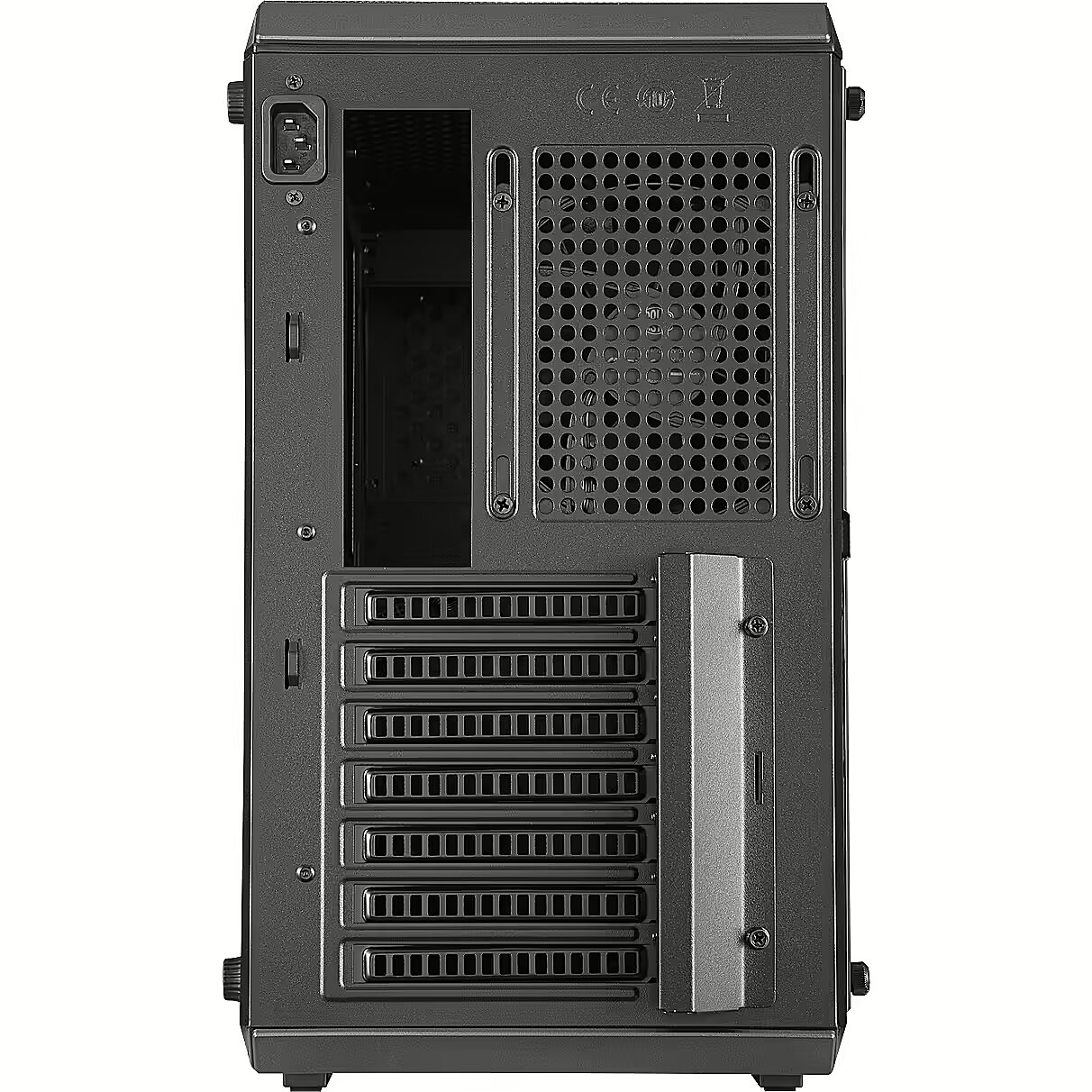

The rear supports a 120mm fan or 120mm radiator.
The top supports up to two 120mm/140mm fans or a 120/240mm radiator.
STORAGE SUPPORT
Each storage caddy can mount either 2x 2.5" drives or 1x 3.5" drive, two caddies included.
Possible Configurations:
4x 2.5" drives | 2x 3.5" drives | 2x 2.5" drives + 1x 3.5" drive
MOTHERBOARD SUPPORT

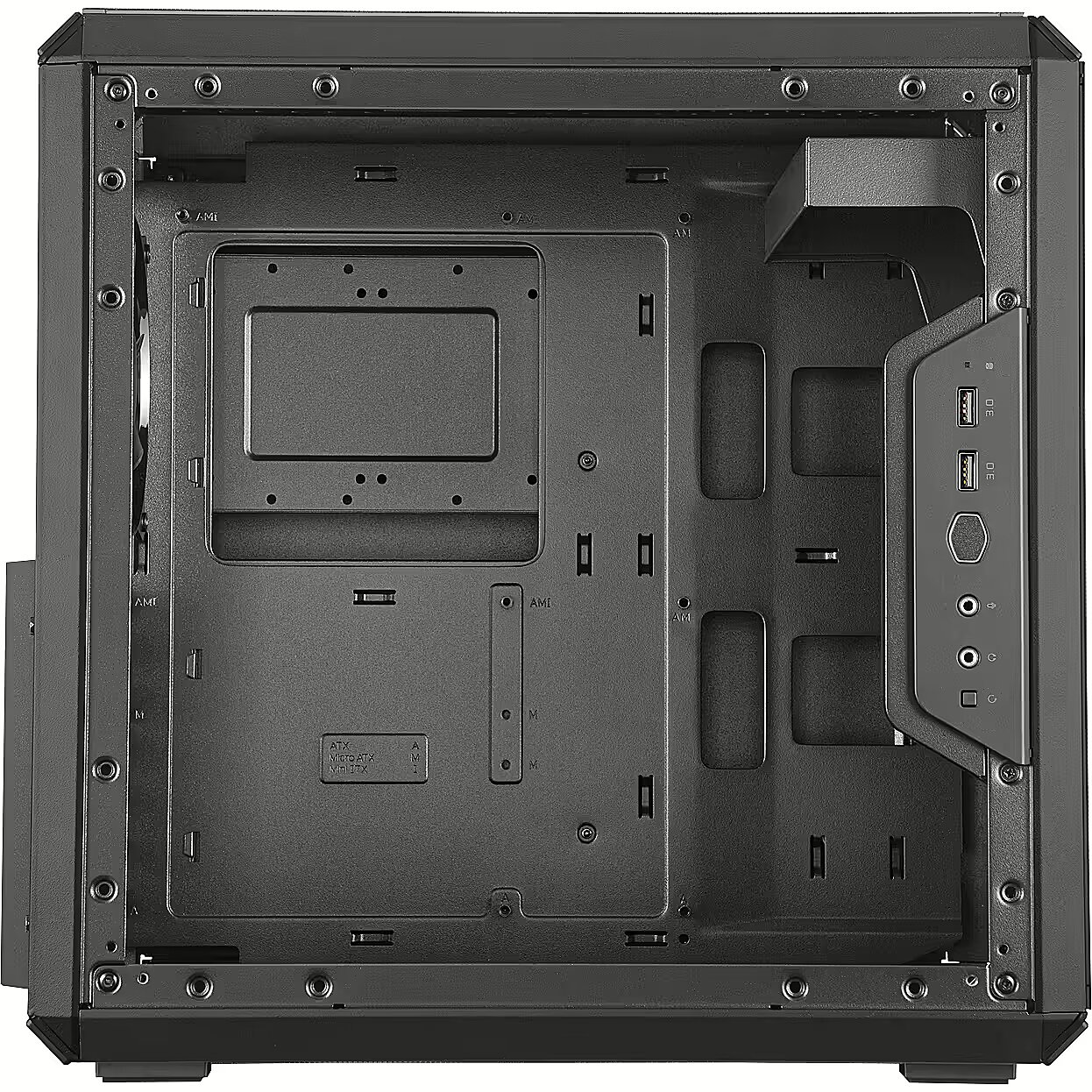

The internal layout and PSU location adapts to the motherboard. If a standard ATX motherboard is used, the PSU mounts to the top-front of the chassis with the ability to shift upward or downward. For mini-ITX builds, the PSU can be located in the conventional bottom-rear position for increased front panel ventilation.

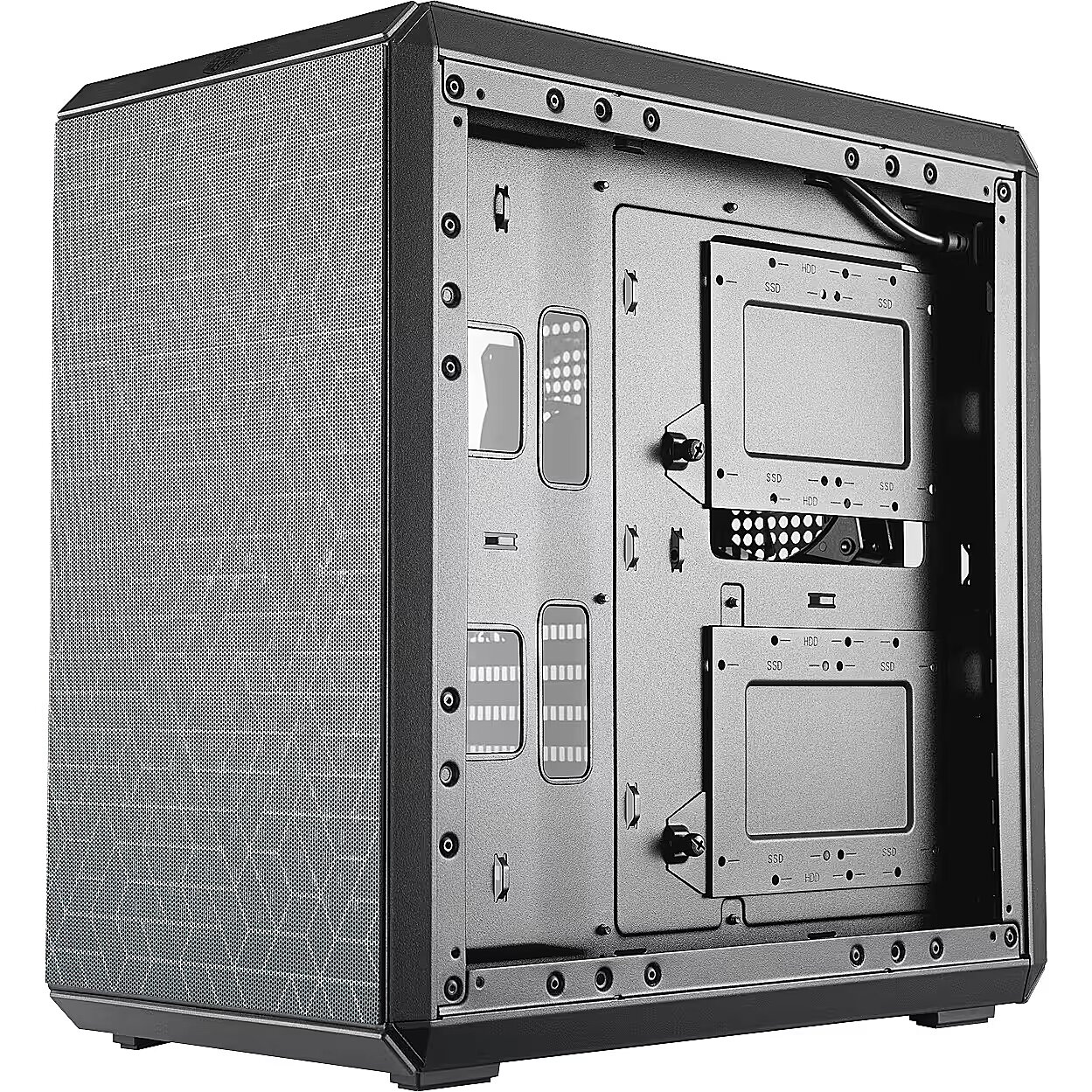

CLEAN ROUTING SPACE

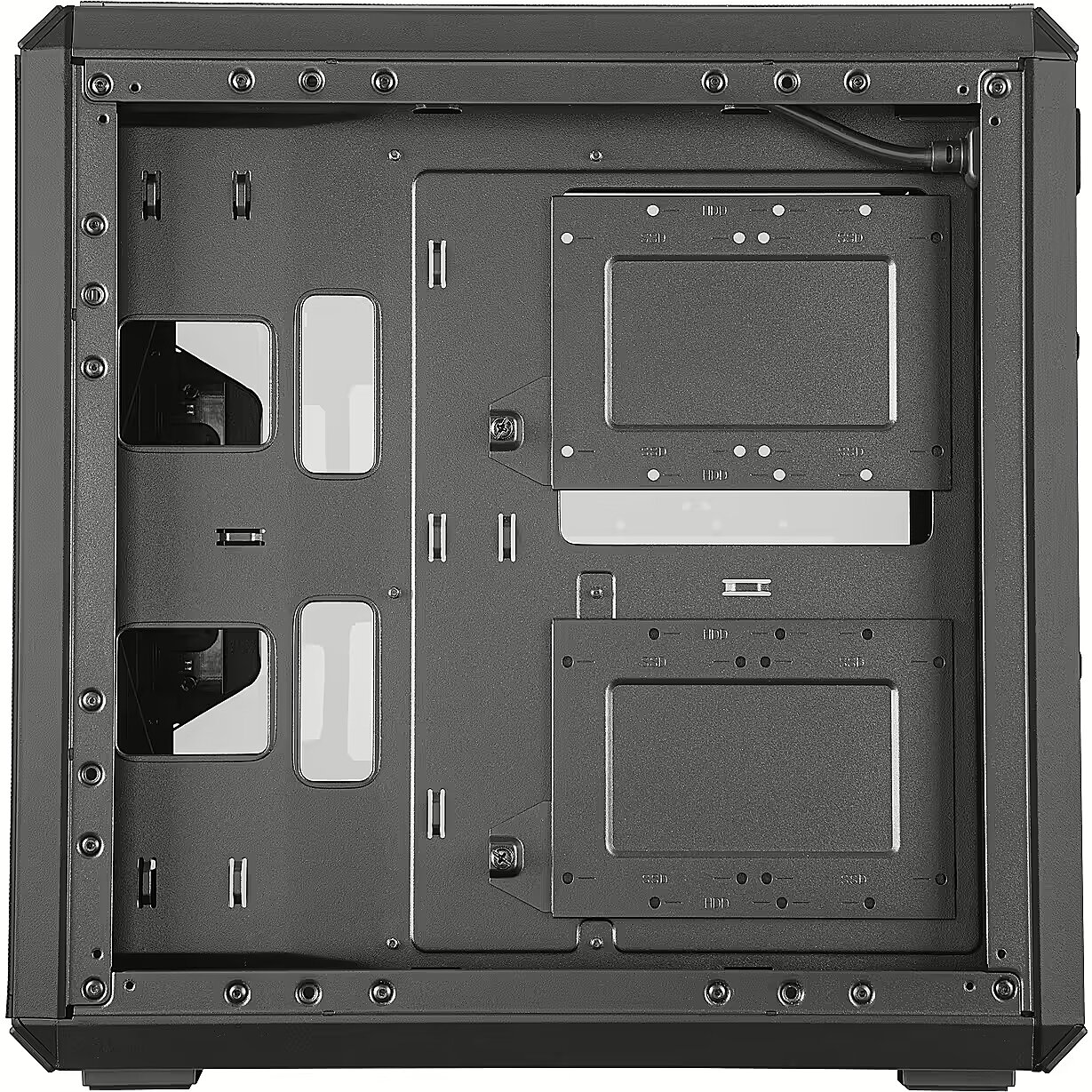

Behind the motherboard tray, 27~30mm width of space is offered for cable management with the entire perimeter dedicated as a channel for cables.
dimension depth - 270 mm
dimension height - 450 mm
Dimensions - 381 x 386 x 230 mm
dimension weight - 5200 g
dimension width - 430 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 2
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
EAN - 4719512080580
ean - 4719512080580
EAN_code - 4719512080580
Fan - 12 cm
Form-factor - ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x headphones
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 3.0
guarantee - 24
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_56600_1.jpg
LargeDescHTML -
Manufacturer - Cooler Master
Manufacturer_code - MCB-Q500L-KANN-S00
Name - Cooler Master MasterBox Q500L
Name - Cooler Master Masterbox Q500L, housing (black, window kit)
name - PC ase MasterBox Q500L (with window)
No. of drive bays - 2
Other features - The fans can be installed: Side: 2 x 120 mm Top: 1 x 120/240 mm radiator Top: 2 x 120/140 mm Back: 1 x 120 mm radiator Back: 2 x 120 mm
producer - Cooler Master

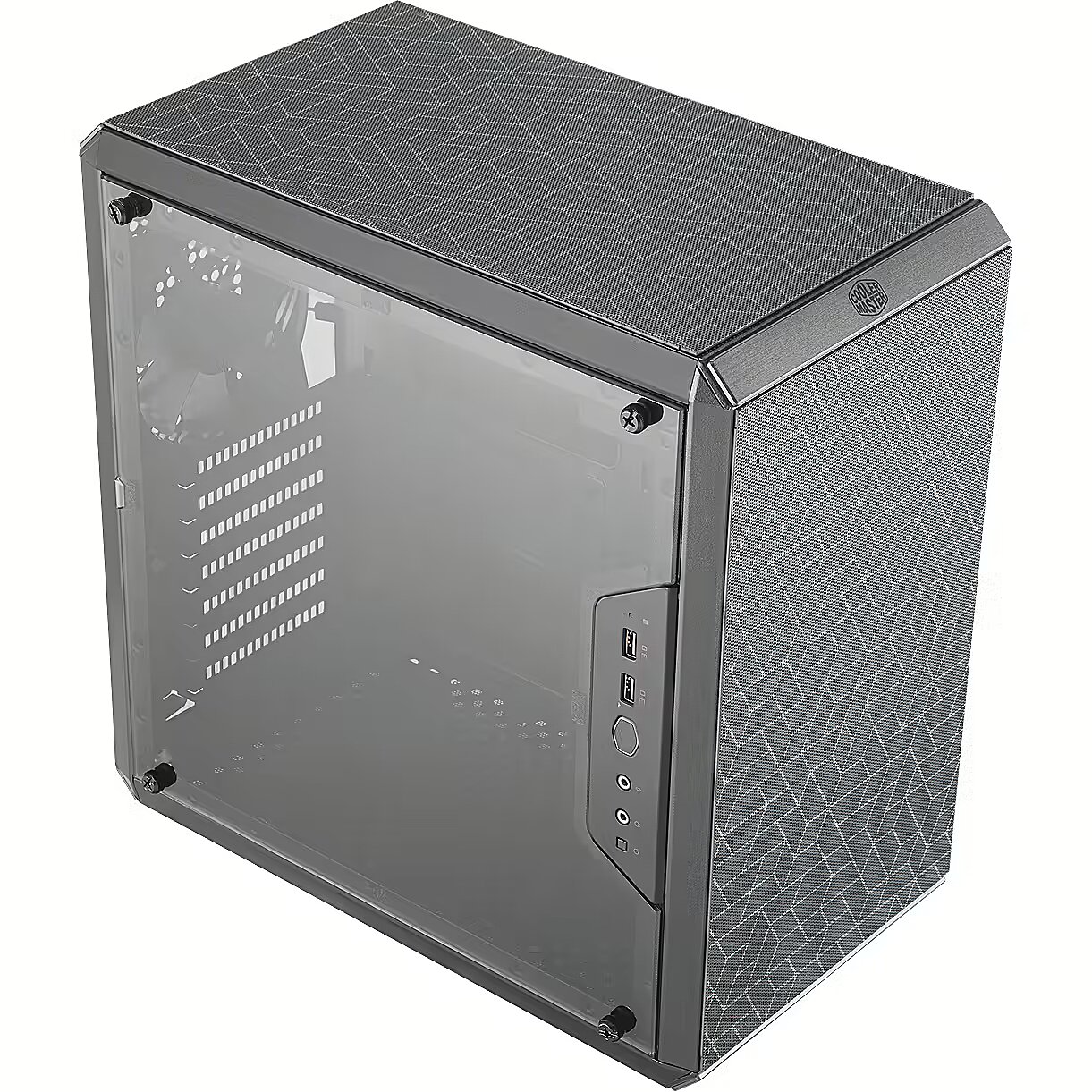

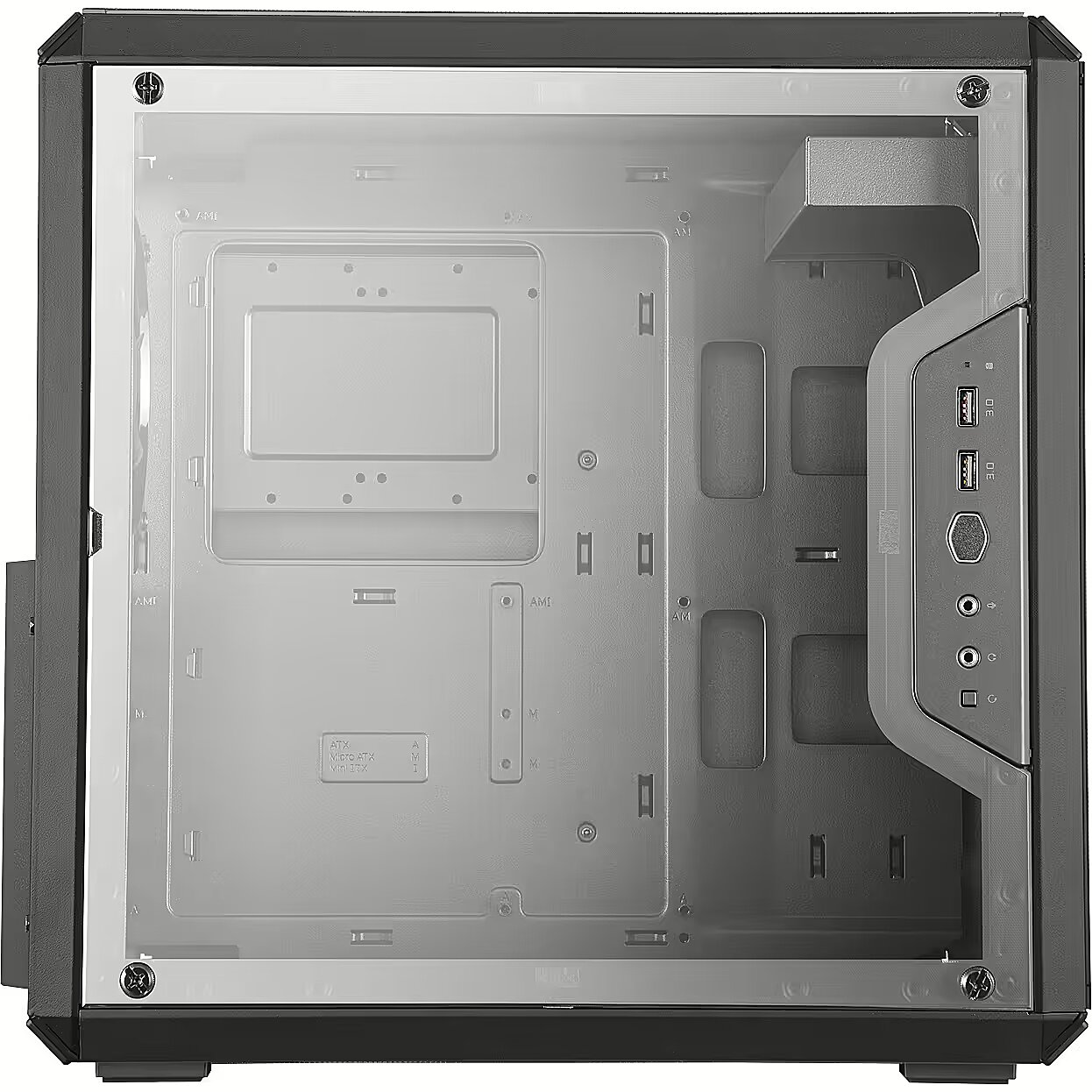

Side panel - Yes
Technical_details - external: not available Internal: 2x 2.5"/3.5" (HDD cage) Front I/O: 2x USB-A 3.0, 1x headphone, 1x microphone PCI-slots: 7 Fan(s) (front): not available Fan(s) (rear): 1x 120mm Fans (left): not available Fans right: not available Fan(s) (top): 2x 140mm (optional), or 3x 120mm (optional) Fan(s) (bottom): 2x 120mm (optional) Fans (other): not available Radiator sizes: not available front, 120/?240mm top Motherboard: to ATX Supported motherboards: mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6") Power supply: ATX (max. 180mm deep) Power supply position: top (vertical) CPU Coolers: to max. 160mm height Graphics Cards: to max. 360mm Colour: black, inside black Dimensions (WxHxD): 230x381x386mm Capacity: 33.83l Weight: 3.83kg Special features: Cable Management, dust filter, standing/?lying, I/?O-panel-position modular (six I/?O-panel-positions)
vendpn - MCB-Q500L-KANN-S00
Weight - 5,10
