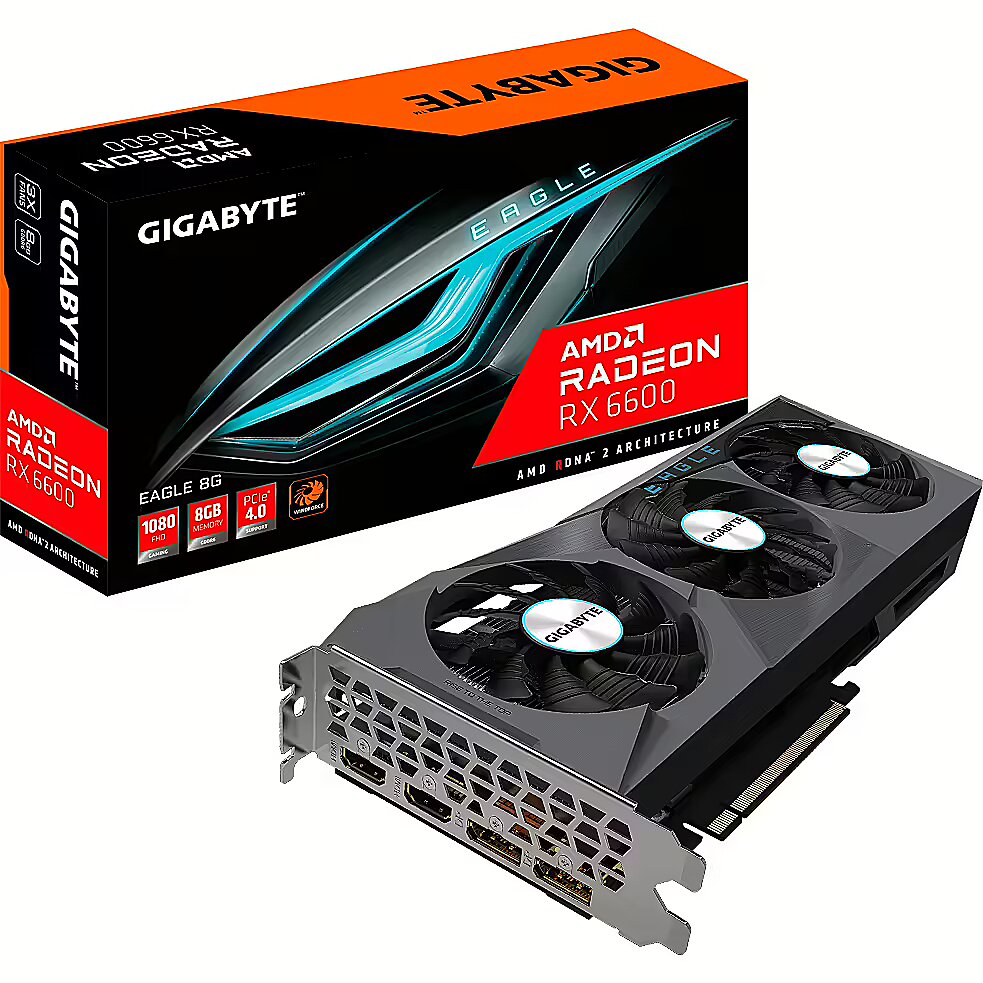

Gigabyte Radeon RX 6600, 8GB GDDR6, Eagle

Accessories included -
Brand - GIGABYTE
BrandPartCode - GV-R66EAGLE-8GD
Card's length - > 280 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Chipset - AMD Radeon RX 6600
Chipset - Radeon RX 6600
Chipset manufacturer - AMD
Cooling - Active
Core Boost frequency - 2491 MHz
CUDA Cores - 1792
Description -
Description - Radeon™ RX 6600 EAGLE 8G Powered by AMD RDNA™ 2 Radeon™ RX 6600 Integrated with 8GB GDDR6 128-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans Screen cooling Graphene nano lubricant Protection back plate
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 1771
dimension depth - 90 mm
dimension height - 405 mm
Dimensions - L=282 W=113 H=41 mm
dimension weight - 1154 g
dimension width - 235 mm
DisplayPort Input/Output connectors - 2
ean - 4719331309923
EAN - 4719331309923
Eans - 4719331309923
Full Description Line - AMD Radeon RX 6600|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 4.0 8x|Memory clock 14000 MHz|GPU boost clock 2491 MHz|7680x4320|2xHDMI|2xDisplayPort
GPU boost clock - 2491 MHz
Graphics card connector - PCI-E 8x ver. 4.0
Graphics connector - PCIE 4.0 8x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
GTIN - 0889523029909
GTIN - 889523029909
GTIN - 4719331309923
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - PERFORMANCE TO LEVEL UP YOUR GAMEIntroducing AMD Radeon™ RX 6600 Series graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture. Engineered to deliver an incredible 1080p gaming experience, the AMD Radeon™ RX 6600 Series powers the next generation of gaming with vivid visuals and elevated experiences.Powerhouse PerformanceAMD Radeon™ RX 6600 Series graphics cards deliver serious 1080p gaming and ultra-high frame rates. Get up to 32 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 8GB of dedicated GDDR6 memory. Experience the next gen of gaming performance with AMD Smart Access Memory technology when you pair an AMD Radeon™ RX 6600 Series graphics card with an AMD Ryzen™ 5000 Series desktop processor.VIVID VISUALSWith immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6600 Series graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.AMD Smart Access Memory TechnologyAll AMD Performance. Built To Game.Combine an AMD Ryzen 5000 Series processor or a select AMD Ryzen 3000 Series processor with an AMD Radeon RX 6600 Series graphics card to boost your system’s performance, thanks to AMD Smart Access Memory technology. AMD Smart Access Memory enables AMD Ryzen processors to harness the full potential of the graphics card memory. Enjoy increased performance with all-AMD in your system for the ultimate gaming advantage.Get A Boost In Frames For Your GamesAMD FidelityFX Super Resolution (FSR) boosts your frame rates 2.4X on average in FSR supported games with high-quality, high-resolution gaming experiences delivered by AMD Radeon RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.AMD RADEON PC GAMING IS WINDOWS 11 READYWindows® 11 is created for the ultimate PC gaming, featuring superior graphics, amazing speed, and an incredible selection of games. Windows 11 includes gaming features like DirectX® 12 Ultimate, DirectStorage, and Auto HDR.WINDFORCE 3X COOLING SYSTEMThe WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase air pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.PROTECTION BACK PLATEThe back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.EXTREME DURABILITYThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.AORUS ENGINEThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
LongProductName - 8 GB, GDDR6, 128-bit, PCI-Express 4.0 x 8, 2491 MHz boost clock, 2xDisplayPort, 2xHDMI
LongSummaryDescription - GIGABYTE EAGLE Radeon RX 6600 8G. Graphics processor family: AMD, Graphics processor: Radeon RX 6600. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 224 GB/s
Memory - Memory bus - 128 bit
Memory - Memory clock speed - 14000 MHz
Memory - Number of pipelines - 3
Memory bus - 128 bit
Memory bus - 128-bit
Memory clock - 14000 MHz
Memory frequency - 14000 MHz
Memory type - DDR6
Model - RX 6600 EAGLE
MPN - GV-R66EAGLE-8GD
Name - Gigabyte Radeon RX 6600 EAGLE 8GB
name - Graphics card Radeon RX 6600 EAGLE 8GB GDDR6 128bit 2DP/2HDMI
Name - RX 6600 8GB Gigabyte Eagle 8GB GDDR6
Other features -
Other information -
Packaging content - User guide - Yes
Packaging data - Package type - Box
Packaging data - User guide - Yes
Performance - AMD FreeSync - Yes
Performance - DirectX version - 1‎2 Ultimate
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express x8 4.0
Power - Minimum system power supply - 500 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 6600
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2491 MHz
Processor - Stream processors - 1792
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-R66EAGLE-8GD
ProducerCode - GV-R66EAGLE-8GD 1.0
productName - Gigabyte Radeon RX 6600 EAGLE 8G AMD 8 GB GDDR6
ProductName - Radeon RX 6600 EAGLE 8G
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 40.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 23.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.14 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortDescription - Chipset AMD 6600 | 8GB
ShortSummaryDescription - GIGABYTE EAGLE Radeon RX 6600 8G, Radeon RX 6600, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express x8 4.0
sizeX - 410
sizeY - 90
sizeZ - 240
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Title - GIGABYTE EAGLE Radeon RX 6600 8G AMD 8 GB GDDR6
Unit Box Height - 0.235
Unit Box Length - 0.405
Unit Box Width - 0.09
Unit Brutto Volume - 0.0085658 cubm
Unit Gross Weight - 1.14 kg
Unit Net Weight - 0.93 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-R66EAGLE-8GD
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-R66EAGLE-8GD#kf
vendpn - GV-R66EAGLE-8GD
Version - Box
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 8 GB
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.14
weight - 1140
Weight & dimensions - Depth - 282 mm
Weight & dimensions - Height - 41 mm
Weight & dimensions - Width - 113 mm
