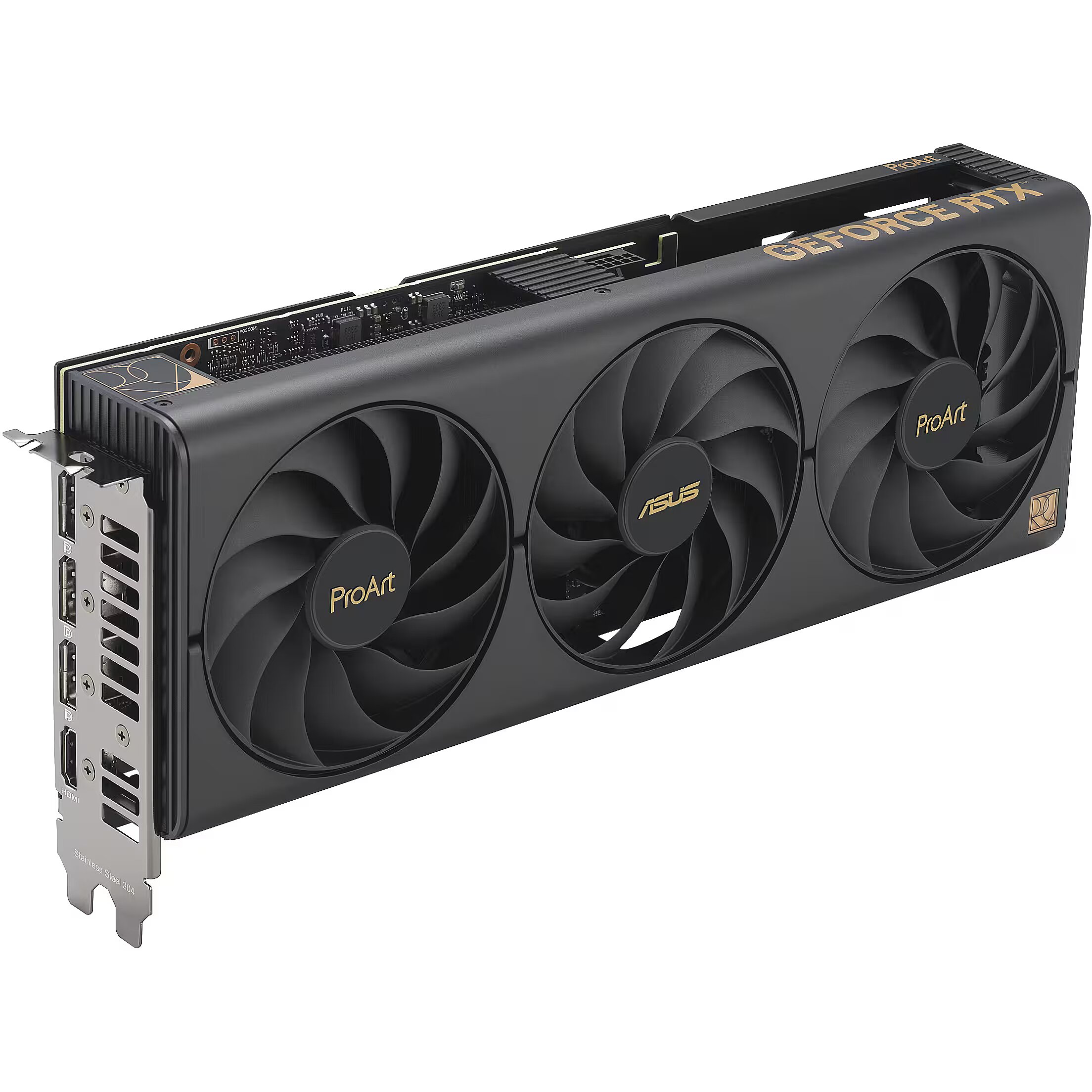

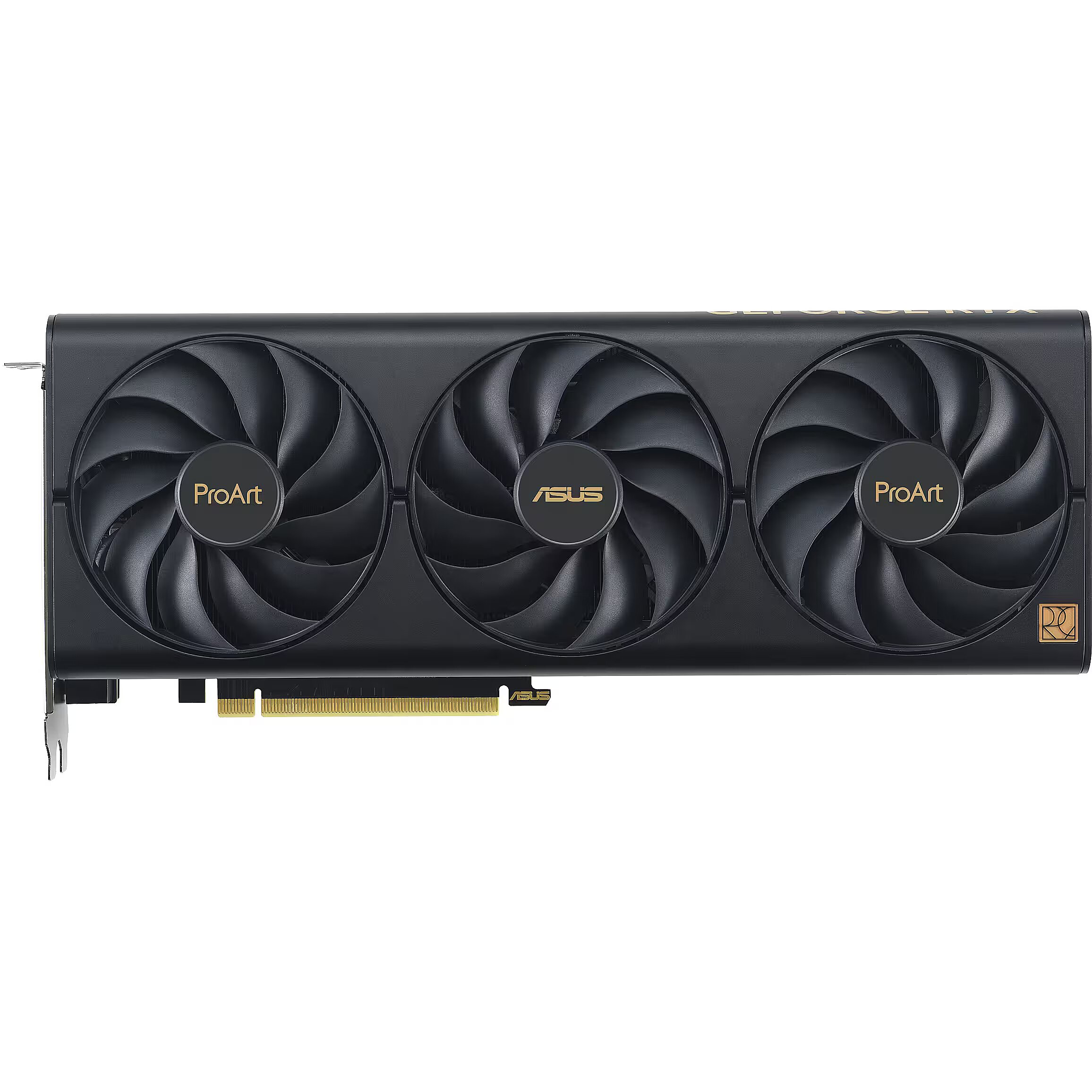

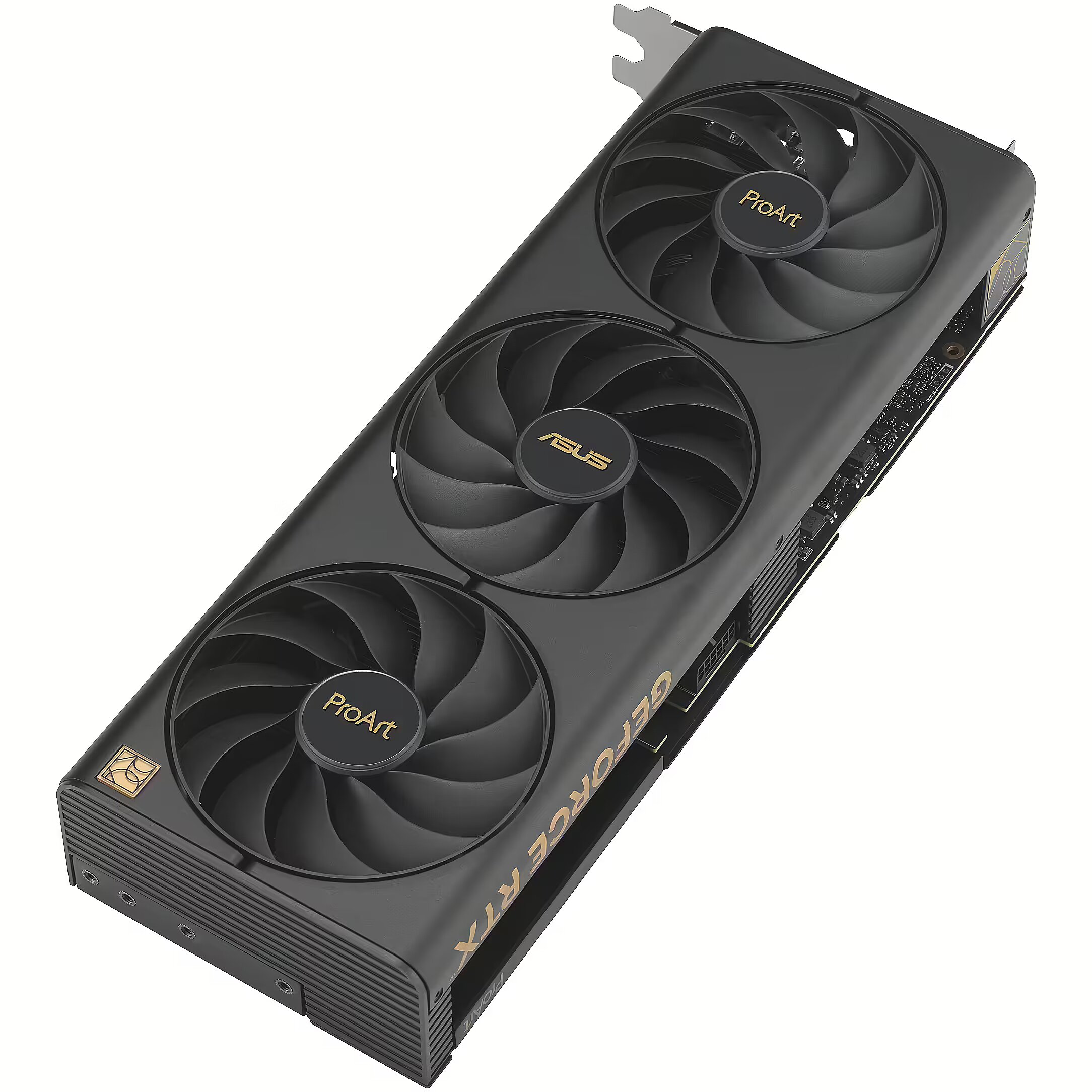

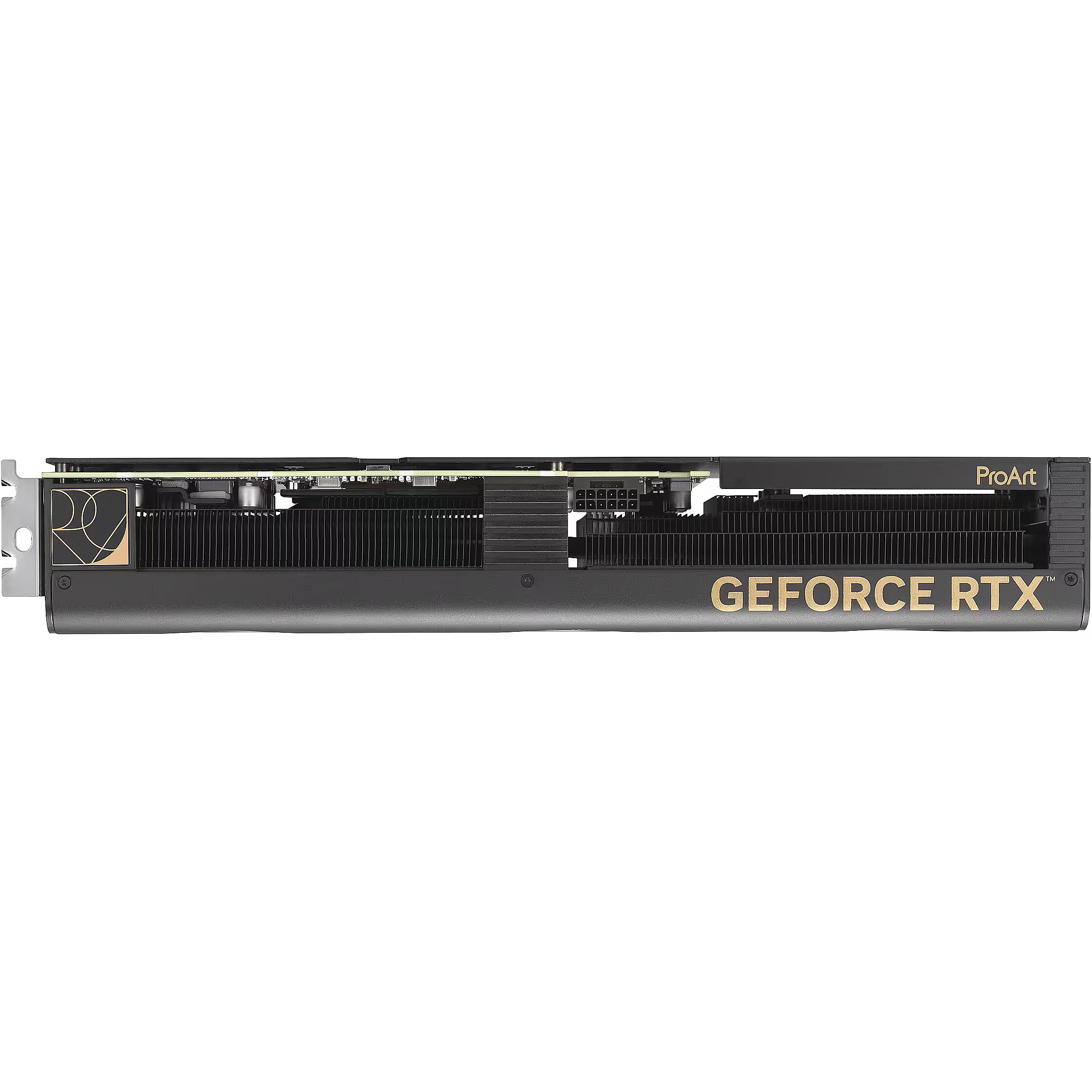

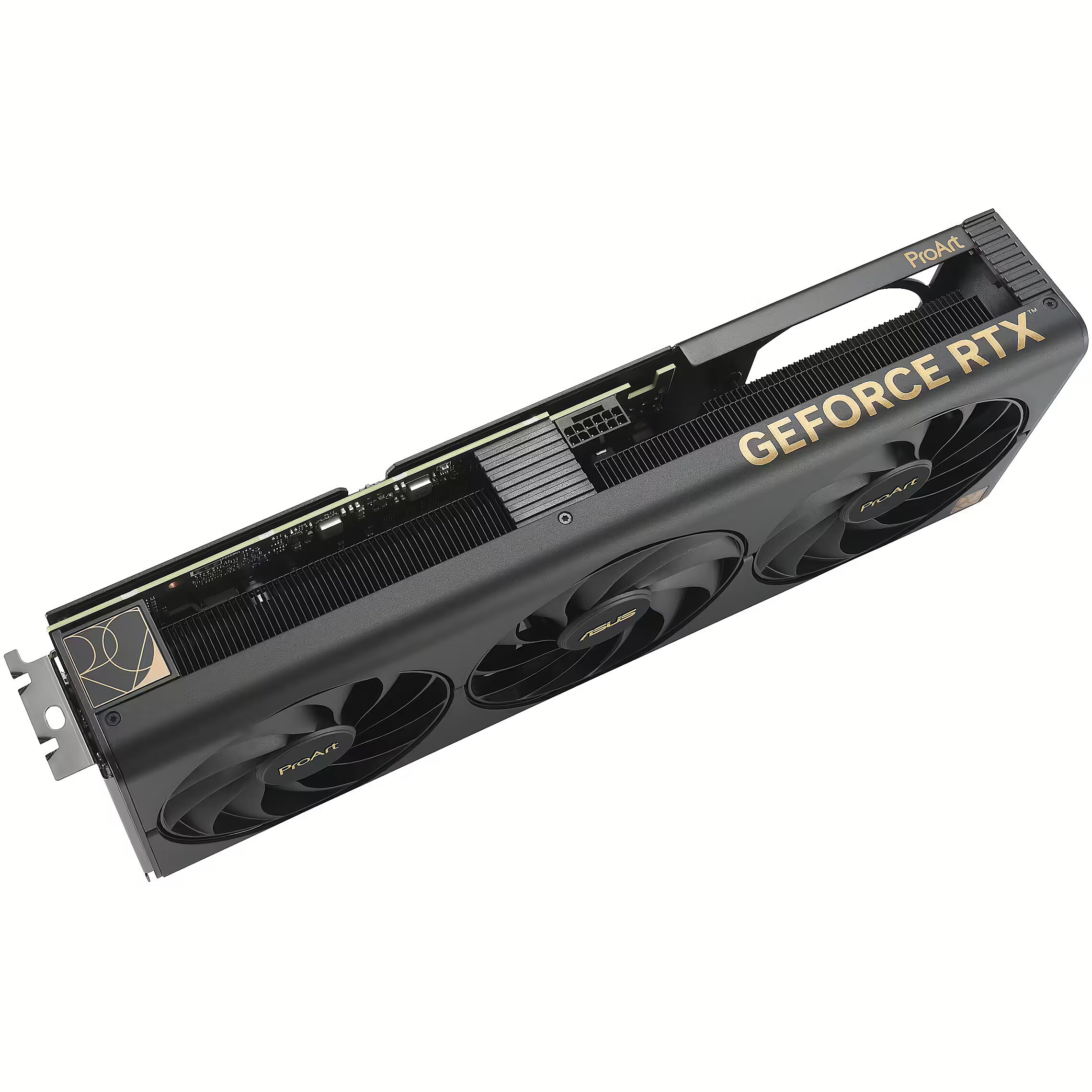

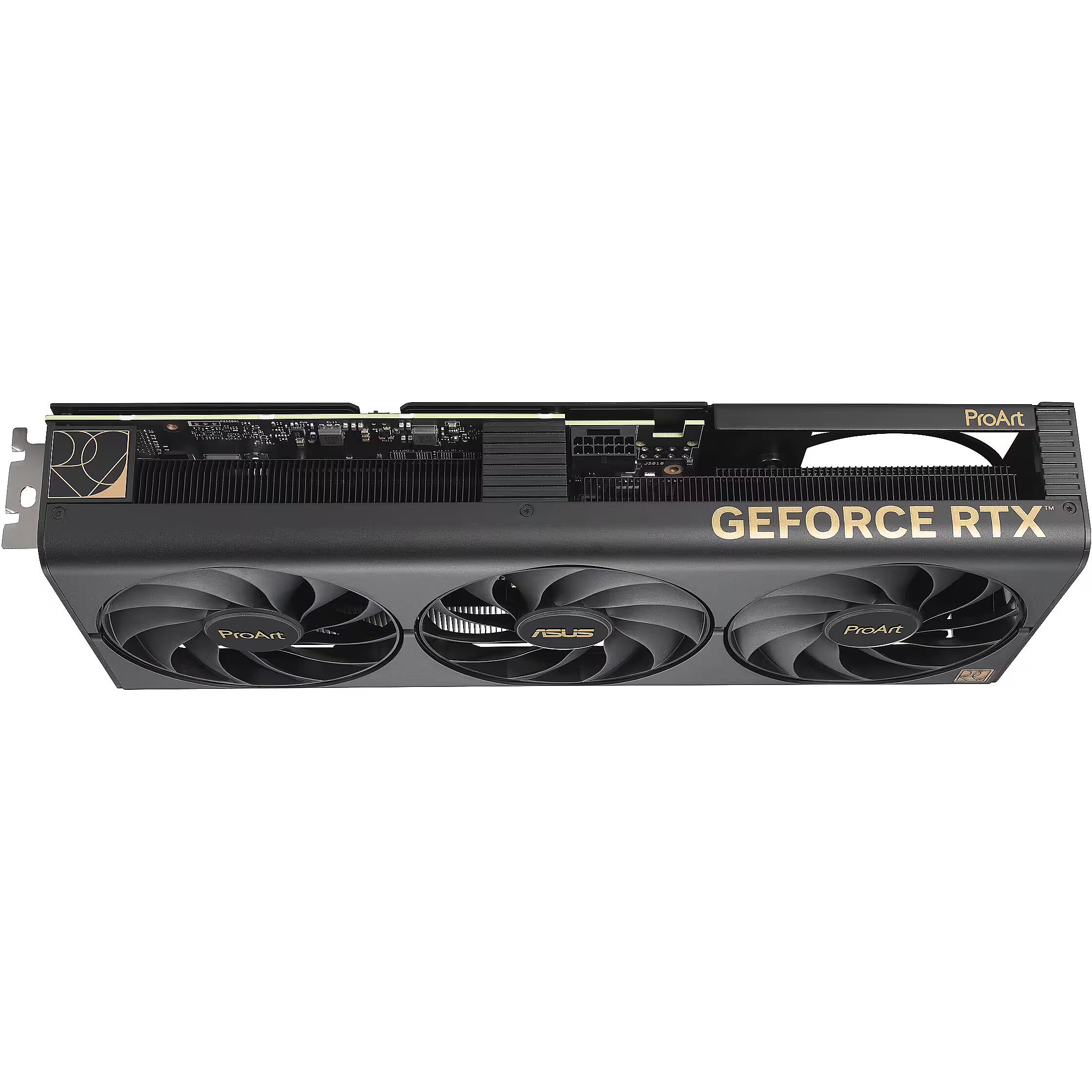

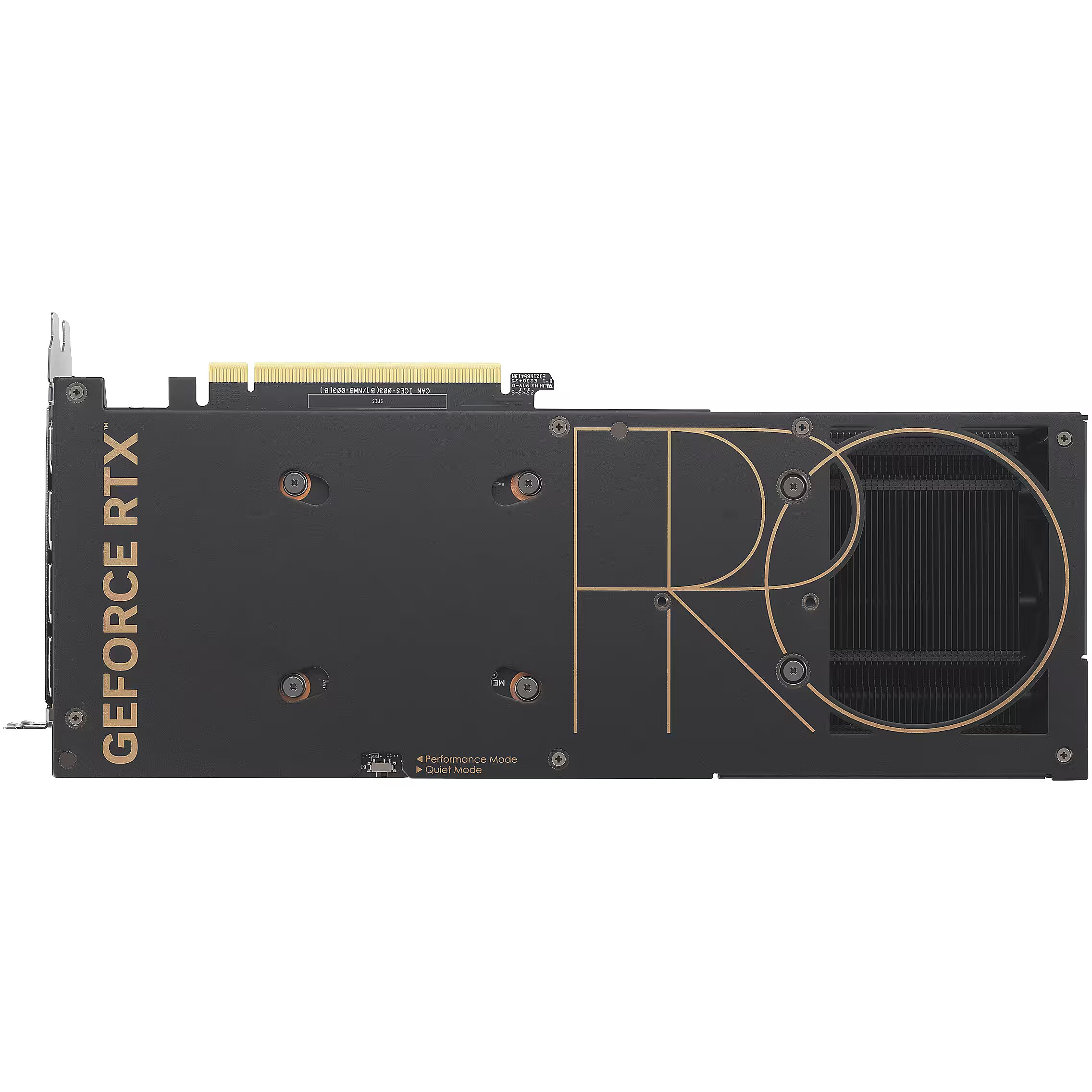

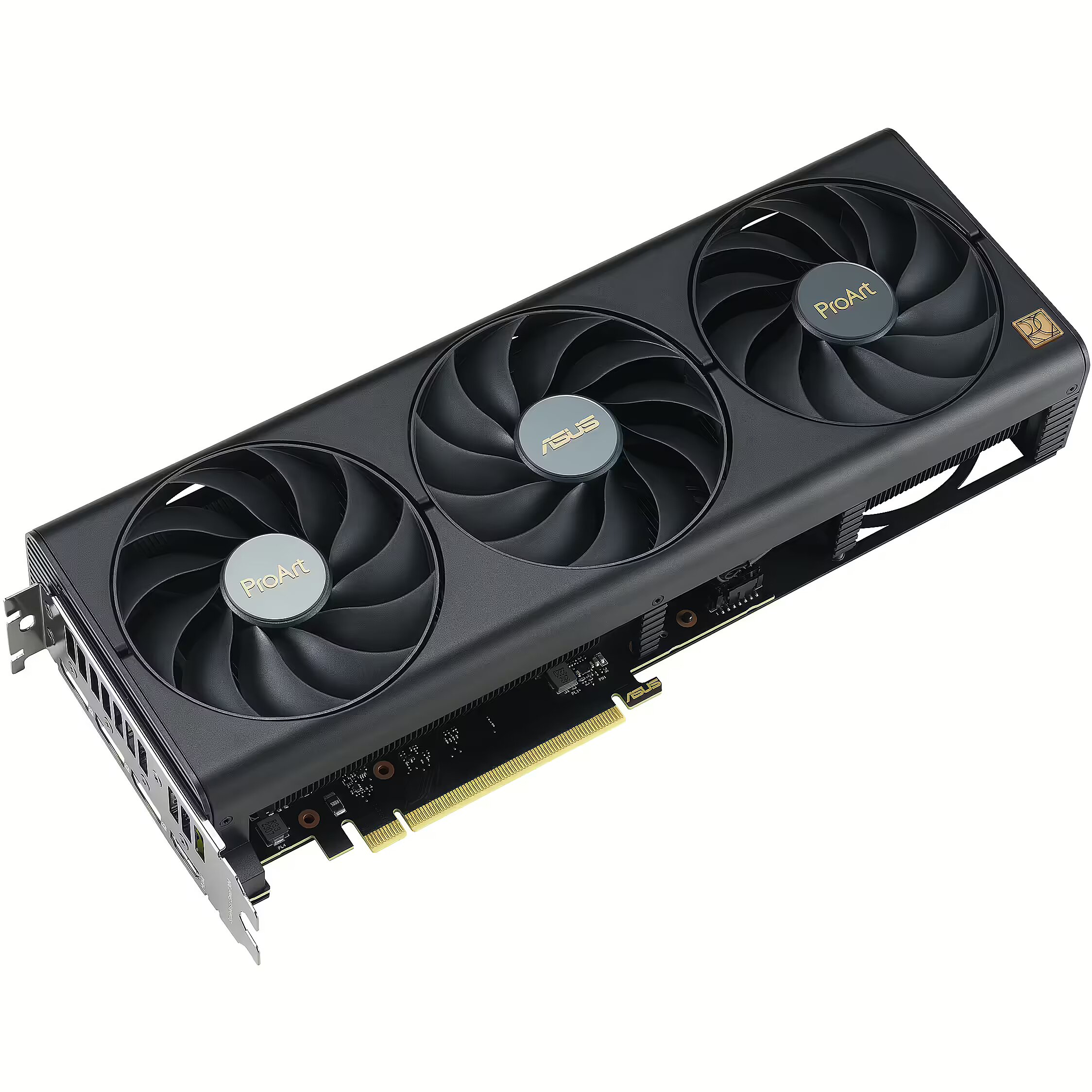

Asus GeForce RTX 4070 SUPER, 12GB GDDR6X, ProArt OC (DLSS 3)

Brand - ASUS
BrandPartCode - 90YV0KC4-M0NA00
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
code - 90YV0KC4-M0NA00
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)

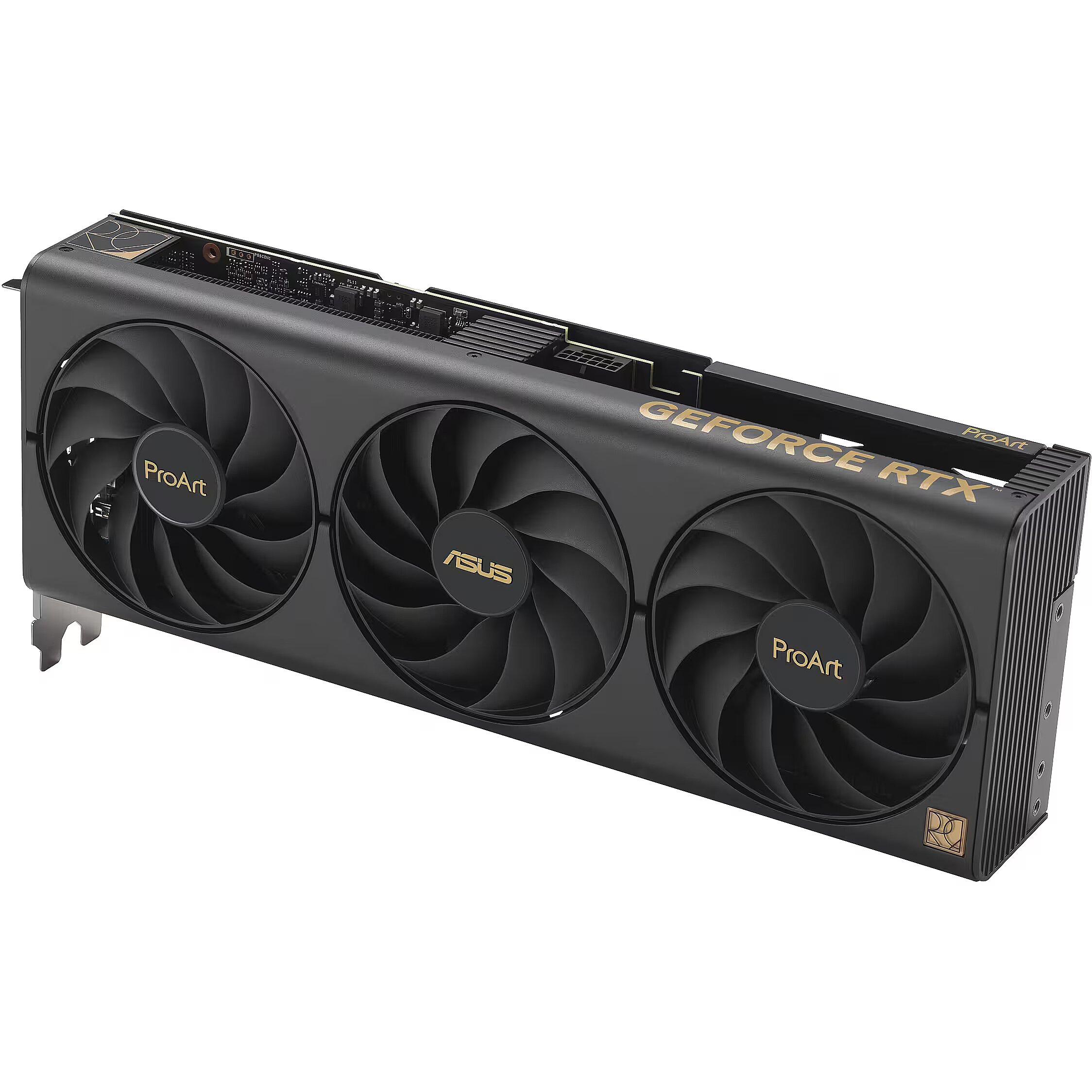

Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
ean - 4711387513170
EAN_code - 4711387513170
GTIN - 0197105513181
GTIN - 197105513181
GTIN - 4711387513170
LongDesc - ProArt GeForce RTX™ 4070 SUPER OC Edition 12GB GDDR6X brings elegant and minimalist style to empower creator PC builds with full-scale GeForce RTX™ 40 SUPER Series performance.COMPACT. CREATIVE. POWER.Blur the lines between imagination, the digital world, and reality. The ProArt GeForce RTX™ 4070 SUPER packs the venerable Ada Lovelace architecture and potent cooling into a 2.5-slot frame, bringing immense creative power to compact builds and full-scale workstations.Empower Your Creative FlowNVIDIA Ada Lovelace ArchitectureDesigned to Give You SuperpowersNew Streaming MultiprocessorsUp to 2X performance and power efficiencyFourth-Gen Tensor CoresUp to 4X performance with DLSS 3 vs. brute-force renderingThird-Gen RT CoresUp to 2X ray tracing performanceCutting-Edge GPUsNVIDIA Ada Lovelace ArchitectureRealistic and Immersive GraphicsDedicated Ray Tracing CoresAI-Accelerated PerformanceNVIDIA DLSS 3Game-Winning ResponsivenessNVIDIA Reflex low-latency platformBuilt for Live StreamingNVIDIA EncoderAI-Enhanced Voice and VideoRTX Video Super Resolution and NVIDIA BroadcastFast-Track Your CreativityNVIDIA StudioPerformance and ReliabilityGame Ready and Studio DriversAxial-tech UpgradesA Fresh SpinBigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.Reverse Rotation and 0dB TechnologyOrchestrated ChillThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.2.5-slot DesignCustom HeatsinkHeatpipes efficiently wick heat into a fin stack optimized for airflow from the Axial-tech fans. The entire array is dressed in stealthy black to match the ProArt theme.Premium Power Delivery1st ResponderDigital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.*Illustration for reference onlyCOMPACT. CREATIVE. POWER.The ProArt GeForce RTX™ 4070 SUPER is a finely-crafted synthesis of brawn and beauty.Dual BIOSChoose wiselyDo you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.Auto−Extreme TechnologyReliability BoostAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.Graphics Card HolderPillar of SupportThe bundled graphics card holder banishes sag and also contains a screwdriver to help you build.SoftwareGPU Tweak IIIASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make performance tuning even easier. Additional goodies, such as, 0dB fan technology, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card. And Profile Connect allows you to seamlessly bring it all together for every creative app and task.QuantumCloudQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG, TUF Gaming or Prime PSU for ultimate performance.Your Ideas, Accelerated by NVIDIA StudioCreativity that’s all in. NVIDIA Studio delivers RTX and AI acceleration in top creative apps, NVIDIA Studio drivers for max stability, and a suite of exclusive tools to ignite your next big idea.NVIDIA DLSS 3Max FPS. Max Quality. Powered by AI.DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.Further With AI,Faster on RTXGet next-level AI performance on GeForce RTX.Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.Free 3 Month of Adobe Creative CloudGet complimentary membership with the purchase of selected ASUS products.*
LongProductName - NVIDIA GeForce RTX 4070 SUPER 12GB GDDR6X, PCI Express 4.0, OpenGL 4.6, 21 Gbps, 192-bit, 750W, 1 x 16-pin, 2.5 Slot
LongSummaryDescription - ASUS ProArt -RTX4070S-O12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 SUPER. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - Asus
Manufacturer_code - 90YV0KC4-M0NA00
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bandwidth (max) - 21 GB/s
Memory - Memory bus - 192 bit
name - ASUS GeForce RTX 4070 Super ProArt O12G, 12288 MB GDDR6X
Name - ASUS GeForce RTX 4070 SUPER PROART OC, graphics card (DLSS 3, 3x DisplayPort, 1x HDMI 2.1)
Packaging data - Package depth - 88.5 mm
Packaging data - Package height - 233 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.68 kg
Packaging data - Package width - 405 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Virtual Reality (VR) ready - Yes

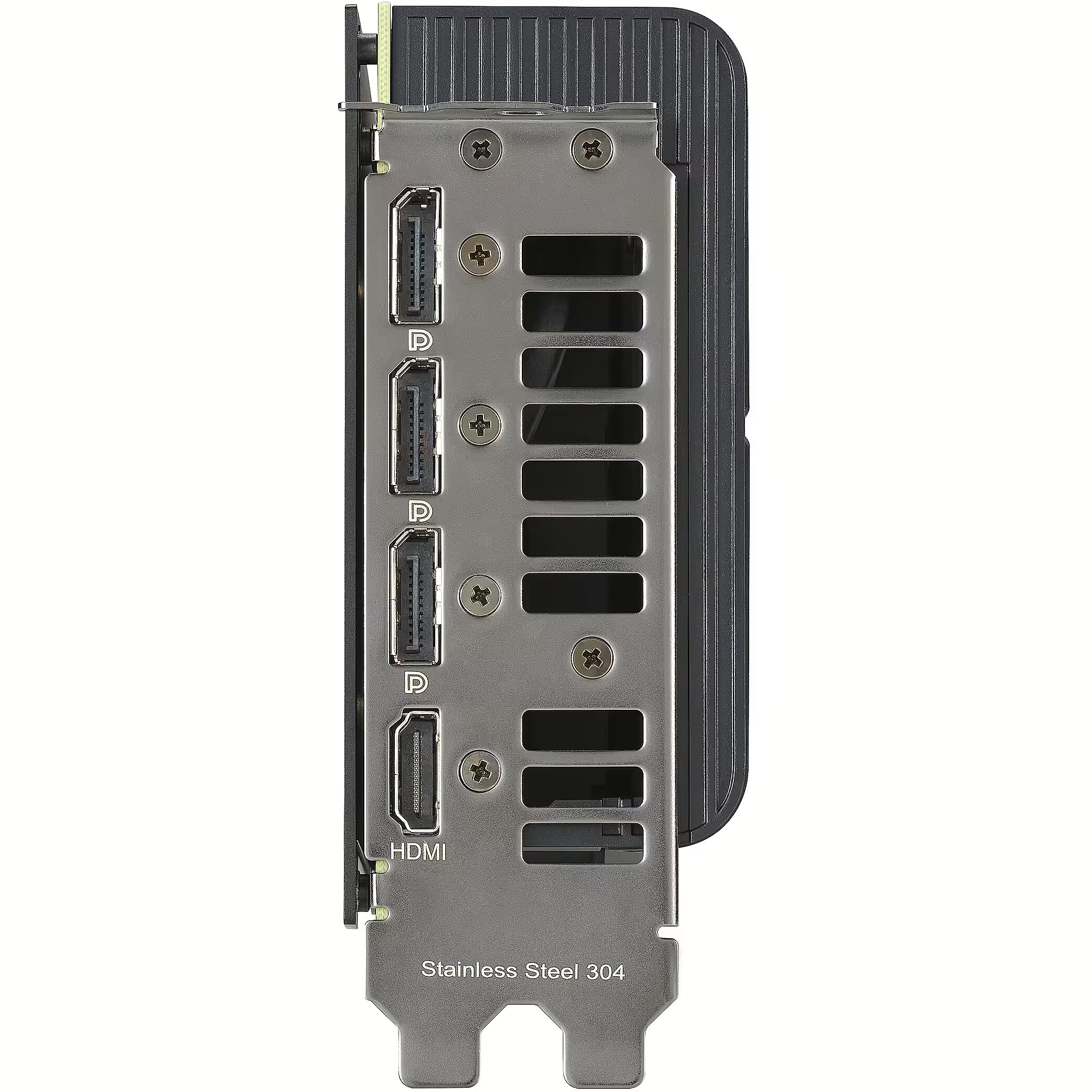

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Processor - CUDA - Yes
Processor - CUDA cores - 7168
Processor - Graphics processor - GeForce RTX 4070 SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2535 MHz
Processor - Processor boost clock speed (OC mode) - 2565 MHz
ProductName - PROART-RTX4070S-O12G
ShortSummaryDescription - ASUS ProArt -RTX4070S-O12G, GeForce RTX 4070 SUPER, 12 GB, GDDR6X, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
System requirements - Windows operating systems supported - Yes
Technical_details - The ASUS GeForce RTX 4070 SUPER PROART OC is a high-end graphics card with the GeForce RTX 4070 SUPER GPU from NVIDIA. The powerful GeForce RTX 40 graphics card series is based on the NVIDIA Ada architecture and offers new levels of gaming realism, speed and performance efficiency, RTX IO and realistic VR experiences. Other features include Real-Time Ray Tracing, NVIDIA Ansel, with extensive tools for creating screenshots in games as well as NVIDIA G-SYNC, G-SYNC HDR, DirectX 12 Ultimate, NVIDIA DLSS 3.5, PCI Express Gen 4, NVIDIA FreeStyle, NVIDIA ShadowPlay , NVIDIA Highlights, NVENC Gen 8, AV1 Encoder, Vulkan RT API and OpenGL 4.6. The GPU installed on the ASUS GeForce RTX 4070 SUPER PROART OC has 7168 CUDA cores. The 12 GB GDDR6X memory has a 192-bit memory controller. Item no.: 100042132 Graphics card type EAN 4711387513170 Manufacturer no. 90YV0KC4-M0NA00 Slot PCIe x16 version 4.0 occupied slots 2.5 GPU name NVIDIA GeForce RTX 4070 SUPER Required power supply power at least 750 W Memory capacity 12 GB (GDDR6X) Connections 1x HDMI version 2.1, 3x Displayport version 1.4a Power supply Average consumption 220 W Cooling Cooling with fan RGB Standard AURA Sync Special features VR Ready Yes Operating systems Supports Windows 11, Windows 10 Feature RTX IO, NVIDIA DLSS 3.5, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Gen 8, AV1 Encoder, Vulkan RT API More information Maximum digital resolution: 7680 x 4320 Note For the power supply, a power supply with a native 16-pin connector or a power supply with 2x 8-pin PCIe for the included adapter is required Accessories available power adapter Dimensions Width: 120mm x Height: 50mm x Depth/Length: 300mm Weight 1.2kg
Title - ASUS ProArt -RTX4070S-O12G NVIDIA GeForce RTX 4070 SUPER 12 GB GDDR6X
URL - https://www.asus.com/motherboards-components/graphics-cards/proart/proart-rtx4070s-o12g/
WarrantyInfo -
Weight - 1,65
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Length - 300 mm
Weight & dimensions - Weight - 992 g
