Brand - Gigabyte
BrandPartCode - GV-N407TGAMING-OCV2-12GD
Card's length - > 280 mm
category -
Category - Graphics Cards
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - NVIDIA GeForce RTX 4070 Ti
code - GV-N407TGAMING OCV2-12GD
CUDA Cores - 7680
Description - - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4070 Ti - Integrated with 12GB GDDR6X 192bit memory interface - WINDFORCE Cooling System - RGB Fusion - Dual BIOS - Protection metal back plate - Anti-sag bracket
Design - Cooling technology - Gigabyte WATERFORCE
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Black, Silver
Design - Product colour - Silver
dimensionalWeight - 1771
Dimensions - L=300 W=130 H=57.6 mm
DisplayPort Input/Output connectors - 3
ean - 4719331313463
EAN - 4719331313463
EAN_code - 4719331313463
Full Description Line - NVIDIA GeForce RTX 4070 Ti|Graphics memory size 12 GB|GDDR6X|192 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|GPU clock 2640 MHz|7680x4320|1xHDMI|3xDisplayPort|Included Accessories 1. Quick guide2. Warranty registration3. Anti-sag bracket4. Anti-sag bracket installation guide5. One 16-pin to two 8-pin power adaptor
GPU clock - 2640 MHz
Graphic card features - Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 2
GTIN - 4719331313463
HDMI Input/Output connectors - 1
Included Accessories - 1. Quick guide
2. Warranty registration
3. Anti-sag bracket
4. Anti-sag bracket installation guide
5. One 16-pin to two 8-pin power adaptor
Logistics data - Quantity per pack - 1 pc(s)

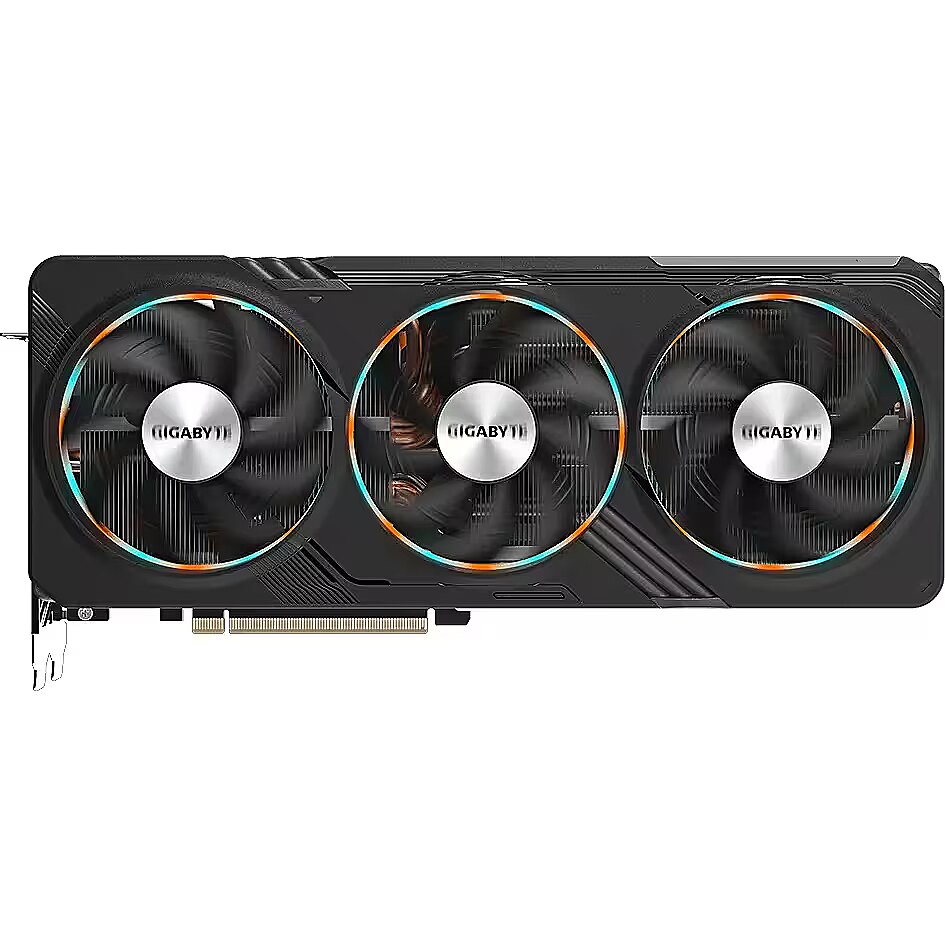

LongDesc - WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipationALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.LARGE COPPER PLATE & HEAT-PIPEThe large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.RGB FUSIONThe legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.4-YEAR WARRANTYWe want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 4070 Ti, 2640MHz, 12GB GDDR6X, 192 bit, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - Gigabyte GAMING GeForce RTX 4070 Ti OC V2 12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti, Processor frequency: 2640 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - GigaByte
Manufacturer Code - GV-N407TGAMING OCV2-12GD
Manufacturer Name - Gigabyte
Manufacturer_code - GV-N407TGAMING OCV2-12GD
Max resolution - 7680x4320
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 192 bit
Memory bus - 192 bit
Memory CLK - 21 Gbps
Model - GV-N407TGAMING OCV2-12GD
name - GIGABYTE GeForce RTX 4070 Ti Gaming OC 12G V2, 12288 MB GDDR6X
Name - GIGABYTE GeForce RTX 4070 Ti GAMING OC V2 12G, graphics card (3x DisplayPort, 1x HDMI 2.1a)
Packaging data - Package weight - 2.47 kg
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

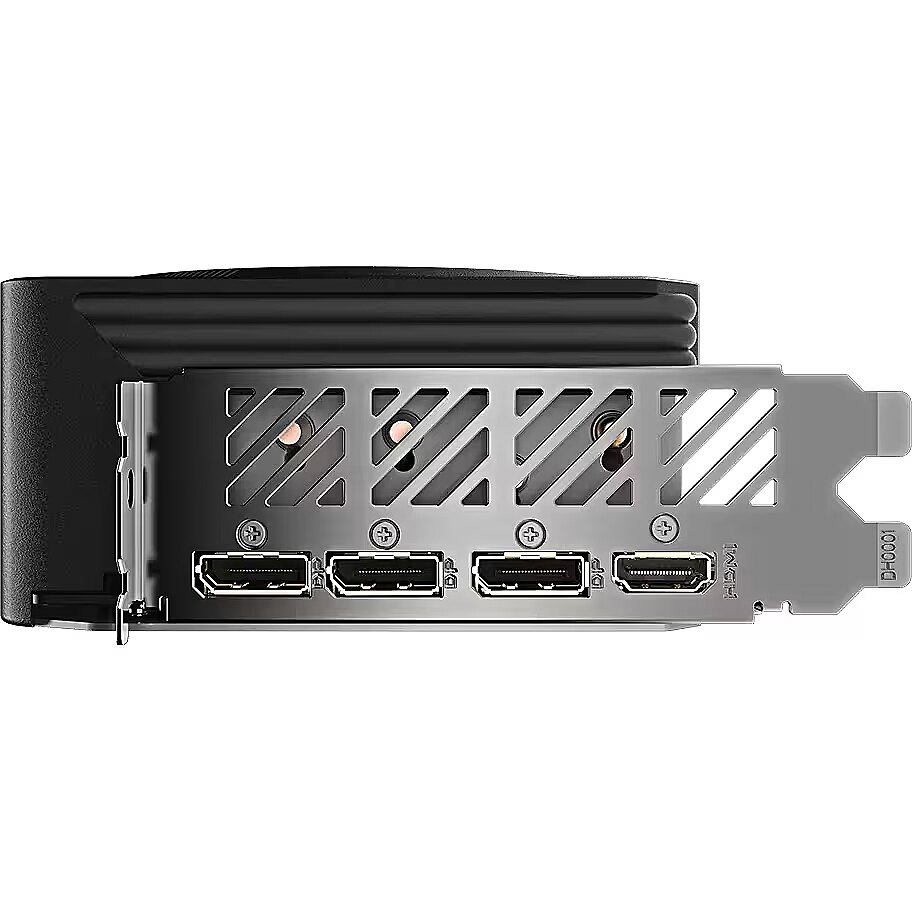

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - CUDA cores - 7680
Processor - Graphics processor - GeForce RTX 4070 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed (Gaming mode) - 2610 MHz
Processor - Processor frequency - 2640 MHz
producerCode - GV-N407TGAMING OCV2-12GD
ProductName - GeForce RTX 4070 Ti GAMING OC V2 12G
productName - Gigabyte GAMING GeForce RTX 4070 Ti OC V2 12G NVIDIA GeForce RTX 4070 Ti 12 GB GDDR6X
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 41 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.91 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
Short description - GIGA VGA 12GB RTX4070 Ti GAMING OC V2 -12GD 3xDP/HDMI GeForce RTX 4070 Ti GAMING OC V2 12G
ShortSummaryDescription - Gigabyte GAMING GeForce RTX 4070 Ti OC V2 12G, GeForce RTX 4070 Ti, 12 GB, GDDR6X, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 90
sizeY - 240
sizeZ - 410
Title - Gigabyte GAMING GeForce RTX 4070 Ti OC V2 12G NVIDIA GeForce RTX 4070 Ti 12 GB GDDR6X
Unit Box Height - 0.09
Unit Box Length - 0.41
Unit Box Width - 0.24
Unit Brutto Volume - 0.008856 cubm
Unit Gross Weight - 1.91 kg
Unit Net Weight - 1.4 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N407TGAMING-OCV2-12GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N407TGAMING-OCV2-12GD#kf
Warranty - 36 months
WarrantyInfo - 4-YEAR
warrantyLength - 36
warrantyType - G
Weight - 1,95
weight - 1900
Weight & dimensions - Depth - 300 mm
Weight & dimensions - Height - 57.6 mm
Weight & dimensions - Width - 130 mm
GeForce embleem näitab, et see graafikakaart on piisavalt võimas, et ühilduda uusimate VR (Virtual Reality) seadmetega nagu Oculus Rift, HTC Vive (SteamVR) jne.
