Gigabyte GeForce RTX 4060 Ti, 8GB GDDR6, AERO OC (DLSS 3)
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 19.11.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 19.11.2024
- Kulleri kohaletoimetamine 3,99 €: 19.11.2024
- GPU mudel: GeForce RTX 4060 Ti (8GB)
- Mootori Kiirus (GPU speed): 2580 MHz
- Pistikupesad: 1x 8-pin
- Operatiivmälu: 8 GB
- Mälutehnoloogia: GDDR6
- Jahutus: Standard Cooler
Virtuaalne reaalsus
GeForce embleem näitab, et see graafikakaart on piisavalt võimas, et ühilduda uusimate VR (Virtual Reality) seadmetega nagu Oculus Rift, HTC Vive (SteamVR) jne.
See on peamine graafikakaardi jõudluse näitaja, see näitab ära, milline on selle kaardi mudel. Ühe mudeli kaardid on väga lähedase jõudlusega ja tavaliselt oluliselt erinevad teise mudeli kaartidest.
Peamine erinevus on tootjas. NVidia toodab GeForce seeria kaarte ja AMD toodab Radeon seeria kaarte. Mõlemal neil seeriatel on oluline erinevus, GeForce kaartidel on edukamad (stabiilsemad) draiverid, mis parandavad kaartide sobivust mängude mängimiseks ja tarkvaraga, vähendades kujutises defektide (artefaktide) ja "rippumise" juhud kuni miinimumini. Radeon kaardid tavaliselt on odavamad ja tarbivad vähem energiat (on tehnoloogiliselt paremad), see-eest draiverite ja mängude toega võivad olla probleemid.
Radeon või GeForce seeriate valik on maitseasi, sarnaselt sellele, nagu AMD või Intel protsessori valik, ja mitte alati pole 100% ratsionaalselt põhjendatav, seetõttu soovitame oma valikukriteeriumites lihtsalt juhinduda mängudest, mida soovite mängida lähemal ajal, ning vaadata YouTube (graafikakaardi mudel + mängu nimetus) mingi videot, kus on täpselt näidatud, kuidas vastav kaart suudab toime tulla vastava mänguga. Tulemus on silmaga nähtav ja tavaliselt väga lähedane sellele, mis te saate, soetades konkreetse või sarnase mudeli kaardi.
Selleks, et kergendada oma ostjate jaoks valiku tegemist, TopPC.ee on nende graafikakaartide (mudelite) juures, mis on parimaks valikuvariandiks kõigi uuemate mängude mängimiseks korraliku kvaliteediga hea hinna eest, märgistanud rohelise märgistusega "soovitatav".
Videokaardi operatiivmälu maht. Tähtis parameeter juhul, kui soovite mängida suurt eristusvõimet nõudvaid mänge või töötada kõrge eristusvõimega monitoriga. Suurem mälu maht tähendab paremat jõudlust ja suurema eristusvõime toetust.
Praegusel hetkel on optimaalne videomälu maht 1 GB.
Video kaardi operatiivmälu bitid määravad ära, millise informatsiooni hulgaga suudab ühe taktisageduse tsükli vältel töötada videokaardi mälu. Suurem bittide arv osutab suuremale videokaardi suutlikkusele.
HDMI on digitaalne kujutise ja heli ülekandmise standard, mis võimaldab arvutiga ühendada televiisori, monitori või projektori, mis toetavad HDMI, kasutades HDMI kaablit.
DisplayPort on digitaalne liides kujutise ja heli ülekandmiseks ühe juhtme kaudu kõrge kvaliteediga. Erinevalt HDMI liidesest, see võimaldab ühendada arvutiga suuremat osa väliseid monitore, kasutades ühte liidest.
D-SUB on klassikaline (analoog) monitoride, projektorite ja muude väliste videoseadmete ühendamise pistik. See standard vähehaaval on turult kadumas, andes ruumi palju kvaliteetsematele HDMI või DisplayPort (digitaalsetele) pistikutele.
Brand - GIGABYTE
BrandPartCode - GV-N406TAERO OC-8GD
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4060 Ti 8GB
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - GeForce RTX 4060 Ti
Chipset - NVIDIA GeForce RTX 4060 Ti
Chipset manufacturer - NVIDIA
code - GV-N406TAERO OC-8GD
Code - GV-N406TAERO OC-8GD G10
Cooling - Active
Core Boost frequency - 2580 MHz
Core frequency - 2535 MHz
CUDA Core - 4352
CUDA Cores - 4352
Description -
Description - - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4060 Ti (8GB) - Integrated with 8GB GDDR6 128bit memory interface - WINDFORCE cooling system - RGB Fusion - Dual BIOS - Protection metal back plate
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - White
dimension depth - 80 mm
dimension height - 370 mm
Dimensions - 50 x 117 x 281 mm
Dimensions - L=281 W=117 H=50 mm
dimension weight - 1241 g
dimension width - 190 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331313449
ean - 4719331313449
Eans - 4719331313449
EAN_code - 4719331313449
Full Description Line - NVIDIA GeForce RTX 4060 Ti|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 4.0 16x|Memory CLK 18 Gbps|GPU boost clock 2580 MHz|7680x4320|2xHDMI|2xDisplayPort|Included Accessories Quick guide
GPU boost clock - 2580 MHz
Graphic card features - Overclock Edition
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
Gross Weight Kg - 1,34
GTIN - 0889523038086
GTIN - 889523038086
GTIN - 4719331313449
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
Included Accessories - Quick guide
Link - https://www.gigabyte.com/Graphics-Card/GV-N406TAERO-OC-8GD#kf
LongDesc - WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.
LongProductName - NVIDIA GeForce RTX 4060 Ti, 8GB GDDR6, 128 bit, 1800MHz, PCI Express 4.0, 2 x HDMI (2.1a), 2 x DP (1.4a), CUDA, DirectX 12.0, OpenGL 4.6
LongSummaryDescription - GIGABYTE AERO GeForce RTX 4060 Ti OC 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - GV-N406TAERO OC-8GD
Manufacturer Name - Gigabyte
Manufacturer_code - GV-N406TAERO OC-8GD
Max resolution - 7680x4320
Memory - Data transfer rate - 18 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 18000 MHz
Memory bus - 128 bit
Memory bus - 128-bit
Memory CLK - 18 Gbps
Memory frequency - 18 Gbps
Memory type - DDR6
Model - GeForce RTX 4060 Ti
Model - GV-N406TAERO OC-8GD
MPN - GV-N406TAERO OC-8GD
Name - Gigabyte GeForce RTX 4060 Ti AERO 8GB OC DLSS 3
name - GIGABYTE GeForce RTX 4060 Ti Aero OC 8G, 8192 MB GDDR6
Name - GIGABYTE GeForce RTX 4060 Ti AERO OC 8G, graphics card (DLSS 3, 2x DisplayPort, 2x HDMI 2.1)
Name - Gigabyte | GV-N406TAERO OC-8GD 1.0 | NVIDIA | 8 GB | GeForce RTX 4060 Ti | GDDR6 | HDMI ports quantity 2 | PCI-E 4.0 | Memory clock speed 18000 MHz
name - Graphics card GeForce RTX 4060 Ti Aero OC 8GB GDDR6X 128bit
Name - RTX 4060 Ti 8GB Gigabyte Aero OC GDDR6 3Fan
Other features -
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 330.00 mm
Package features > Gross depth master carton - 725 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross height master carton - 310 mm
Package features > Gross width (mm) - 240.00 mm
Package features > Gross width master carton - 465 mm
Package features > Net weight master carton - 16 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 156 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 1.777 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Quick installation guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Interface type - PCI-E 4.0
Power - Minimum system power supply - 500 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2580 MHz
Processor > Graphics processor - GeForce RTX 4060 Ti
Processor > Graphics processor family - NVIDIA
producer - Gigabyte
Producer - Gigabyte
ProducerCode - GV-N406TAERO OC-8GD
Producer product name - GV-N406TAERO OC-8GD 1.0
ProductName - GeForce RTX 4060 Ti AERO OC 8G
Shipping Box Depth Shipping/Package Box Dimensions - 45 cm
Shipping Box Height Shipping/Package Box Dimensions - 41 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 13.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 40 cm
ShortDescription - Chipset NVIDIA RTX 4060 Ti | 8GB |
Short description - GIGA VGA 8GB RTX4060Ti AERO OC-8GD 2xDP/2xHDMI GeForce RTX 4060Ti AERO OC 8G
ShortSummaryDescription - GIGABYTE AERO GeForce RTX 4060 Ti OC 8G, GeForce RTX 4060 Ti, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 0.80 kg
Technical details > Net weight - 0.60 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE AERO GeForce RTX 4060 Ti OC 8G NVIDIA 8 GB GDDR6
Unit Box Height - 0.19
Unit Box Length - 0.365
Unit Box Width - 0.08
Unit Brutto Volume - 0.00738 cubm
Unit Gross Weight - 1.35 kg
Unit Net Weight - 0.75 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N406TAERO-OC-8GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N406TAERO-OC-8GD#kf
vendpn - GV-N406TAERO OC-8GD
Version - Box

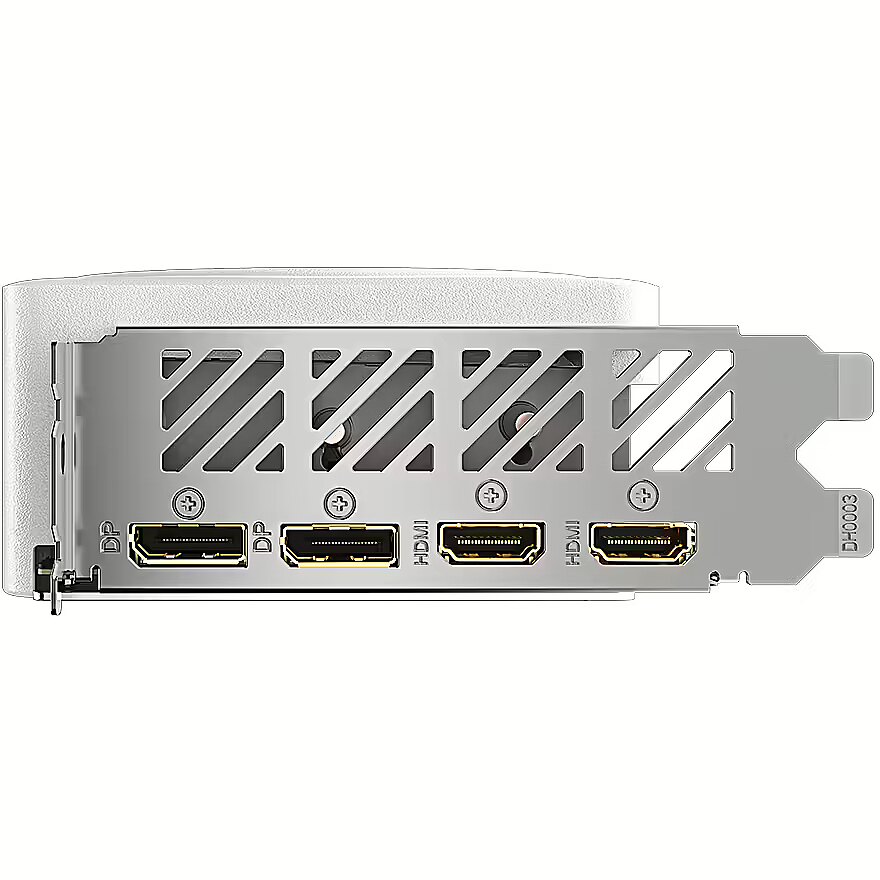

Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 8 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1,34
Weight - 1.22
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 117 mm
