Accessories included - A quick guide One 16-pin power supply and two 8-pin power supply
Brand - GIGABYTE
BrandPartCode - GV-N407SWF3OC-12GD
Card's length - 240 to 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - GeForce RTX 4070 SUPER
Chipset - NVIDIA GeForce RTX 4070 SUPER
Chipset manufacturer - NVIDIA
CnCode CnCode - 84718000
code - GV-N407SWF3OC-12GD
Code - GV-N407SWF3OC-12GD 1.0
Cooling - Active
CUDA Cores - 7168
Description - GIGABYTE GeForce RTX 4070 SUPER WINDFORCE OC 12G - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4070 SUPER - Integrated with 12GB GDDR6X 192bit memory interface - WINDFORCE Cooling System - Protection metal back plate
Description - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace Arc and full ray tracing 4th Gen Tensor Cores: Up to 4x faster performance with DLSS 3 rendering compared to brute-force rendering 3rd Gen RT Cores: Up to 2X ray tracing performance Powered by GeForce RTX 4070 SUPER Integrated with 12GB GDDR6X 192-bit memory interface WINDFORCE cooling system Metal back plate for protection
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 1161
dimension depth - 80 mm
dimension height - 350 mm
Dimensions - 261 x 126 x 50 mm
Dimensions - 261x126x50 mm
dimension weight - 1277 g
dimension width - 250 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331354169
ean - 4719331354169
Eans - 4719331354169
EAN_code - 4719331354169
Full Description Line - NVIDIA GeForce RTX 4070 SUPER|Graphics memory size 12 GB|GDDR6X|192 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|GPU clock 2505 MHz|7680x4320|1xHDMI|3xDisplayPort
GPU clock - 2505 MHz
Graphic card features - Overclock Edition
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 1,42
GTIN - 0889523041321
GTIN - 889523041321
GTIN - 4719331354169
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Link - https://www.gigabyte.com/Graphics-Card/GV-N407SWF3OC-12GD#kf

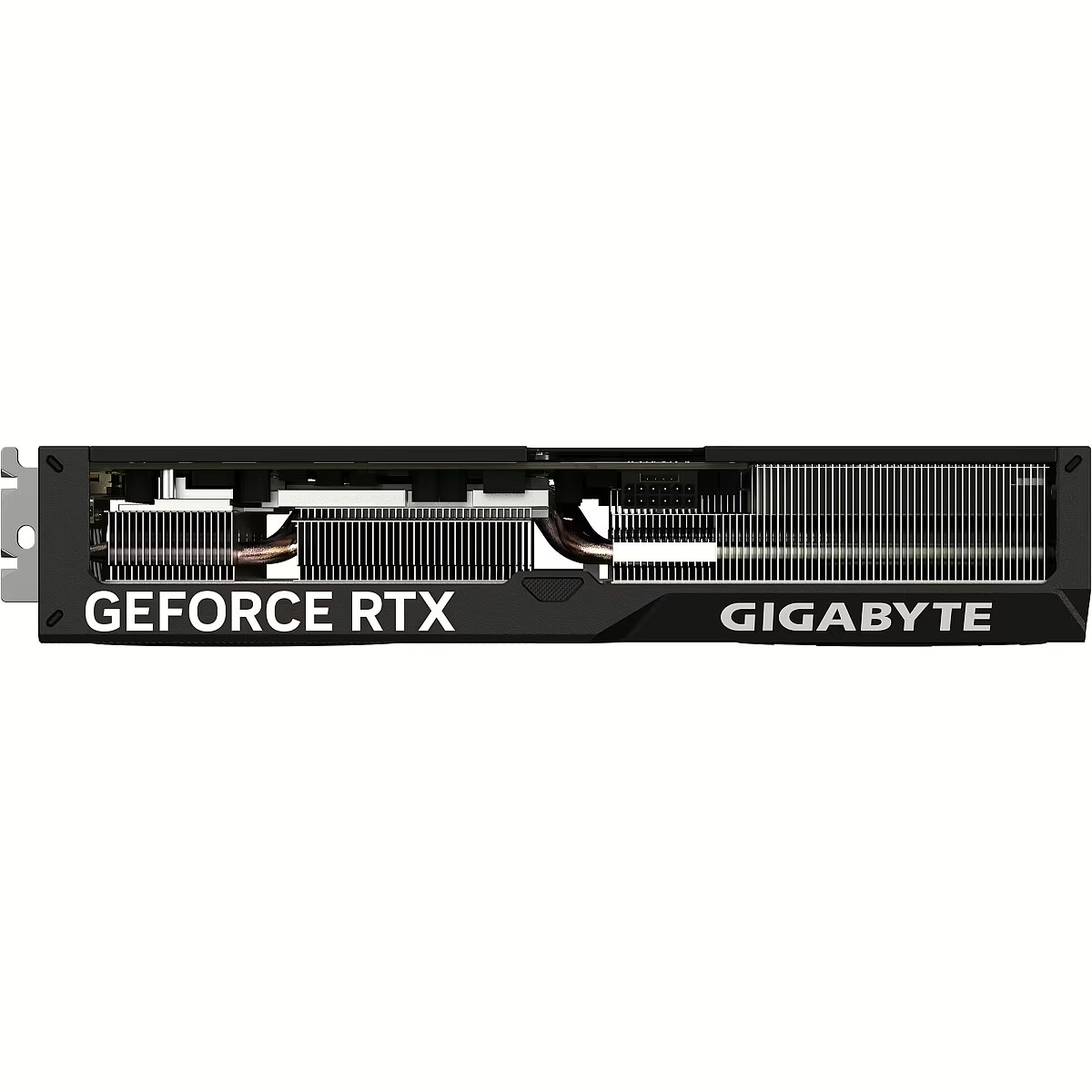

LongDesc - WINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.HEAT PIPES DIRECT TOUCHThe shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 4070 SUPER, 12GB GDDR6X, 192 bit, 21000MHz, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE GeForce RTX 4070 SUPER WINDFORCE OC 12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 SUPER, Processor frequency: 2505 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit, Memory clock speed: 21000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - GV-N407SWF3OC-12GD
Manufacturer Name - Gigabyte
Manufacturer_code - GV-N407SWF3OC-12GD
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bandwidth (max) - 21 GB/s
Memory - Memory bus - 192 bit
Memory - Memory clock speed - 21000 MHz
Memory > Discrete graphics adapter memory - 12 GB
Memory > Graphics adapter memory type - GDDR6X
Memory bus - 192 bit
Memory bus - 192-bit
Memory CLK - 21 Gbps
Memory frequency - 21 Gbps
Memory type - DDR6X
Model - GV-N407SWF3OC-12GD
MPN - GV-N407SWF3OC-12GD
Name - GigaByte GeForce RTX 4070 SUPER WINDFORCE OC 12G (DLSS 3, 3x DisplayPort, 1x HDMI 2.1)
name - GIGABYTE GeForce RTX 4070 Super Windforce OC 12G, 12288 MB GDDR6X
Name - Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12GB DLSS 3
Name - Gigabyte | GV-N407SWF3OC-12GD 1.0 | NVIDIA | 12 GB | GeForce RTX 4070 SUPER | GDDR6X | HDMI ports quantity 1 | PCI-E 4.0
name - Graphics card RTX 4070 SUPER WINDFORC E OC 12G GDDR6X 192bit
Name - RTX 4070 Super 12GB Gigabyte Windforce OC GDDR6X 3Fan
Other features - Core clock speed TBD CUDA Cores TBD Maximum digital resolution 7680x4320 Multi-monitor 4 ATX PCB size Recommended PSU power supply: 700W Power Connectors 16 pin *1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 470 mm
Package features > Gross height (mm) - 300 mm
Package features > Gross width (mm) - 50 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 123 pc(s)
Package features > Paper/Pasteboard - 200 g
Package features > Plastic (No PET) - 40 g
Package features > Tare weight (kg) - 0.24 kg
Package features > Volume (m3) - 0.00705 m³
Package features > WEEE tax - No
Packaging data - Package depth - 322 mm
Packaging data - Package height - 75 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.39 kg
Packaging data - Package width - 214 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI-E 4.0
Power - Minimum system power supply - 700 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Power consumption - 700 Watts
Processor - CUDA - Yes
Processor - Graphics processor - GeForce RTX 4070 SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2505 MHz
Processor > Graphics processor - GeForce RTX 4070 SUPER
Processor > Graphics processor family - NVIDIA
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N407SWF3OC-12GD
ProducerCode - GV-N407SWF3OC-12GD
ProductName - GeForce RTX 4070 SUPER WINDFORCE OC 12G
productName - GIGABYTE GeForce RTX 4070 SUPER WINDFORCE OC 12G NVIDIA 12 GB GDDR6X
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 46 cm
Shipping Box Height Shipping/Package Box Dimensions - 42 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 13.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 35.5 cm
ShortDescription - Chipset NVIDIA RTX 4070 SUPER | 12GB
Short description - GIGA VGA 12GB RTX4070 SUPER WINDFORCE OC 12G 3xDP/HDMI GeForce RTX 4070 SUPER WINDFORCE OC 12G
ShortSummaryDescription - GIGABYTE GeForce RTX 4070 SUPER WINDFORCE OC 12G, GeForce RTX 4070 SUPER, 12 GB, GDDR6X, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 330
sizeY - 220
sizeZ - 80
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.94 kg
Technical details > Net weight - 1.7 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - GV-N407SWF3OC-12GD 1.0
Technical_details - The GIGABYTE GeForce RTX 4070 SUPER WINDFORCE OC 12G is a high-end graphics card with the GeForce RTX 4070 SUPER GPU from NVIDIA. The powerful GeForce RTX 40 graphics card series is based on the NVIDIA Ada architecture and offers new levels of gaming realism, speed and performance efficiency, RTX IO and realistic VR experiences. Other features include Real-Time Ray Tracing, NVIDIA Ansel, with extensive tools for creating screenshots in games as well as NVIDIA G-SYNC, G-SYNC HDR, DirectX 12 Ultimate, NVIDIA DLSS 3.5, PCI Express Gen 4, NVIDIA FreeStyle, NVIDIA ShadowPlay , NVIDIA Highlights, NVENC Gen 8, AV1 Encoder, Vulkan RT API and OpenGL 4.6. The GPU installed on the GIGABYTE GeForce RTX 4070 SUPER WINDFORCE OC 12G has 7168 CUDA cores. The 12 GB GDDR6X memory has a 192-bit memory controller. Item no.: 100034243 Graphics card type EAN 4719331354169 Manufacturer no. GV-N407SWF3OC-12GD Slot PCIe x16 version 4.0 occupied slots 2.5 GPU name NVIDIA GeForce RTX 4070 SUPER Required power supply power at least 700 W Memory capacity 12 GB (GDDR6X) Connections 1x HDMI version 2.1, 3x Displayport version 1.4a Power supply Average consumption 220 W Cooling Cooling with fan Special features VR Ready Yes Operating systems Supports Windows 11, Windows 10 Feature RTX IO, NVIDIA DLSS 3.5, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Gen 8, AV1 Encoder, Vulkan RT API More information Maximum digital resolution: 7680 x 4320 Note For the power supply, a power supply with a native 16-pin connector or a power supply with 2x 8-pin PCIe for the included adapter is required Accessories available power adapter Dimensions Width: 126mm x Height: 50mm x Depth/Length: 261mm
Title - GIGABYTE GeForce RTX 4070 SUPER WINDFORCE OC 12G NVIDIA 12 GB GDDR6X
Unit Box Height - 0.22
Unit Box Length - 0.33
Unit Box Width - 0.08
Unit Brutto Volume - 0.006859 cubm
Unit Gross Weight - 1.38 kg
Unit Net Weight - 1 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N407SWF3OC-12GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N407SWF3OC-12GD#kf
vendpn - GV-N407SWF3OC-12GD
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 12 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 1,28
Weight - 1.28
weight - 1265
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 126 mm
