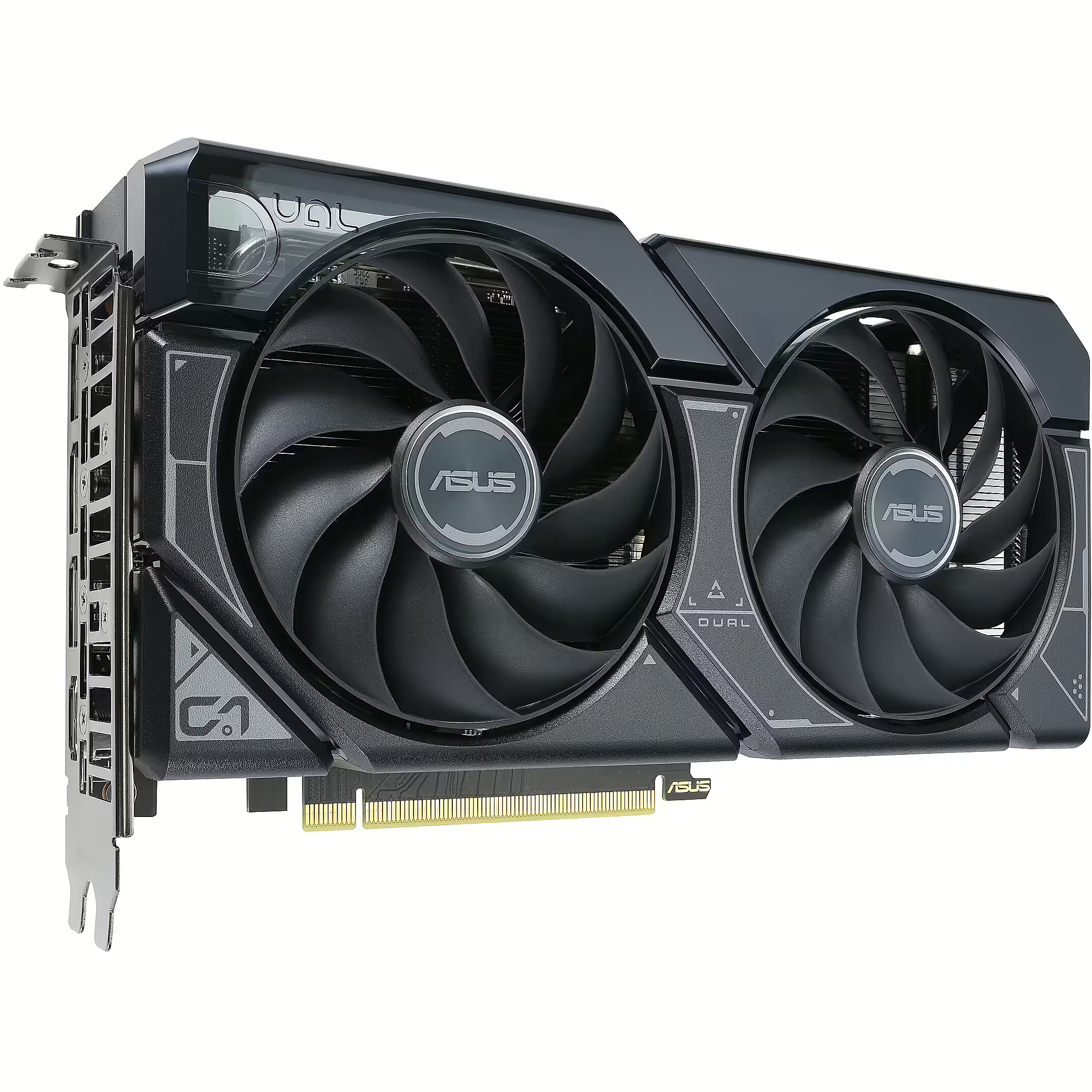

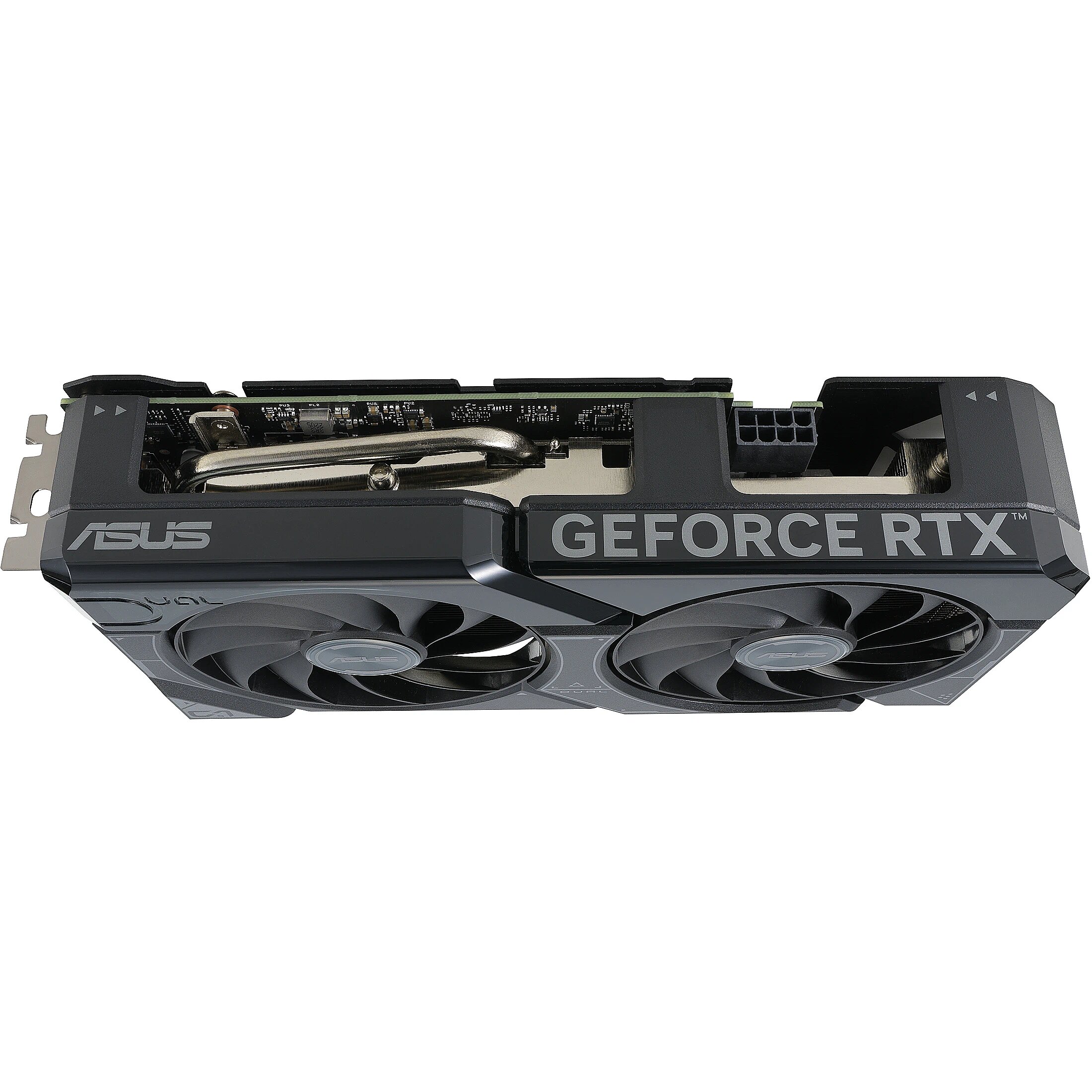

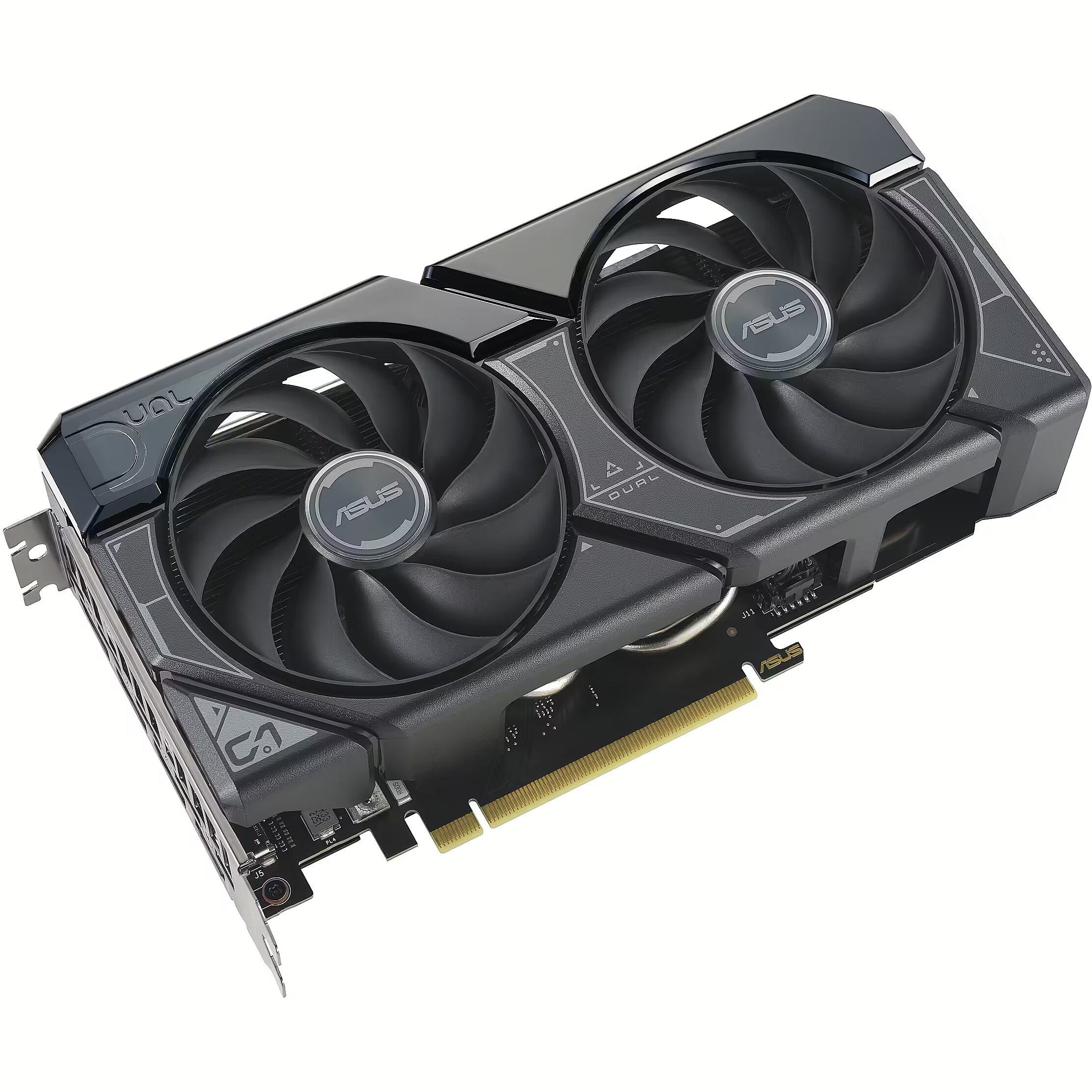

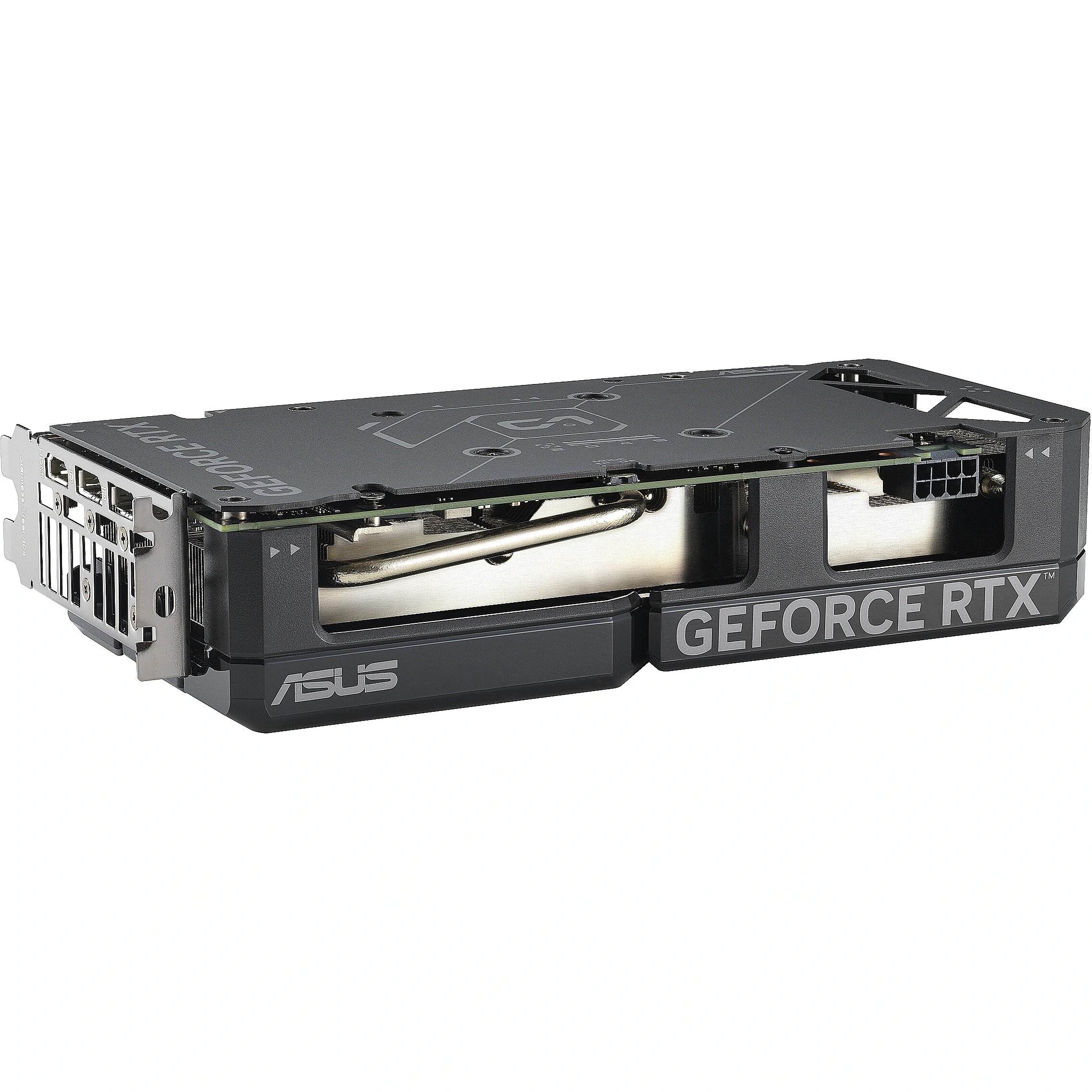

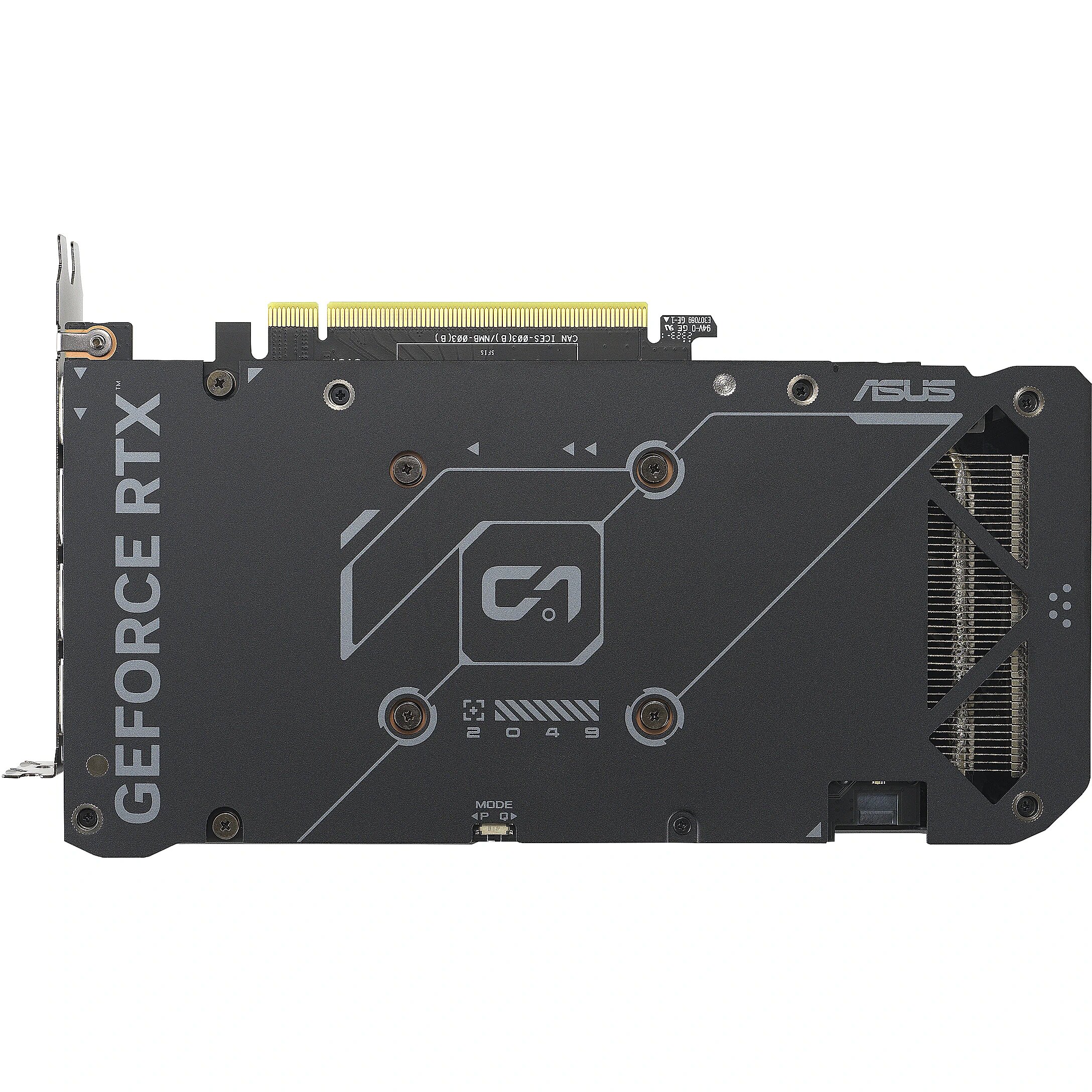

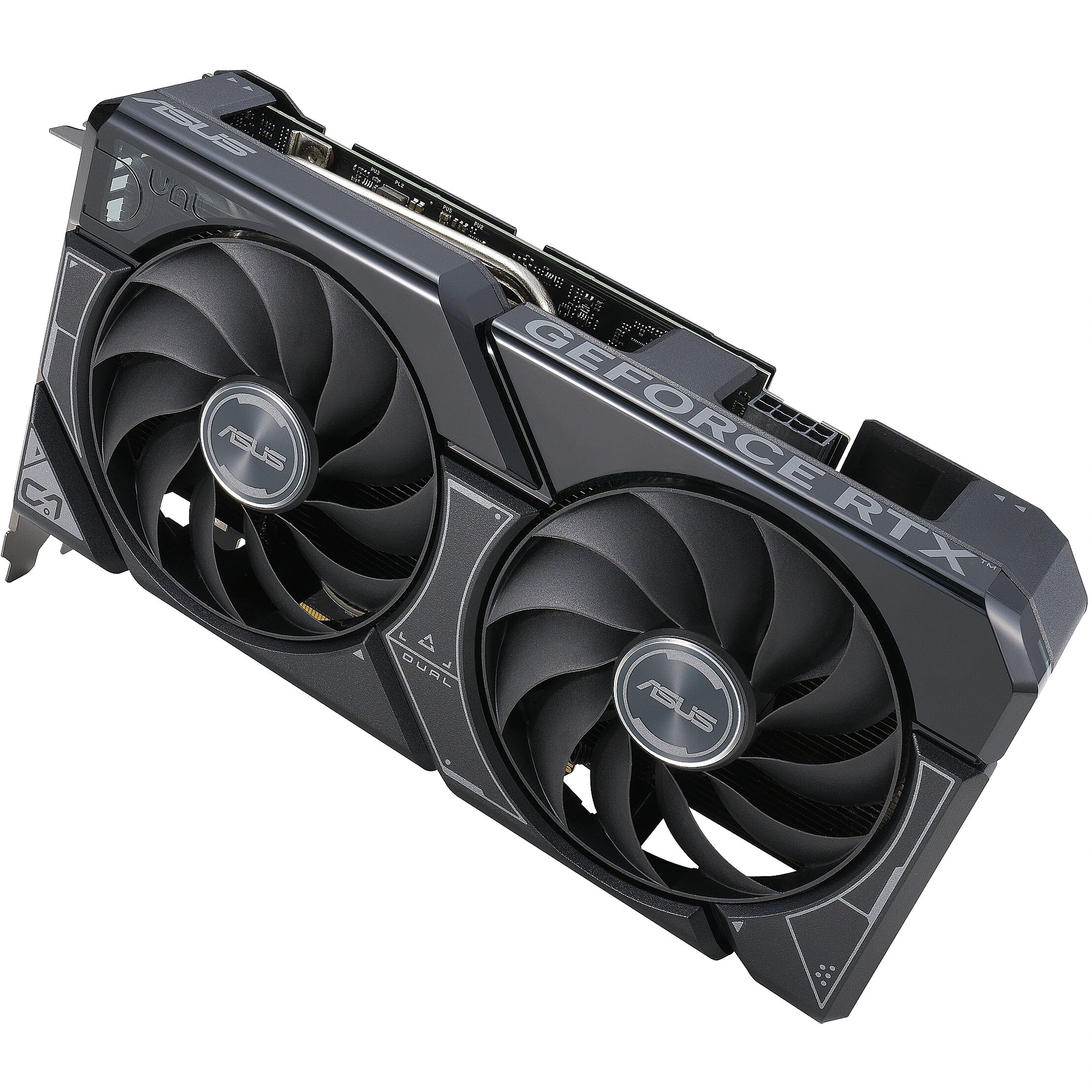

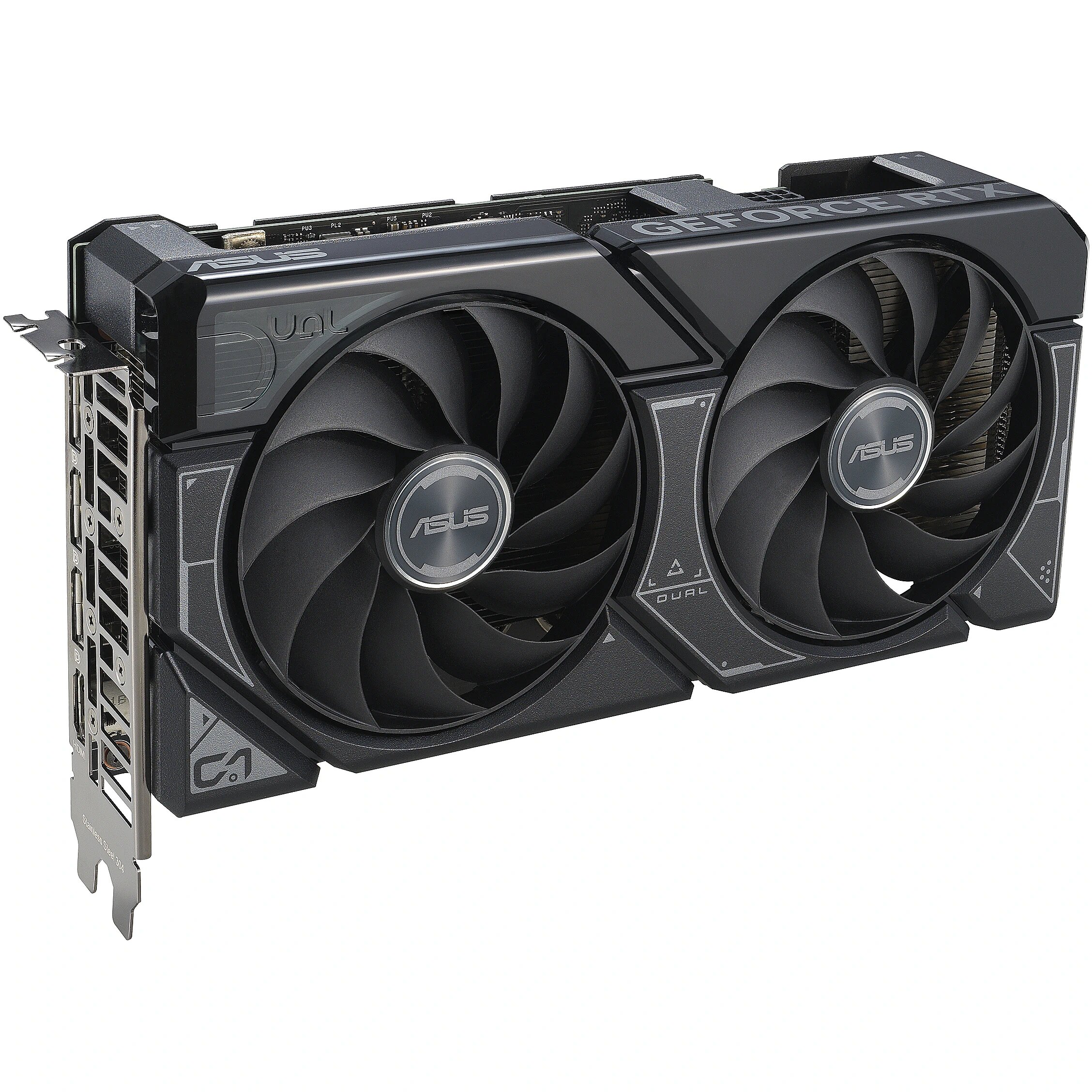

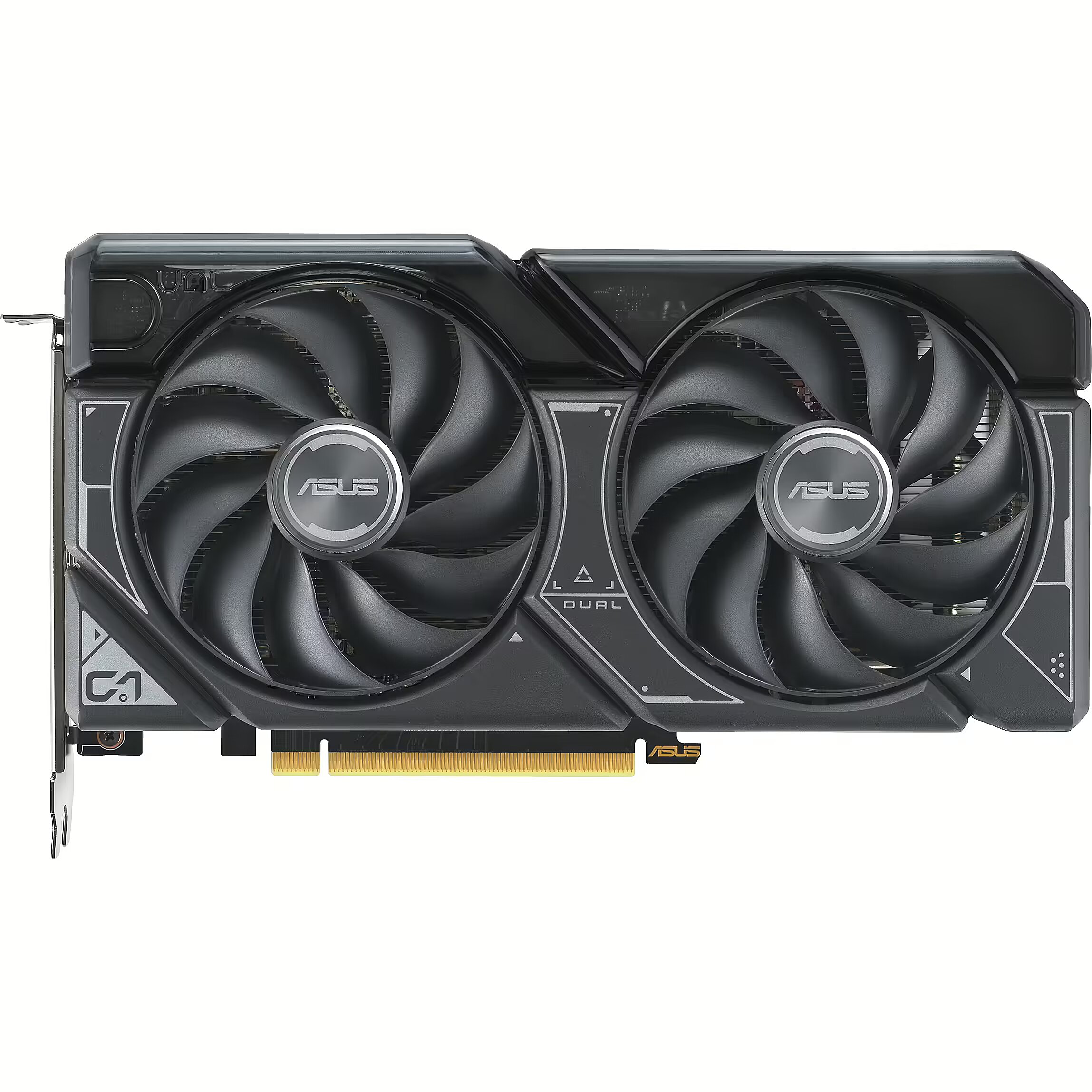

Asus GeForce RTX 4060 Ti, 16GB GDDR6, Dual Advanced Edition (DLSS 3)
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 27.11.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 27.11.2024
- Kulleri kohaletoimetamine 3,99 €: 27.11.2024
- GPU mudel: GeForce RTX 4060 Ti (16GB)
- Mootori Kiirus (GPU speed): 2550 MHz
- Pistikupesad: 1x 8-pin
- Operatiivmälu: 16 GB
- Mälutehnoloogia: GDDR6
- Jahutus: Standard Cooler
Virtuaalne reaalsus
GeForce embleem näitab, et see graafikakaart on piisavalt võimas, et ühilduda uusimate VR (Virtual Reality) seadmetega nagu Oculus Rift, HTC Vive (SteamVR) jne.
See on peamine graafikakaardi jõudluse näitaja, see näitab ära, milline on selle kaardi mudel. Ühe mudeli kaardid on väga lähedase jõudlusega ja tavaliselt oluliselt erinevad teise mudeli kaartidest.
Peamine erinevus on tootjas. NVidia toodab GeForce seeria kaarte ja AMD toodab Radeon seeria kaarte. Mõlemal neil seeriatel on oluline erinevus, GeForce kaartidel on edukamad (stabiilsemad) draiverid, mis parandavad kaartide sobivust mängude mängimiseks ja tarkvaraga, vähendades kujutises defektide (artefaktide) ja "rippumise" juhud kuni miinimumini. Radeon kaardid tavaliselt on odavamad ja tarbivad vähem energiat (on tehnoloogiliselt paremad), see-eest draiverite ja mängude toega võivad olla probleemid.
Radeon või GeForce seeriate valik on maitseasi, sarnaselt sellele, nagu AMD või Intel protsessori valik, ja mitte alati pole 100% ratsionaalselt põhjendatav, seetõttu soovitame oma valikukriteeriumites lihtsalt juhinduda mängudest, mida soovite mängida lähemal ajal, ning vaadata YouTube (graafikakaardi mudel + mängu nimetus) mingi videot, kus on täpselt näidatud, kuidas vastav kaart suudab toime tulla vastava mänguga. Tulemus on silmaga nähtav ja tavaliselt väga lähedane sellele, mis te saate, soetades konkreetse või sarnase mudeli kaardi.
Selleks, et kergendada oma ostjate jaoks valiku tegemist, TopPC.ee on nende graafikakaartide (mudelite) juures, mis on parimaks valikuvariandiks kõigi uuemate mängude mängimiseks korraliku kvaliteediga hea hinna eest, märgistanud rohelise märgistusega "soovitatav".
Videokaardi operatiivmälu maht. Tähtis parameeter juhul, kui soovite mängida suurt eristusvõimet nõudvaid mänge või töötada kõrge eristusvõimega monitoriga. Suurem mälu maht tähendab paremat jõudlust ja suurema eristusvõime toetust.
Praegusel hetkel on optimaalne videomälu maht 1 GB.
Video kaardi operatiivmälu bitid määravad ära, millise informatsiooni hulgaga suudab ühe taktisageduse tsükli vältel töötada videokaardi mälu. Suurem bittide arv osutab suuremale videokaardi suutlikkusele.
HDMI on digitaalne kujutise ja heli ülekandmise standard, mis võimaldab arvutiga ühendada televiisori, monitori või projektori, mis toetavad HDMI, kasutades HDMI kaablit.
DisplayPort on digitaalne liides kujutise ja heli ülekandmiseks ühe juhtme kaudu kõrge kvaliteediga. Erinevalt HDMI liidesest, see võimaldab ühendada arvutiga suuremat osa väliseid monitore, kasutades ühte liidest.
D-SUB on klassikaline (analoog) monitoride, projektorite ja muude väliste videoseadmete ühendamise pistik. See standard vähehaaval on turult kadumas, andes ruumi palju kvaliteetsematele HDMI või DisplayPort (digitaalsetele) pistikutele.
Brand - ASUS
BrandPartCode - 90YV0JH7-M0NA00
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4060 Ti 16GB
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
category_en - Computers & Components > Computer components > nVidia grafīskas kartes
category_lv - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
category_ru - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
Chipset - GeForce RTX 4060 Ti
Chipset manufacturer - NVIDIA
code - 90YV0JH7-M0NA00
Code - 90YV0JH7-M0NA00
Cooling - Active
Core Boost frequency - 2550 MHz
Core frequency - 2580 MHz
CUDA Core - 4352
Description - ASUS Dual GeForce RTX 4060 Ti Advanced Edition 16 GB GDDR6 with dual powerful Axial-tech fans and a 2.5-slot design for wide compatibility Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace Arc and full ray tracing 4th Gen Tensor Cores: Up to 4x faster performance with DLSS 3 rendering compared to brute-force rendering 3rd Gen RT Cores: Up to 2x faster ray tracing performance Advanced version: 2580 MHz (OC mode) / 2550 MHz (default mode) The Axial-tech fan design features a smaller fan hub to increase airflow through the cooling system The 2.5-slot design maximizes compatibility and cooling efficiency, providing excellent performance in a small form factor. Dual ball bearing designs of ball fans can last up to twice as long as plain bearing designs 0dB technology allows you to enjoy light games in relative silence
description_en - Device Type: Graphics card
Bus Type: PCI Express 4.0
Graphics Engine: NVIDIA GeForce RTX 4060 Ti
Boost Clock: 2550 MHz
CUDA Cores: 4352
VR Ready: Yes
Max Resolution: 7680 x 4320
Max Monitors Supported: 4
Interfaces: HDMI ¦ 3 x DisplayPort (version 1.4a)
API Supported: OpenGL 4.6
Features: 2.5-slot Fan Cooler, NVIDIA G-Sync ready, AUTO-EXTREME technology, NVIDIA Ansel, Axial-tech Fan Design, 0dB Technology, NVIDIA Reflex, Dual ball Bearing Fans, Nvidia Broadcast, Resizable BAR, NVIDIA Ada Lovelace GPU technology, 4th gen Tensor Cores, 3rd gen Ray Tracing Cores, NVIDIA DLSS 3, HDCP
Memory Size: 16 GB
Technology: GDDR6 SDRAM
Memory Speed: 18 Gbps
Bus Width: 128-bit
System Requirements
Required Power Supply: 650 W
Additional Requirements: 2 adjacent PCI slots, 8 pin PCI Express power connector
Miscellaneous
Included Accessories: Graphics card holder
Software Included: ASUS Quantumcloud, ASUS GPU Tweak III
Compliant Standards: HDCP 2.3, DisplayPort 1.4a
Width: 4.96 cm
Depth: 22.72 cm
Height: 12.324 cm
description_lv - Ierīces tips: grafiskā karte
Kopnes tips: PCI Express 4.0
Grafikas dzinējs: NVIDIA GeForce RTX 4060 Ti
Pastiprināšanas pulkstenis: 2550 MHz
CUDA serdeņi: 4352
VR gatavs: jā
Maksimālā izšķirtspēja: 7680 x 4320
Maksimāli atbalstītie monitori: 4
Saskarnes: HDMI ¦ 3 x DisplayPort (versija 1.4a)
Atbalstītais API: OpenGL 4.6
Funkcijas: 2,5 slotu ventilatora dzesētājs, NVIDIA G-Sync gatavs, AUTO-EXTREME tehnoloģija, NVIDIA Ansel, Axial-tech ventilatora dizains, 0dB tehnoloģija, NVIDIA Reflex, divu lodīšu gultņu ventilatori, Nvidia apraide, maināma izmēra stienis, NVIDIA Ada Lovelace GPU tehnoloģija , 4. paaudzes tensora serdeņi, 3. paaudzes staru izsekošanas serdeņi, NVIDIA DLSS 3, HDCP
Atmiņas apjoms: 16 GB
Tehnoloģija: GDDR6 SDRAM
Atmiņas ātrums: 18 Gbps
Kopnes platums: 128 biti
Sistēmas prasības
Nepieciešamais barošanas avots: 650 W
Papildu prasības: 2 blakus esoši PCI sloti, 8 kontaktu PCI Express strāvas savienotājs
Dažādi
Iekļautie aksesuāri: Grafikas kartes turētājs
Iekļauta programmatūra: ASUS Quantumcloud, ASUS GPU Tweak III
Atbilstoši standarti: HDCP 2.3, DisplayPort 1.4a
Platums: 4,96 cm
Dziļums: 22,72 cm
Augstums: 12,324 cm
description_ru - Тип устройства: Видеокарта
Тип шины: PCI Express 4.0
Графический движок: NVIDIA GeForce RTX 4060 Ti
Частота разгона: 2550 МГц
Ядра CUDA: 4352
Поддержка VR: Да
Максимальное разрешение: 7680 x 4320
Максимальное количество поддерживаемых мониторов: 4
Интерфейсы: HDMI ¦ 3 x DisplayPort (версия 1.4a)
Поддерживаемый API: OpenGL 4.6
Возможности: 2,5-слотовый вентиляторный охладитель, поддержка NVIDIA G-Sync, технология AUTO-EXTREME, NVIDIA Ansel, конструкция вентилятора Axial-tech, технология 0 дБ, NVIDIA Reflex, вентиляторы с двумя шарикоподшипниками, Nvidia Broadcast, изменяемая полоса, технология графического процессора NVIDIA Ada Lovelace, ядра Tensor 4-го поколения, ядра Ray Tracing 3-го поколения, NVIDIA DLSS 3, HDCP
Объем памяти: 16 ГБ
Технология: GDDR6 SDRAM
Скорость памяти: 18 Гбит/с
Ширина шины: 128 бит
Системные требования
Требуемый блок питания: 650 Вт
Дополнительные требования: 2 соседних слота PCI, 8-контактный разъем питания PCI Express
Разное
Входящие в комплект аксессуары: держатель видеокарты
Входящее в комплект ПО: ASUS Quantumcloud, ASUS GPU Tweak III
Соответствующие стандарты: HDCP 2.3, DisplayPort 1.4a
Ширина: 4,96 см
Глубина: 22,72 см
Высота: 12,324 см
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
dimension depth - 70 mm
dimension height - 225 mm
Dimensions - 227.2 x 123.24 x 49.6 mm
dimension weight - 1200 g
dimension width - 370 mm
EAN - 4711387306185
ean - 4711387306185
Graphics card connector - PCI-E ver. 4.0
gross_weight - 0.55 kg
GTIN - 0197105306196
GTIN - 197105306196
GTIN - 4711387306185
guarantee - 36
guarantee_type - normal
LongDesc - 2x Fans. 2x Fun.ASUS Dual GeForce RTX™ 4060 Ti fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.The Ultimate Platform for Gamers and CreatorsPowered by GeForce RTX 40 Series and DLSS 3New Streaming MultiprocessorsUp to 2x performance and power efficiencyFourth-Gen Tensor CoresUp to 4x performance with DLSS 3vs. brute-force renderingThird-Gen RT CoresUp to 2x ray tracing performanceCOOLINGAxial-tech Fan DesignBetter, faster, strongerTwo tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.0dB TechnologyQuiet intelligenceTo eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.Dual Ball Fan Bearings2x longer lifespanDifferent bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.Dual BIOSChoose wiselyDo you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.2.5-slot DesignSink your heat into thisA carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.ENGINEERINGAuto-Extreme TechnologyPrecision automated manufacturingAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.Protective BackplateThat's so metal!The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.Stainless Steel BracketSteel yourselfThe mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.SOFTWAREGPU TWEAK IIIMonitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.QuantumCloudProfit from GPU powerQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!EXPERIENCE144-hour Validation Program"Extensive" may be an understatementA 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
LongProductName - Dual GeForce RTX 4060 Ti Advanced Edition 16GB GDDR6 gaming graphics card (Nvidia RTX4060 Ti DLSS 3, PCIe 4.0, 1x HMDI 2.1a, 3x DisplayPort 1.4a, black, DUAL-RTX4060TI-A16G)
LongSummaryDescription - ASUS Dual -RTX4060TI-A16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - ASUS
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 18 GB/s
Memory - Memory bus - 128 bit
Memory bus - 128-bit
Memory frequency - 18 Gbps
Memory type - DDR6
Model - Dual GeForce RTX 4060 Ti
Model - RTX 4060 Ti
MPN - 90YV0JH7-M0NA00
Name - Asus DUAL-RTX4060TI-A16G | Asus
name - ASUS GeForce RTX 4060 Ti Dual A16G, 16384 MB GDDR6
name - Graphics card GeForce RTX 4060 Ti DUAL ADVANCED 16G GDDR6 128bit
Name - RTX 4060 Ti 16GB Asus Dual Advanced GDDR6 DUAL-RTX4060TI-A16G
Other features -
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 49.60 mm
Package features > Gross height (mm) - 227.20 mm
Package features > Gross width (mm) - 123.24 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 622 pc(s)
Package features > Paper/Pasteboard - 65.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.08 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Manual - Yes
Packaging data - Package depth - 220.5 mm
Packaging data - Package height - 68 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.15 kg
Packaging data - Package width - 368 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA Ansel - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 650 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2550 MHz
Processor - Processor frequency (OC mode) - 2580 MHz
producer - Asus
Producer - ASUS
ProductName - DUAL-RTX4060TI-A16G
ShortSummaryDescription - ASUS Dual -RTX4060TI-A16G, GeForce RTX 4060 Ti, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.01 kg
Technical details > Net weight - 0.94 kg
Technical details > Producer - Asus
Title - ASUS Dual -RTX4060TI-A16G NVIDIA GeForce RTX 4060 Ti 16 GB GDDR6
title_en - Asus Dual GeForce RTX 4060 Ti Video Card 16GB
title_lv - Asus Dual GeForce RTX 4060 Ti Videokarte 16GB
title_ru - Asus Dual GeForce RTX 4060 Ti Bидеокарта 16GB
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx4060ti-a16g/
vendpn - DUAL-RTX4060TI-A16G
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
weight - 0.35 kg
Weight - 1.18
Weight & dimensions - Depth - 49.6 mm
Weight & dimensions - Height - 123.2 mm
Weight & dimensions - Length - 227.2 mm
Weight & dimensions - Weight - 699 g
