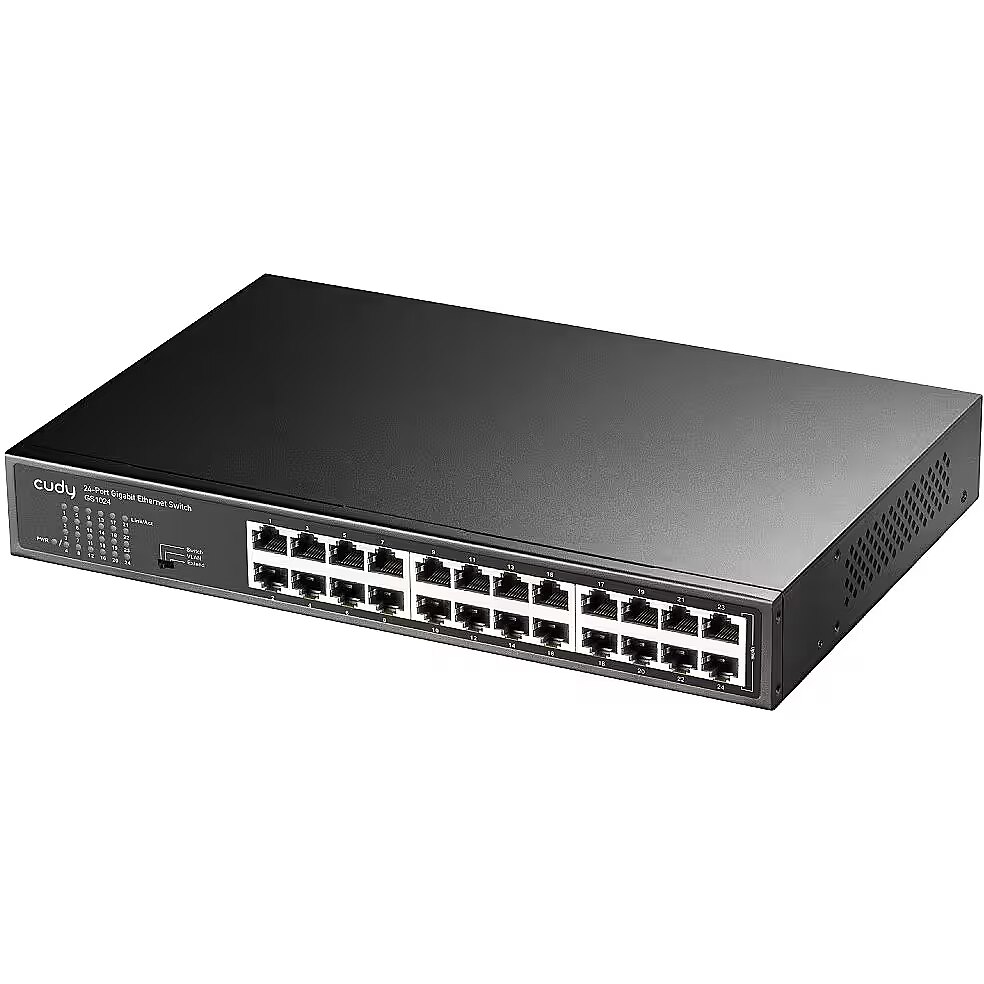

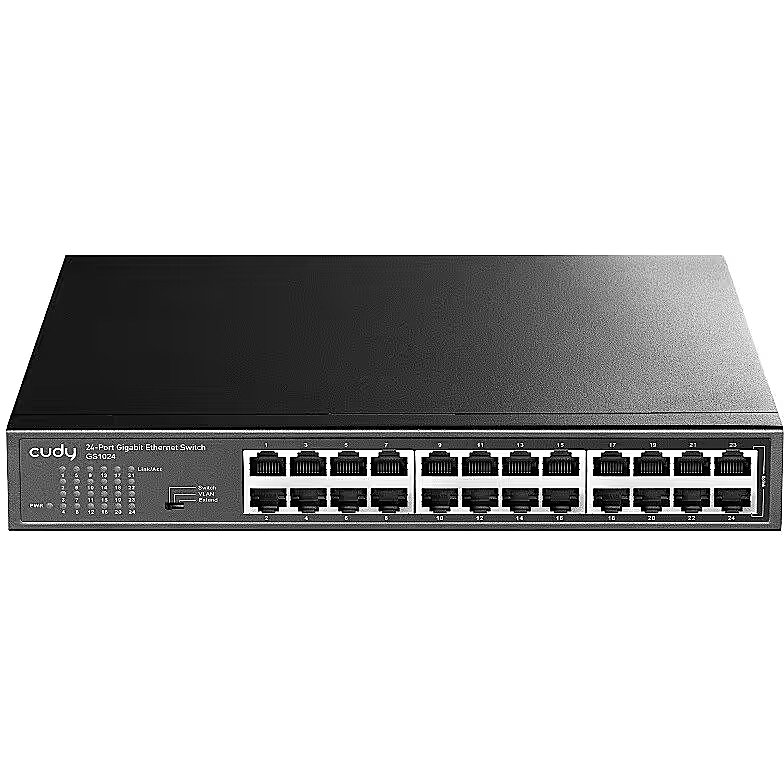

Cudy Switch GS1024 24xGE Metal Case

10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Desktop
Chassis type - Rack
Console port - No
Data transmission - MAC address table - 8 entries
Data transmission - Packet forwarding rate (10 Mbps) - 14.88 pps
Data transmission - Packet forwarding rate (100 Mbps) - 148.8 pps
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 48 Gbit/s
Description - GS1024 24-port Gigabit Ethernet switch Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards 24 10/100/1000 Mbps auto-negotiation ports, Auto-MDI/MDIX Store-and-Forward switching method
Design - Product colour - Black
Design - Rack mounting - Yes
Designation - CE+WEEE
dimensionalWeight - 1480
dimension depth - 248 mm
dimension height - 371 mm
Dimensions - 270 x 180 x 44 mm
dimension weight - 1685 g
dimension width - 87 mm
ean - 6971690791124
EAN - 6971690791124
Eans - 6971690791124
Environment requirements - Working Temperature: 0~40C Storage Temperature: -40~70C Operating humidity: 10% ~ 85% non-condensing Storage humidity: 5% ~ 85% non-condensing
Fan - No
Forwarding mode - Store-and-forward
guarantee - 24
guarantee_type - normal
L2 features -
L3 features -
MAC address table size - 8000
Management, monitoring, configuration -
Manufacturer - Cudy
MPN - GS1024
Name - 24P Cudy GS1024 RM
Name - Cudy GS1024
name - Switch GS1024 24xGE Metal Case
Network - Auto MDI/MDI-X - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 85%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Optical fiber - Transmission distance (max) - 0.1 km
Other features - Transmission distance: 100 meters
Other functions -

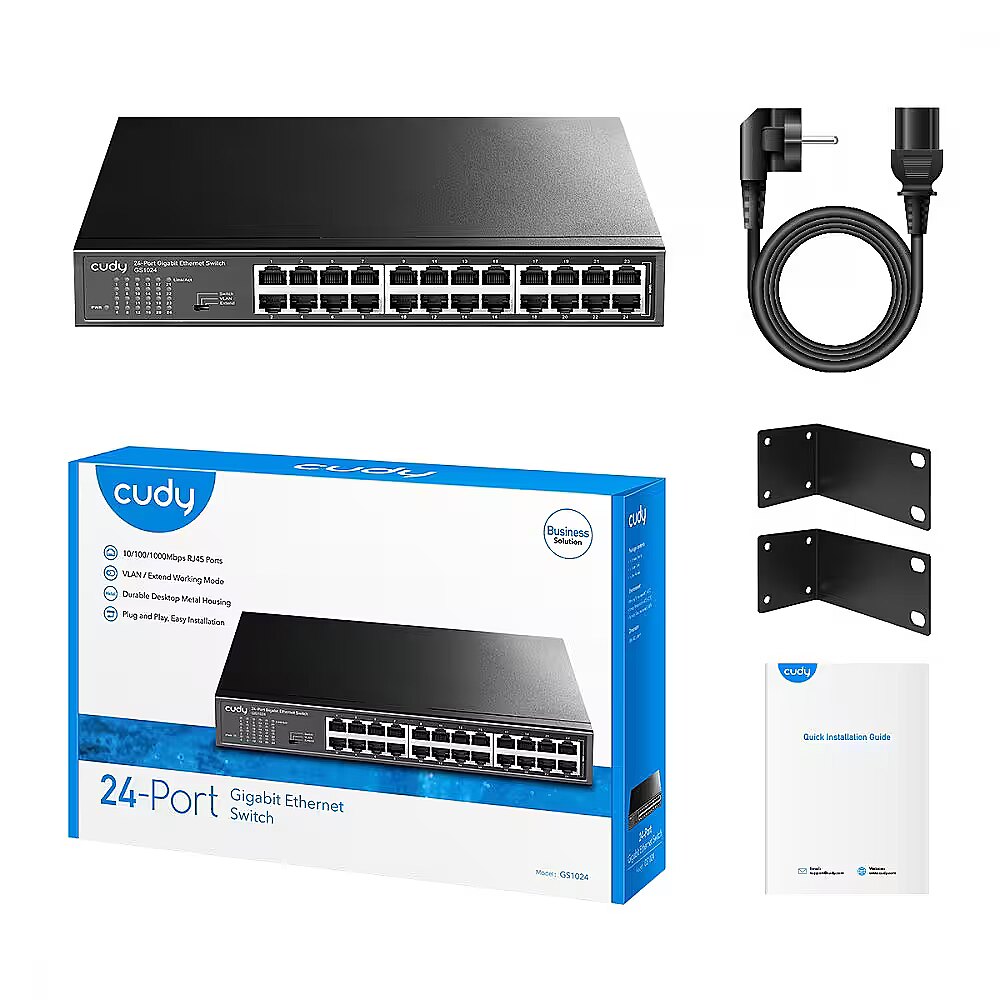

Packaging data - Cables included - AC
Packaging data - Manual - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 24
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 15 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 15 W
Power supply - AC 100 - 240V
Power supply - Internal
producer - Cudy
Producer - Cudy
producerCode - GS1024
ProducerCode - GS1024
productName - Cudy GS1024 network switch Gigabit Ethernet (10/100/1000) Black
productSize - Normal
QoS -
Security -
ShortDescription -
sizeX - 370
sizeY - 250
sizeZ - 80
Stackability - No
Supported protocols and standards - IEEE 802.3 IEEE 802.3u IEEE 802.3ab  IEEE 802.3x
Support for Jumbo frames - No
Switch class - Unmanaged
Throughput - 48 Gb/s
vendpn - GS1024
VLAN -
warrantyLength - 24
warrantyType - G
Weight - 1.767
weight - 1755
Weight & dimensions - Depth - 270 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 180 mm
