ARTIKEL1 - DGS-1210-48 LAYER 2
ARTIKEL2 - 48X10/100/1000MBIT/S + 4XCOMBO
Brand - D-Link
BrandPartCode - DGS-1210-48
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Data transmission - Forwarding rate - 77.4 Mpps
Data transmission - Jumbo frames - 10000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 12 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 104 Gbit/s
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
EAN - 0790069468551
EANCode - 0790069468551
Eans - 790069468551
EAN_code - 0790069468551
Gross Weight Kg - 3,7
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 790069332388
GTIN - 0790069332388
GTIN - 0790069468551
GTIN - 790069468551
HERSTELLER - D-LINK
HSTNUMMER - DGS-1210-48/E
LongDesc - With increased PoE output and advanced Layer 2 management and security features, D‑Link’s DGS‑1210 Smart Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.Advanced Layer 2 ManagementThe DGS-1210 Smart family features advanced network management accessible via the Web-based UI that equip your business with network capabilities such as VLANs, Spanning Tree Protocol (STP), link aggregation, and dual configuration files.With powerful security features including IGMP snooping, access control lists, and port security the DGS-1210 Smart family is a versatile solution for access-edge network environments.Fibre UplinksUse fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.PoE and PoE+, with budgets up to 193WThe DGS-1210 Smart Series includes a range of PoE-enabled switches for businesses looking to power VoIP phones, wireless access points or network cameras.Free Network Design and Management SoftwareD-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.Smart Energy-Saving DesignD-Link Green technology enables the DGS-1210 Smart series to save power without any sacrifices. The majority of the family utilises a fanless design, helping reduce energy usage.Surveillance ModeSelect Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
LongProductName - 48 x 10/100/1000BASE-T, 4 x 100/1000 Mbps GbE/SFP, DDR3 128 MB, 32 MB Flash, 440 x 210 x 44 mm
LongSummaryDescription - D-Link 48-Port Gigabit Smart Managed Switch with 4 Combo 1000BASE-T/SFP ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - D-Link
Manufacturer Code - DGS-1210-48/E
Manufacturer Name - D-Link
Manufacturer_code - DGS-1210-48/E
Multicast features - Multicast support - Yes
Name - D-Link DGS-1210-48/E
Name - D-Link DGS-1210-48/E, switch (silver/black, 4 gigabit combo ports)
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 256
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 118.92 BTU/h
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Performance - Flash memory - 32 MB
Performance - Internal memory - 128 MB
Performance - Mean time between failures (MTBF) - 400667 h
Performance - Memory type - DDR3-SDRAM
Performance - Noise level - 0 dB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 48
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Combo SFP ports quantity - 4

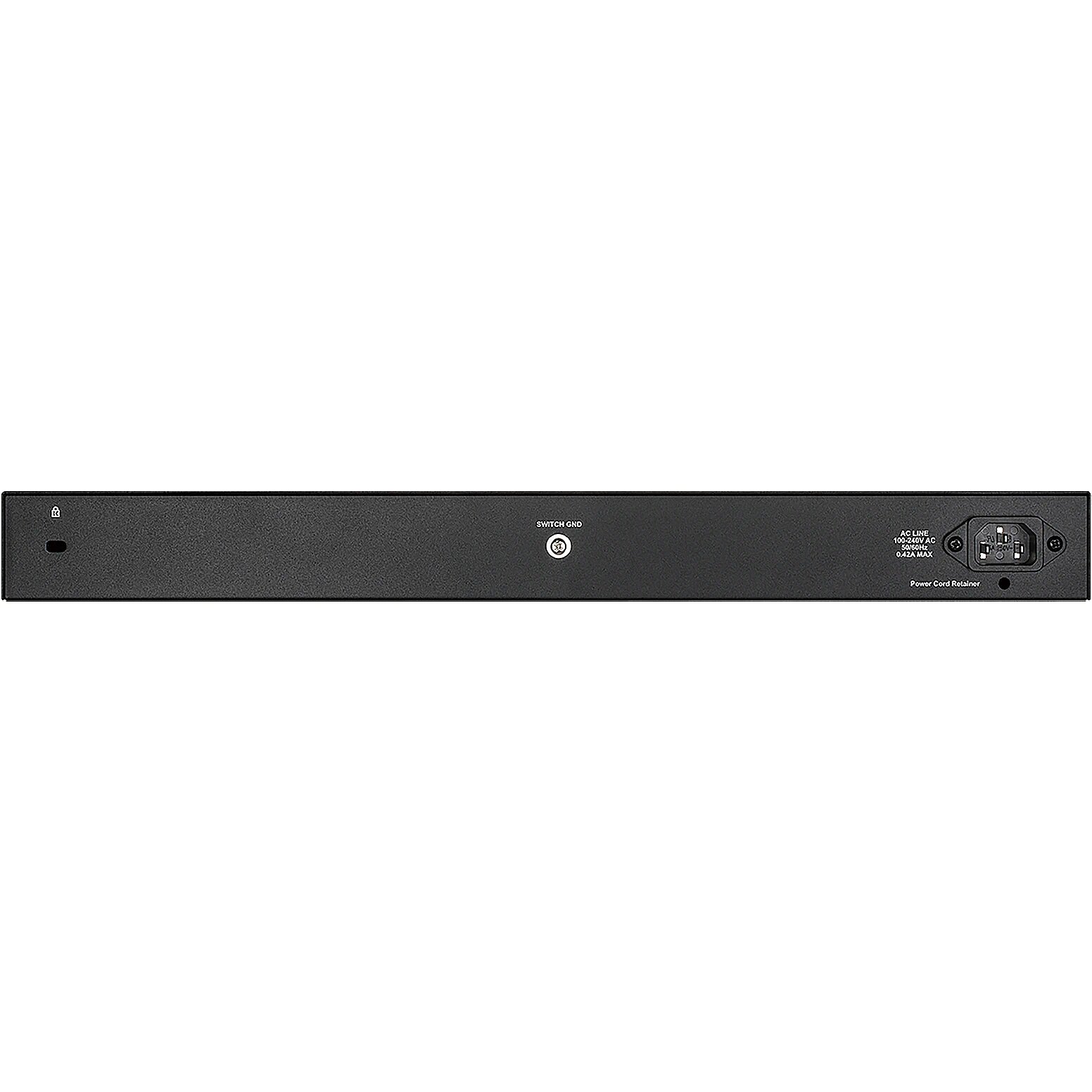

Ports & interfaces - Power connector - AC-in jack
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 34.85 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Producer - D-link
ProducerCode - DGS-1210-48/E
ProductName - 48-Port Gigabit Smart Managed Switch with 4 Combo 1000BASE-T/SFP ports
Security - Access Control List (ACL) - Yes
Security - DHCP features - DHCP server, DHCP client
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
ShortDescription -
Short description - D-Link Switch DGS-1210-48/E 48xGBit/4xSFP 19" Managed
ShortSummaryDescription - D-Link 48-Port Gigabit Smart Managed Switch with 4 Combo 1000BASE-T/SFP ports, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Title - D-Link 48-Port Gigabit Smart Managed Switch with 4 Combo 1000BASE-T/SFP ports
URL - https://www.dlink.com/en/products/dgs-1210-series-gigabit-smart-switches
WarrantyInfo -
Weight - 4,50
Weight & dimensions - Depth - 210 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 3.46 kg
Weight & dimensions - Width - 440 mm
