Category Code - SWI

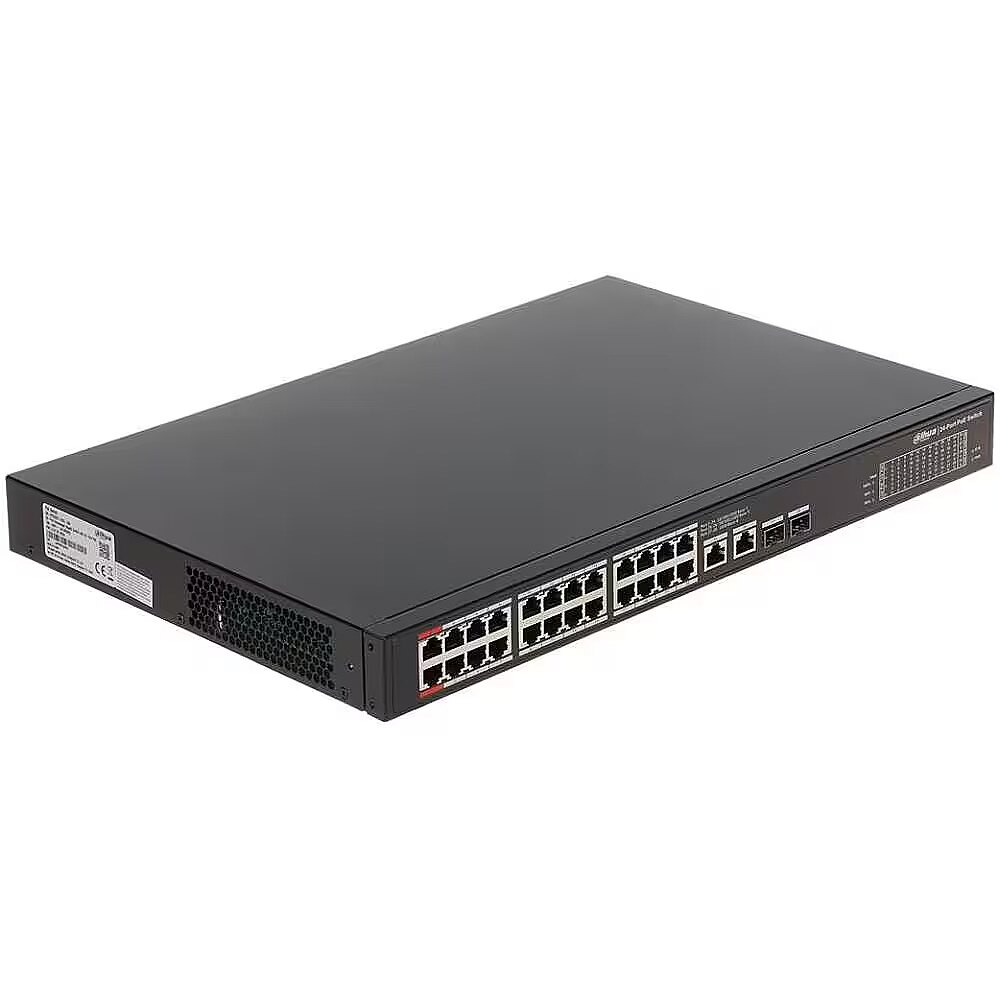

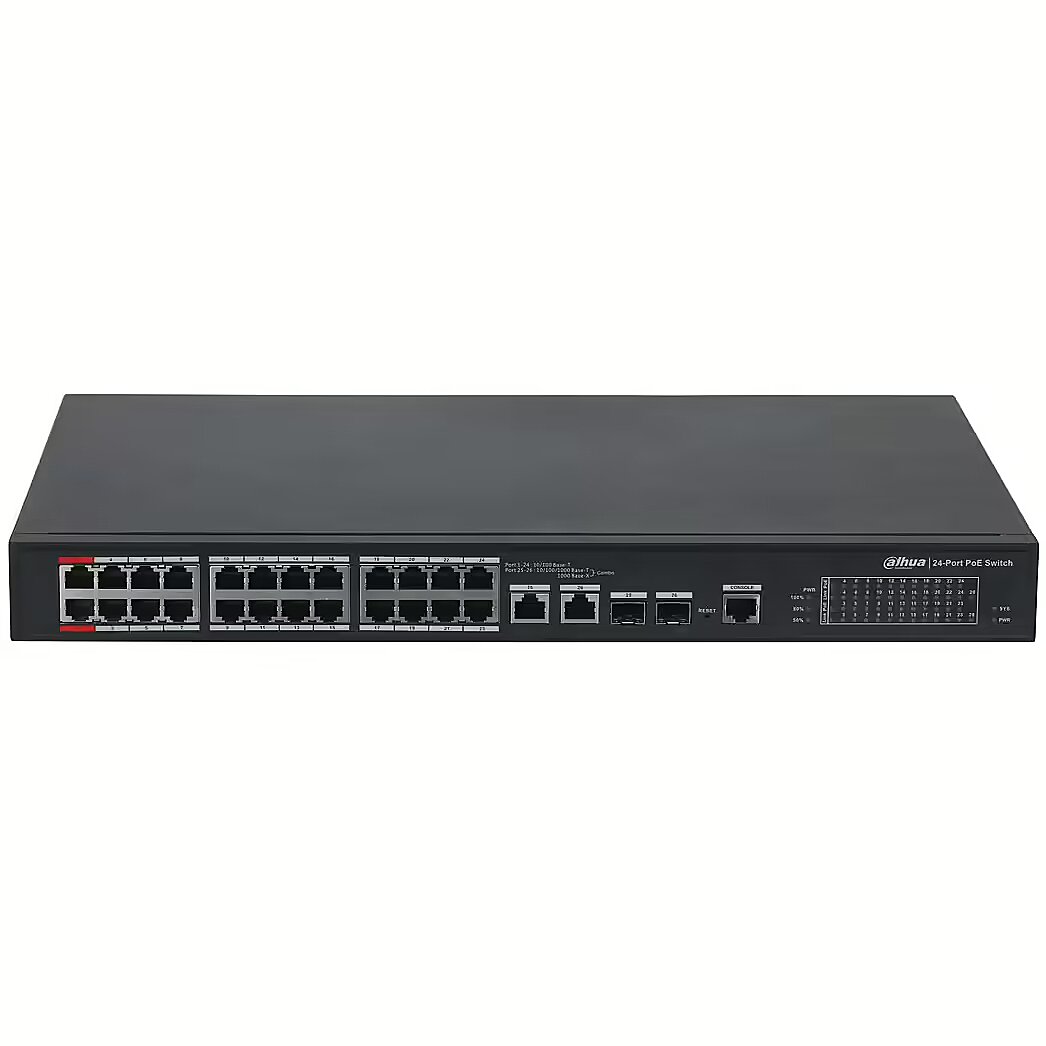

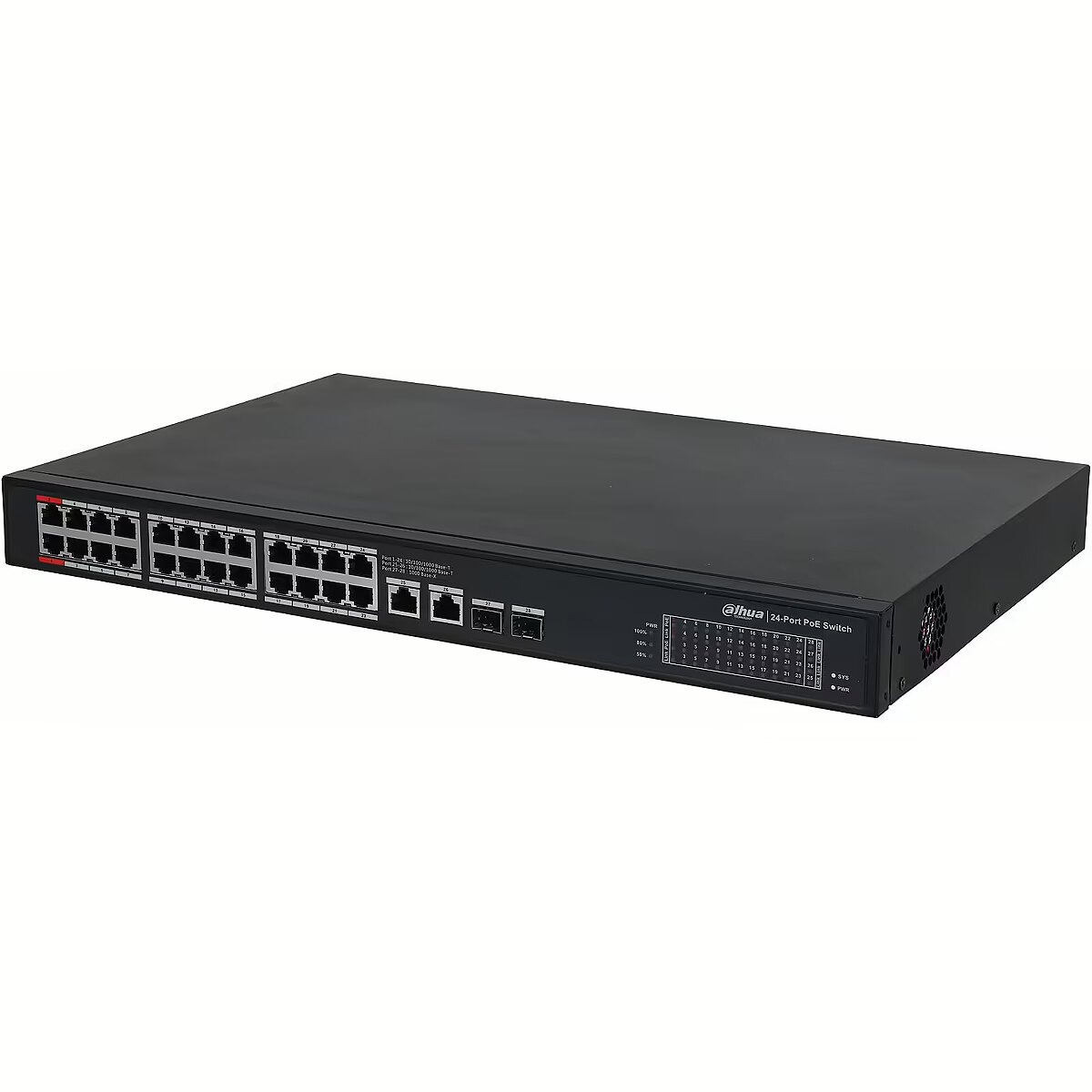

Description - - Intelligent PoE - Red Port Supports BT 90W - All-giga Ports - Smooth Transmission - Wide Working Temperature: –10°C to 55°C (14°F to 131°F) - Plug and Play - Port 1–24: 24 × RJ45 10/100/1000 M (PoE) - Port 25–26: 2 × RJ45 10/100/1000 M (uplink) - Port 27–28: 2 × SFP 1000 M (uplink) - Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z - PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3b - PoE Budget: Port 1–2≤90W, Port 3–24≤30W, total≤360W
Desktop/pedestal Mounting Type - Yes
Dimensions - 440 × 300 × 44mm
Forwarding rate - 38.688 Mpps
Full Description Line - Desktop/pedestal|PoE ports 24|Switching capacity 52 Gbps|Forwarding rate 38.688 Mpps|Dimensions 440 × 300 × 44mm|Unit Net Weight 4 kg
Model name - PFS3228-24GT-360-V2
PoE ports - 24
Primary port count - 24
Shipping Box Depth Shipping/Package Box Dimensions - 52.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 41.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 4.55 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
Switching capacity - 52 Gbps
Unit Box Height - 0.415
Unit Box Length - 0.525
Unit Box Width - 0.11
Unit Brutto Volume - 0.02397 cubm
Unit Gross Weight - 4.55 kg
Unit Net Weight - 4 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/All-gigabit-PoE-Switch/PFS3228-24GT-360
Warranty - 36 months
