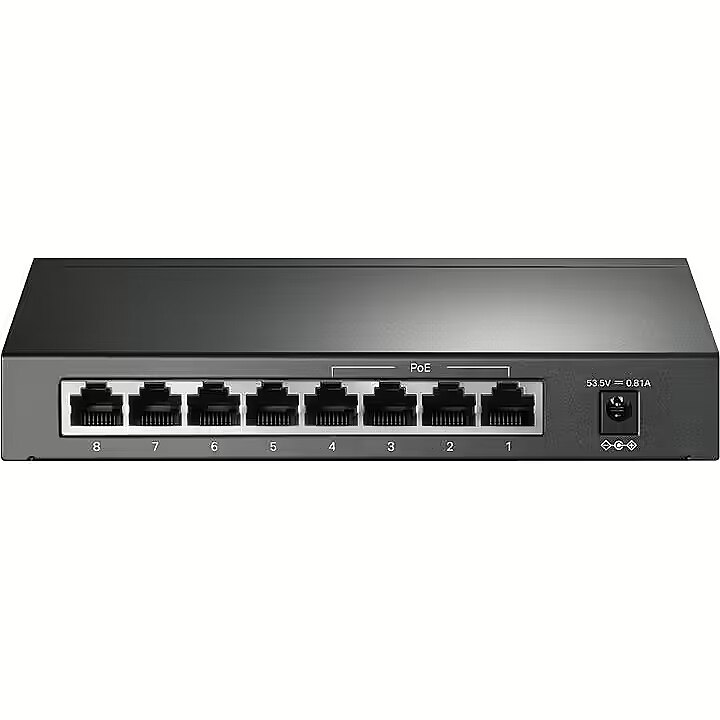

TP-LINK TL-SF1008LP 8-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE

10Base-T / 100Base-TX Ports - 8
ARTIKEL1 - 4-PORT POE FE DESKTOP SWITCH
ARTIKEL2 - .
Brand - TP-Link
BrandPartCode - TL-SF1008LP
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Code - TL-SF1008LP
Data transmission - Forwarding rate - 1.1904 Mpps
Data transmission - Jumbo frames - 2000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 1.6 Gbit/s
Description - - 8× 10/100 Mbps RJ45 ports - 4× PoE ports transfer data and power on individual cables - Works with IEEE 802.3af compliant PDs - Up to 250m data and power transmitting range under Extend Mode** - Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application - Supports PoE Power up to 41 W for all PoE ports* - Plug and play with no configuration required
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Number of fans - 0 fan(s)
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
Design > Form factor - Desktop
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 862
Dimensions - 171 × 98 × 27 mm
EAN - 6935364052768
EANCode - 6935364052768
Eans - 6935364052768
Forwarding rate - 1.1904 Mpps
Full Description Line - Desktop/pedestal|8x10Base-T / 100Base-TX|PoE ports 4|Switching capacity 1.6 Gbps|Forwarding rate 1.1904 Mpps|Switching method Store-and-forward|Power supply External|Dimensions 171 × 98 × 27 mm|Unit Net Weight 0.6 kg
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 6935364052768
GTIN - 6935364052775
HERSTELLER - TP-LINK
HSTNUMMER - TL-SF1008LP
Link - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Professional Fast Ethernet Switch with 4 PoE PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mDedicated 4-Port PoE Switch (41 W Budget) for Numerous ApplicationsCompliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Priority VideoQuality GuaranteedQuality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.Intelligent Power ManagementWhen total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
LongProductName - 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
LongSummaryDescription - TP-Link TL-SF1008LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Model name - TL-SF1008LP
Name - TP-Link TL-SF1008LP
Name - TP-LINK | Switch | TL-SF1008LP | Unmanaged | Desktop | 10/100 Mbps (RJ-45) ports quantity 8 | Power over Ethernet (PoE) ports quantity 4 | Power supply type External
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 10GBASE-T
Network - Copper ethernet cabling technology - 10GBASE-T, 100BASE-TX
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3af, IEEE 802.3x
Network - Networking standards - IEEE 802.3x
Operational conditions - Heat dissipation - 160.61 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Bandwidth - 1.6 Gbit/s
Other features > Power supply type - External
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 280 mm
Package features > Gross depth master carton - 580 mm
Package features > Gross height (mm) - 223.00 mm
Package features > Gross height master carton - 230 mm
Package features > Gross weight - 0.921 kg
Package features > Gross width (mm) - 65 mm
Package features > Gross width master carton - 465 mm
Package features > Net weight master carton - 11.052 kg
Package features > Packing quantity - 12 pc(s)
Package features > Palette Qty - 324 pc(s)
Package features > Paper/Pasteboard - 184.00 g
Package features > Plastic (No PET) - 46.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Tare weight master carton - 1.055 kg
Package features > Volume (m3) - 0.0040586 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - User guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 280 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 750 g
Packaging data - Package width - 223 mm
Packaging data - User guide - Yes
Performance - Fanless - Yes
PoE ports - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 8
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 8
Ports & interfaces > POE - PoE 802.3 af
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - DC input voltage - 53.5 V
Power - Input current - 0.81 A
Power - Power consumption (max) - 47.1 W
Power - Power source - DC/PoE
Power - Power supply included - No
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 41 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) > Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) > Power over Ethernet (PoE) power per port - 15.4 W
Power supply - External
Primary port count - 8
Producer - TP-Link
producerCode - TL-SF1008LP
ProducerCode - TL-SF1008LP
Producer product family - Switch
Producer product name - TL-SF1008LP
ProductName - TL-SF1008LP
productName - TP-Link TL-SF1008LP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
productSize - Normal
Protocols - IPv4 & IPv6 features - IPv6 portal
Protocols - Routing protocols - OSPF
Security - DHCP features - DHCPv6 relay
Shipping Box Depth Shipping/Package Box Dimensions - 28.2 cm
Shipping Box Height Shipping/Package Box Dimensions - 22.6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.93 kg
Shipping Box Width Shipping/Package Box Dimensions - 6.8 cm
ShortDescription -
ShortSummaryDescription - TP-Link TL-SF1008LP, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable
sizeX - 280
sizeY - 70
sizeZ - 220
Stck_Kart - 12
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - Federal Communications Commission (FCC)
Sustainability - Sustainability certificates - RoHS
Sustainability - Sustainability compliance - Yes
Switching capacity - 1.6 Gbps
Switching method - Store-and-forward
Technical details > Net weight - 0.691 kg
Technical details > Producer - TP-LINK
Title - TP-Link TL-SF1008LP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Unit Box Height - 0.226
Unit Box Length - 0.282
Unit Box Width - 0.068
Unit Brutto Volume - 0.004334 cubm
Unit Gross Weight - 0.93 kg
Unit Net Weight - 0.6 kg
URL - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/#overview
Vendor Homepage - www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 925
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 171 mm
