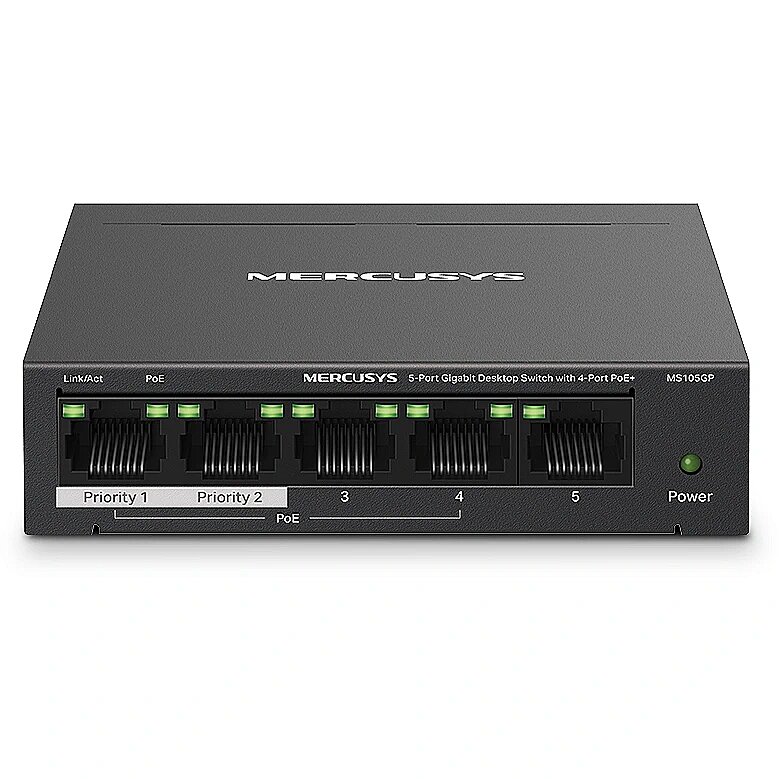

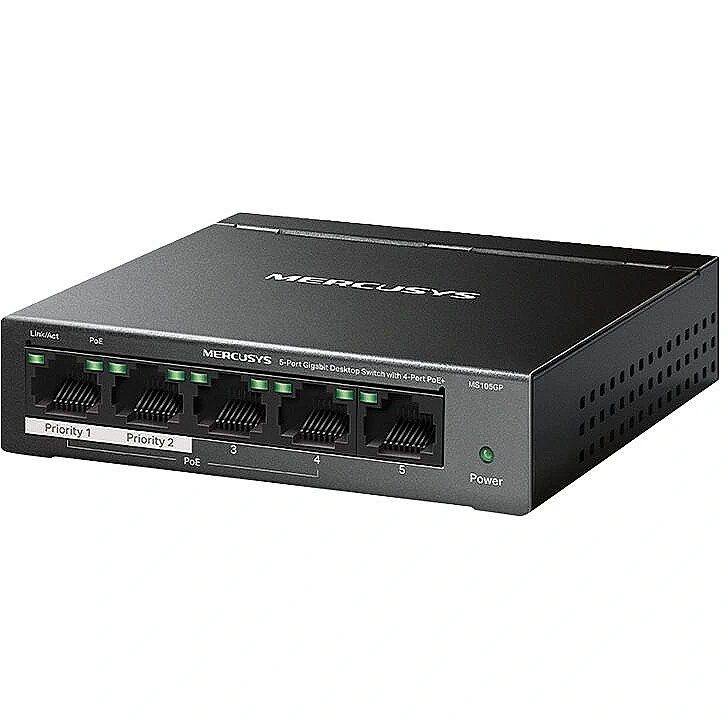

Mercusys MS105GP, 1x5GE 4-Port PoE+

Category - Root/Electronics/Networks and communication/Switchers
Certificates - Certification - CE, RoHS
Code - MS105GP
Data transmission - Jumbo frames - 9
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Switching capacity - 10 Gbit/s
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
dimensionalWeight - 320
EAN - 6957939001186
Eans - 6957939001186
Name - Mercusys 5-Port Gigabit Desktop Switch with 4-Port PoE+ | Mercusys
Name - Mercusys MS105GP
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Optical fiber - Transmission distance (max) - 0.1 km
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 110.00 mm
Package features > Gross height (mm) - 30.00 mm
Package features > Gross width (mm) - 110.00 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 1190 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - Power consumption (max) - 75.15 W
Power - Power consumption (typical) - 3.13 W
Power - Power source - DC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
Producer - Mercusys
producerCode - MS105GP
ProducerCode - MS105GP
productName - Mercusys 5-Port Gigabit Desktop Switch with 4-Port PoE+
productSize - Normal
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
ShortDescription - 5-Port Gigabit Desktop Switch with4-Port PoE+
sizeX - 142
sizeY - 91
sizeZ - 124
Technical details > Gross weight - 0.84 kg
Technical details > Net weight - 0.64 kg
Technical details > Producer - Mercusys
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 36
warrantyType - G
weight - 626
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 99.8 mm
