ID: 1054268
Tootekood: DS-3E0106P-E/M
Saab tellida 7 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 3 aastat

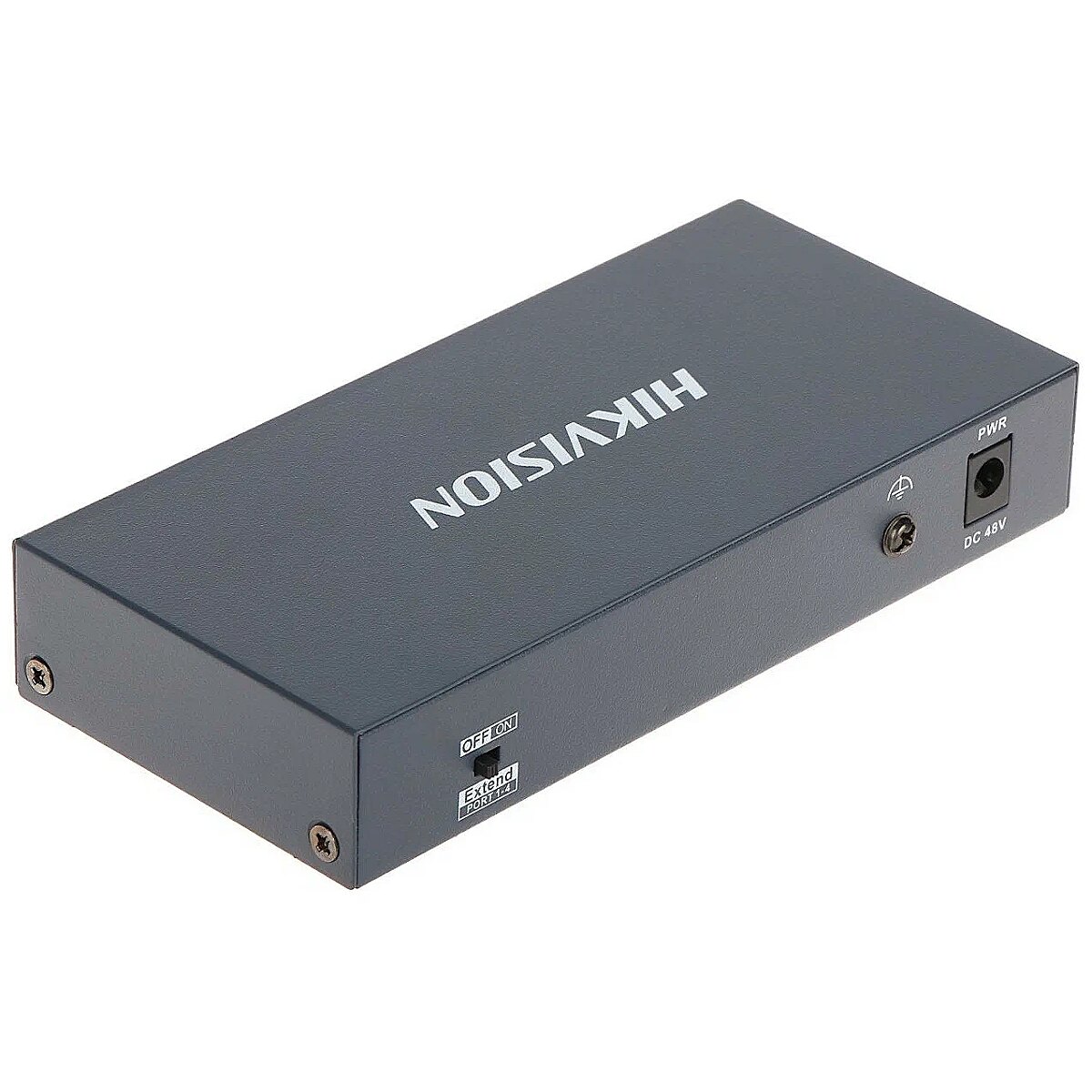

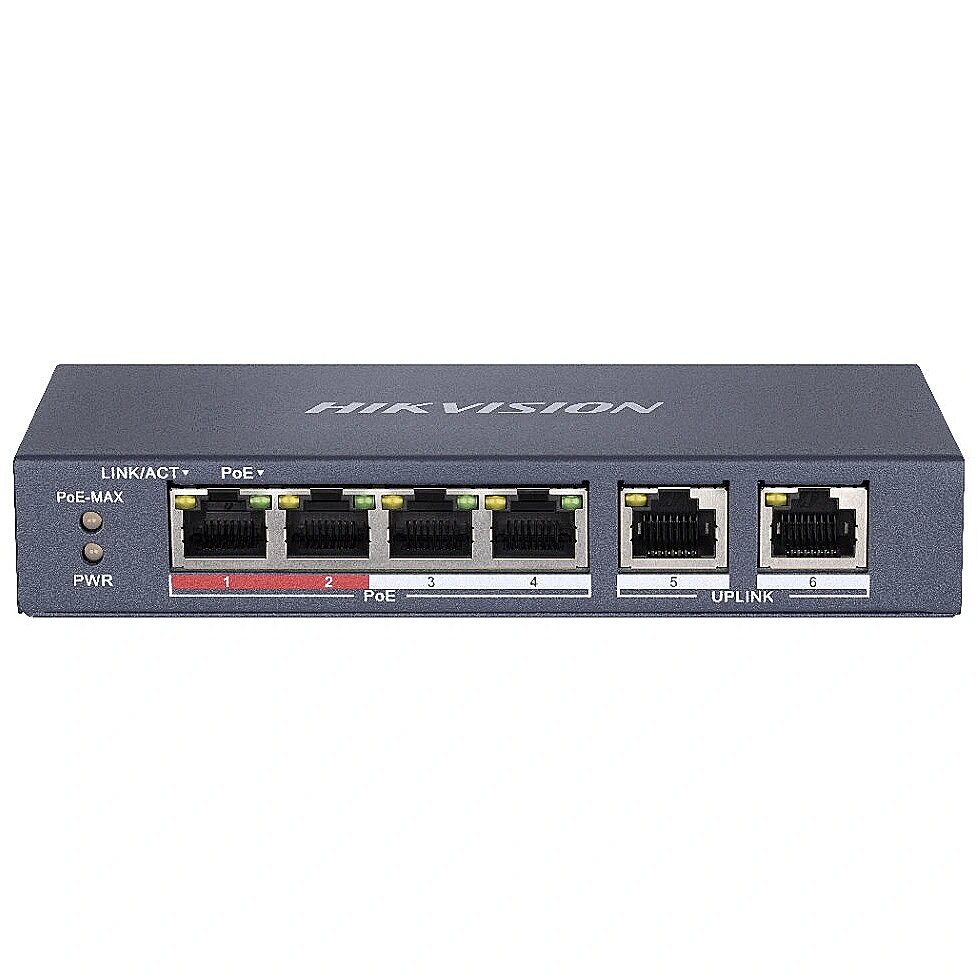

Hikvision DS-3E0106P-E/M 6x100Mb PoE
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Tarne Smartpostile 1,99 €: 14.05.2025
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 14.05.2025
- Kulleri kohaletoimetamine 3,99 €: 14.05.2025
Peamised tooteparameetrid Kõik parameetrid
- Base T Kiirus: 10/100
- Base T portide arv: 6
Sadamad ja seadmed
Base T Kiirus
: 10/100
Base T portide arv
: 6
PoE Portsid
: 2
SFP pordid
: N/A
Specifikācija
Fännide arv
: Fanless
Kaal (g)
: 265 g
PoE koguenergia eelarve
: 35 W
PoE Tugi
: Ir
PoE ühe pordi energiaeelarve
: 30 W
Võrgukaardid
Täpsem spetsifikatsioon
Data transmission - MAC address table - 4000 entries
Data transmission - Packet buffer memory - 0.768 MB
Data transmission - Switching capacity - 1.6 Gbit/s
Design - Housing material - Metal
Design - Product colour - Blue
dimensionalWeight - 397
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package weight - 520 g
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Power - DC input voltage - 48 V
Power - Input current - 0.8 A
Power - Power consumption (max) - 38 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
producerCode - DS-3E0106P-E/M
productName - Hikvision DS-3E0106P-E/M Fast Ethernet (10/100) network links PoE support Blue
productSize - Normal
sizeX - 190
sizeY - 95
sizeZ - 110
warrantyLength - 36
warrantyType - F
weight - 710
Weight & dimensions - Depth - 68.5 mm
Weight & dimensions - Height - 25.6 mm
Weight & dimensions - Weight - 265 g
Weight & dimensions - Width - 145 mm
Data transmission - Packet buffer memory - 0.768 MB
Data transmission - Switching capacity - 1.6 Gbit/s
Design - Housing material - Metal
Design - Product colour - Blue
dimensionalWeight - 397
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package weight - 520 g
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Power - DC input voltage - 48 V
Power - Input current - 0.8 A
Power - Power consumption (max) - 38 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
producerCode - DS-3E0106P-E/M
productName - Hikvision DS-3E0106P-E/M Fast Ethernet (10/100) network links PoE support Blue
productSize - Normal
sizeX - 190
sizeY - 95
sizeZ - 110
warrantyLength - 36
warrantyType - F
weight - 710
Weight & dimensions - Depth - 68.5 mm
Weight & dimensions - Height - 25.6 mm
Weight & dimensions - Weight - 265 g
Weight & dimensions - Width - 145 mm
