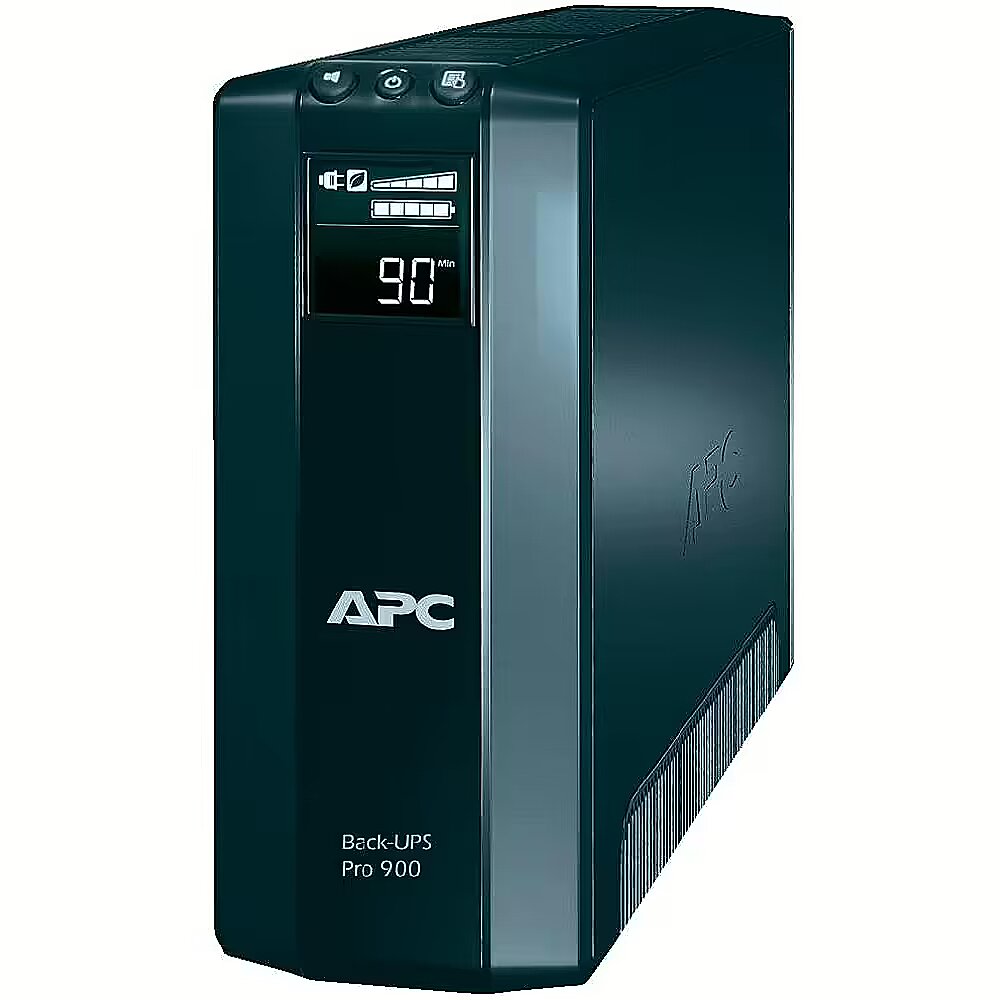

APC Back-UPS Pro BR900G-GR 900VA, 540W

Accessories included - - USB cable
- User Manual
Active power - 540 W
Alarm - Visual (LCD) and audible alarms
Apparent power - 900 VA
ARTIKEL1 - BACK-UPS PRO 900 POWER-SAVING
ARTIKEL1 - POWER SAVING BACK-UPS PRO 900
ARTIKEL2 - 230V IN
ARTIKEL2 - 230V SCHUKO IN
Backup time (100% load) - 4.6 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 157 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Replacement battery cartridge - 1
Battery - Replacement battery cartridge - APCRBC123
Battery - Typical backup time at full load - 4.6 min
Battery - Typical backup time at half load - 16.3 min
Battery recharge time, h - 8
BatteryType - Sealed, lead-acid, maintenance-free
Brand - APC
BrandPartCode - BR900G-FR
BrandPartCode - BR900G-GR
Cable length, m - 1.83
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certification - BSI 1363, CE, GOST, NEMKO
Charging time - 8 h
Chassis type - Tower
Color - Black
Connections - RJ-11
Connections - RJ-45 10/100 Base-T
Connections - Serial (RS-232)
Connections - USB
Connectors - RJ-11
Connectors - RJ-45
ControlPanel -

Parameters Displayed:

Input Power (On Battery/On Utility)

Input Voltage

Output Voltage

Output Frequency

Load (Watts, % of Capacity, Graphic Display)

Overload

AVR Working

System Fault

Replace Battery

Battery Charge Status (Graphic Display)

Estimated Run Time

Power Saving Mode (Enabled/Disabled)

Mute (Enabled/Disabled)

Number of Power Events

Data line protection - RJ-11 Modem/Fax/DSL protection (two wire single line), RJ-45 Modem/Fax/DSL protection (four wire dual line)
Depth - 382 mm
Depth, mm - 382
Description - APC Power-Saving Back-UPS Pro 900, 230V, CEE 7/5
APC Back-UPS Pro ,540 Watts /900 VA, input 230V/output 230V, Interface Port Optional Simple Signalling RS232 cable, USB
Description - APC POWER-SAVING BACK-UPS PRO 900, 230V, SCHUKO
Design - Cable length - 1.52 m
Design - Cable length - 1.83 m
Design - Certification - REACH, PEP, EOLI
Design - Display type - LCD
Design - Product colour - Black
dimension depth - 335 mm
dimension height - 485 mm
Dimensions - 100 x 382 x 250 mm
dimension weight - 15764 g
dimension width - 225 mm
ean - 731304279587
EAN - 0731304286912
EANCode - 0731304279587
EANCode - 0731304286912
Eans - 731304279587
Eans - 731304286912
EAN_code - 0731304286912
Environment requirements - - Operating Environment 0 - 40 °C
- Operating Relative Humidity 0 - 95%
- Operating Elevation 0-3000 meters
- Storage Temperature -15 - 45 °C
- Storage Relative Humidity 0 - 95%
- Storage Elevation 0-15000 meters
- Audible noise at 1 meter from surface of unit 45.00 dBA
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 97.4%
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 8 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 156 V
Features - Noise level - 45 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output power - 540 W
Features - Output power capacity - 0.9 kVA
Features - Surge energy rating - 355 J
Features - Surge energy rating - 613 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL), Fax, Modem, Network
Features - UPS topology - Line-Interactive
Filters / protection - Data line
Filters / protection - Surge
Filters / protection - Voltage drop
FormFactor - Tower
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
GrossWeight - 12.000 kg
Gross Weight Kg - 12,41
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304279587
GTIN - 0731304279587
GTIN - 0731304286912
GTIN - 731304286912
guarantee - 36
guarantee_type - external
Height - 250 mm
Height - 344.000000
Height, mm - 250
HERSTELLER - APC
HSTNUMMER - BR900G-FR
HSTNUMMER - BR900G-GR
Input connection - Schuko CEE 7/7P
InputConnections - Schuko CEE 7/7P
InputFrequency - 50 or 60 Hz
Input frequency, Hz - 50/60 +/- 3
Input power ports - Wtyczka sieciowa
InputVoltage - 230V, 50 or 60 Hz, +/-3Hz (auto sensing)
Input voltage, V - 176 - 294 (156 - 300)
InterfacePorts -

Analog phone line for phone/fax/modem/DSL

Network: up to 1000 Base-T (gigabit) Ethernet

Length - 231.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 30 pc(s)
LongDesc - Security through emergency powerAn APC Back-UPS PRO has a built-in battery that ensures that all connected equipment, such as a NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data. Safety and convenienceIn addition, this safe APC Back-UPS PRO protects valuable equipment against peak voltage caused by lightning strikes, for example. With these UPS you can secure both your power and network connections (1Gbit). Because the APC Back-UPS PRO is also equipped with an LCD screen, it is easy to use.InsuranceDespite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:- Equipment protection policy of 150,000 eurosExtend the lifespanThe internal battery cartridge (APCRBC123) can be replaced easily, safely and independently by the user. This without having to switch off the APC BR900G-GR or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Back-UPS.Warranty extensionThe factory warranty of the BR900G-GR is 3 years and can be upgraded to 6 years with the APC service pack (WBEXTWAR3YR-SP-01).Save on operational costsThe UPS is equipped with AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. Furthermore, the emergency power supply has 5 battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable (type B to type A) are also included.Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)
LongDesc - FriendlyThe Back-UPS Pro series offers your home and business guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics. Abundant backup power, auto-shutdown software and protection from damaging surges and spikes are coupled with the Back-UPS Pro's energy saving features, voltage regulation, LCD display and other premium features to make these the perfect units to protect your data and keep you available.
LongDesc - The Back-UPS RS offers high performance protection for your business and office computer systems. It provides abundant battery backup power, allowing you to work through medium and extended length power outages. It also safeguards your equipment from damaging surges and spikes that travel along utility, phone and network lines. A distinguishing feature of the Back-UPS RS is automatic voltage regulation (AVR). AVR instantly adjusts both low and high voltages to safe levels, so you can work indefinitely during brownouts and overvoltage situations, saving the battery for power outages when you need it most. Award-winning shutdown software automatically powers down your computer system in the event of an extended power outage. Additional features like audible alarms, LED status indicators, user replaceable battery, push-button circuit breakers and plentiful outlets (including transformer-block spaced outlets) make the Back-UPS RS the perfect unit to protect your business' productivity from the constant threat of power problems and lost data. BR900G-FR Features:Power-saving outletsAutomatically cuts power to idle equipment to conserve electricity.Boost Automatic Voltage Regulation (AVR)Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.Battery-protected and surge-only outletsReserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipmentSafety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.Audible alarmsProvides notification of changing utility power and UPS conditions.Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Battery replacement without toolsAllows quick, easy battery replacement.LED status indicatorsQuickly understand unit and power status with visual indicators.Cold-start capableProvides temporary battery power when the utility power is out.Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replacedResettable circuit breakersEnables a quick recovery from overload events.Transformer-block spaced outletsProtect equipment with input transformer blocks without blocking access to other receptacles.User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)Manageability:Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.Adjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.Intelligent battery managementMicro-processor controlled battery charging and diagnostic testing ensures maximum battery life.
LongProductName - 540Watts / 900 VA, 230V / 230V
LongProductName - APC Back-UPS PRO BR900G-GR - 900VA, 5x Schuko socket, USB
LongSummaryDescription - APC Back-UPS PRO BR900G-GR - 900VA, 5x Schuko socket, USB. UPS topology: Line-Interactive, Output power capacity: 0.9 kVA, Output power: 540 W. AC outlet types: Type F, AC outlets quantity: 5 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 157 VAh, Typical backup time at full load: 4.6 min. Product colour: Black, Cable length: 1.83 m, Display type: LCD. Width: 100 mm, Depth: 250 mm, Height: 382 mm
LongSummaryDescription - APC Power-Saving Back-UPS Pro. Output power capacity: 0.9 kVA, Output power: 540 W, Surge energy rating: 355 J. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 8 h. Product colour: Black, Cable length: 1.52 m. Width: 100 mm, Depth: 382 mm, Height: 250 mm. Battery type: APCRBC123, Interface: USB, Nominal output voltage: 230 V
Manufacturer - APC
Manufacturer Code - BR900G-GR
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - BR900G-GR
Manufacturer_code - BR900G-GR
MANUFDATASHEET - http://www.apcmedia.com/salestools/PPEV-8MJJAD_R0_EN.pdf
Maximum power, W - 540
MPN - BR900G-GR
Name - APC Back-UPS Pro 900 BR900G-GR 900VA 540W
Name - APC Back-UPS Pro 900VA BR900G-GR ++
Name - APC BR900G-FR
Name - APC BR900G-GR
name - BR900G-FR APC Power-Saving Back-UPS Pro 900 230V
No. of batteries - 1
Noise level, dB - 45
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -5 - 45 °C
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Output Power Capacity 540 Watts
- Nominal Output Voltage 230V
- 3 outputs Battery Backup
- 3 outputs Surge Protection
- Waveform Type Stepped approximation to a sinewave
- Built-in Bypass
- Replacement Battery: APCRBC123
- Optional Simple Signalling RS232 cable, USB
- Surge energy rating 613 Joules
Other features - Battery type - APCRBC123
Other features - Filtering description - UL 1449
Other features - Interface - USB
Other features - Networking features - 10/100/1000 Base-T
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Package dimensions (WxDxH) - 229 x 483 x 381 mm

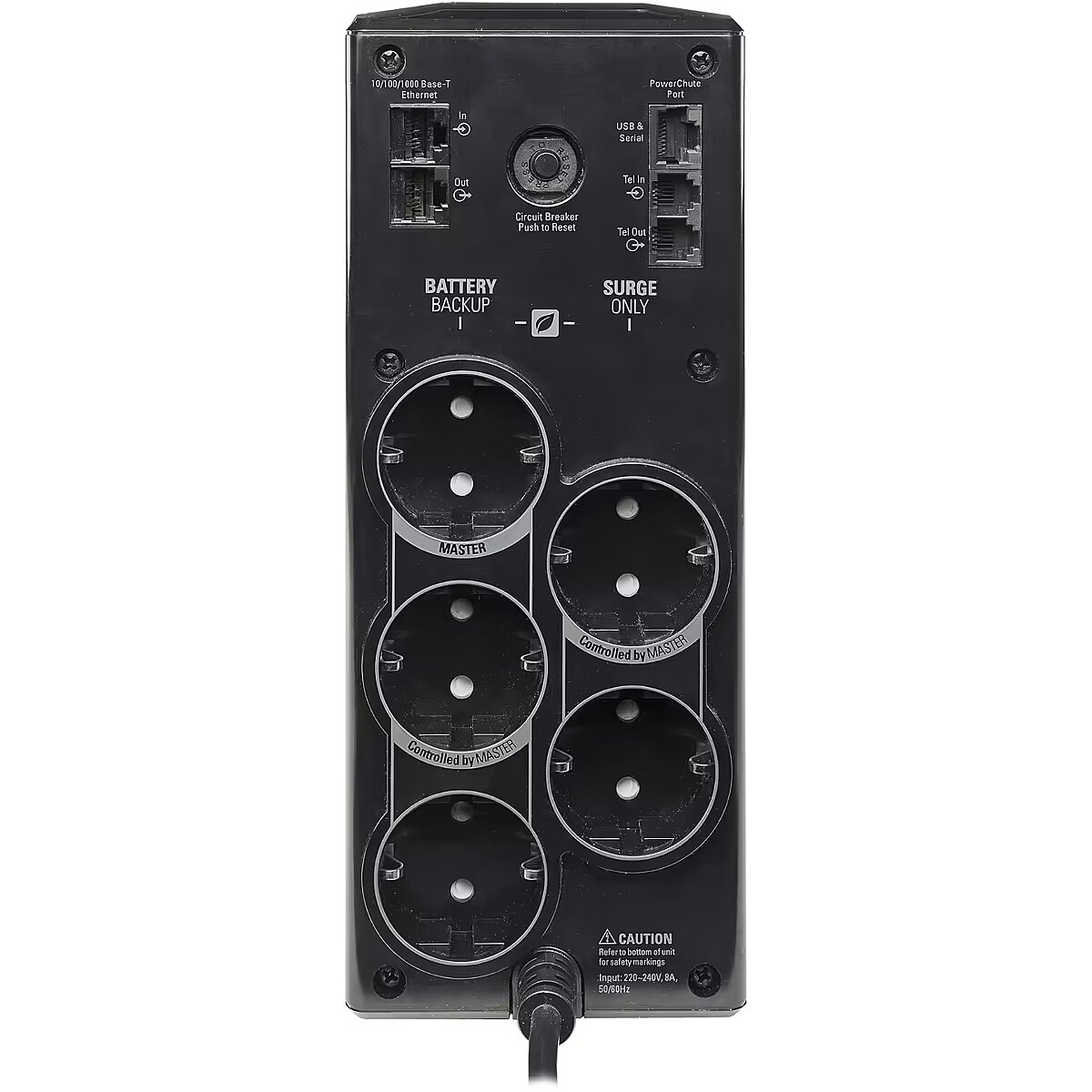

OutputConnections -

5 total German outlets:

3 battery & surge (including 1 power- savingoutlet)

2 surge protection only (including 1 power-saving outlet)

OutputFrequency - 50 or 60 Hz
Output interface - 3 x Schuko CEE 7 (Battery Backup) , 2 x Schuko CEE 7 (Surge Protection)
Output power, W - 540
Output power capacity (VA) - 900
Output power ports - 6 x C/E type
OutputVoltage - 230V, 50 or 60 Hz, +/-3Hz (auto sensing)
PackageContents -

Telephone Cable

User Manual

Warranty card

Packaging data - Bundled software - PowerChute Personal Edition
Packaging data - Cables included - Phone (RJ-11)
Packaging data - Manual - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 5 AC outlet(s)
Ports & interfaces - AC outlet types - Type F
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Number of type F outputs - 5
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
PowerVAW - 900 VA
PowerW - 540 W
ProdDesc - Power-Saving Back-UPS Pro 900, 230V, Schuko
producer - APC
Producer - APC
ProducerCode - BR900G-FR
ProducerCode - BR900G-GR
ProductName - APC Back-UPS PRO BR900G-GR - 900VA, 5x Schuko socket, USB
ProductName - Power-Saving Back-UPS Pro
ProductPicture - http://www.tdbaltic.ee/images/ds4/BR900G-GR-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/BR900G-GR-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/BR900G-GR-03.jpg
ProductPicture4 -
RechargeTime - -
RJ45 - -
Runtime - 5 min (full load) / 16 min (half load)
Runtime - 16.3/4.6
ShortDescription -
Short description - APC Back-UPS Pro 900 VA BR900G-GR
ShortSummaryDescription - APC Back-UPS PRO BR900G-GR - 900VA, 5x Schuko socket, USB, Line-Interactive, 0.9 kVA, 540 W, 156 V, 300 V, 50/60 Hz
ShortSummaryDescription - APC Power-Saving Back-UPS Pro, 0.9 kVA, 540 W, 355 J, 45 dB, Sealed Lead Acid (VRLA), 8 h
SmartSlot - -
Software -
Special functions - - LCD Status Display
- Simple battery replacement
- Automatic Voltage Regulation (AVR)
- Green Mode
- Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions
- Audible Alarm: distinctive low battery alarm : overload continuous tone alarm
- Automatic self-test
- Power-saving outlets
- Battery and surge protected outlets
- Cold-start capable
- Dataline surge protection
- Battery failure notification
- USB connector
- Intelligent battery management
- Customizable voltage sensitivity
- Transformer-block spaced outlets
- Surge only outlets
- Resettable circuit breaker
- Disconnected battery notification
Stck_Kart - 1
Stck_Pal - 11
Stck_Pal - 32
Storage temperature range (T-T), °C - 0 - 40
Storno - Y
Surge energy rating, J - 613
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Technical_details - The Back-UPS Pro series offers your home and business guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics. Abundant backup power, autoshutdown software and protection from damaging surges and spikes are coupled with the Back-UPS Pro's energy saving Featuress, voltage regulation, LCD display and other premium Featuress to make these the perfect units to protect your data and keep you available. Colour black Device Type Standalone UPS Power Rating 900 VA / 540 Watt Input Voltage 160-286 V Buffering Time Full Load: 4.6 minute(s) Half Load: 16.3 minute(s) Ports / Interfaces USB: 1x Outputs Type 1 3x Schutzkontakt connected to Battery Yes Type 2 2x Schutzkontakt connected to Battery No Protection Line Protection: 1x RJ-11/RJ-45 Alert Messages optical: Multifunctionale LCD-Status- and Steuerungskonsole Operating Temperature Storage Temperature -15 - 45 °C Charging time to 95% (at half load) 8 hour(s) Output V 230 VAC Operating via Battery: 230 VAC (±3 VAC) Product dimensions 100x250x382 mm Weight 10.72 kg
Title - APC Back-UPS PRO BR900G-GR - 900VA, 5x Schuko socket, USB
Title - APC Power-Saving Back-UPS Pro
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=BR900G-FR&total_watts=200
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=BR900G-GR&total_watts=200&tab=models
USB - -
vendpn - BR900G-FR
Warranty - 2 years
WarrantyInfo - 2 years repair or replace, 3 years repair or replace for European Union countries
WarrantyInfo - 3 years
WaveformType - Stepped Approximation to Sine Wave
Weight - 10.72 kg
Weight - 10.730 Kg
Weight - 11.74
Weight - 11.610000
Weight - 12,10
Weight & dimensions - Depth - 250 mm
Weight & dimensions - Depth - 382 mm
Weight & dimensions - Height - 250 mm
Weight & dimensions - Height - 382 mm
Weight & dimensions - Package depth - 337 mm
Weight & dimensions - Package height - 487 mm
Weight & dimensions - Package weight - 12.4 kg
Weight & dimensions - Package weight - 12.7 kg
Weight & dimensions - Package width - 225 mm
Weight & dimensions - Weight - 10.4 kg
Weight & dimensions - Weight - 10.7 kg
Weight & dimensions - Width - 100 mm
Weight, kg - 10.73
Width - 100 mm
Width - 489.000000
Width, mm - 100
