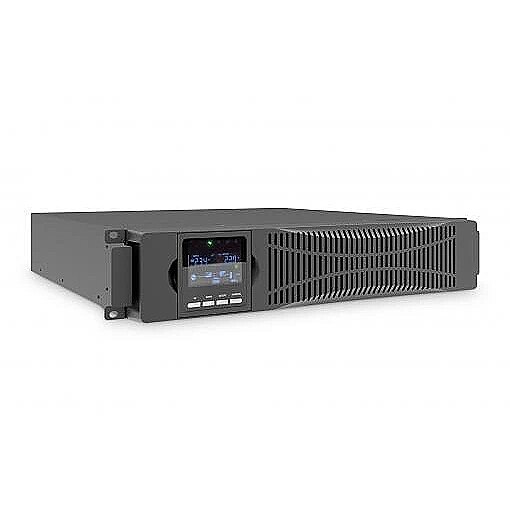

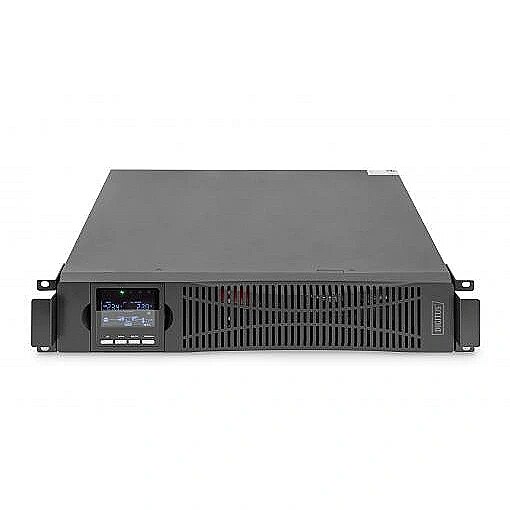

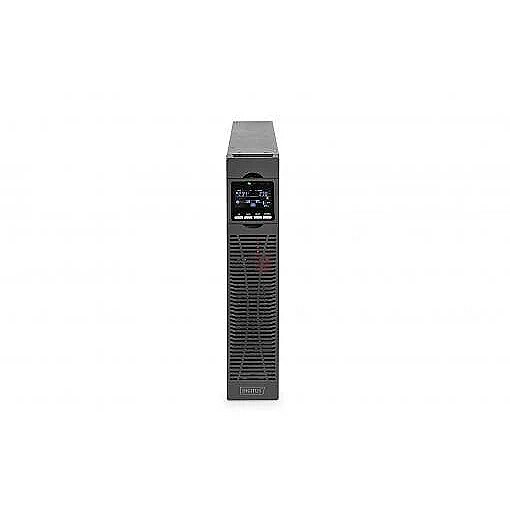

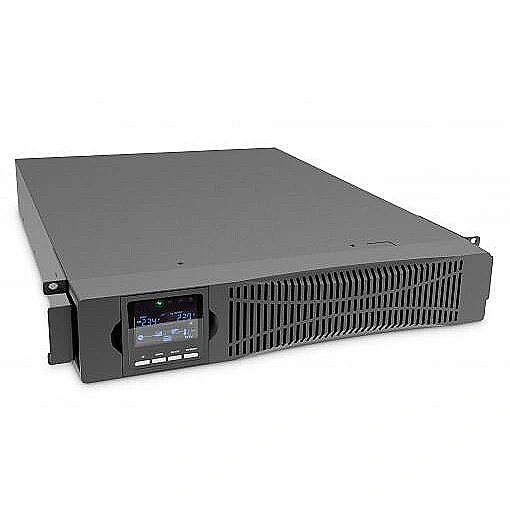

Digitus DN-170095 OnLine UPS, 2000VA 2000W, IEC 2U

Accessories included - 1 x UPS User Manual 1 x license with software installation instructions 1 x USB connection cable, 1.2 m 1 x 1.8m power cord 1 x RS232 cable
Active power - 2000 W
Apparent power - 2000 VA
ARTIKEL1 - ONLINE USV-SYSTEM 2000 VA
ARTIKEL2 -
Battery capacity - 9 Ah
Breite - 0
Charging time - 4 h
Chassis type - Rack
Chassis type - Tower
Code - DN-170095
Color - Black

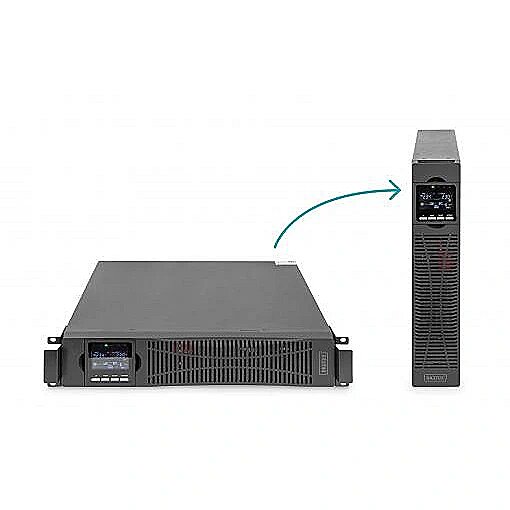

Description - DIGITUS OnLine UPS systems are extremely reliable solutions that are designed to protect sensitive equipment from power interruptions. They are equipped with control microprocessors to guarantee the highest performance and security of the user's business and office systems, as well as protection against data loss and possible damage. With its high power factor, wide voltage range and powerful charger, the system is also suitable for demanding applications. Intelligent charging modes and fan speed control extend the life and increase the reliability of the UPS. Using the LCD display, all parameter settings of this UPS can be configured for uninterrupted power supply. An SNMP adapter for remote access to the UPS system is available as an option. Online double conversion (microprocessor control) Intelligent charging mode UPS unit can be mounted in a cabinet or erected in a tower version using a stand Rotating LCD screen with multifunctional parameter adjustment and function chart LCD display (charging status, battery status, AC mode, battery mode, bypass mode, error indication) Excellent overload capacity Cold start supported Various built-in interfaces for communication (RS232/USB, serial interface, SNMP card slot) Optional SNMP card available for remote control via LAN Compatibility: Smart RS-232/USB supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, FreeBSD and Mac
Design > Form factor - Rack/tower
Designation - CE+WEEE
dimension depth - 570 mm
dimension height - 205 mm
Dimensions - (H x W x D): 86.5 (2U) x 440 x 460mm RACK pitch (IEC 60297): 482.6 mm (19")
dimension weight - 22900 g
dimension width - 600 mm
EAN - 4016032474661
ean - 4016032474661
EANCode - 4016032476924
Environment requirements -
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
Hold-up time (maks) - 0 s
HSTNUMMER - DN-170095
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input power ports - IEC-C20
Laenge - 0
Link - https://de.assmann.shop/en/Network-and-Server-Cabinets/Power-Supply/Uninterruptible-Power-Supply-UPS/Server-and-Network/OnLine-UPS-system-2000-VA-2000-W.html
Name - Digitus | OnLine UPS | DN-170095 | 2000 VA | 2000 W | C14
name - UPS Online Rack DN-170095
No. of batteries - 4
Number of phases input - 1 (230V)
Other features - Higher output power factor at 1.0 PF (efficiency up to 94.0%) True double conversion technology Microprocessor control optimizes reliability in the event of a power outage Power factor 1.0 EPO (emergency power off) switch Input/output voltage: 200/208/220/230/240 VAC Voltage Range: 110-290VAC +-5% Capacity: 2000VA / 2000W Frequency range: 45Hz - 70Hz Power factor: 1.0 at output voltage; 0.99 at input voltage Voltage Regulation: +-1% Frequency range (synchronized range): 50 Hz or 60 Hz Frequency range (in battery mode): 50/60 Hz +-0.1 Hz Power Step Step Ratio: 3:1 (Max.) Harmonic distortion (mains mode): 3% THD (linear charge); 6% THD (non-linear charge) Transition time (from mains mode to battery mode): zero Transition time (inverter to bypass): 4ms (typical) Waveform (in battery mode): Perfectly sine wave Efficiency: 90% (AC mode); 85% (battery mode); 97% (ECO mode) Typical charge time: 4 hours to restore 90% capacity Battery: 12V/9Ah x 4 Charging current: 2A Air humidity: 0-90% RH at 0°C to +40°C (non-condensing) Power cord: 1.8 m, type F (CEE 7/4) earthed plug to female type C14 earthed socket Outputs: 8 x IEC C13, including 4 x programmable USB connection cable: USB A to USB B / 1.2 m Power: 1500VA - 3000VA Installation method: Desktop, Rack Technology: Online double conversion Power Plug: Socket on IEC 60320 C20 cable
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 555.00 mm
Package features > Gross height (mm) - 202.00 mm
Package features > Gross width (mm) - 595.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 26 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.70 kg
Package features > TI weight (kg) - 20.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.07 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/0/4/9/1/8/3/c5b3a2bc6e925828a3f893c4b1ae6492/original.pdf
Performance > Capacity - 2000 VA
Performance > UPS topology - On line
Ports & interfaces > Power plug - C14
producer - Digitus
Producer product family - OnLine UPS
Producer product name - DN-170095
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
Technical details > Capacity - 2000 W
Technical details > Gross weight - 22.70 kg
Technical details > Net weight - 22.00 kg
Technical details > Other features - High number of outlets (8 x C13) for optimal power distribution to loads. Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system
Technical details > Producer - Digitus
The shape of the output voltage - Full sine wave
UPS Architecture - on-line double conversion
vendpn - DN-170095
Voltage - 12 V
Warranty - 24
Warranty - 24 month(s)
Weight - 19.5 kg
