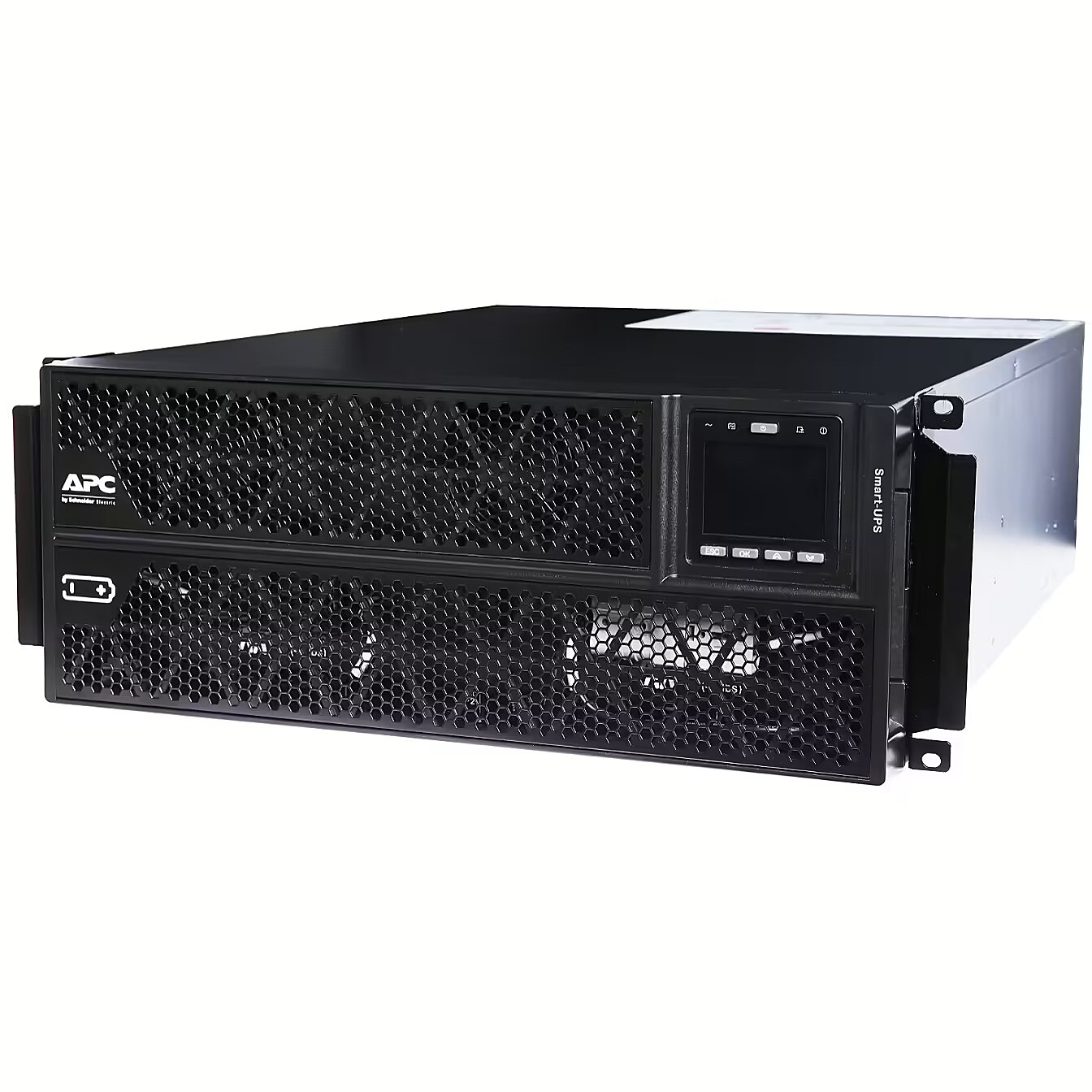

APC Smart-UPS SRTG6KXLI 6000VA, 6000W, IEC, 4U

ARTIKEL1 - APC SMART-UPS RT 6KVA 230V
ARTIKEL2 -
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 96 V
Battery - Battery voltage - 192 V
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery life (max), years - 3 - 5
Battery recharge time, h - 4
Battery voltage, V - 96
Brand - APC
BrandPartCode - SRTG6KXLI
BrandPartCode - SRTG192XLBP4
Breite - 0
Category - Uninterruptible Power Supplies (UPSs)
Connections - RJ-45 Serial
Connections - USB
Depth, mm - 620
Description - APC SMART-UPS ON-LINE 6KVA/6KW 230V RACK/TOWER, NETWORK CARD, W/O RAIL KIT
Design - Certification - CE, EN/IEC 62040-1
Design - Display type - LCD
Design - Form factor - Compact
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 3U
EANCode - 0731304426264
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - ECO mode - Yes
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 285 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 6000 W
Features - Output power capacity - 6 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Surge energy rating - 600 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 40 - 70
Gewicht - 74
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304411826
GTIN - 731304411826
GTIN - 0731304426264
GTIN - 731304426264
Height - 280.000000
Height, mm - 178
HERSTELLER - APC
Hoehe - 0
HSTNUMMER - SRTG6KXLI
IP classification - IP20
Laenge - 0
Length - 590.000000
LongDesc - - APC Smart-UPS RT Battery Pack 192V, rackmount, 3U- Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.- Includes: Installation guide, Warranty cardMultiple battery pack configurationConnect up to 10 battery packs for extended runtime applications.Advanced battery management includedEmbedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance, and stable cell health.
LongDesc - Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protectionLCD Status DisplayProvides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.Cold-start capableProvides temporary battery power when the utility power is out.Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Resettable circuit breakerEasy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.Input Power Factor CorrectionMinimizes installation costs by enabling the use of smaller generators and cabling.Generator compatibleEnsures clean, uninterrupted power to protected equipment when generator power is used.Frequency and voltage regulationGives higher application availability by correcting poor frequency and voltage conditions without using the battery.SmartSlotCustomize UPS capabilities with management cards.Network manageableMost models provide remote power management options of the UPS over the network. Many do not have NMC embedded.Serial connectivityProvides management of the UPS via a serial port.InfraStruXure Manager CompatibleEnables centralized management via the APC InfraStruXure Manager.LED status indicatorsQuickly understand unit and power status with visual indicators.
LongProductName - 6 kVA, 6 kW, 100-285V, 40/70Hz, 600J, LCD, IP20
LongProductName - Smart-UPS RT Battery Pack 192V, rackmount, 3U
LongSummaryDescription - APC SRTG6KXLI. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 96 V, Battery life (max): 5 year(s). Form factor: Compact, Product colour: Black, Display type: LCD. Width: 440 mm, Depth: 620 mm, Height: 178 mm
LongSummaryDescription - APC SRTG192XLBP4. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 192 V, Battery life (max): 5 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 3U. Width: 440 mm, Depth: 683 mm, Height: 130 mm
Manufacturer - APC
ManufacturerPartNumber - SRTG6KXLI
Nominal input voltage, V - 160 - 285
Nominal output voltage, V - 220 - 240
Operational conditions - Non-operating altitude - 0 - 15240 m
Operational conditions - Operating altitude - 0 - 2011 m
Operational conditions - Operating altitude - 0 - 2011.68 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Output power, W - 6000
Output power capacity (VA) - 6000
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
ProductName - SRTG6KXLI
ProductName - SRTG192XLBP4
ShortSummaryDescription - APC SRTG6KXLI, Double-conversion (Online), 6 kVA, 6000 W, Sine, 100 V, 285 V
ShortSummaryDescription - APC SRTG192XLBP4, Sealed Lead Acid (VRLA), 192 V, 5 year(s), Rackmount, Black, 3U
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - APC SRTG6KXLI uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 3 AC outlet(s)
Title - APC SRTG192XLBP4 uninterruptible power supply (UPS)
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/au/en/products/APC-Smart-UPS-RT-Battery-Pack-192V-rackmount-3U/P-SRTG192XLBP4
URL - https://www.apc.com/shop/rw/en/products/APC-Smart-UPS-RT-6kVA-230V/P-SRTG6KXLI
WarrantyInfo -
WarrantyInfo - 2 years
Weight - 81.120000
Weight & dimensions - Depth - 620 mm
Weight & dimensions - Depth - 683 mm
Weight & dimensions - Height - 130 mm
Weight & dimensions - Height - 178 mm
Weight & dimensions - Package depth - 780 mm
Weight & dimensions - Package depth - 790 mm
Weight & dimensions - Package height - 275 mm
Weight & dimensions - Package height - 335 mm
Weight & dimensions - Package weight - 59 kg
Weight & dimensions - Package weight - 101.5 kg
Weight & dimensions - Package width - 580 mm
Weight & dimensions - Package width - 590 mm
Weight & dimensions - Weight - 51.9 kg
Weight & dimensions - Weight - 91 kg
Weight & dimensions - Width - 440 mm
Weight, kg - 51.9
Width - 790.000000
Width, mm - 440
