Accessories included -
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - EDGE UPS 3KVA 230V 2U
ARTIKEL2 - .
Battery capacity - 10 Ah
Brand - Vertiv
BrandPartCode - EDGE-3000IRT2UXL
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 3 h
Chassis type - Tower
Color - Black
Description - Zasilacz bezprzewodowy UPS Vertiv EDGE-3000IRT2UXL
Vertiv EDGE to rodzina wysoce niezawodnych, wydajnych, łatwych w zarządzaniu i elastycznych liniowych, interaktywnych zasilaczy sinusoidalnych do krytycznych aplikacji rozproszonych i skrajnych centrów danych. Vertiv EDGE-3000IRT2UXL, w formacie 2U do montażu w szafie i wieży, oferuje 3000VA / 2700W zabezpieczenia zasilania rezerwowego dla serwerów i urządzeń sieciowych. Dzięki wysokiemu współczynnikowi mocy 0,9, sterowalnym gniazdom i szafom o wydłużonym czasie pracy, Vertiv EDGE jest opłacalnym wyborem dla rozproszonych i brzegowych aplikacji IT. Zalety: Wysoka wydajność: maksymalizacja mocy obciążeń IT, oszczędność energii w całym okresie eksploatacji Szeroki zakres współczynników kształtu i elastyczne opcje instalacji Zaawansowana ochrona baterii i funkcje optymalizacji czasu pracy Akumulatory wewnętrzne wymieniane podczas pracy - mniej przestojów Wytrzymuje wyższe temperatury pracy Niski dźwięk Zdalne monitorowanie i możliwości zarządzania
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - EN60020-1:2008+A1:2013
dimension depth - 240 mm
dimension height - 800 mm
Dimensions - 438 x 630 x 88 mm 2U
dimension weight - 35000 g
dimension width - 600 mm
ean - 767041031423
EANCode - 0767041031423
Environment requirements - Temperatura robocza: 0 - 40°C Wilgotność względna: 20% - 90% Temperatura przechowywania: od -25°C do +55°C bez wewnętrznego akumulatora
Features - Country of origin - China
Features - Input operation voltage (max) - 278 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Filters / protection - Overdischarge
Filters / protection - Surge
Filters / protection - Voltage drop
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 767041031423
GTIN - 0767041031423
guarantee - 36
guarantee_type - external
HERSTELLER - VERTIV
Hold-up time (maks) - 6 ms
HSTNUMMER - EDGE-3000IRT2UXL
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C20
Logistics data - Harmonized System (HS) code - 85078000

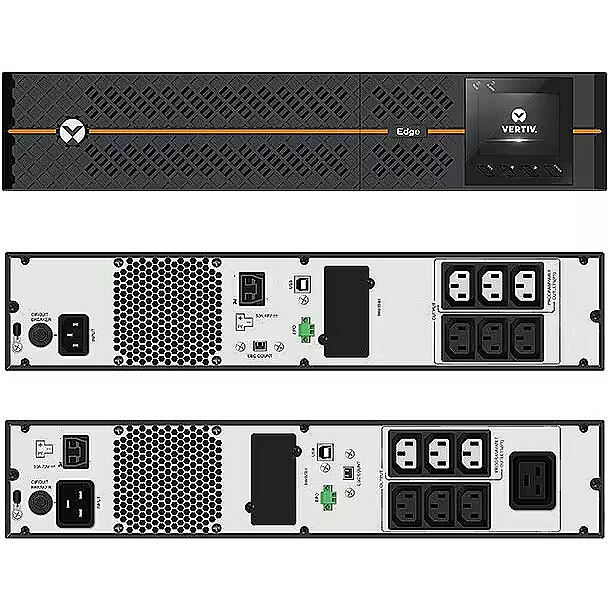

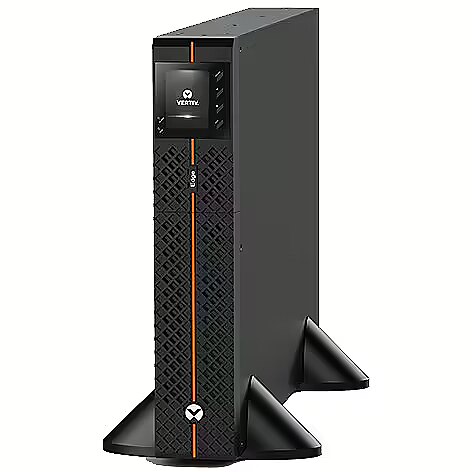

LongDesc - The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 3000VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen.
LongProductName - Edge UPS 3000VA 2700W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase |0.9 PF (EDGE-3000IRT2UXL)
LongSummaryDescription - Vertiv Liebert Edge Uninterruptible Power Supply (UPS) - 3000VA 2700W 230V 2U Line Interactive AVR Tower/Rack Mount. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 7 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 438 mm, Depth: 630 mm, Height: 88 mm
name - UPS EDGE 3000VA/2700W 6xC13,1xC19
No. of batteries - 6
Number of phases input - 1 (230V)
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Output power ports - 1 x IEC-C19
Output power ports - 6 x IEC-C13
Ports & interfaces - AC outlets quantity - 7 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
producer - Vertiv
ProductName - Vertiv Edge Uninterruptible Power Supply (UPS) - 3000VA 2700W 230V 2U Line Interactive AVR Tower/Rack Mount
ShortSummaryDescription - Vertiv Liebert Edge Uninterruptible Power Supply (UPS) - 3000VA 2700W 230V 2U Line Interactive AVR Tower/Rack Mount, Line-Interactive, 3 kVA, 2700 W, Pure sine, 278 V, 200 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Technical details - Compliance certificates - RoHS
Title - Vertiv Liebert Edge Uninterruptible Power Supply (UPS) - 3000VA 2700W 230V 2U Line Interactive AVR Tower/Rack Mount
UPS Architecture - line-interactive
URL - https://www.vertiv.com/en-emea/products-catalog/critical-power/uninterruptible-power-supplies-ups/edge-3000irt2uxl/
vendpn - EDGE-3000IRT2UXL
Voltage - 12 V
WarrantyInfo - 3-year
Weight - 32 kg
Weight & dimensions - Depth - 630 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 32 kg
Weight & dimensions - Width - 438 mm
